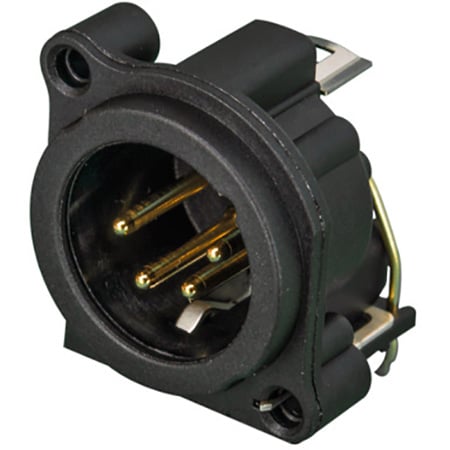

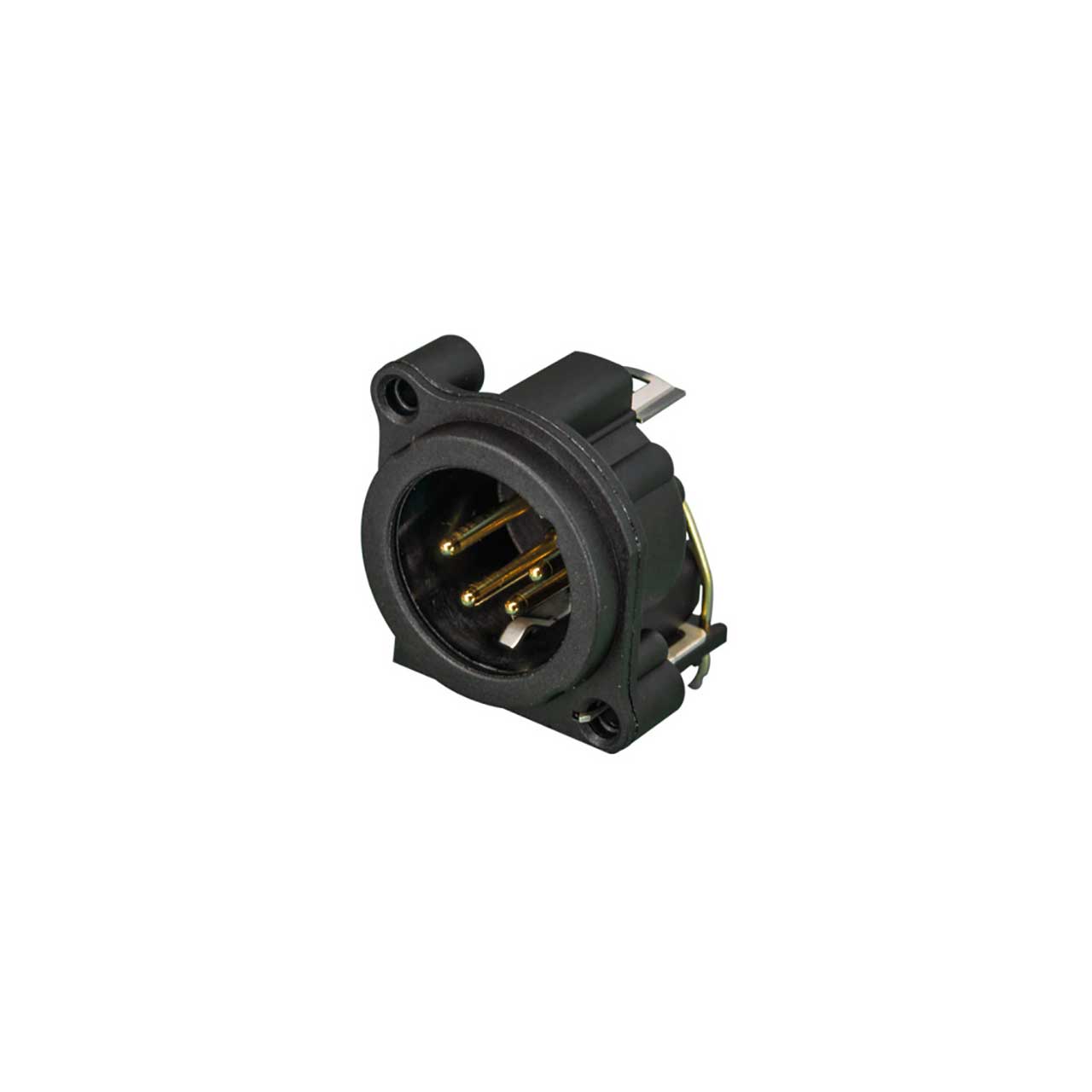

Neutrik NC4MAH 4-Pin XLR Male Horizontal PCB Mount Connector

ITEM #: NC4MAH MFG #: NC4MAH

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$4.08

Our Price:

$3.50

Availability: In Stock
iAvailability Description Popup


NC4MAH - Overview

4 pole male XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, horizontal PCB mount, color coding possible

The 'State of the Art' receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23 mm between centres). New designed fork type contacts with hard gold plating and polished contact areas. UL recognized component.

  • Features:

    • Smallest XLR receptacles, highest packing density
    • Plastic housing, steel latch lock
    • Polished contact areas and hard gold plating
    • Housing flammability UL94HB

  • Specifications:

    • Connection Type: XLR
    • Gender: male

    • Electrical
    • Capacitance between contacts: < 7 pF
    • Contact resistance: < 6 mΩ (inner)
    • Dielectric strength: 1,5 kVdc
    • Insulation resistance: > 10 GΩ (initial)
    • Rated current per contact: 6 A
    • Rated voltage: < 50 V
    • Grounding Options: Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1

    • Mechanical
    • Insertion force: < 20 N
    • Withdrawal force: < 20 N
    • Lifetime: > 1000 mating cycles
    • Wiring: Horizontal PCB mount
    • Locking device: Latch lock
    • Mounting direction: rear
    • Chassis shape: A
    • Mounting: A-Screw

    • Material
    • Contacts: Brass (CuZn35Pb2)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Flange: Black Plastic

    • Environmental
    • Flammability: UL 94 HB
    • Standard compliance: IEC 61076-2-103
    • Protection class: IP 40
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30 °C to +80 °C
