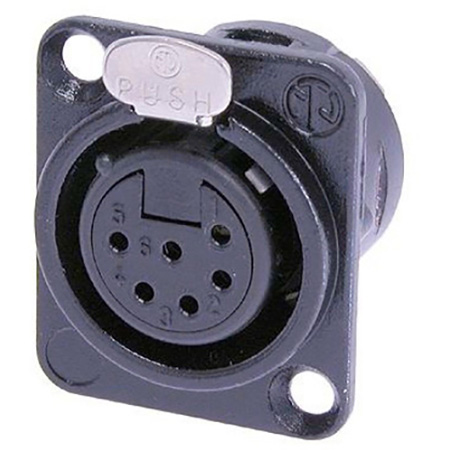

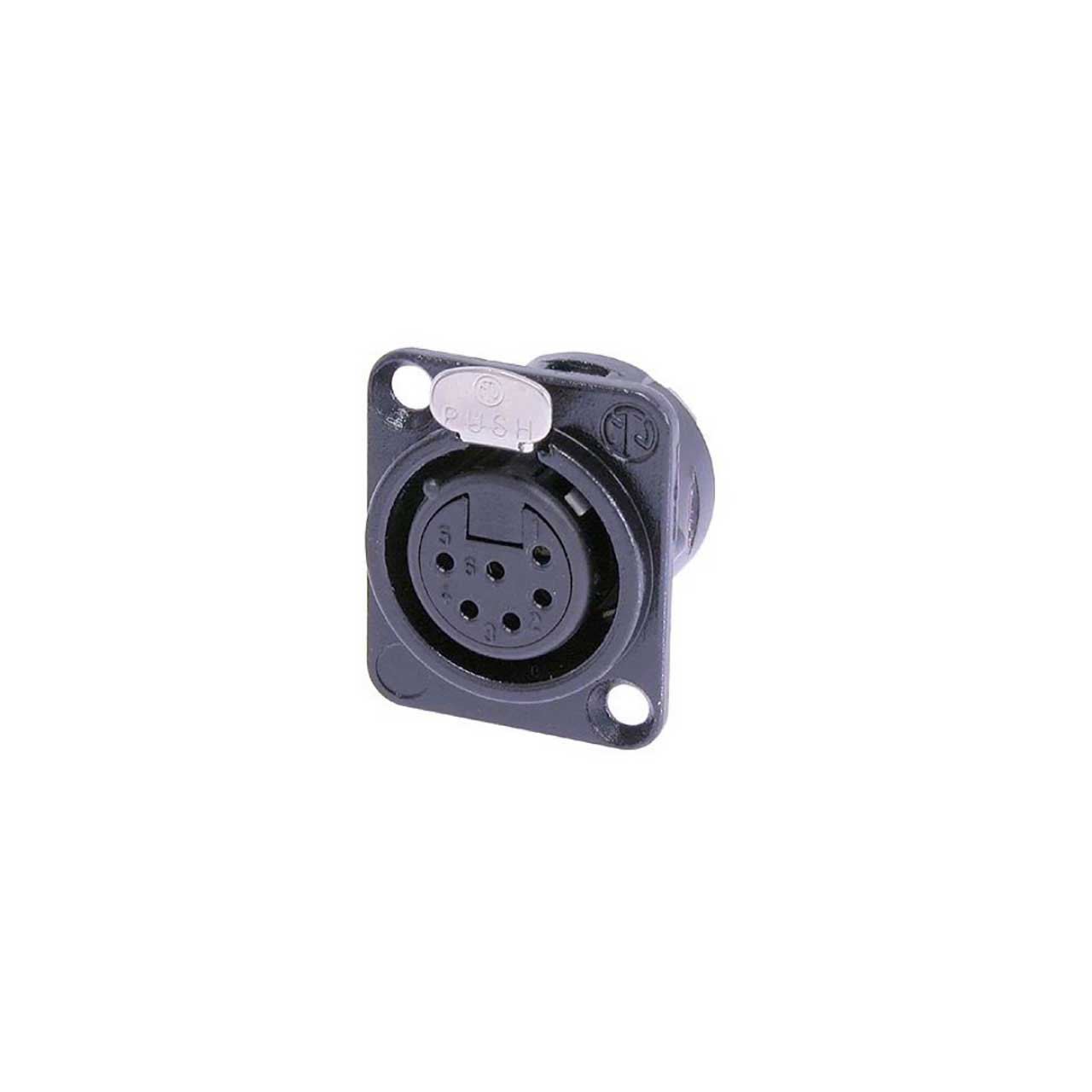

Neutrik NC6FSD-L-B-1 6-Pole Pin Female XLR Solder Cups with Switchcraft Pin Pattern - Black Metal Housing/Gold Contacts

NC6FSD-L-B-1 - Overview

• Features:

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Solder cups on 3 - 7 pole version


• Specifications:

  • Capacitance Between Contacts: = 7 pF
  • Contact Resistance: = 5 mΩ
  • Dielectric Strength: 1,5 kVdc
  • Insulation Resistance: > 10 GΩ (initial)
  • Rated Current Per Contact: 7,5 A
  • Rated Voltage: < 50 V
  • Insertion Force: = 20 N
  • Withdrawal Force: = 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 1.0 mm²
  • Wiresize: max. 18 AWG
  • Wiring: Solder contacts
  • Locking Device: Latch lock
  • Chassis Shape: D:
  • Contact Plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking Element: Steel Ck67
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell Plating: Black chromium
  • Approvals: UL
  • Flammability: UL 94 HB
  • Standard Compliance: IEC 61076-2-103
  • Protection Class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature Range: -30 °C to +80 °C


• Item Includes:

  • 1x Neutrik NC6FSD-L-B-1 6S Pin Female XLR Solder Cups - Black/Gold
