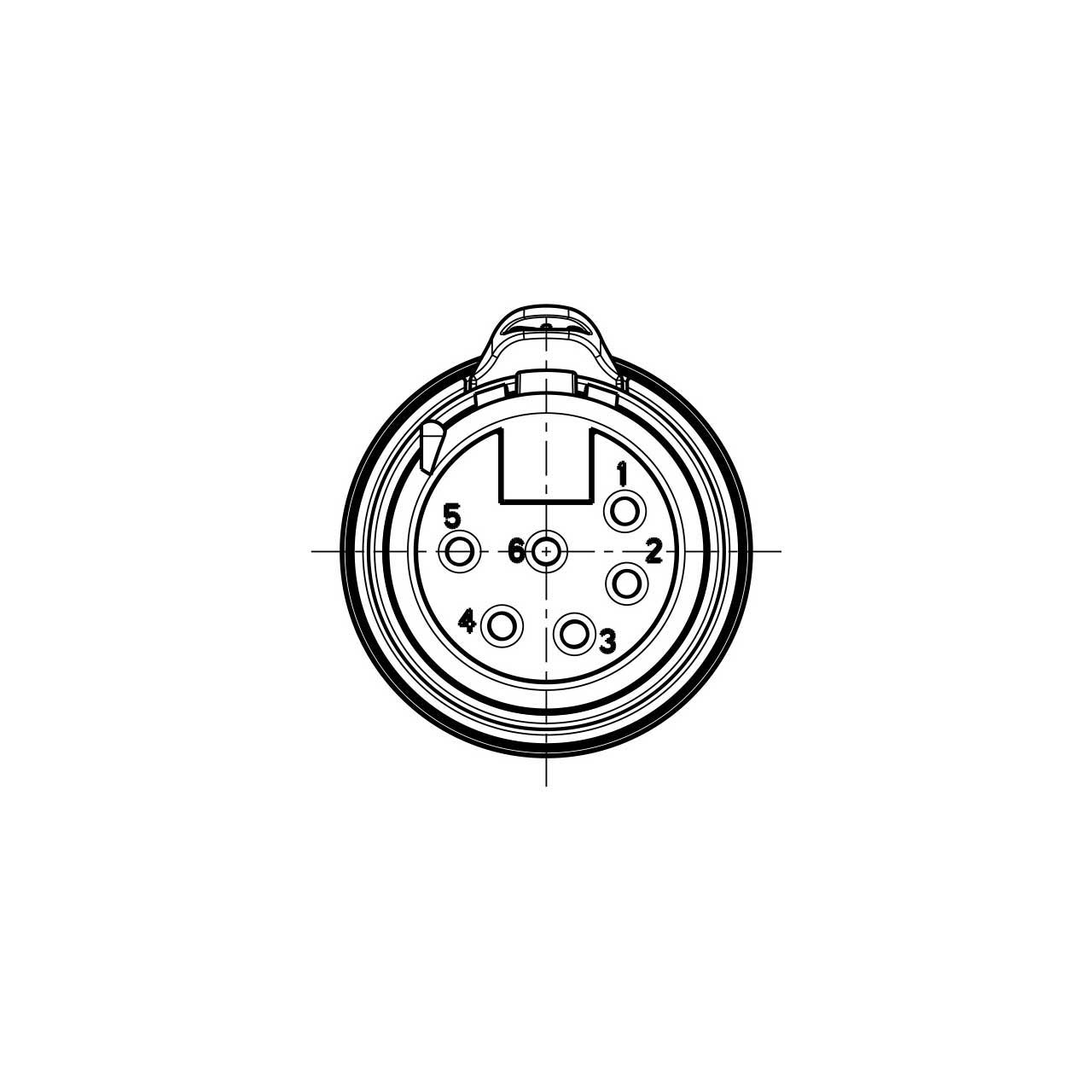

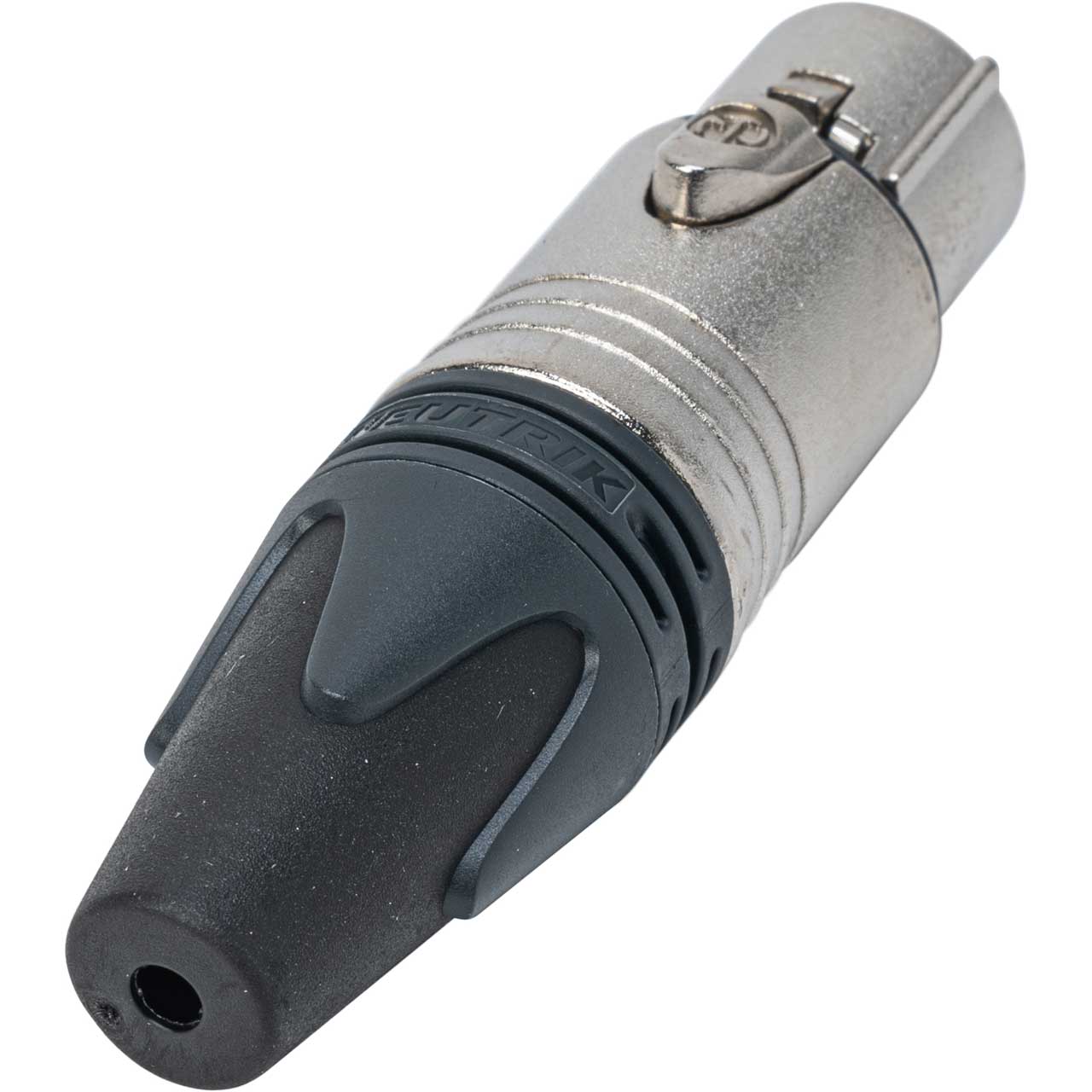

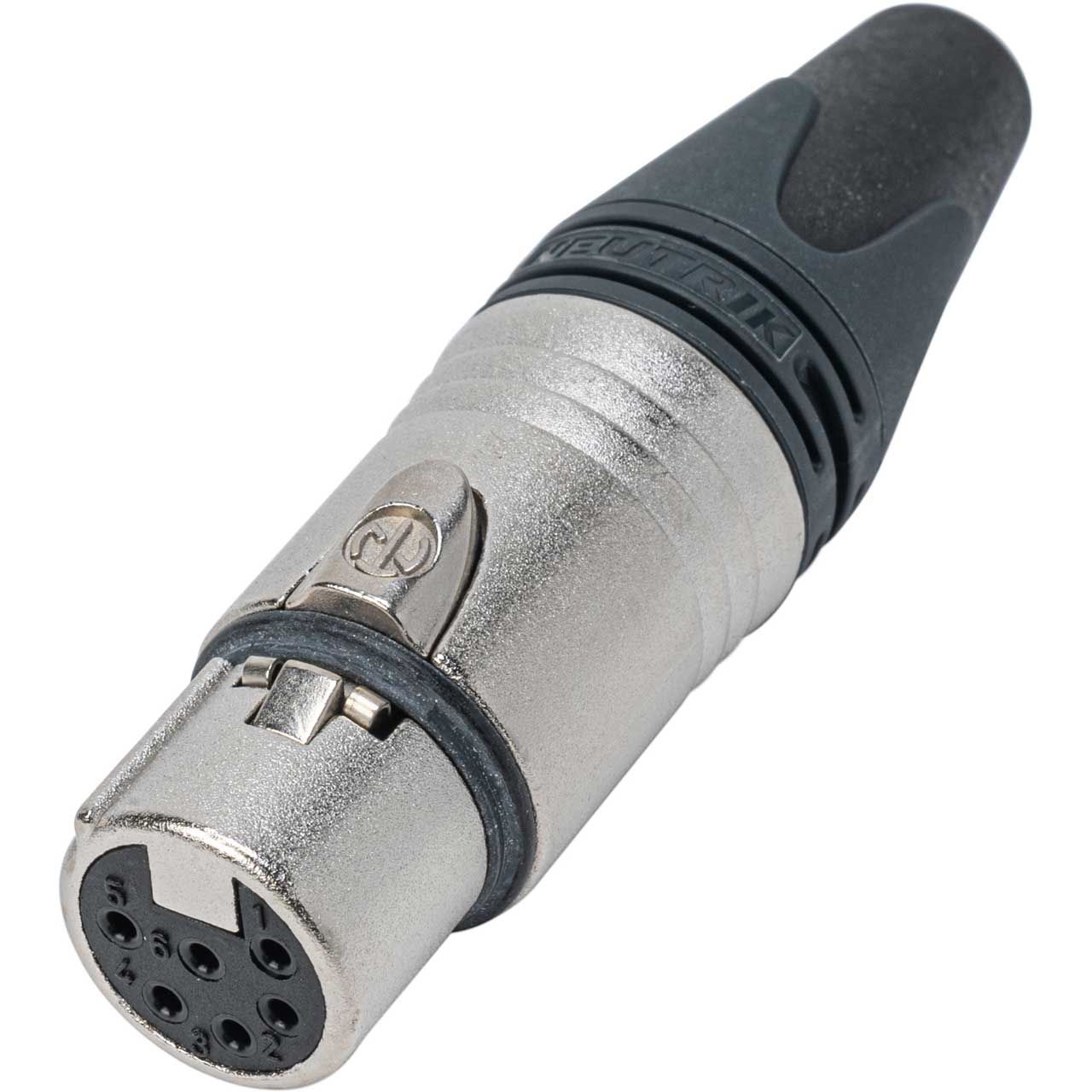

Neutrik NC6FXX 6 Pole Female XLR Cable Connector with Nickel Housing and Silver Contacts

ITEM #: NC6FXX MFG #: NC6FXX

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$10.20

Our Price:

$8.74

Availability: In Stock
iAvailability Description Popup


NC6FXX - Overview

Neutrik NC6FXX is a 6 pole female cable connector with nickel housing and silver contacts.The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

  • Features:

    • Unique cage design of female contact for low contact resistance and high integrity
    • Female connector with improved solid metal latch which is larger and easier to handle
    • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
    • Colored rings and boots available for coding or identification
    • Rugged zinc diecast shell, longlasting and dependable
    • Branded with unique hologram - guarantees genuine and authentic Neutrik product
    • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
    • Additional ground spring contacts for better shell ground continuity
    • Boot with polyurethane gland gives high protection to cable bending stresses
    • Sleek and ergonomic design - valuable and handy
    • Internal thread on shell is well protected against any damage

  • Specifications:

    • Connection Type: XLR
    • Gender: female

      Electrical
    • Capacitance between contacts: ≤ 7 pF
    • Contact resistance: ≤ 3 mΩ
    • Dielectric strength: 1,5 kVdc
    • Insulation resistance: > 10 GΩ (initial)
    • Rated current per contact: 7,5 A
    • Rated voltage: < 50 V

      Mechanical
    • Cable O.D.: 3.5 - 8.0 mm
    • Insertion force: ≤ 20 N
    • Withdrawal force: ≤ 20 N
    • Lifetime: > 1000 mating cycles
    • Wiresize: max. 1.0 mm²
    • Wiresize: max. 18 AWG
    • Wiring: Solder contacts
    • Locking device: Latch lock

      Material
    • Boot: Polyurethan
    • Contact plating: 2 µm Ag over 2 µm Ni
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Nickel
    • Strain relief: Polyacetal (POM)

      Environmental
    • Flammability: UL 94 HB
    • Standard compliance: IEC 61076-2-103
    • Protection class: IP 40
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30 °C to +80 °C

  • GTIN:

    7613187000096
