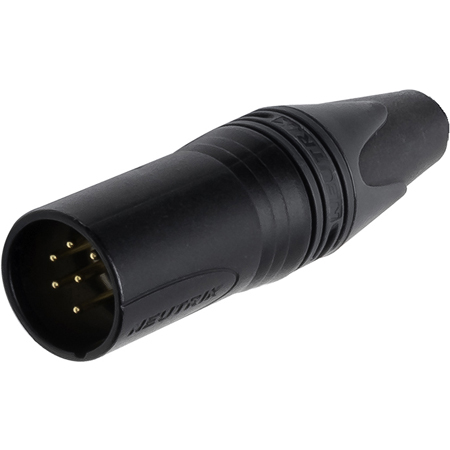

Neutrik NC6MSXX-B 6 Pole XLR Male with Switchcraft Pin Layout - Black/Gold

ITEM #: NC6MSXX-B MFG #: NC6MSXX-B

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$9.18

Our Price:

$7.87

Availability: In Stock
iAvailability Description Popup


    NC6MSXX-B - Overview

    The Neutrik NC6MSXX-B 6 pole male cable connector a black housing and gold pins. Equivalent to Switchcraft pin layout. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

    Please Note: Due to regulatory restrictions, Neutrik black chrome plating is no longer available. The new KTL black coating is fully isolating to meet RoHS and REACH requirements.

    If you require conductivity, please choose nickel-plated versions.

    • Features:

      • Male connector with improved locking recess without "window", more stringent housing increases durability
      • Improved chuck type strain relief provides higher pull- out force and makes assembly easier and faster
      • Boot with polyurethane gland gives high protection to cable bending stresses
      • Colored rings and boots available for coding or identification
      • Sleek and ergonomic design - valuable and handy
      • Rugged zinc diecast shell, longlasting and dependable
      • Internal thread on shell is well protected against any damage
      • Branded with unique hologram - guarantees genuine and authentic Neutrik product

    • Specifications:

      • Electrical
      • Capacitance Between Contacts: = 7 pF
      • Contact Resistance: = 3 mΩ
      • Dielectric Strength: 1,5 kVdc
      • Insulation Resistance: > 2 GΩ (initial)
      • Rated Current per Contact: 7,5 A
      • Rated Voltage: < 50 V

        Mechanical
      • Cable O.D.: 3.5 - 8.0 mm
      • Insertion Force: = 20 N
      • Withdrawal Force: = 20 N
      • Lifetime: > 1000 mating cycles
      • Wiresize max.: 1.0 mm Wiresize max. 18 AWG
      • Wiring: Solder contacts
      • Locking Device: Latch lock
      • Equivalent: Switchcraft pin arrangement

        Material
      • Boot: Polyurethan
      • Contact Plating: 2 um Ag over 2 um Ni
      • Contacts: Brass (CuZn39Pb3)
      • Insert: Polyamide (PA 6.6 30 % GR)
      • Locking Element: Zinc diecast (ZnAl4Cu1)
      • Shell: Zinc diecast (ZnAl4Cu1)
      • Shell Plating: Nickel
      • Strain Relief: Polyacetal (POM)
