Neutrik NC6MSXX 6 Pole XLR Male with Switchcraft Pin Layout - Nickel/Silver

ITEM #: NC6MSXX MFG #: NC6MSXX

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$7.85

Our Price:

$6.73

Availability: In Stock
iAvailability Description Popup


NC6MSXX - Overview

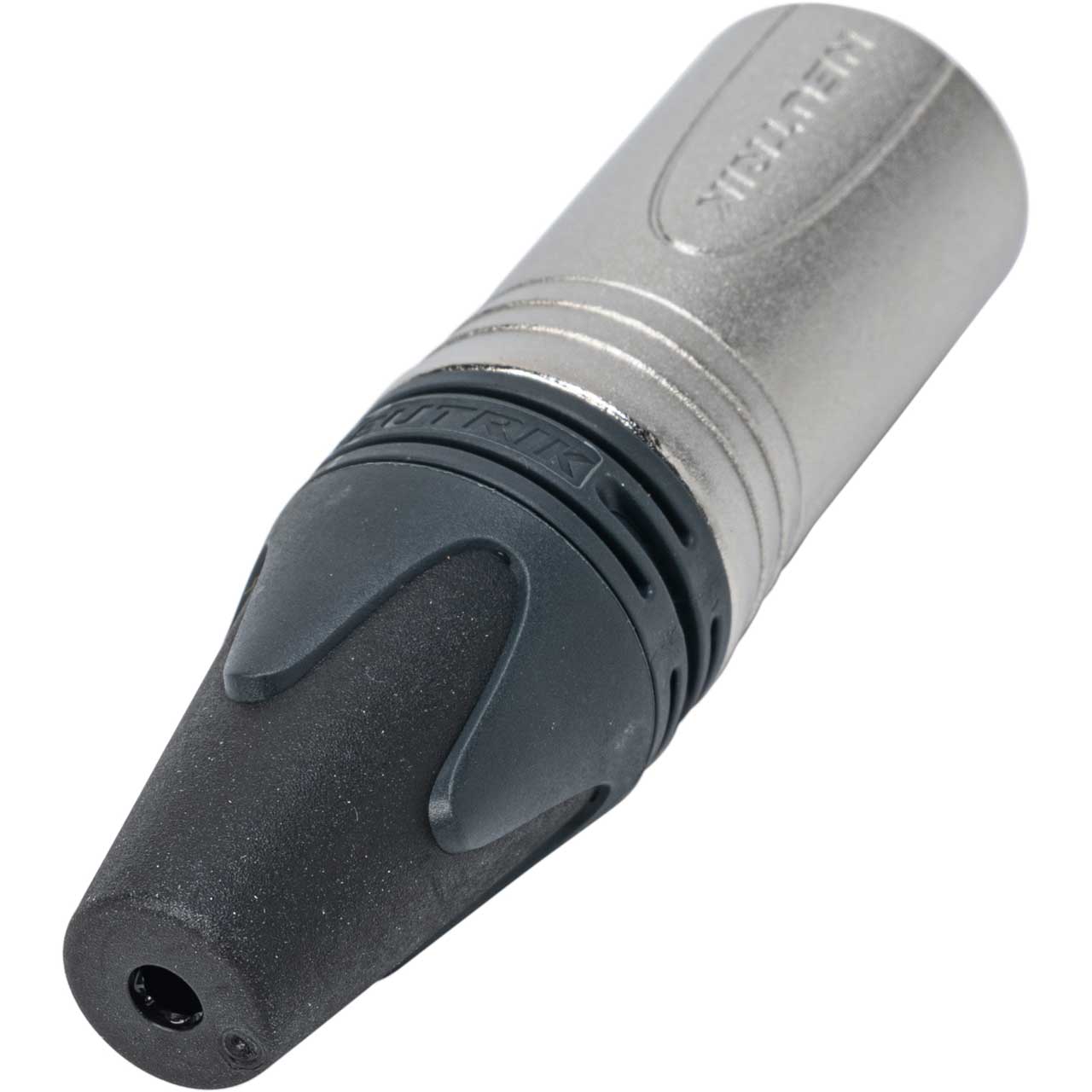

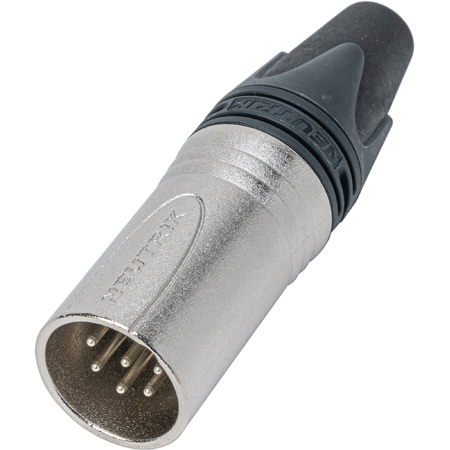

The Neutrik NC6MSXX is a 6-pole male XLR cable connector with Nickel housing and silver contacts. It is equivalent to a Switchcraft pin layout.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

  • Features:

    • Male connector with improved locking recess without "window", more stringent housing increases durability
    • Boot with polyurethane gland gives high protection to cable bending stresses
    • Sleek and ergonomic design - valuable and handy
    • Internal thread on shell is well protected against any damage
    • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
    • Colored rings and boots available for coding or identification
    • Rugged zinc diecast shell, longlasting and dependable

  • Specifications:

    • Electrical
    • Capacitance Between Contacts: ≤7 pF
    • Contact Resistance: ≤3mΩ
    • Dielectric Strength: 1,5 kVdc
    • Insulation Resistance: >2GΩ (initial)
    • Rated Current per Contact: 7,5A
    • Rated Voltage: <50V

      Mechanical
    • Cable O.D.: 3.5mm - 8.0mm
    • Insertion Force: ≤20 N
    • Withdrawal Force: ≤20 N
    • Lifetime: >1000 mating cycles
    • Wiresize: Max. 1.0mm²
    • Wiresize: Max. 18 AWG
    • Wiring: Solder contacts
    • Locking Device: Latch lock
    • Equivalent: Switchcraft pin arrangement

      Material
    • Boot: Polyurethan
    • Contact Plating: 2µm Ag over 2µm Ni
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Locking Element: Zinc diecast (ZnAl4Cu1)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell Plating: Nickel
    • Strain Relief: Polyacetal (POM)

      Environmental
    • Flammability: UL 94 HB
    • Standard Compliance: IEC 61076-2-103
    • Protection Class: IP 40
    • Solderability: Complies with IEC 68-2-20
    • Temperature Range: -22°F - 176°F (-30°C - 80°C)

  • GTIN:

    7613187000997
