NTI ENVIROMUX MICRO-TRH-TAA Micro Environment Monitoring System w/ Power Supply - Integrated Temp/Humidity Sensor - TAA

E-MICRO-TRH-TAA - Overview

• Features:

  • Sensors supported by a single E-MICRO:
  • 1 integrated temperature/humidity combination sensor
  • 2 RJ45 ports for external temperature/humidity sensors
  • 2 digital inputs sensitive to contact closure.
  • Dual DC power provides dual redundancy.
  • Available with optional built-in Power over Ethernet.
  • Sensors are hot pluggable.
  • Monitor (ping) up to 4 IP network devices - alerts are sent if devices are not responding.
  • Create multiple alerts for any installed sensor.
  • Sensor conditions can be configured to trigger alerts by themselves, and/or be used in combination with other alerts to trigger one Smart Alert.
  • Configure up to 32 alerts, and one Smart Alert.
  • Alerts are posted in message log, which is accessible through Web user interface.
  • Supports NTI's IP network video cameras for live view of any facility.
  • Integrates with various Open Source SNMP monitoring packages - Nagios.
  • The unit can be polled via SNMP.
  • Optional intuitive graphical management software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX units and all connected sensors.
  • Choose between Enterprise Management Software or Low-Cost Management Software.
  • Optional iOS App or Android App provides an easy-to-use interface for monitoring sensor statuses and acknowledging/dismissing sensor alerts from an unlimited number of E-MICRO units.
  • Security: HTTPS, TLS v1.2, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights.
  • Integrated mounting brackets for easy surface/wall mounting.
  • Optional DIN mounting available.
  • Use in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area that needs to be monitored.
  • Use the E-MICRO-TRH(P) with a wireless router and Wi-Fi Range Extender to create a Wireless Environment Monitoring System.
  • Configure, monitor, and receive alerts without the use of a wired network connection.


• Specifications:

  • RJ45 Sensor Ports
  • Two RJ45 modular jacks for connecting temperature sensors or combined temperature/humidity sensors.
  • Three levels of user-defined alerts - normal, warning, critical.

    Dry Contact Closures
  • Two screw terminal pairs for connecting dry contact devices and the liquid detection sensor.

    USB Port
  • One female Micro USB connector - reserved for future use.

    Ethernet Port
  • One female RJ45 connector.
  • 10/100 Base-T Ethernet interface.

    Protocols
  • HTTP/HTTPS, SNMP V1/V2c/V3, SMTP, TCP/IP, Syslog, SNTP, DHCP, TLS v1.2, AES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour.
  • Compatible with any SNMP management software.
  • The unit can be polled via SNMP.
  • Operates and configures via HTTP/HTTPS web page.
  • Supports Microsoft Edge, Internet Explorer 6.0 and higher, Firefox 1.5 and higher, Google Chrome, and Safari 1.3 and higher (for MAC).
  • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11/12.
  • An IP address can be assigned to the E-MICRO automatically by a DHCP server.
  • Generates SNMP traps, email alerts, syslog messages, and SMS messages (via email-to-SMS).
  • Alerts are posted in event log, which is accessible through Web user interface.
  • Email alerts can be sent to 9 addresses.
  • Users can configure the schedule for when they will be alerted.
  • Supports HTTP REST API to poll sensor data with response in JSON format.

    Integrated Temperature/Humidity Sensor
  • Applications from -4 to 167°F and 0 to 90% relative humidity.
  • Temperature accuracy - (in moving air - minimum airflow 8.2 ft/s (2.5 m/s)): ±1.44°F for -4 to 41°F. ±0.72°F for 41 to 140°F. ±1.62°F for 140 to 167°F.
  • Resolution: 0.2°F.
  • Humidity accuracy (at 77°F): 0 to 10% RH: ±5%, 10 to 20% RH: ±4%, 20 to 80% RH: ±3%, 80 to 90% RH: ±4%

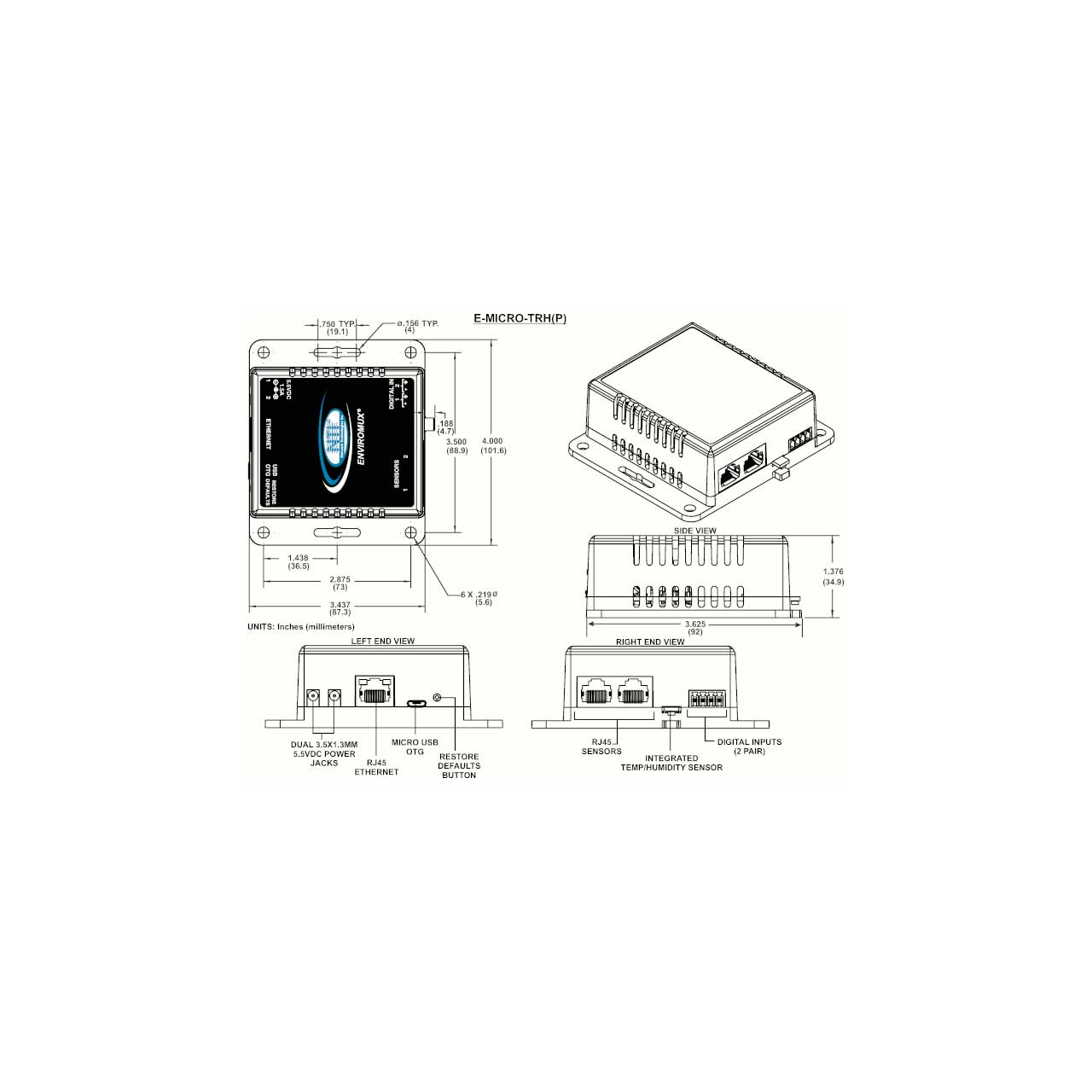

  • Dimensions: WxDxH in (all options): 4 x 3.44 x 1.37". Includes mounting holes to match rack hole spacing.
  • Power E-MICRO-TRH: Dual DC power provides dual redundancy. If the first power source fails, the unit will automatically, without interruption, switch over to the second power source.
  • 100 to 240 VAC at 50 or 60 Hz via AC adapter.
  • Includes one country-specific AC adapter. The second AC adapter is sold separately (PWR-SPLY-ELC).
  • Input voltage: 5.5VDC ±5%
  • Power consumption: 4W max.

    Power
  • Dual DC power provides dual redundancy.
  • If the first power source fails, the unit will automatically, without interruption, switch over to the second power source.
  • The unit draws power from the source with the highest DC voltage (nominal 5.5V).
  • If both sources have exactly the same voltage, it will draw in part from each of them.
  • 100 to 240 VAC at 50 or 60 Hz via AC adapter.
  • Includes one country-specific AC adapter. The second AC adapter is sold separately (PWR-SPLY-ELC).
  • Input voltage: 5.5VDC ±5%
  • Power consumption: 4W max.

    MTBF
  • E-MICRO-TRH: 628,394 hours
  • E-MICRO-TRHP: 577,812 hours

    Environmental
  • Operating & Storage Temperature: -4 to 167°F
  • Operating & Storage Relative Humidity: 0 to 90% non-condensing RH.

    Regulatory Approvals
  • CE, RoHS.


• Item Includes:

  • 1x NTI ENVIROMUX MICRO-TRH-TAA Micro Environment Monitoring System w/ Power Supply - Integrated Temp/Humidity Sensor - TAA


• Warranty:

  • Two years
