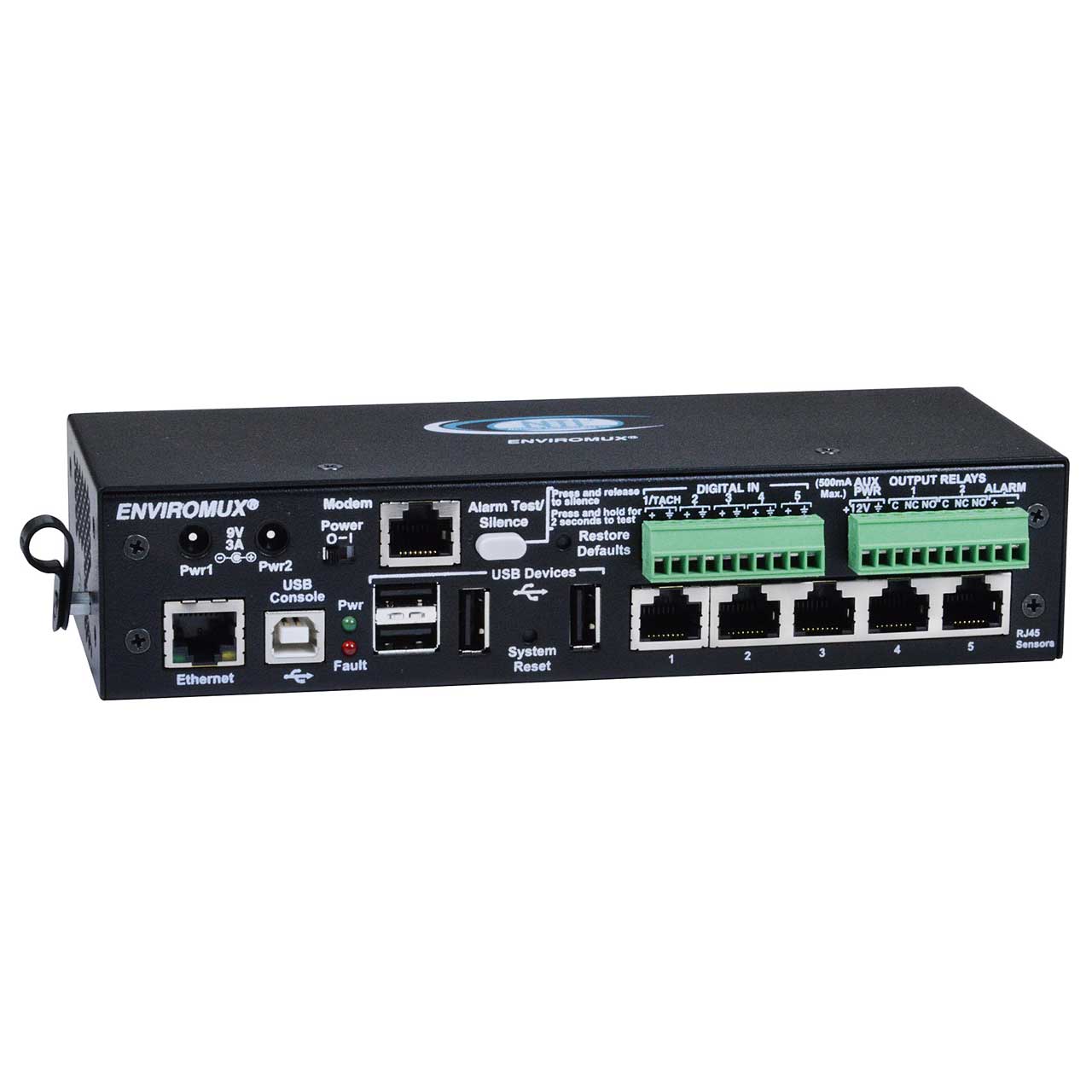

NTI ENVIROMUX-5D Medium Enterprise Environment Monitoring System

ENVIROMUX-5D - Overview

• Features:

  • Sensors supported:
  • 5 external configurable sensors
  • 5 digital inputs sensitive to contact closure
  • 8 Remote Temperature/Humidity Sensors over IP
  • ENVIROMUX-MICRO-T: 1 integrated temperature sensor, 2 RJ45 ports for external temperature/humidity sensors, 2 digital inputs sensitive to contact closure, dual DC power (dual redundancy)
  • ENVIROMUX-MICRO-TRHP: 1 integrated temperature/humidity combination sensor, 2 RJ45 ports for external temperature/humidity sensors, 2 digital inputs sensitive to contact closure, built-in Power over Ethernet (POE), dual DC power (triple redundancy)
  • 2 internal sensors - temperature and humidity
  • Two output relays for control of external devices
  • Supports IP network video cameras for live view of any facility. Any programmed event can trigger a snapshot from an IP camera
  • Monitor (ping) up to 64 IP network devices
  • Linux inside
  • Create multiple alerts for any installed sensor
  • Sensor conditions (events) can be configured to trigger alerts by themselves, and/or be used in combination with other events to trigger Smart Alerts
  • Alerts are posted in message log, which is accessible through Web user interface
  • Automatically configures network settings received from a connected DHCP server
  • Integrates with various Open Source monitoring packages – Nagios and MRTG
  • USB ports for connecting USB modem or for downloading log data to USB flash drive
  • Dual redundant power supplies for connection to two separate power sources
  • Up to five units can be used together to increase the number of sensors connected
  • Optional intuitive graphical management software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX-2D/5D/16D, ENVIROMUX-SEMS-16(U), IPDU-S4/8 units and all connected sensors
  • Flexible Zero-RU mounting
  • Security: HTTPS, SSHv2, SSLv3, IP Filtering, LDAPv3, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights
  • Use in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area that needs to be monitored


• Specifications:

  • RJ45 Sensor Ports
  • Five RJ45 modular jacks for connecting NTI temperature, humidity, temperature/humidity, liquid detection, smoke detection, glass break, vibration and motion sensors
  • Two levels of user-defined alerts – non-critical and critical
  • Provides +12 VDC, 100 mA for each port


  • Digital Inputs
  • Five screw terminal pairs for connecting dry contact devices
  • Potential-free
  • Input voltage: 0VDC to +25VDC
  • Over-voltage surge protection
  • Maximum resistance to close contact: 300K Ohm


  • Output Relays
  • Two screw terminals pairs
  • Potential-free relay switch contacts
  • Normally open / normally closed connection points
  • Maximum switching load: 0.5A at 125VAC, 1A at 30VDC, 0.5A at 48VDC


  • Alarm Port
  • One screw terminal pair
  • Provides +12VDC, 180 mA to supply an alarm beacon or siren
  • Fuse protection


  • AUX Power
  • One screw terminal pair
  • Provides +12 VDC, 500 mA


  • RS232 AUX Port
  • One RJ45 port for connecting a serial GSM modem or a remote serially-controlled device


  • USB Device Ports
  • Four female USB Type A connectors for connecting USB modem or for downloading log data to USB flash drive


  • USB Console Port
  • One female USB Type B connector for connecting a PC for serial terminal access


  • Ethernet Port
  • One 10/100 Base-T Ethernet port with RJ45 Ethernet connector
  • Supports full- and half-duplex


  • Power
  • Dual DC power
  • If the first power source fails, the unit will automatically, without interruption, switch over to the second power source
  • 100 to 240 VAC at 50 or 60 Hz via AC adapter
  • Includes one country-specific AC adapter. The second AC adapter is sold separately
  • Power Consumption: 15W


  • MTBF
  • ENVIROMUX-5D: 57,846 hours


  • Protocols
  • HTTP/HTTPS, SNMP V1/V2c/V3, SMTP, TCP/IP, Syslog, SNTP, DHCP, SSHv2, SSLv3, LDAPv3, XOAUTH2, AES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour, IPV6, WAP 2.0
  • Support for XOAUTH2 provides higher security authentication for email accounts (e.g. Gmail)
  • Compatible with any SNMP management software
  • The unit can be polled via SNMP
  • Operates and configures via HTTP/HTTPS web page, Telnet, SSH, or USB/RJ45 serial interface
  • An IP address can be assigned to the ENVIROMUX-5D automatically by a DHCP server
  • Generates SNMP traps, email alerts, syslog messages, and SMS messages (via USB 3G modem)
  • Alerts are posted in event log, which is accessible through Web user interface.
  • Email alerts can be sent to 17 addresses
  • Users can configure the schedule for when they will be alerted, as well as customize the e-mail subject line for each sensor alert
  • SNMP traps have unique OID's (Object Identifiers) for each sensor


  • Internal Temperature Sensor
  • Applications from:
  • ENVIROMUX-5D: 32 to 140°F (0 to 60°C)
  • Accurate to within +/-1.35°F (+/-0.75°C)


  • Internal Humidity Sensor
  • Applications from 20% to 80% relative humidity at:
  • ENVIROMUX-5D: 32 to 140°F (0 to 60°C)
  • Accurate to within +/-5% relative humidity


  • Environmental
  • Operating temperature: 32 to 140°F (0 to 60°C)
  • Storage temperature: -22 to 140°F (-30 to 60°C)
  • Operating /Storage Relative Humidity: 17 to 90% non-condensing RH
  • Dimensions WxDxH: 7.88x3x1.75 in (200x76x44 mm)
  • Weight: 1.0 lb (0.45 kg)
  • Regulatory Approvals: CE, RoHS.


• Item Includes:

  • 1x ENVIROMUX-5D Medium Enterprise Environment Monitoring System
  • 1x country-specific power cord
  • 1x 2-meter USB 2.0 male type-A to male type-B transparent cable
  • 1x DB9 female to RJ45 female adapter
  • 1x DB9 male to RJ45 female adapter
  • 1x 5-ft RJ45 to RJ45 CAT5 super flat patch cable
  • 1x rack mount kit
  • 1x CD that contains the manual, Quick Start Guide, an SNMP MIB file, and the NTI Discovery Tool


• Warranty:

  • 2 years
