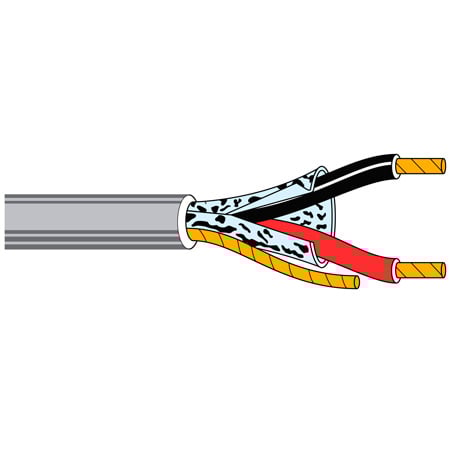

Belden 5300FE Riser/CMR Security & Sound Commercial Audio Cable Shielded/BC 2x18 AWG - Gray - 1000 Ft

5300FE 0081000 - Overview

• Features:

  • Easy Pulling & Stripping: Belden's quality jacketing saves installation time and money
  • Solid Construction: Features electrolytic tough pitch (ETP) virgin copper
  • Easy Identification: Cable jackets feature footage room and zone markings


• Specifications:

  • Number of Conductors: 2
  • Total Number of Conductors: 2
  • AWG: 18
  • Stranding: 7
  • Conductor Material: BC - Bare Copper
  • Insulation Material: PVC - Polyvinyl Chloride
  • Outer Shield Material Trade Name: Beldfoil
  • Outer Shield Material: Aluminum Foil-Polyester Tape
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Plenum (Y/N): N
  • Plenum Number: BL-6300FE
  • Nom. Conductor DCR: 6.5 Ohm/1000ft
  • Nom. Capacitance Cond-to-Cond: 53 pF/ft
  • Nom. Capacitance Cond-to-Other (Conds + Shield): 95.5 pF/ft
  • Max. Current: 5 Amps per conductor @ 25°C
  • Nom Outer Shield DCR: 16.25 Ohm/1000ft
  • UL Voltage Rating: 300 V (CMR)
  • UL Rating Temp: 75°C
  • Operating Temp: -20°C to +75°C
  • Max. Pull Tension: 58 lbs
  • Bulk Cable Weight: 18 lbs/1000ft
  • Environmental Suitability: Indoor - Riser, Indoor
  • Flammability / Fire Resistance: UL1666 Riser, FT4, IEC 60332-1-2
  • NEC / UL Compliance: Article 800, CMR
  • CEC / C(UL) Compliance: CMG


• Item Includes:

  • 5300FE Riser/CMR Security & Sound Commercial Audio Cable 2x18 AWG - Gray - 1000 Ft


• Warranty:

  • 10 Year Limited Warranty


• GTIN:

  0612825158967
