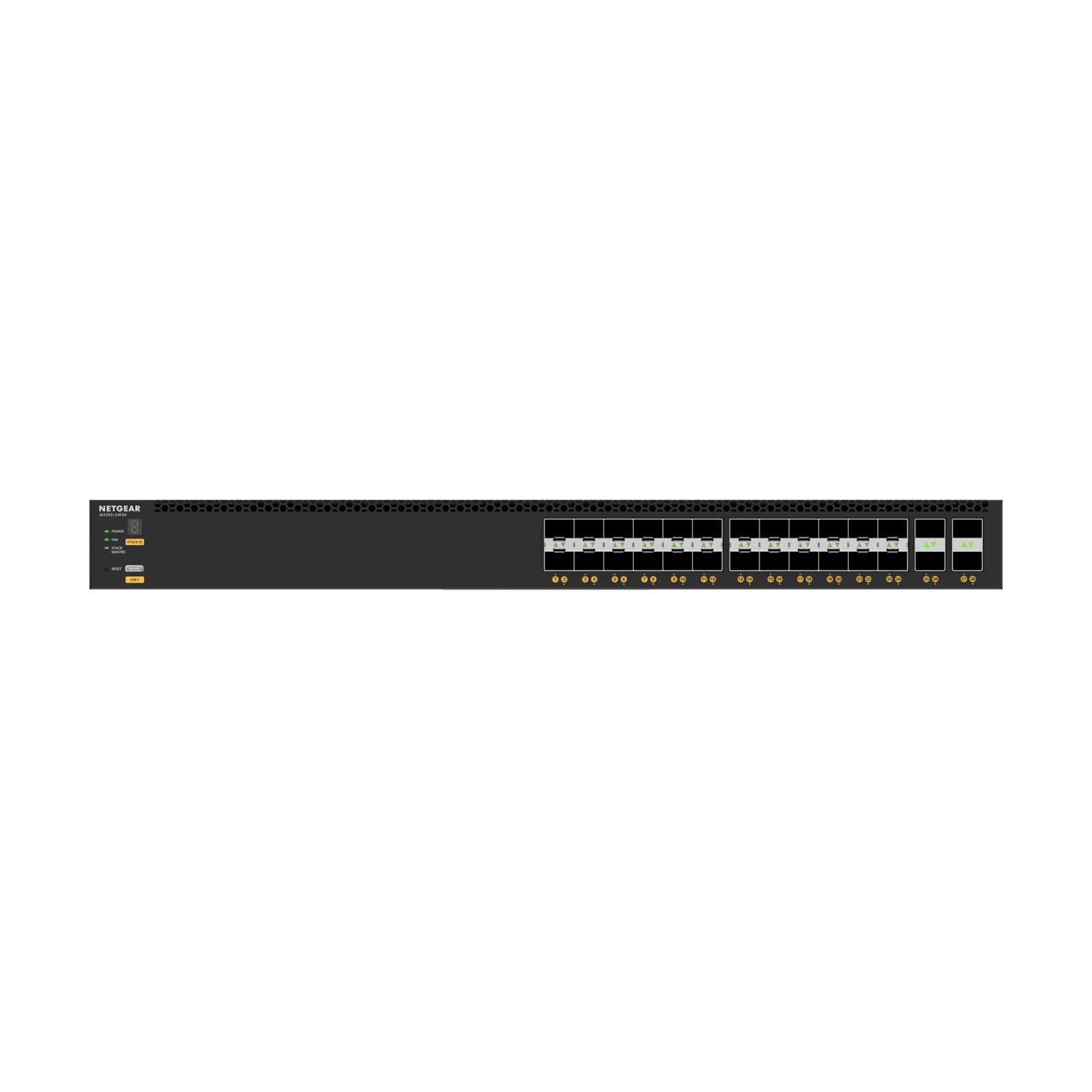

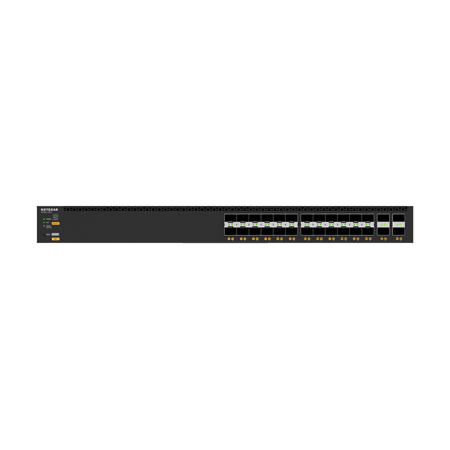

Netgear AV Line M4350-24F4V 24xSFP+ and 4xSFP28 25G Fully Managed Switch

ITEM #: NG-XSM4328FV MFG #: XSM4328FV

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$4,679.79

Our Price:

$2,999.99

Availability: In Stock
iAvailability Description Popup


XSM4328FV - Overview

The Netgear XSM4328FV is a fully managed switch designed for AV over IP out of the box. With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Fast, Easy Configuration for AV Pros
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 switches.

Power and Throughput
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

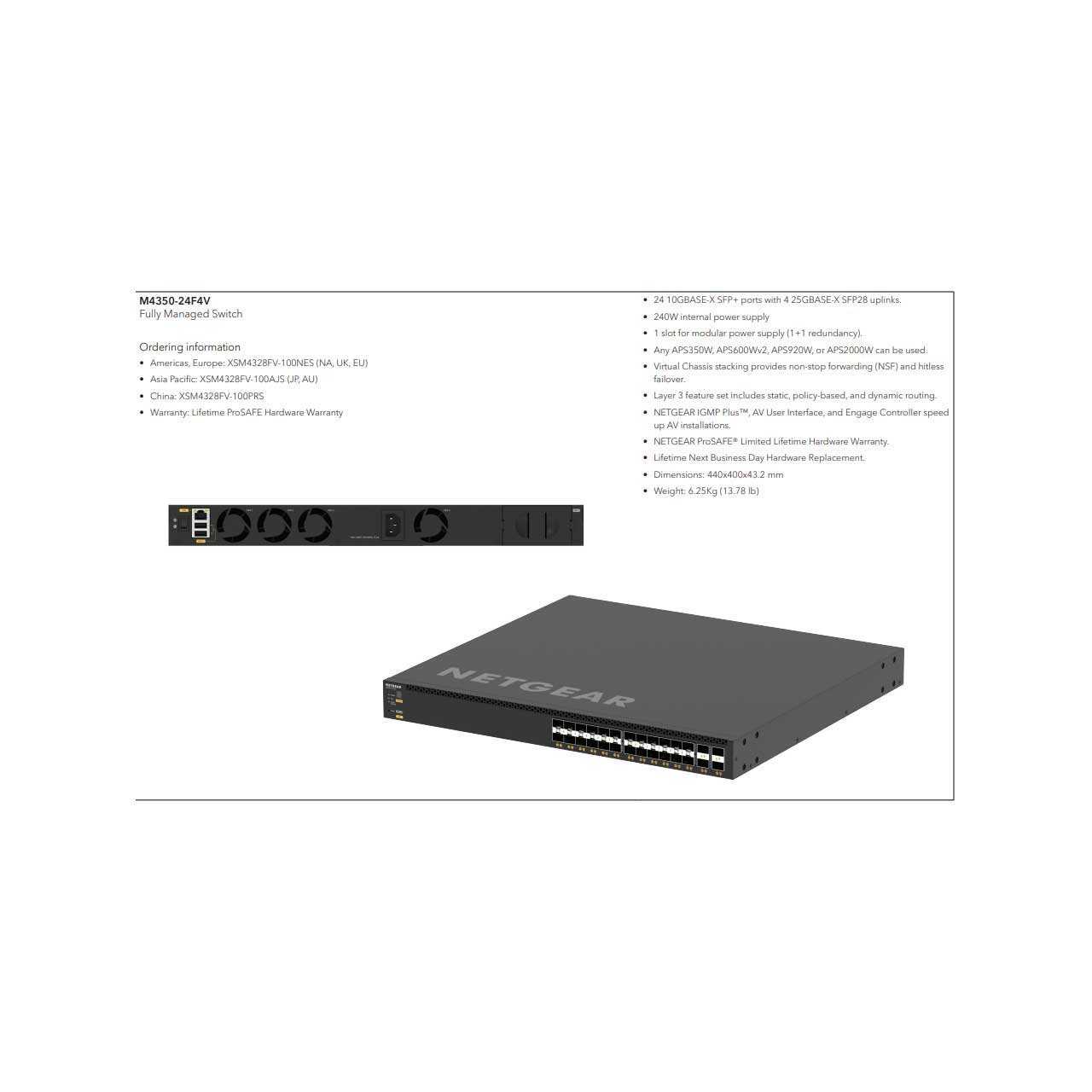

  • Features:

    • 24 10GBASE-X SFP+ ports with 4 25GBASE-X SFP28 uplinks
    • 240W internal power supply
    • 1 slot for modular power supply (1+1 redundancy)
    • Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
    • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
    • Layer 3 feature set includes static, policy-based, and dynamic routing

  • Specifications:

    • Primary Port Speed: 10 Gigabit
    • Number of Ports: 28 (24 x 10G SFP+, 4 x 25G SFP28)
    • PoE Ports / Budget: N/A
    • IGMP Support: Enhanced (NETGEAR IGMP Plus™)
    • Jumbo Frame Support: Yes, up to 12kb
    • AVB Support: Yes, included
    • Acoustics: Quiet Mode 34.2dB@25°C
    • Power Consumption:
      119.3W/374.6Btu/hr
      Standby without any port connection: 45.2W/141.93Btu/hr

  • Item Includes:

    • 1x M4350-24F4V (XSM4328FV)
    • 1x Power cord(s)
    • 1x Console USB Type-C
    • 1x Rack-mounting standard bracket set
    • 1x Set of longer brackets for recessed mounting
    • 4x Rubber footpads for tabletop installation
    • 1x Installation guide

  • Warranty:

    • Lifetime with Registration
