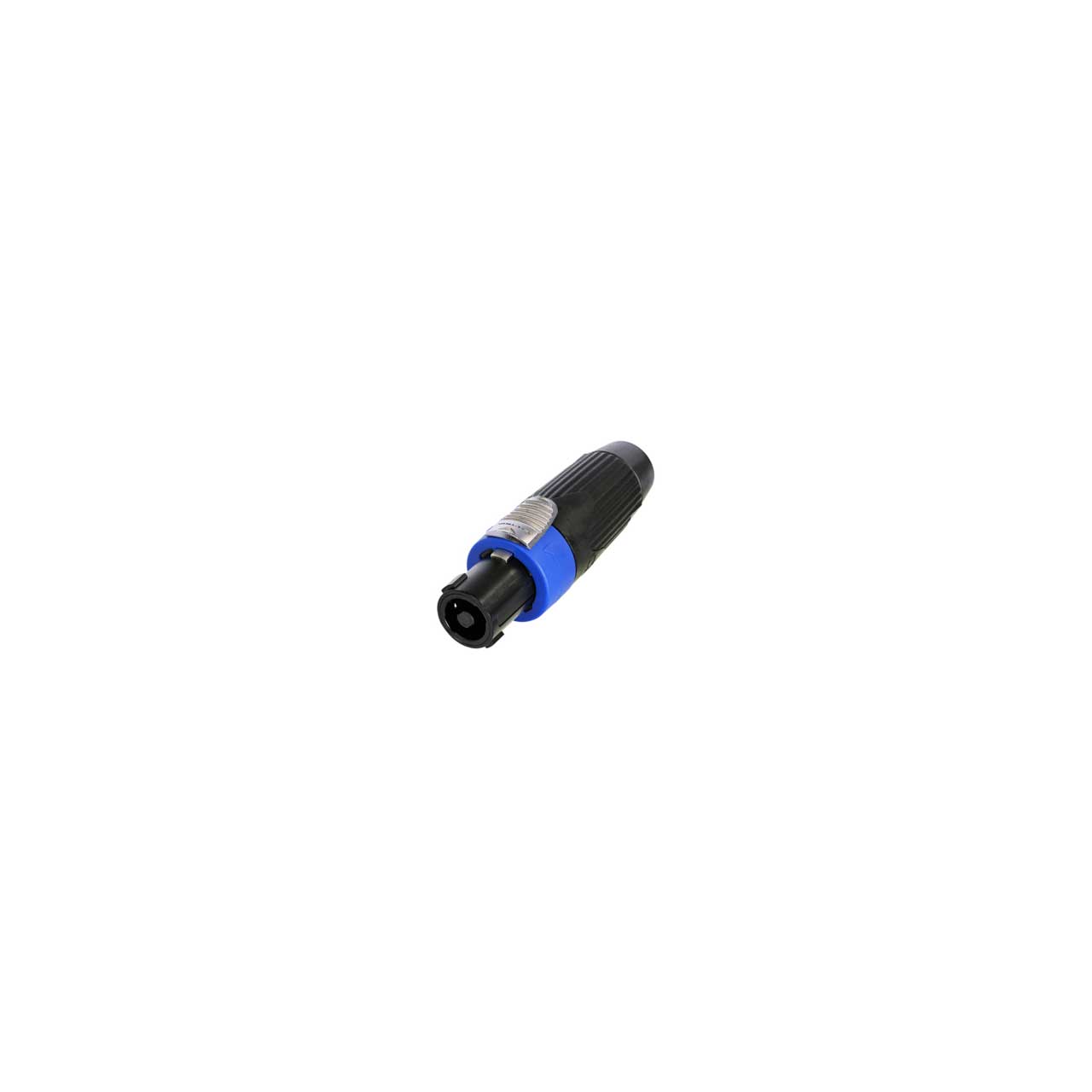

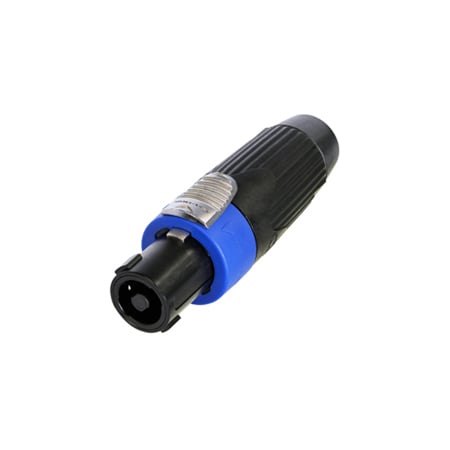

Neutrik NLT4FXX-BAG 4 Pole Female Cable Connector - Black Metal Housing - Chuck Type Strain Relief

NLT4FXX-BAG - Overview

• Features:

  • IEC 61984 certified, IEC 62368-1 compliant
  • Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
  • Uses precise "Quick Lock" system
  • Extra large solder contacts for up to 6 mm² (AWG 10) wires
  • Weatherproof built-in gasket meets IP 54 protection class in mated condition


• Specifications:

  • Gender: female
  • Contact resistance: < 2 mΩ
  • Dielectric strength: 2.8 kVac
  • Insulation resistance: >0.1 GΩ (after dampheat)
  • Rated current per contact: 30 A rms continuous
  • Rated voltage: 250 V ac
  • Attention: speakON is NOT to be used as an AC mains or power supply connector!
  • Cable O.D.: 9 - 16 mm
  • Lifetime: > 5000 mating cycles
  • Wiresize: 6 mm²
  • Wiresize: 10 AWG
  • Termination: Solder contacts
  • Locking device: Quick Lock (latch)
  • Contact plating: Ag
  • Contacts: Copper Alloy
  • Shell: Zinc diecast, black chrome plated
  • Insert: Polyamide (PA 66)
  • Locking element: Zinc diecast, Ni plated
  • Strain relief: Polyacetal (POM)
  • Temperature range: -30 °C to +80 °C
  • Flammability: UL 94 V-0
  • Protection class: IP 54 (mated condition)
  • Solderability: Complies with IEC68-2-20


• Item Includes:

  • 1x Neutrik NLT4FXX-BAG 4 Pole Female Cable Connector - Black Metal Housing - Chuck Type Strain Relief
