Neumann U 87 AI MT Multi-Pattern Microphone - Black

ITEM #: NMN-U87AIMT MFG #: U 87 AI MT

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$4,499.00

Our Price:

$3,595.00

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


U 87 AI MT - Overview

The readers of the SOUND ON SOUND magazine have voted: U 87 Ai - the BEST MICROPHONE, announced during the Winter NAMM show 2012 in Anaheim, California.

The SOS award went to products, that "have made our lives in the studio all the more enjoyable". It is a further evidence for the reputation of the U 87 Ai as the world famous, professional standard studio condenser microphone. Until today the U 87 sets the mark in the microphone industry by which all others are measured.

The U 87 presents a wide range of features and versatility that make it to one of the most desirable mics available. Our users are recognising the microphone immediately by its distinctive design. Well-known for its warm and well balanced characteristics - your perfect choice as vocal microphone for all types of music and speech. The usage as main microphone for orchestra recordings or as spot mic for single instruments make it the most general-purpose microphone - in studios, for broadcasting, film and television.

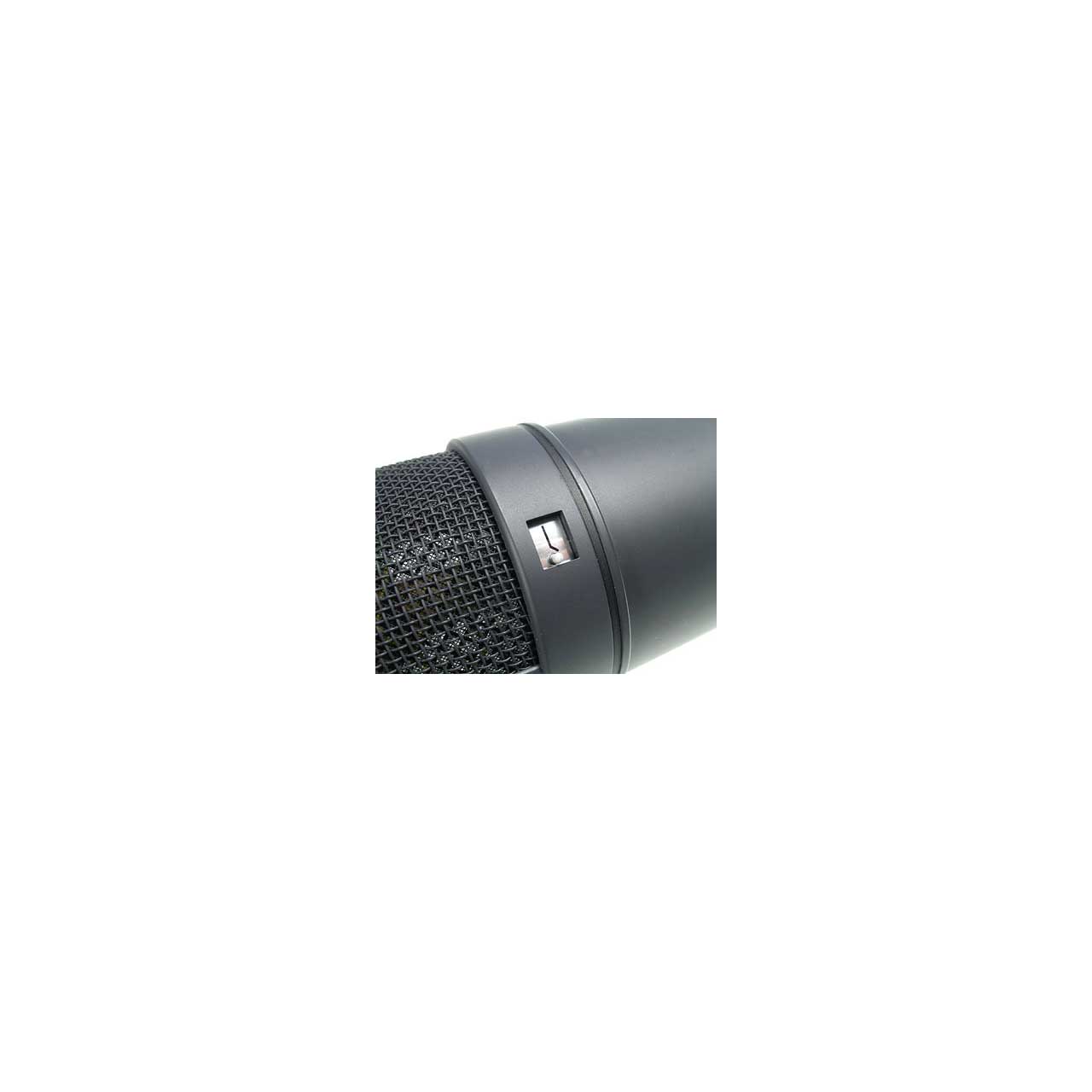

The U 87 is equipped with a large dual-diaphragm capsule with three directional patterns: omnidirectional, cardioid and figure-8. These are selectable with a switch below the headgrille.

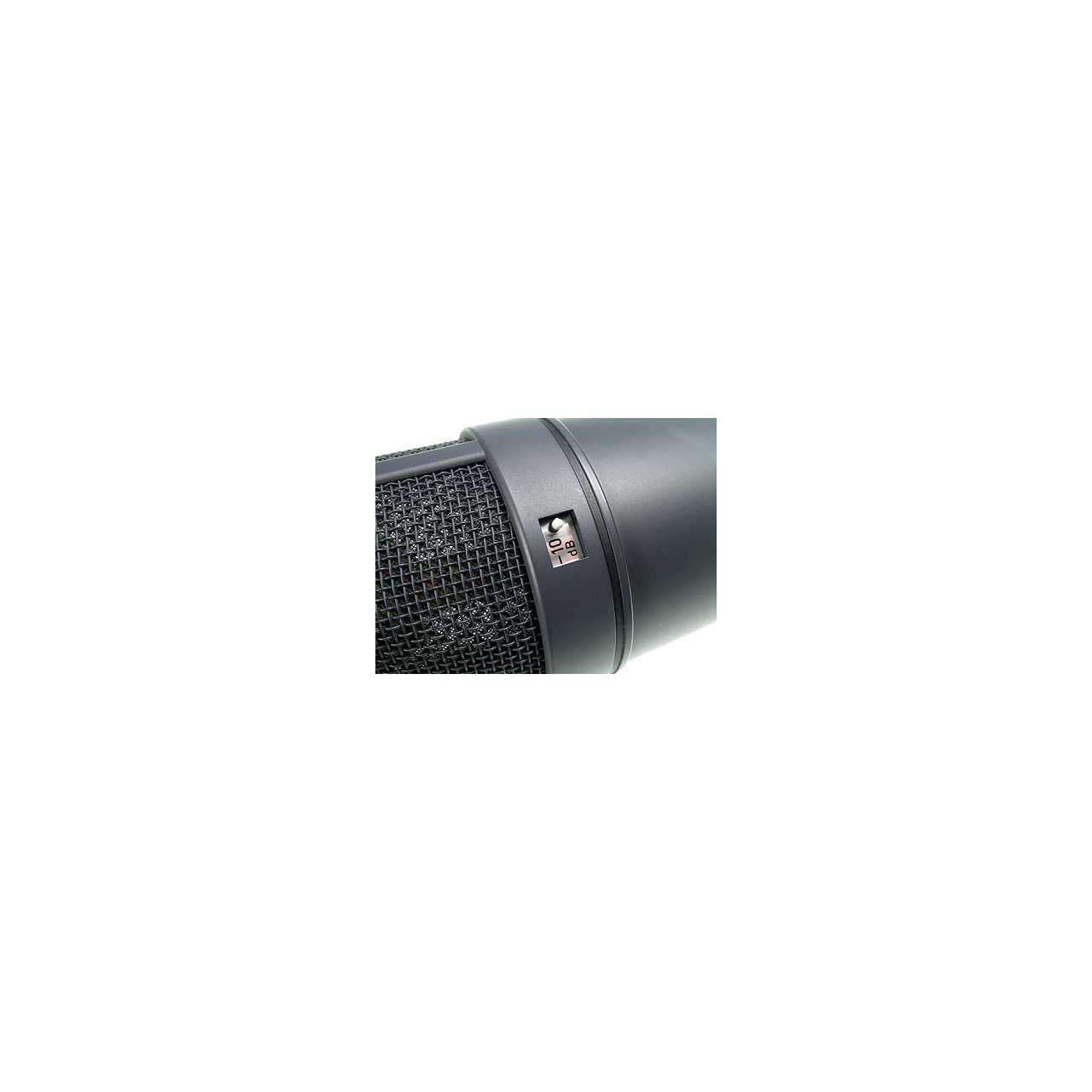

A 10 dB attenuation switch is located on the rear. It enables the microphone to handle sound pressure levels up to 127 dB without distortion.

Furthermore, the low frequency response can be reduced to compensate for proximity effect.

  • Features:

    • Variable large diaphragm microphone
    • Pressure-gradient transducer with double membrane capsule
    • The studio microphone classic
    • Three directional characteristics: omni, cardioid, figure-8
    • Switchable low frequency roll-off
    • Switchable 10 dB pre-attenuation
    • Ideal as main and as support microphone in the most differing recording situations

  • Specifications:

    • Acoustical operating principle Pressure gradient transducer
    • Directional pattern Omnidirectional, cardioid, figure-8 plus
    • Frequency range 20 Hz ... 20 kHz
    • Sensitivity at 1 kHz into 1 kohm 20/28/22 mV/Pa1)
    • Rated impedance 200 ohms
    • Rated load impedance 1 kohms
    • Equivalent noise level, CCIR2) 26/23/25 dB1)
    • Equivalent noise level, A-weighted2) 15/12/14 dB-A1)
    • Signal-to-noise ratio, CCIR2) (rel. 94 dB SPL) 68/71/69 dB1)
    • Signal-to-noise ratio, A-weighted2) (rel. 94 dB SPL) 79/82/80 dB1)
    • Maximum SPL for THD 0.5%3) 117 dB (cardioid)
    • Maximum SPL for THD 0.5% with preattenuation3) 127 dB
    • Maximum output voltage 390 mV
    • Dynamic range of the microphone amplifier (A-weighted) 105 dB
    • Supply voltage (P48, IEC 61938) 48 V ± 4 V
    • Current consumption (P48, IEC 61938) 0.8 mA
    • Matching connectors XLR3F
    • Weight 500 g
    • Diameter 56 mm
    • Length 200 mm

  • GTIN:

    0615104070233
