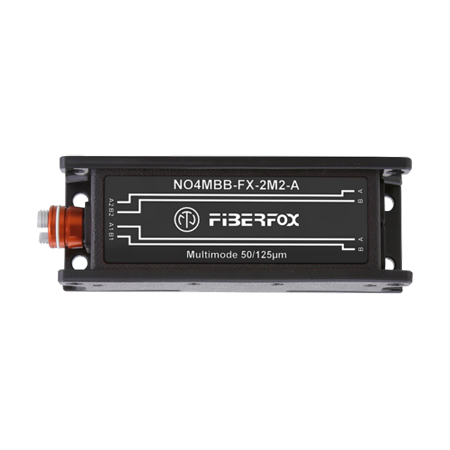

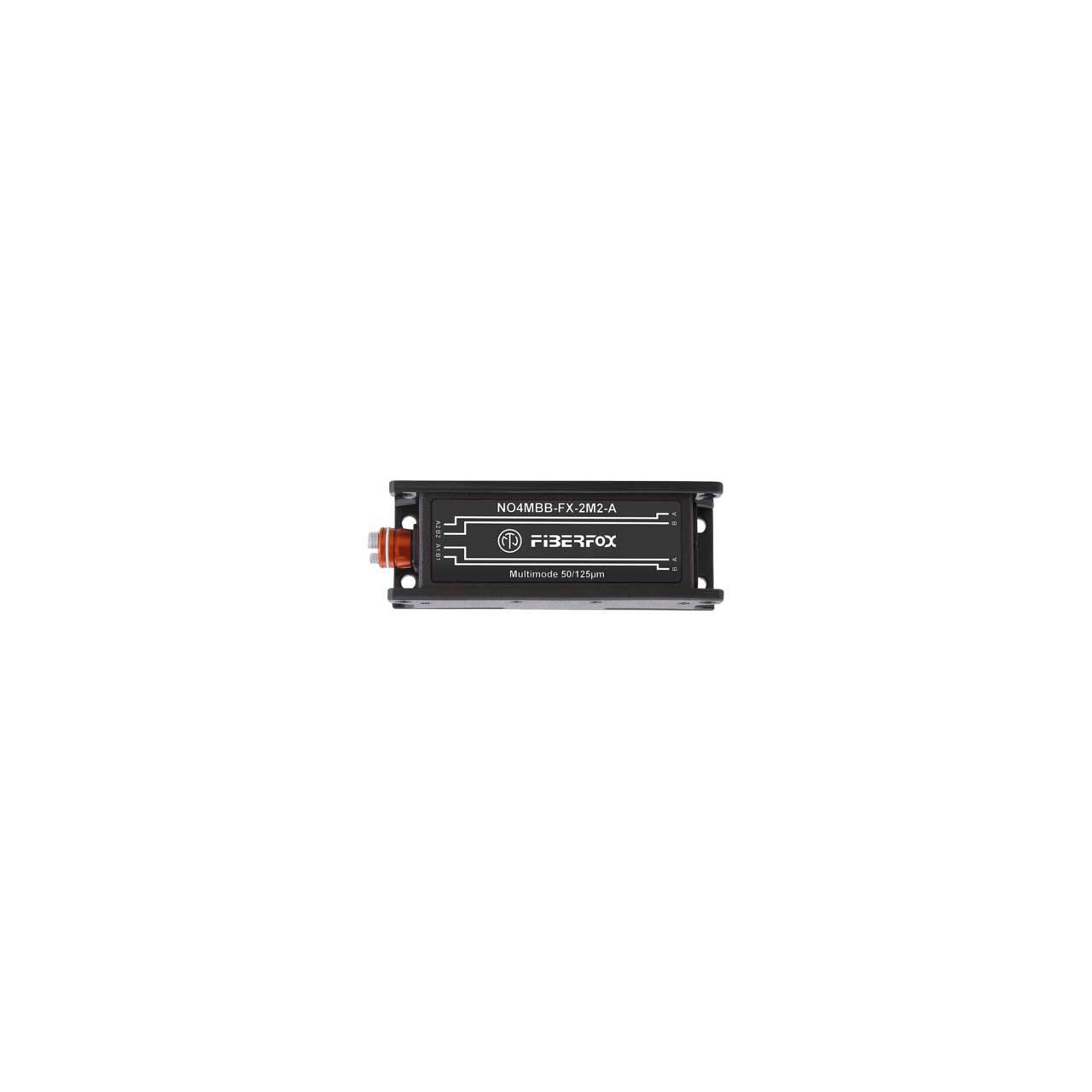

The Neutrik NO4MBB-FX-2M2-A is a ruggedized and weatherproofed FIBERFOX Adaptor BOX split fiber channel point-to-point connection to extend cable length. FIBERFOX Expanded Beam Fiber Optic Connectors are designed to meet the requirements of MILDTL-83526 Military Specifications. Expanded Beam fiber optic connectors are designed to operate in harsh environments, they use nonphysical contact fiber optic termini that are IP68 sealed behind an anti-reflective coated ball lens.
This lens expands the beam to many times its original size aiding optical alignment and minimizing the effects of dust, debris and other environmental conditions. Because there is no wear on the optical surfaces / end faces of the termini during use, the FIBERFOX connector has excellent durability, in excess of 5`000 mating cycles, providing a long service life interconnect solution. FIBERFOX is a hermaphroditic connector allowing multiple plug-to-plug cable assemblies to be combined to extend the length of the system. These connectors are available with two or four channels multimode lenses.
In addition to the standard plugs, FIBERFOX briDge receptacles are suitable with standard LC Patch Cables and acts as a unique LC to Expanded Beam converter.
Applications:
Lighting
Network
PA
Video
Broadcast
Defense & Government
Railway and Oil & Gas for Communications
Audio/Video
Sensing
