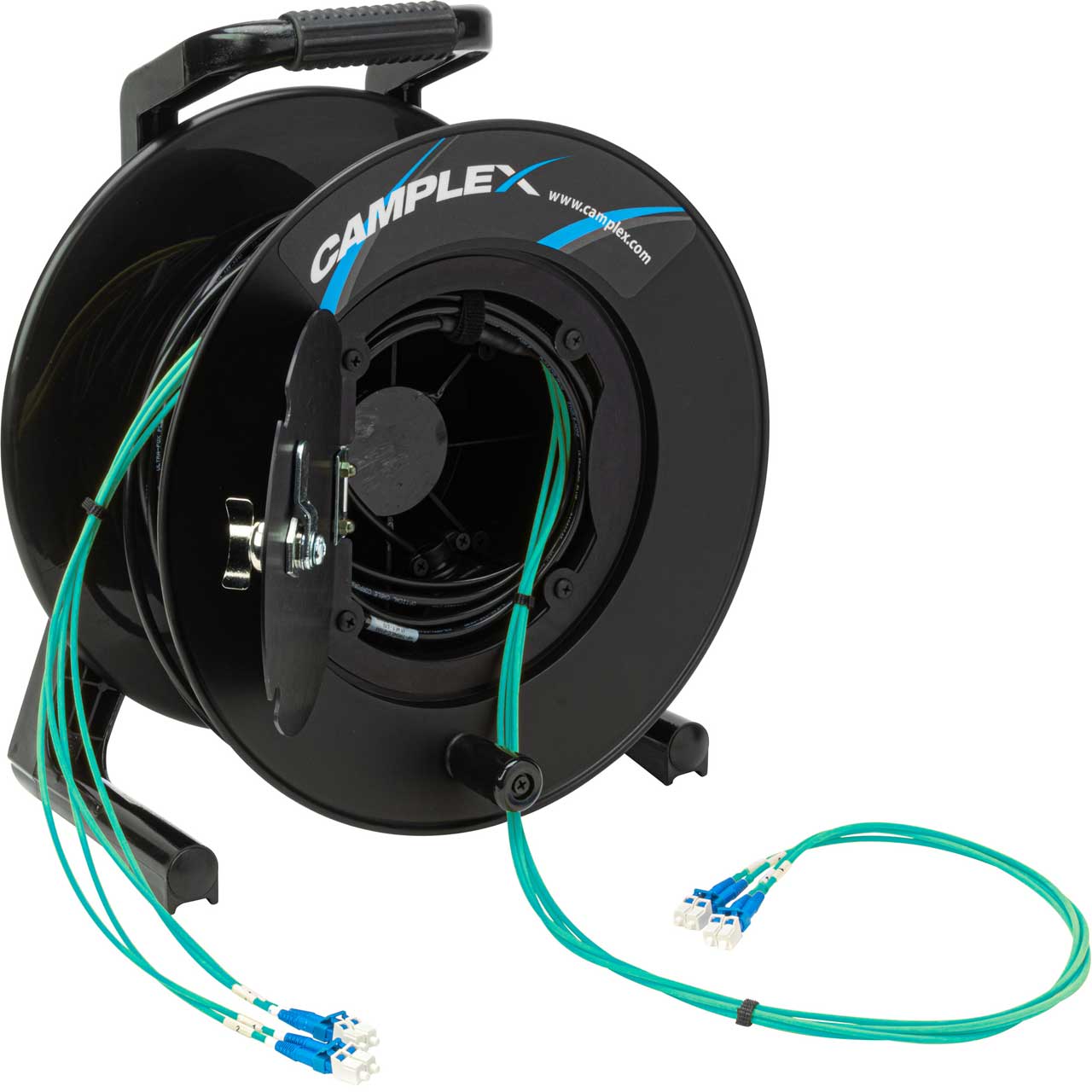

Camplex 4-Channel LC Multimode OM4 Fiber Optic Tactical Reel - 1000 Foot

ITEM #: HF-TR04LCM4-1000 MFG #: HF-TR04LCM4-1000

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$4,227.95

Our Price:

$3,805.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


HF-TR04LCM4-1000 - Overview

4-Channel OM4 Multimode fiber optic tactical reel designed for multiple deployments for field production in outside broadcast, rental houses and more. Highly flexible tight-buffered tactical cables with internal aramid strength members for crush resistance in high traffic areas if handled properly and a polyurethane outer sheath designed to withstand crushing by both Military Tanks and Outside Broadcast vehicles. Cables are complete end-to-end tactical grade where fanout channels are covered with tactical grade polyurethane furcation tubing. All assemblies multi-stage machine polished and tested for less than .55db RL (complete per-channel test results available on request). Built in-house at our state-of-the-art fiber lab - the only fiber lab in the US to have achieved full certification from LEMO, Neutrik & Canare!

Custom configurations and assemblies as well as full repair services are always available for any brand tactical or SMPTE hybrid fiber cable.

  • Features:

    • 4-Channel LC Multimode OM4 Fiber Optic Tactical Reel
    • Rugged Reel for Ease of Deployment in the Field
    • UL-Listed OFNR and UV, Water and Fungus Resistant
    • Wide Operating Temperature Range
    • Helically Stranded Core for Greater Flexibility and Mechanical Protection of the Optical Fibers
    • High Crush Resistance
    • Purple Shrink for OM4 Identification

  • Specifications:

    • Core/Cladding Diameter: 50/125µ
    • Min Bend Radius: 2.8 cm (1.1 in)
    • Jacket Material: Polyurethane
    • Cable Diameter: 5.5 mm (0.22 in)
    • Operating Temperature: -40°C to 85°C
    • Storage Temperature: -70°C to 85°C
    • Reel: 15" diameter
    • Drum: 9.29" diameter
    • Overall Height: 19"
    • Depth: 11"

  • Warranty:

    • 1 Year
