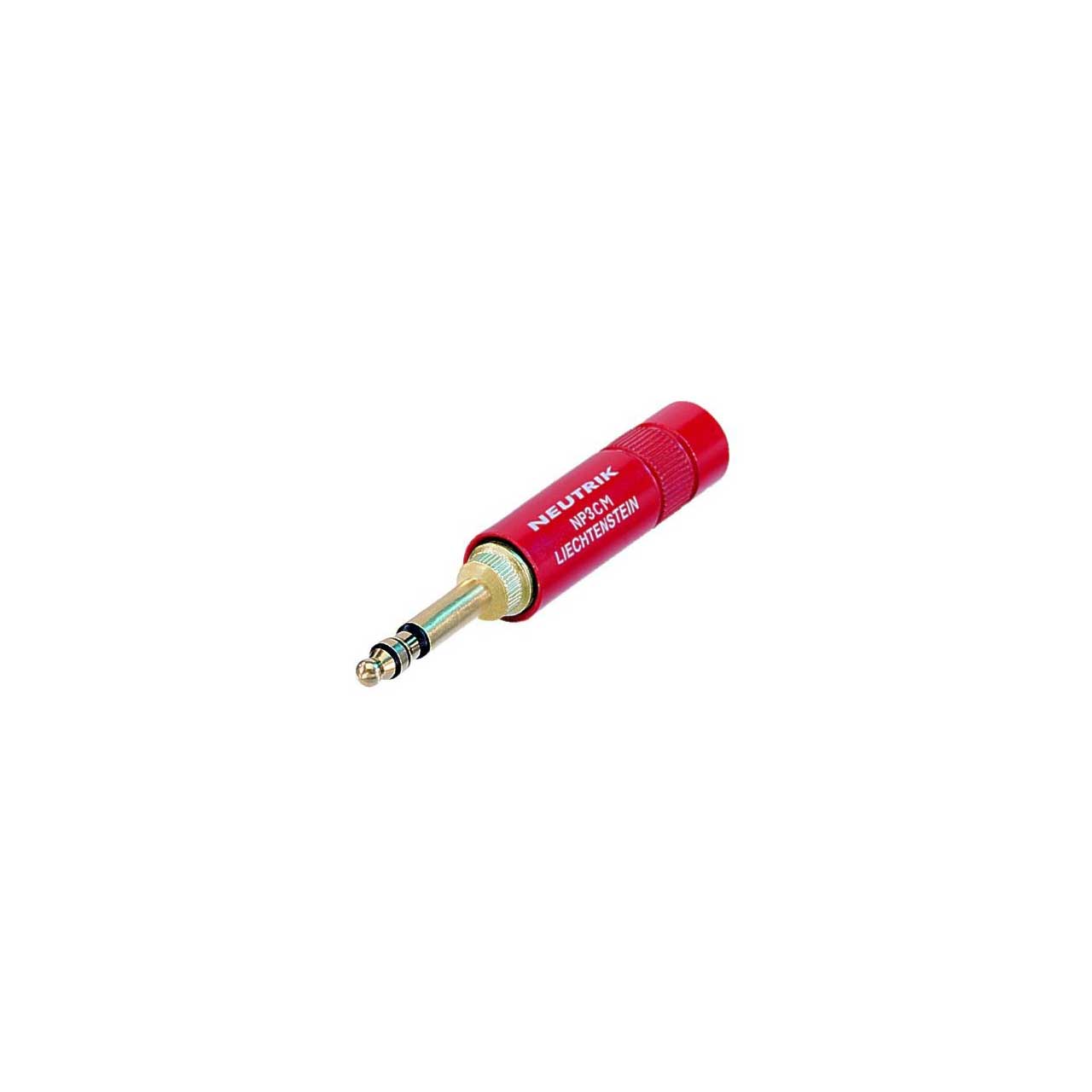

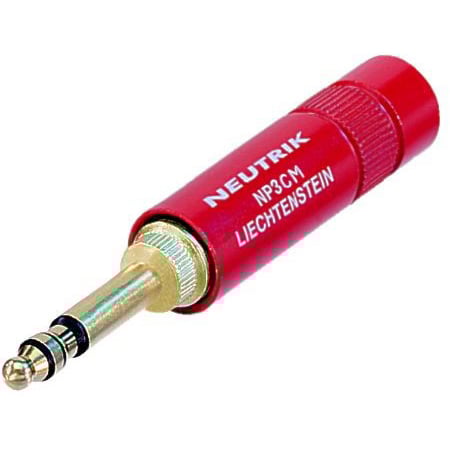

Neutrik NP3CM-R TRS .206 Inch MIL/B-Gauge Phone Plug - Red/Brass

Name: Neutrik NP3CM-R TRS .206 Inch MIL/B-Gauge Phone Plug - Red/Brass
Brand: Neutrik Americas
SKU: NP3CM-R
Price: 7.54 USD
Availability: InStock

ITEM #: NP3CM-R MFG #: NP3CM-R

Neutrik Americas

List Price:

$8.80

Our Price:

$7.54

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NP3CM-R - Overview

0.206" MIL-plug (MIL-P-642/5A), red metal housing, brass contacts

Professional phone plugs in MIL type design according MIL standard MIL-P-642/. They are featuring similar construction as the standard Neutrik phone plugs with chuck type strain relief and slimline metal barrel to meet the high requirements for military communication equipments. They feature a one-piece tip conductor to ensure secure conductivity. They also boast a metal shell and chuck type cable retention for robust and dependable operation!

Please note! These plugs are NOT compatible with standard 1/4" jacks and patch panels.

Specifications:
- Title: NP3CM-R
- Connection Type: Plug
- Gender: male
- Contact resistance: depends on mating connector mO
- Dielectric strength: 1 kVdc
- Insulation resistance: > 2 GO (initial)
- Rated current per contact: depends on mating connector A
- Rated voltage: < 50 V
- Cable O.D.: 4 - 7 mm
- Lifetime: > 1000 mating cycles
- Wiresize: 0,5 mm²
- Wiresize: 20 AWG
- Wiring: Solder contacts
- Bushing: Polyacetal (POM) + PU
- Contact plating: 2 æm Brass
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Shell: Brass (CuZn39Pb3)
- Shell plating: Red Coating
- Strain relief: Polyacetal (POM)
- Standard compliance: MIL-P642/5A
- Solderability: Complies with IEC 68-2-20
- Temperature range: -20 °C to +65 °C
GTIN:
7613187004230
