Nixer RP64 DANTE CV2 1RU Rack Mounted 64 Channel AoIP Dante Patch Bay with EQ - PoE Powered

NIX00656 - Overview

• Features:

  • Simple and Intuitive Operation to rapidly route critical signals from a dedicated operator/engineering position in the event of equipment failure
  • 64 inputs, 64 outputs (@ 48kHz)
  • No external laptop and cumbersome software patching
  • Near instantaneous subscription reconnections
  • Reset and recall route status from memory
  • Compact 1RU design (less than 120mm deep) for deployment in any frame, desk or custom location
  • PoE power or via external DC input for power redundancy
  • Primary and Secondary network ports
  • OSC control via RJ45 (under development, contact Sales for further information).


• Specifications:

  • Nixer RP64 AoIP Specifications
  • Patching of up to 64 inputs to 64 outputs (32 inputs to 32 outputs at 96kHz)

    Functionality
  • 64 x 64 channel patch matrix (32 x 32 at 96kHz)
  • Patch inputs "one to one" to output
  • Patch any input to any output
  • Patch one input to many outputs

    Dante
  • AES67 compatible
  • SMPTE 2110 compatible
  • Fully compatible with New Dante Domain Manager - Dante option only

    Sample rates supported
  • 44.1kHz
  • 48kHz
  • 88.2kHz
  • 96kHz

    Bit Depth supported
  • 16bit
  • 24bit
  • 32bit

    AoIP inputs
  • Dual 1Gbps RJ45
  • 1Gbps or 100Mbps operation (Ravenna supports 1Gb only)
  • User configurable for Switched or Redundant operation
  • Network configuration information available via menu

    Control input
  • Single RJ45 100Mbs
  • OSC remote control of the product

    Remote Control
  • Single RJ45 - NOT ethernet
  • Wired remote control option on RJ45 connector
  • For use with optional hardware remote controllers
  • RS485 balanced TX and RX pairs
  • 5V feed to connected device (up to 200mA)
    Note: this connector is not compatible with standard ethernet connectors

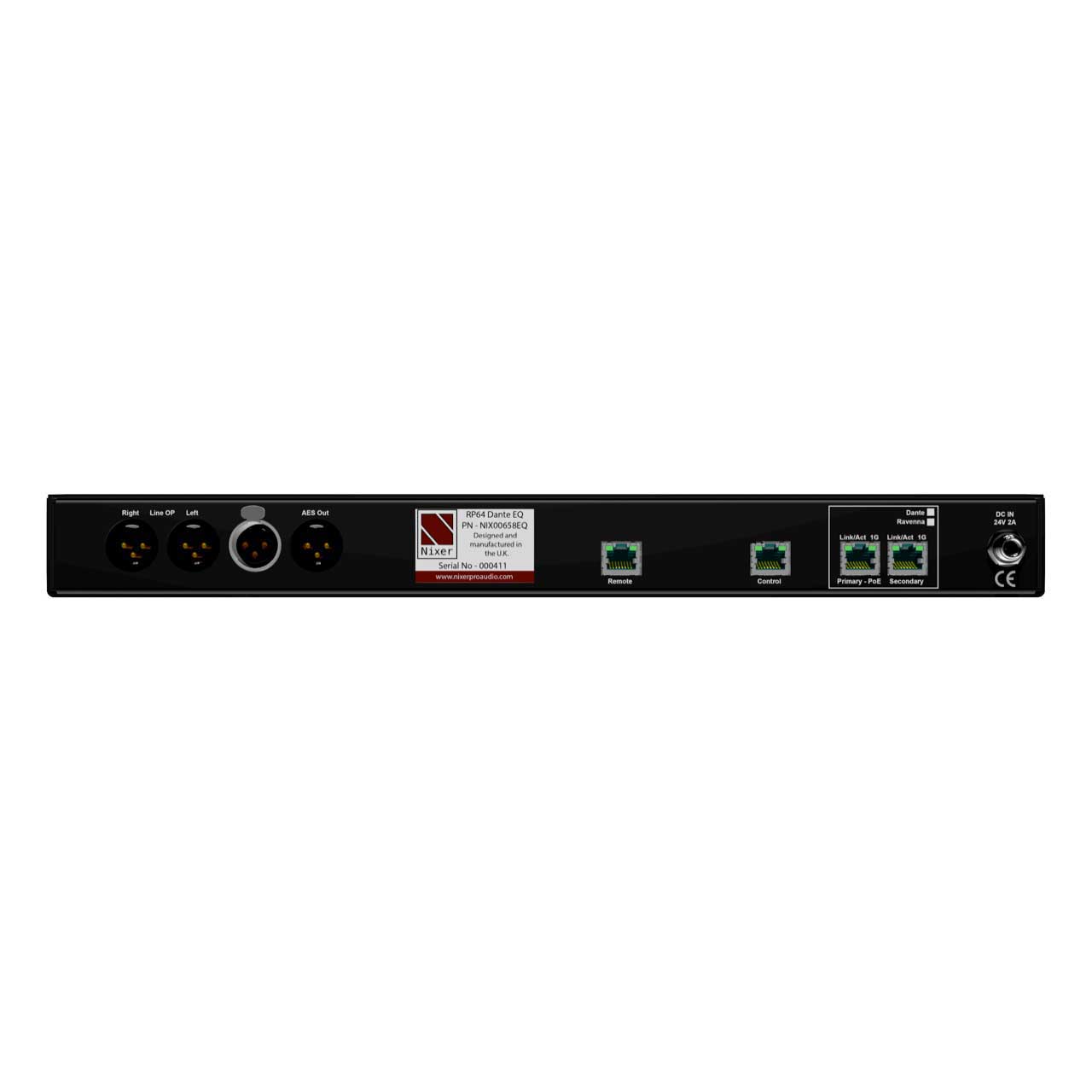

    Other Ports
  • USB port is also used for product firmware updates

    Power input
  • PoE (13W) on Primary RJ45 connector
  • 2.5mm DC inputs socket for use with external 24V 2amp adaptor
  • Both power inputs can be active at the same time for redundancy

    Product Size
  • Dimensions 494mm wide by 120mm deep by 44mm height
  • Weight 1.0kg

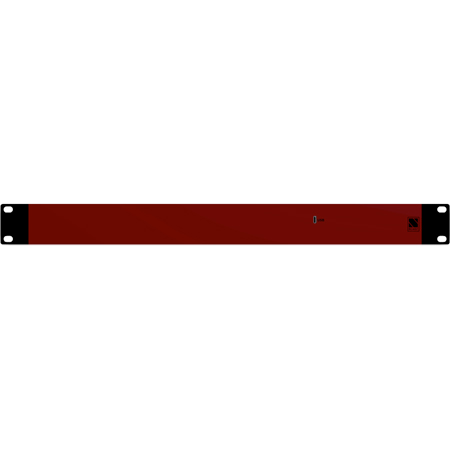

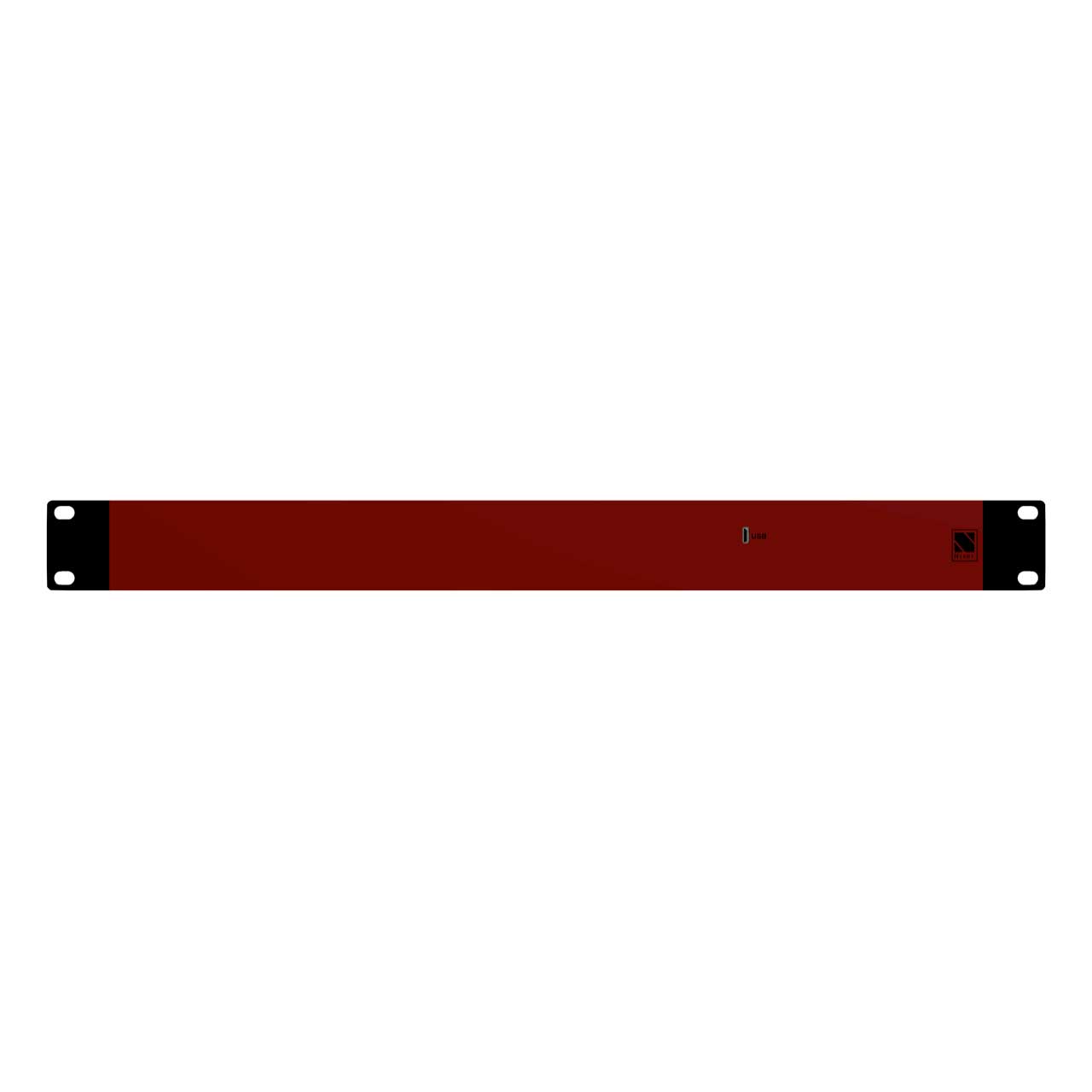

  • 19inch rack mounting ears can be removed for desktop use


• Item Includes:

  • 1x 66 inputs with 2 band EQ, 68 output patch unit, no front panel display, stereo line out and AES I/O
