Nixer RP64 RAVENNA EQ 1RU Rack Mounted 64 Channel AoIP Ravenna Patch Bay with EQ & LCD Display - PoE Powered

ITEM #: NPA-RP64RAVENNEQ MFG #: NIX00658REQ

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$4,699.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


NIX00658REQ - Overview

Based on the latest Nixer audio processor, the RP64 RAVENNA EQ is a 64 input to 64 output digital Audio over IP 'patch' panel. Using an intuitive interface, it is possible to connect any input to any output. This facilitates the quick and easy re-patching of critical signals without the need of having to use a laptop and Dante Controller and the inherent delays this brings. Any input can also be routed to multiple outputs simultaneously. The RP64 EQ patching reconnection is near instantaneous. In addition to this each input stream has three band EQ, Level control and Limiter. There is an AES input, AES output and a Stereo Line Output.

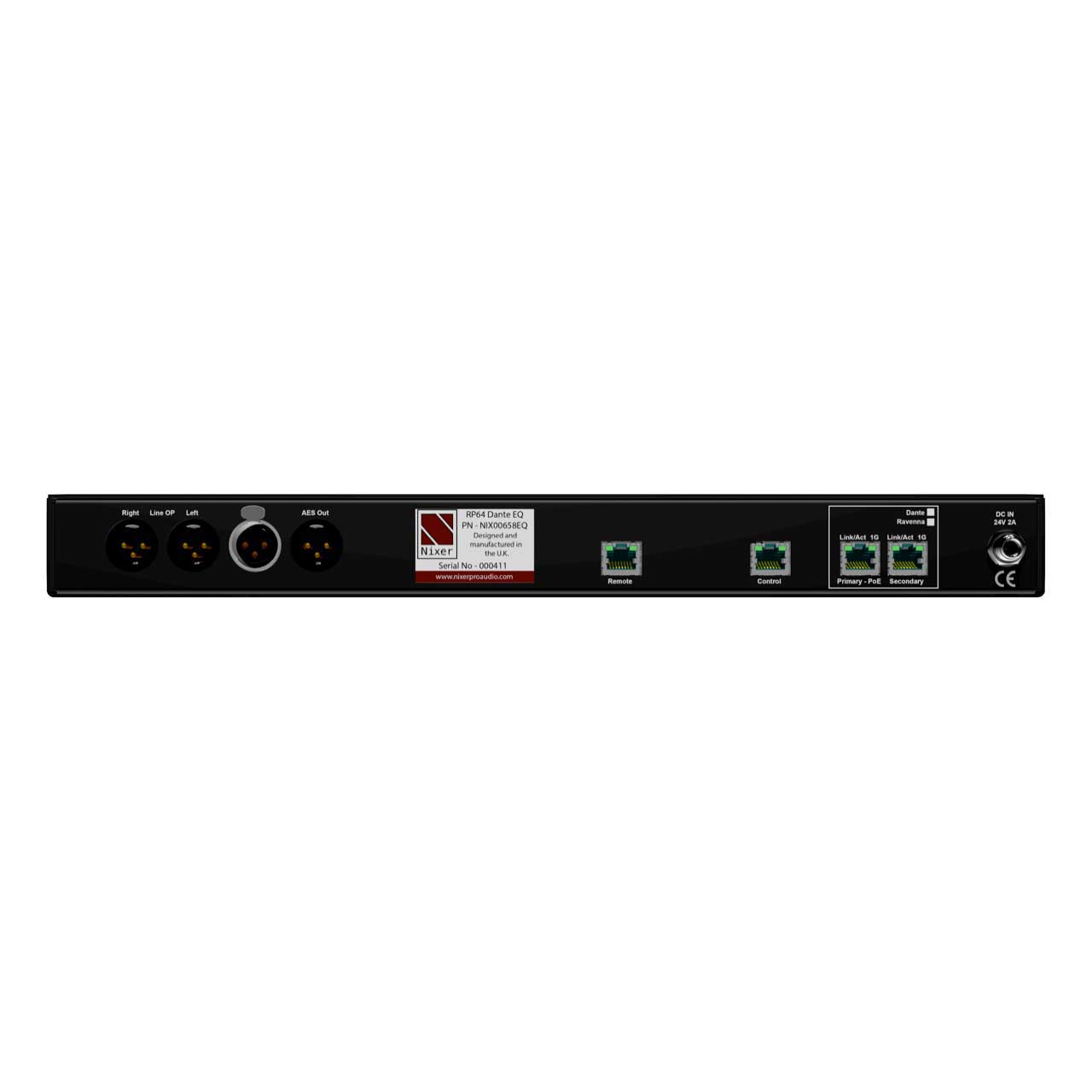

Power to the RP64 can be either via PoE on the Primary RJ45 port and/or via the 24V DC power input. Using both PoE and the DC input enables power redundancy. Also, on the rear panel there is a secondary RJ45 port for either redundant or switched AoIP connections. In addition to this there is a Control port for controlling the RP64 via OSC and a Remote RJ45 port for use with optional hardware remotes.

PSU not included

  • Features:

    • Simple and Intuitive Operation to rapidly route critical signals from a dedicated operator/engineering position in the event of equipment failure
    • 64 inputs, 64 outputs (@ 48kHz)
    • Three band EQ per input, Level Control and Limiter
    • AES input, AES output plus Stereo Line Output
    • No external laptop and cumbersome software patching
    • Near instantaneous subscription reconnections

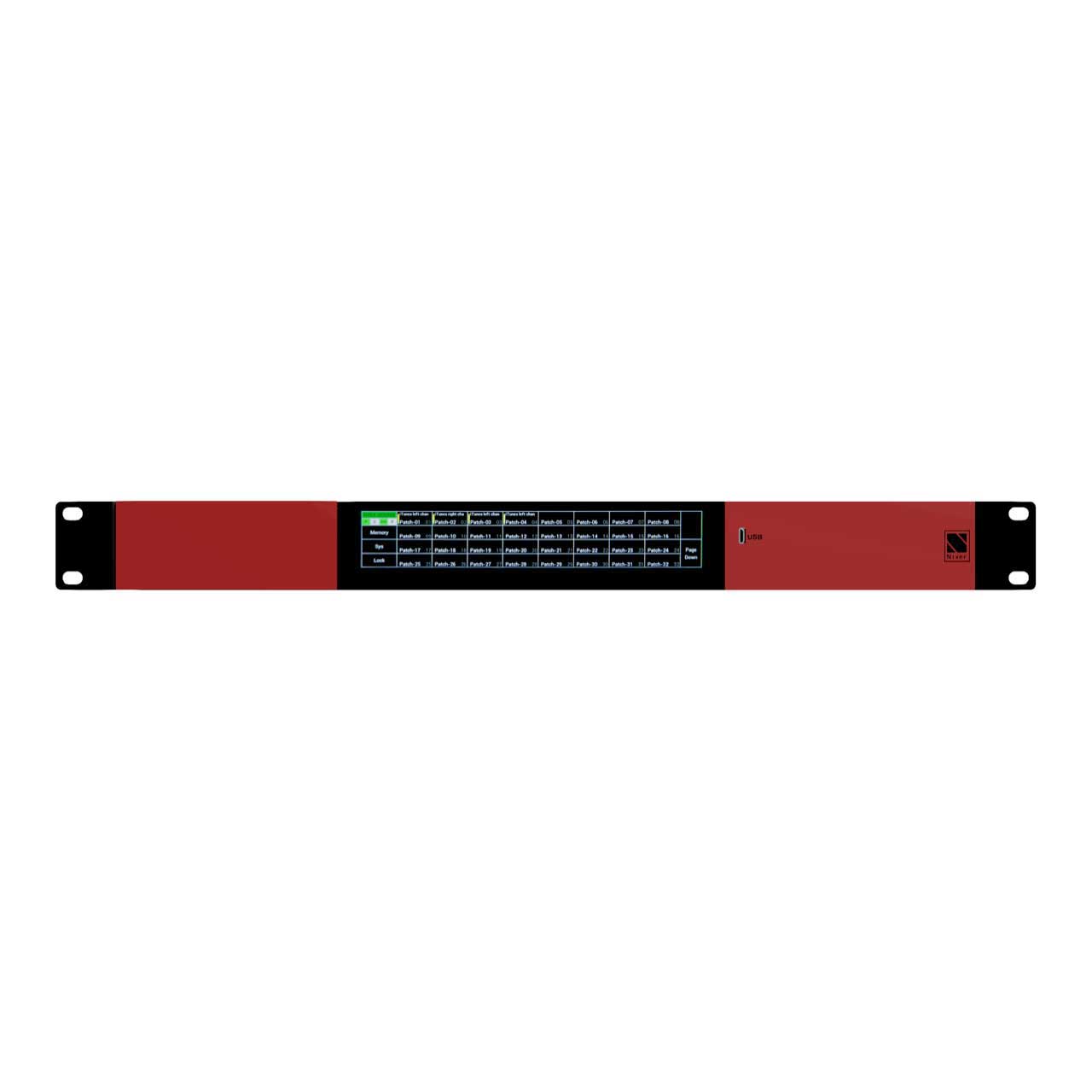

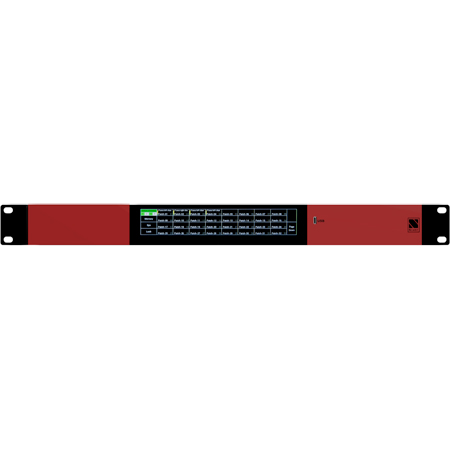

    • Large color LCD touchscreen for quick and easy re-patching of critical signals
    • Reset and recall route status from memory
    • Compact 1RU design (less than 120mm deep) for deployment in any frame, desk or custom location
    • PoE power or via external DC input for power redundancy
    • Primary and Secondary network ports
    • OSC control via RJ45 (under development, contact Sales for further information).

  • Specifications:

    • Functionality
    • 66 x 68 channel patch matrix (34 x 36 at 96kHz)
    • Patch inputs "one to one" to output
    • Patch any input to any output
    • Patch one input to many outputs
    • Patch AES input to any output
    • Patch any input to AES output
    • Patch any input to the Line Output
      64 input signal processors* - each channel has the following:
    • Three band EQ
    • Low shelf
    • Mid band parametric
    • Hi shelf
    • Output level control
    • Limiter
      *When using the AES input the number of signal processors available is reduced to 62

      Ravenna option
    • AES67 compatible
    • SMPTE 2110 compatible
    • Fully compatible with New Dante Domain Manager - Dante option only

      Sample rates supported
    • 44.1kHz
    • 48kHz
    • 88.2kHz
    • 96kHz

      Bit Depth supported
    • 16bit
    • 24bit
    • 32bit

      AoIP Inputs
    • Dual 1Gbps RJ45
    • 1Gbps or 100Mbps operation (Ravenna supports 1Gb only)
    • User configurable for Switched or Redundant operation
    • Network configuration information available via menu

      Dual Balanced Line Outputs
    • 2x 3pin male XLR connectors
    • Fed from any input
    • 0dBFS = +21dBu maximum output into 600ohms
    • Output Mute relays

      AES In and AES Out
    • Stereo AES3 Input on 3pin female XLR connector
    • SRC converts from 44.1kHz, 48kHz or 96kHz to RP64 EQ sample rate
    • AES3 routing to any output
    • Stereo AES3 output on 3pin male XLR connector
    • Fed from any input

      Control Input
    • Single RJ45 100Mbs
    • OSC remote control of the product

      Remote Control
    • Single RJ45 - NOT ethernet
    • Wired remote control option on RJ45 connector
    • For use with optional hardware remote controllers
    • RS485 balanced TX and RX pairs
    • 5V feed to connected device (up to 200mA)
    • Note: this connector is not compatible with standard ethernet connectors

      Other Ports
    • USB port is also used for product firmware updates

      Power input
    • PoE (13W) on Primary RJ45 connector
    • 2.5mm DC inputs socket for use with external 24V 2amp adaptor
    • Both power inputs can be active at the same time for redundancy

      LCD
    • 6.6" (168mm) diagonal 24-bit color LCD with 1440xRGBx240 resolution
    • LED backlight (adjustable brightness via software) multi touch capacitive touch overlay with gesture support

      Product Sizes
    • Dimensions 494mm wide by 120mm deep by 44mm height
    • Weight 1.0kg
    • 19inch rack mounting ears can be removed for desktop use

  • Item Includes:

    • 1x 66 inputs with 2 band EQ, 68 output patch unit, front panel display, stereo line out and AES I/O
