    Based on the latest Nixer audio processor, the RS32 RAVENNA is a 32-way digital Audio over IP switch with 64 digital inputs and 64 digital outputs. Switches can be configured as either 2 inputs to 1 output changeover or 1 input to 2 output changeover. They can be selected individually or linked together to make larger switches upto a maximum of 32 ways. Any switch can be activated by the intuitive touchscreen interface.

    Switches operate almost instantaneously and negate the need of having to use a laptop and a controller program and the inherent delays these bring.

    RS32 allows for the simple set up and control of 32 AoIP switches. These can either be 2 into 1 input switches or 1 into 2 output switches which can be configured on a switch by with basis. All of the features are easily and simply controlled via the large intuitive touchscreen interface.

    Once configured switches can easily be operated by touching the respective switch on the touchscreen resulting in near instantaneous changeover of the audio. It is also possible to gang switches together in any number from 2 through to 32.

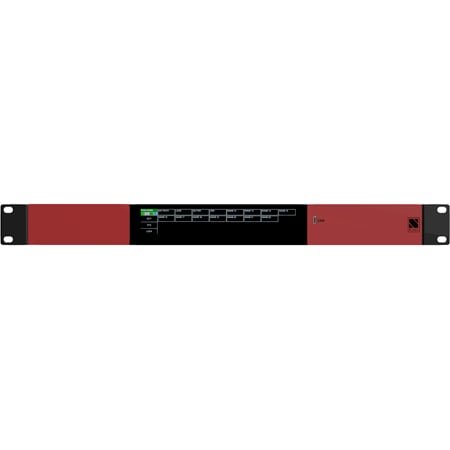

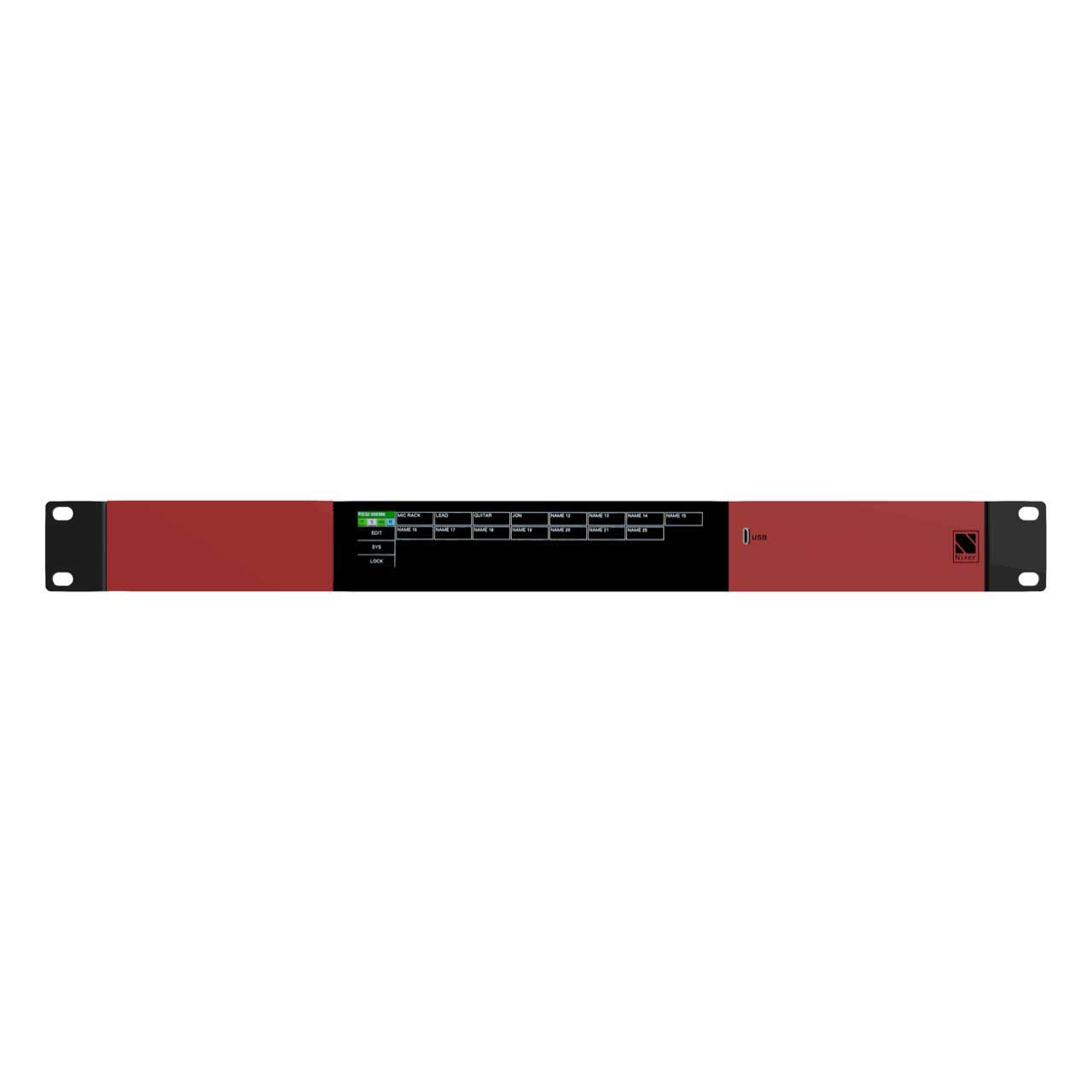

    The RS32 is operated and controlled via the large letterbox 6.6" diagonal (168mm) 1440 x 240 24-bit color LCD and capacitive touch panel.

    A simple and elegant menu system has been designed to be intuitive to navigate allowing the user to access all the features of the RS32 very quickly.

    The high-resolution screen is easy to read presenting switching and status information to the user.

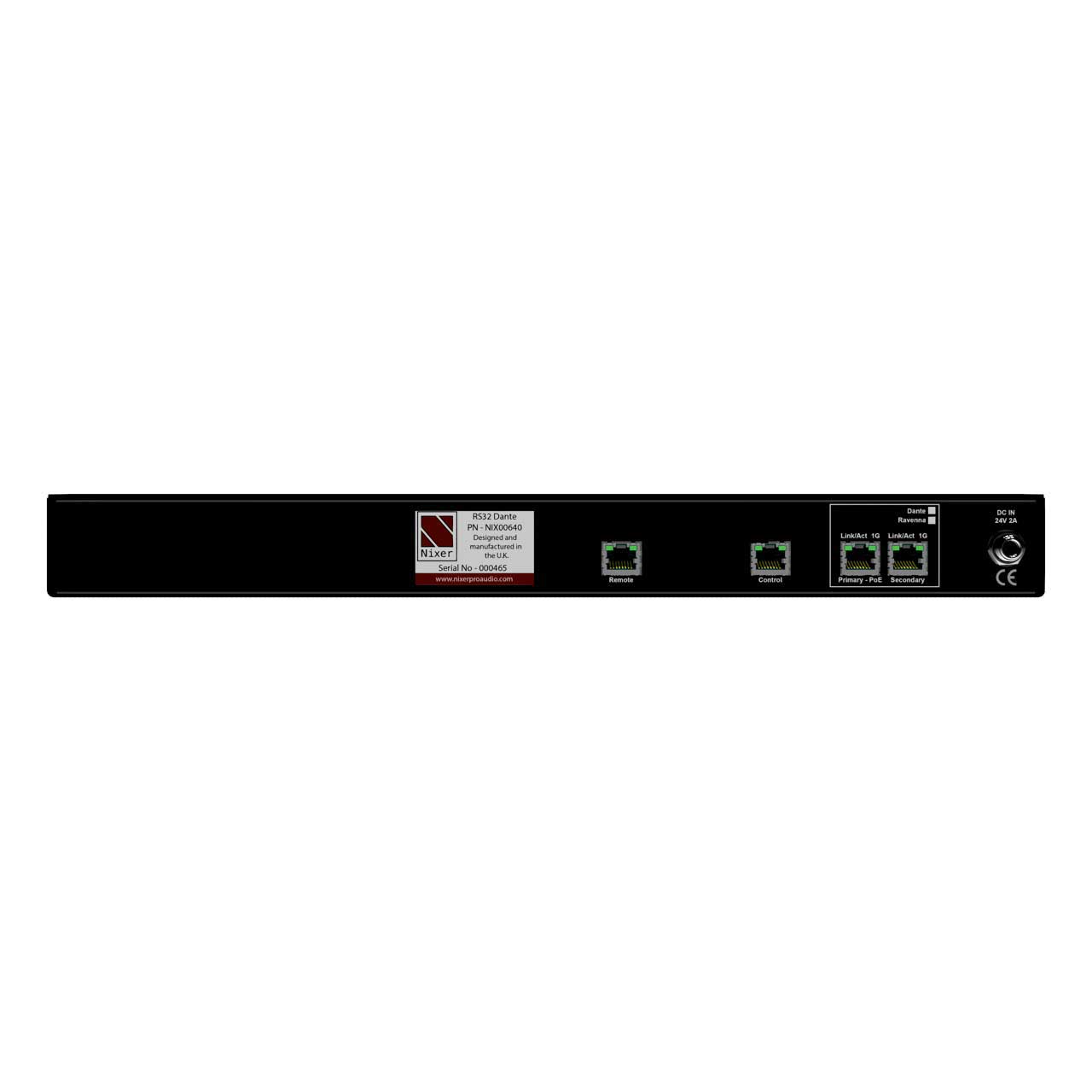

    Firmware updates of the RS32 is achieved via a dedicated USB micro AB connector on the front panel. On the rear of the RS32 unit there is a Primary and Secondary port for the AoIP input.

    The Control RJ45 allows the RS32 to remotely controlled via OSC. The Remote RJ45 is a bespoke remote control port for additional accessories (note it is not compatible with ethernet).

    The RS32 can be powered via PoE on the Primary port and/or via the 2.5mm DC input connectors requiring 24V @ 2A. The DC input also have a screw lock to prevent accidental unplugging. Using both the PoE and the DC inout provides redundancy. The optional NIX00583 or the NIX00629 can be used to power the RS32.

    PSU not included

    • Features:

      • Simple and Intuitive Operation to switch to backup signals from a dedicated operator/engineering position
      • 32 individual 2x1 switches can also be linked to make a maximum 32 way changeover
      • No external laptop and cumbersome software re-routing
      • Near instantaneous audio switching
      • Large color LCD touchscreen for quick and easy re-patching of critical signals
      • Reset and recall route status from memory
      • Compact 1RU design (less than 120mm deep) for deployment in any frame, desk or custom location
      • PoE power or via external DC input for power redundancy
      • Primary and Secondary network ports
      • OSC control via RJ45 (under development, contact Sales for further information).

    • Specifications:

      • Nixer RS32 AoIP Specifications
      • 32x 2 by 1 switches at 48kHz (16x 2 by 1 switches at 96kHz)

        Sample rates supported
      • 44.1kHz
      • 48kHz
      • 88.2kHz
      • 96kHz

        Bit Depth supported
      • 16bit
      • 24bit
      • 32bit

        Ravenna option
      • AES67 compatible
      • SMPTE 2110 compatible

        AoIP inputs
      • Dual 1Gbps RJ45
      • 1Gbps or 100Mbps operation (Ravenna supports 1Gb only)
      • User configurable for Switched or Redundant operation
      • Network configuration information available via menu

        Control input
      • Single RJ45 100Mbs
      • OSC remote control of the product

        Remote Control
      • Single RJ45 - NOT ethernet
      • Wired remote control option on RJ45 connector
      • For use with optional hardware remote controllers
      • RS485 balanced TX and RX pairs
      • 5V feed to connected device (up to 200mA)
      • Note: this connector is not compatible with standard ethernet connectors

        Power input
      • PoE (13W) on Primary RJ45 connector
      • 2.5mm DC inputs socket for use with external 24V 2amp adaptor
      • Both power inputs can be active at the same time for redundancy

        Other Ports
      • USB port is also used for product firmware updates

        LCD
      • 6.6" (168mm) diagonal 24-bit color LCD with 1440 x RGB x 240 resolution
      • LED backlight (adjustable brightness via software) multi touch capacitive touch overlay with gesture support

        Product Sizes
      • Dimensions 494mm wide by 120mm deep by 44mm height
      • Weight 1.0kg
      • 19inch rack mounting ears can be removed for desktop use

    • Item Includes:

      • 1x Nixer RS32 RAVENNA 1RU Rack Mounted 32-way Ravenna Switch (120mm depth) with LCD Display - PoE Powered
