REAN NSB1B-8/0 Stage Box with 8 XLR Female Inputs/Send

ITEM #: NSB1B-80 MFG #: NSB1B-8/0

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Rean
Free Shipping with $49 Minimum Order

List Price:

$75.55

Our Price:

$45.31

Quantity Pricing

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NSB1B-8/0 - Overview

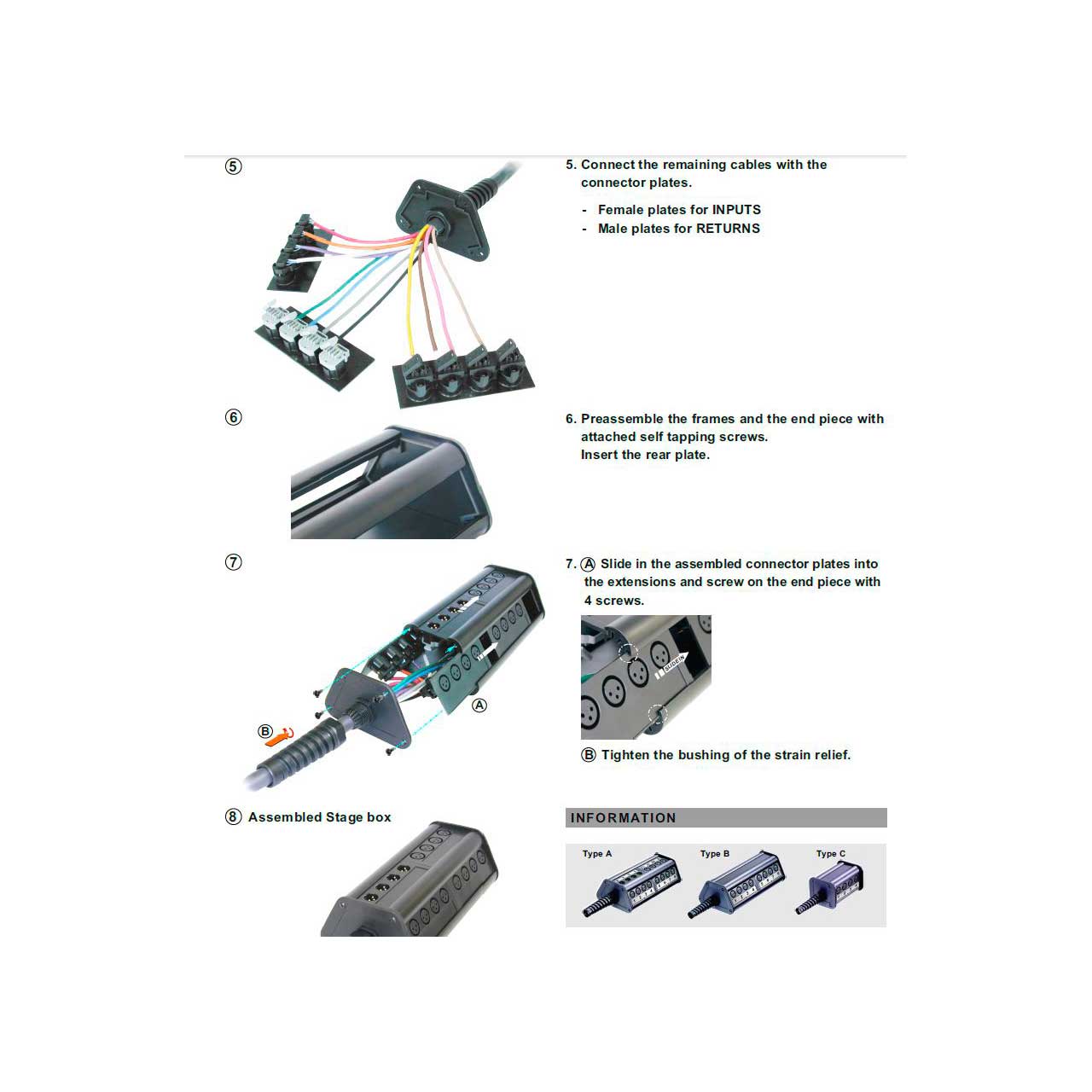

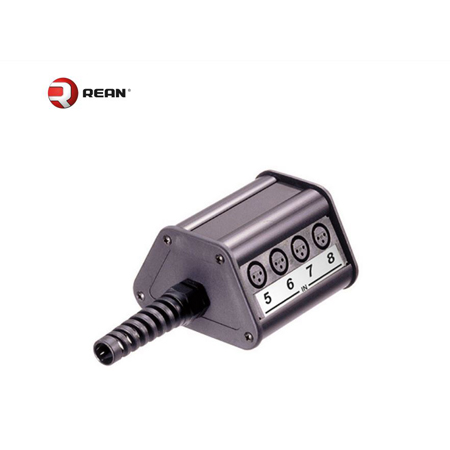

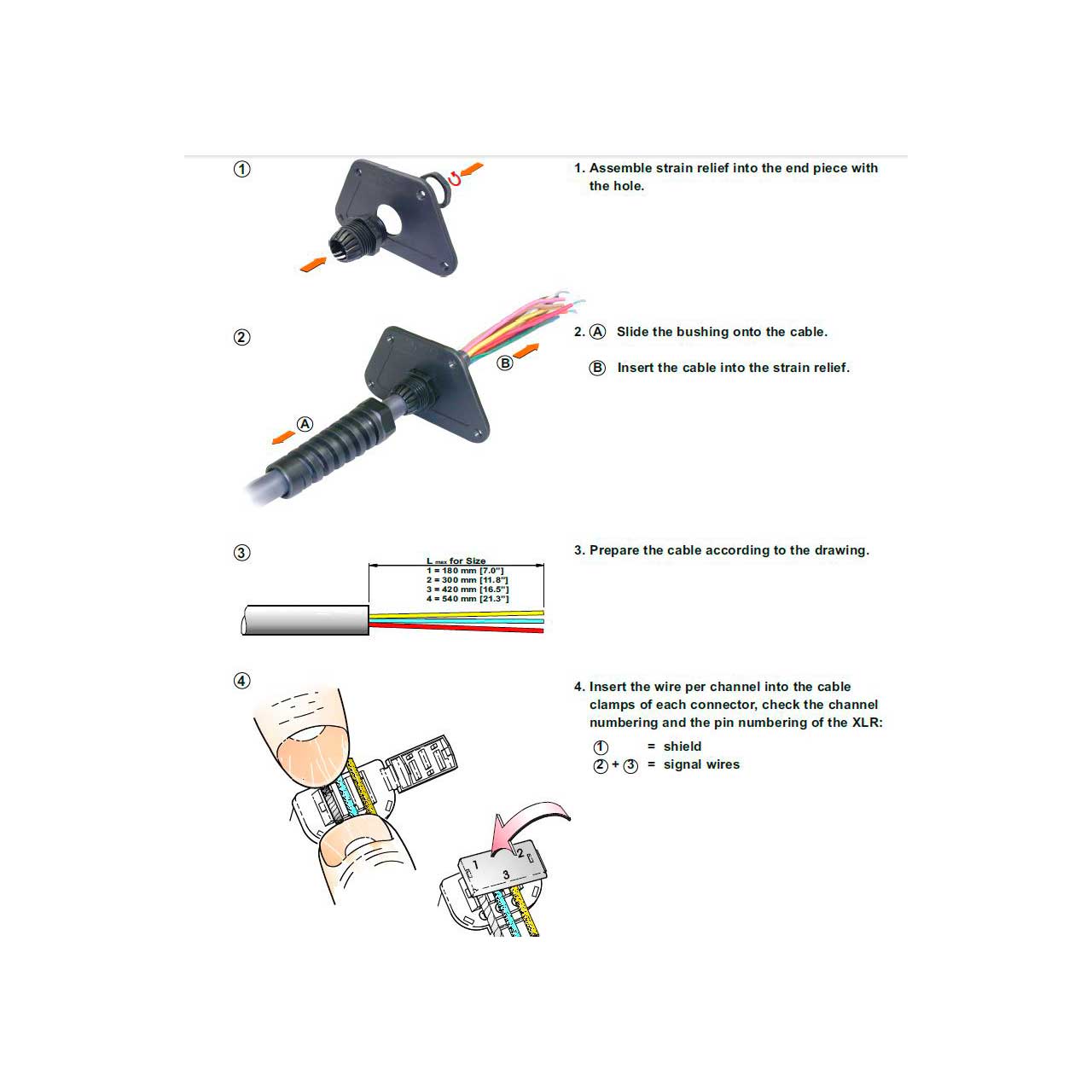

REAN NSB1B-8/0 is a Stage Box with 8 Female XLR inputs. These are supplied as a disassembled set comprising of all hardware parts including plates, profiles, strain relief, end pieces and screws. Labels for channel numbering not included.

  • Specifications:

    • Contact resistance: < 5 mΩ
    • Dielectric strength: 0.5 kVdc
    • Insulation resistance: ≥ 1 GΩ
    • Rated current per contact: 2 A
    • Cable O.D.: 10 - 14 mm multicore
    • Insertion force: ≤ 10 N
    • Withdrawal force: ≥ 10 N
    • Lifetime: > 1000 mating cycles
    • Wiresize: 0.22 and 0.14 mm²
    • Wiresize: 24 and 26 AWG
    • Shell: Aluminium
    • Quad plates: POM
    • End Pieces: Thermoplastic
    • Environmental: Temperature range: -25 °C to +70 °C


  • Item Includes:

    • 1x Neutrik NSB1B-8/0 REAN Stage Box with 8 In Female/Send
