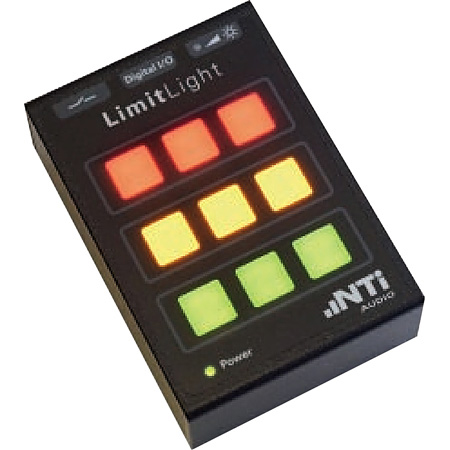

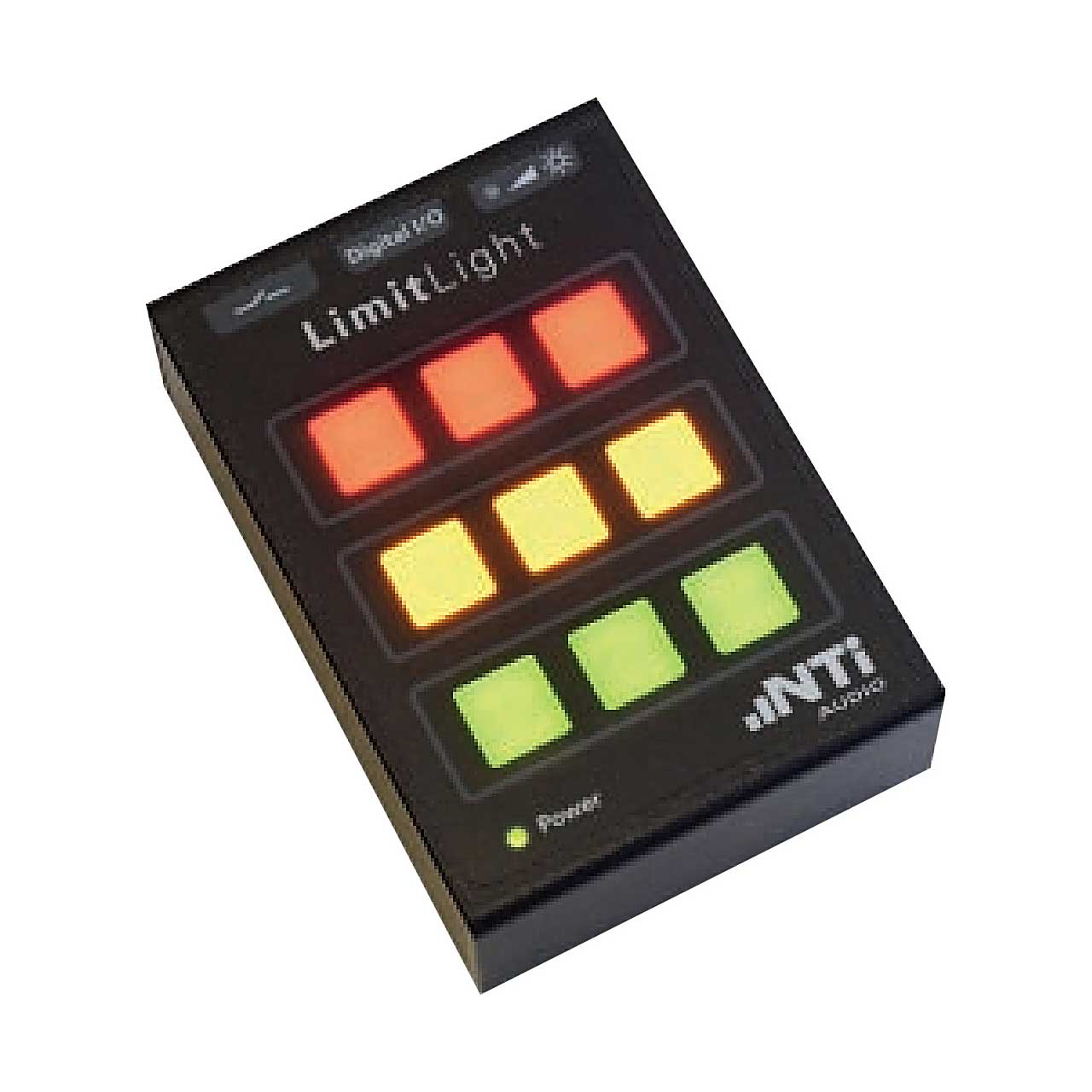

NTI 600 000 600 XL2 Limit Light for Live Sound Monitoring

ITEM #: NTI-600-000-600 MFG #: 600 000 600

Primary Image
NTi Audio
Free Shipping with $49 Minimum Order

Our Price:

$536.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

600 000 600 - Overview

The XL2 Audio and Acoustic Analyzer in combination with the Limit Light offers a turnkey solution for live sound monitoring. The sound level limits are set in the XL2. The Limit Light provides a pre-warning with an orange light and indicates that levels have been exceeded with a red light.

The Limit Light connects directly to the XL2 Analyzer. It represents the actually measured levels on a color display for simple confirmation that the sound level monitored is within the limits. This provides the front-of-house engineer with a personal eye-catching level indication. The light indication is dimmable for applications in dark environments.

  • Features:

    • Level indicated with three colors; green, orange and red
    • Customized color limits set in handheld XL2 Analyzer
    • Dimmable low-profile light indication


  • Specifications:

    • Inputs: XLR 3-pole for power supply and XL2 digital I/O signal; 6.3 mm jack plug for standard foot switch connection
    • Visual Indications: Dimmable level light indication in green, orange and red (limit setting in XL2); Power Indication LED
    • Cable Adapter (included): Adapter length = 20 cm; Assignment: 1 - Ground, 2 - Power Supply, 3 - Digital I/O
    • Power Supply: The default XL2 Power Adapter powers the XL2 and the Stack Light at the same time
    • Tripod Mount: 1/4” Tripod mount in bottom plate
    • Scope of Supply: XL2 Limit Light, Cable Adapter
    • Extension Cable (not included): Cable adapter can be extended with standard XLR cable; Maximum cable length typically 50 m
    • Cascading: Up to 10 I/O Devices can be cascaded @ one single XL2 (cabling not included)
    • Dimensions (L x W x H): 110 x 75 x 40 mm
    • Weight: 0.35 lb
    • Temperature: 14° to 122 °F
    • Humidity: < 90% RH (non-condensing at 50 °C, 122 °F)
    • Standards: CE compliant: EN 61326-1 Class B, EN 55011 class B, EN 61000-4-2 to -6 and -11, Safety EN 60 065, EN 61 010-1:2001, class II
    • Protection: Rating IP51
