NTI ST-C5USB2VT USB Extender with Dual VGA Video

ST-C5USB2VT - Overview

• Features:

  • Supports fully transparent USB connections - supports all USB computers (PC, SUN and MAC) and their associated peripherals.
  • Extends devices such as keyboards, mice, printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.
  • Supports local and remote VGA monitors.
  • Supports resolutions to 2048x1536.
  • DDC2B support for local or remote monitor.
  • Compliant with USB 1.1 (low/full speed) standards.
  • Supports Plug-n-Play specification.


• Specifications:

  • Mechanical
  • Width: 5.1 in. (13 cm.)
  • Height: 1.7 in. (4.3 cm.)
  • Depth: 3.1 in. (7.9 cm.)

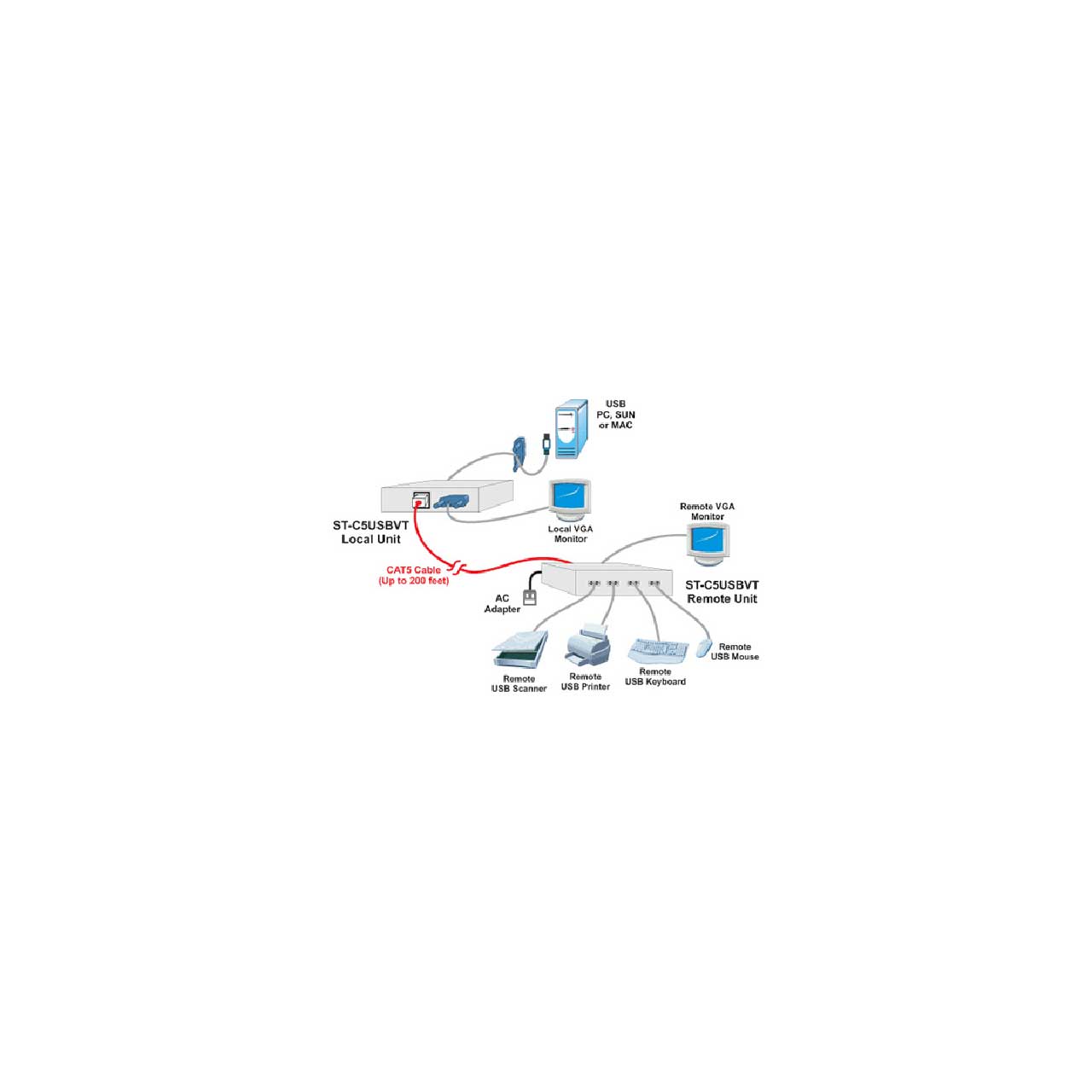

    Local Unit
  • Host Connection: Supports USB computers (PC, SUN, and MAC) with VGA video.
    two male 15-pin HD and one female USB Type B connectors.
  • Local Access: Crisp and clear 2048x1536 video resolution.
    two female 15-pin HD connectors for local dual VGA monitors.

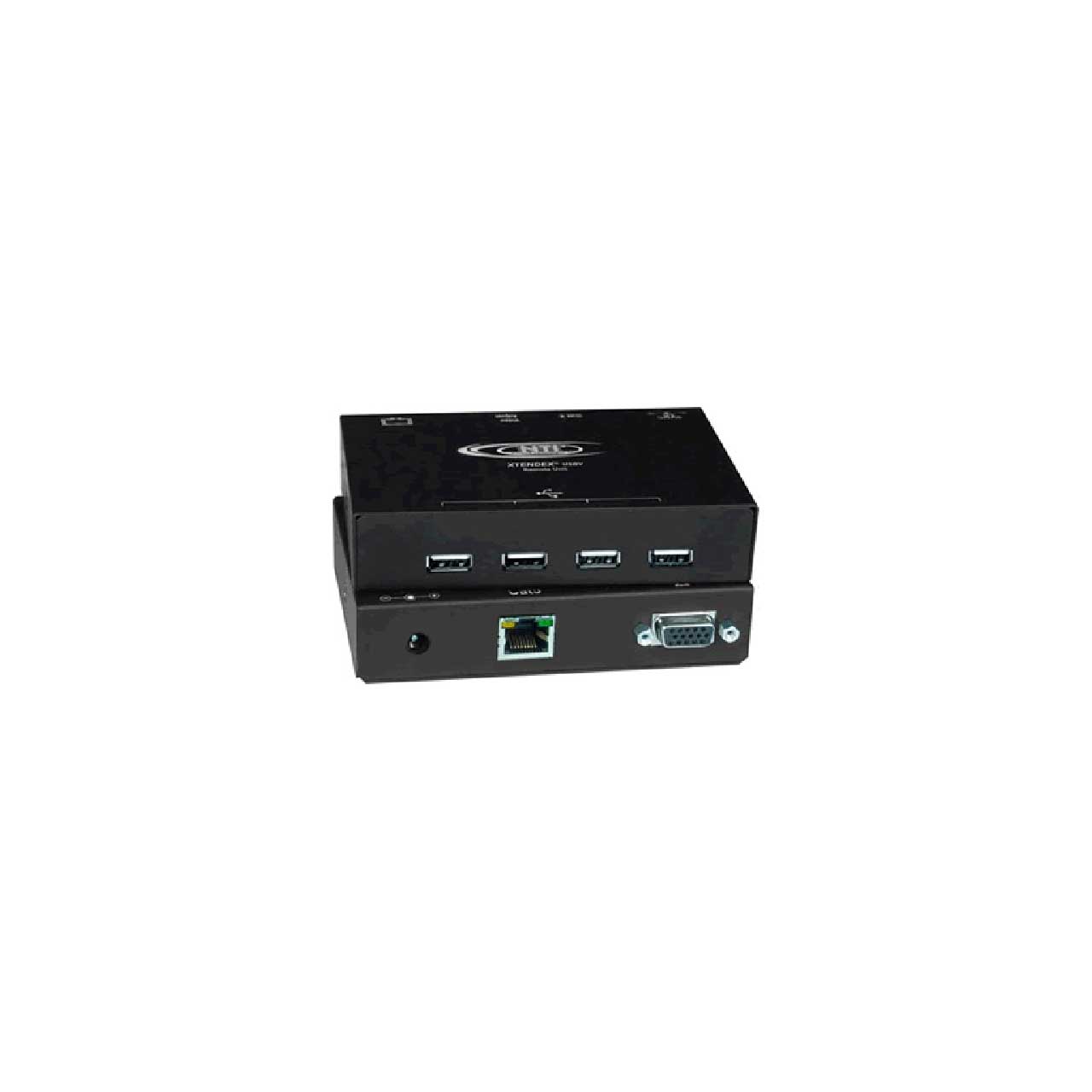

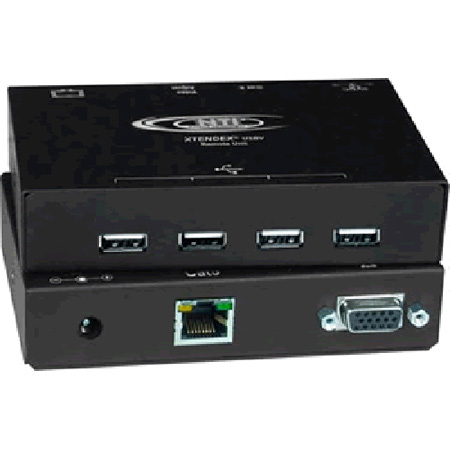

  • Remote Unit: Two female 15-pin HD and four female USB Type A connectors.
    Provides support for full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices.
    Supports resolution to 2048x1536
    Video quality adjustment for different lengths of CATx cable is done manually.

    Power
  • Local/Remote Unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter.
    The combined current consumption of the connected devices cannot exceed 1.4A
  • Cables: one 3-foot VGA + USB and one 3-foot VGA cables included.
    Use CAT5e/6/7 straight through cable for TIA/EIA-568B wiring terminated
  • with standard RJ45 connectors (not included).
