Rean NYS372P-BG Phono Jack with Gold Plated Contacts & Black Plated Shell

ITEM #: NYS-372P-BG MFG #: NYS372P-BG

Primary Image
Rean
Free Shipping with $49 Minimum Order

List Price:

$2.73

Our Price:

$2.64

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    NYS372P-BG - Overview

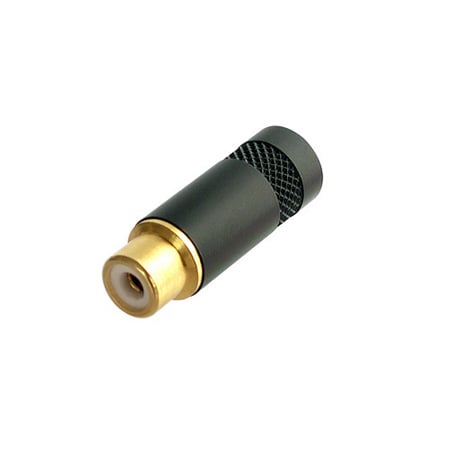

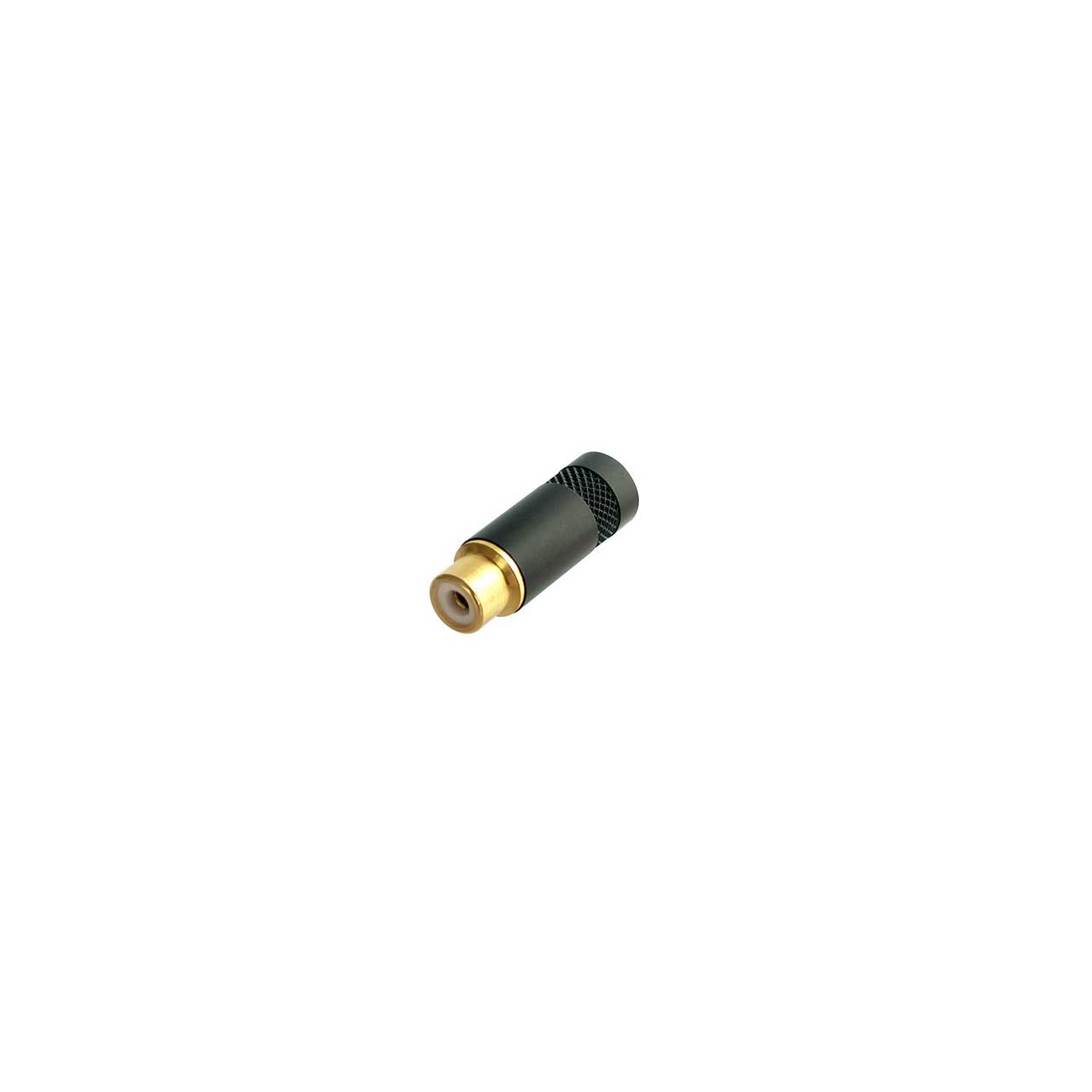

    The Rean NYS372P-BG is a Phono Jack with Gold Plated Contacts and a Black Plated Shell.

    • Specifications:

      • Electrical
      • Dielectric Strength: 0.5 kVdc
      • Insulation Resistance: ≥ 1 GΩ
      • Rated current depends on mated connector
      • Contact resistance depends on mated connector

        Mechanical
      • Cable O.D.: 7.2 mm
      • Lifetime: > 1000 mating cycles
      • Wiresize: 26 AWG

        Material
      • Contact Plating: Au
      • Contacts: Brass (CuZn39Pb3)
      • Shell: Brass (CuZn39Pb3)
      • Shell Plating: Black
      • Strain Relief: nCe plated, crimp type
      • Insulation: ABS

        Environmental
      • Solderability: Complies with IEC 68-2-20
      • Temperature Range: -13°F - 158°F (-25°C to 70°C)
