Rean NYS367-9 Gold Plated RCA/Phone Chassis Mount Socket - White

ITEM #: NYS367WE MFG #: NYS367-9

Primary Image
Rean
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2.90

Our Price:

$1.83

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NYS367-9 - Overview

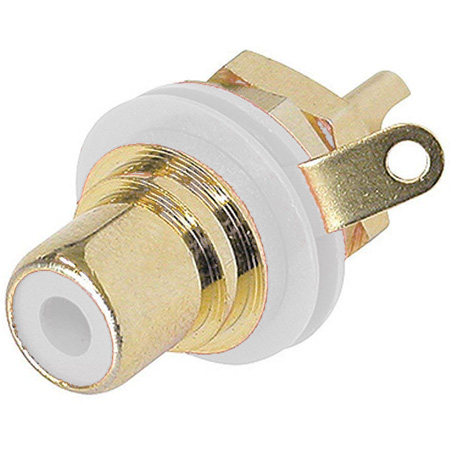

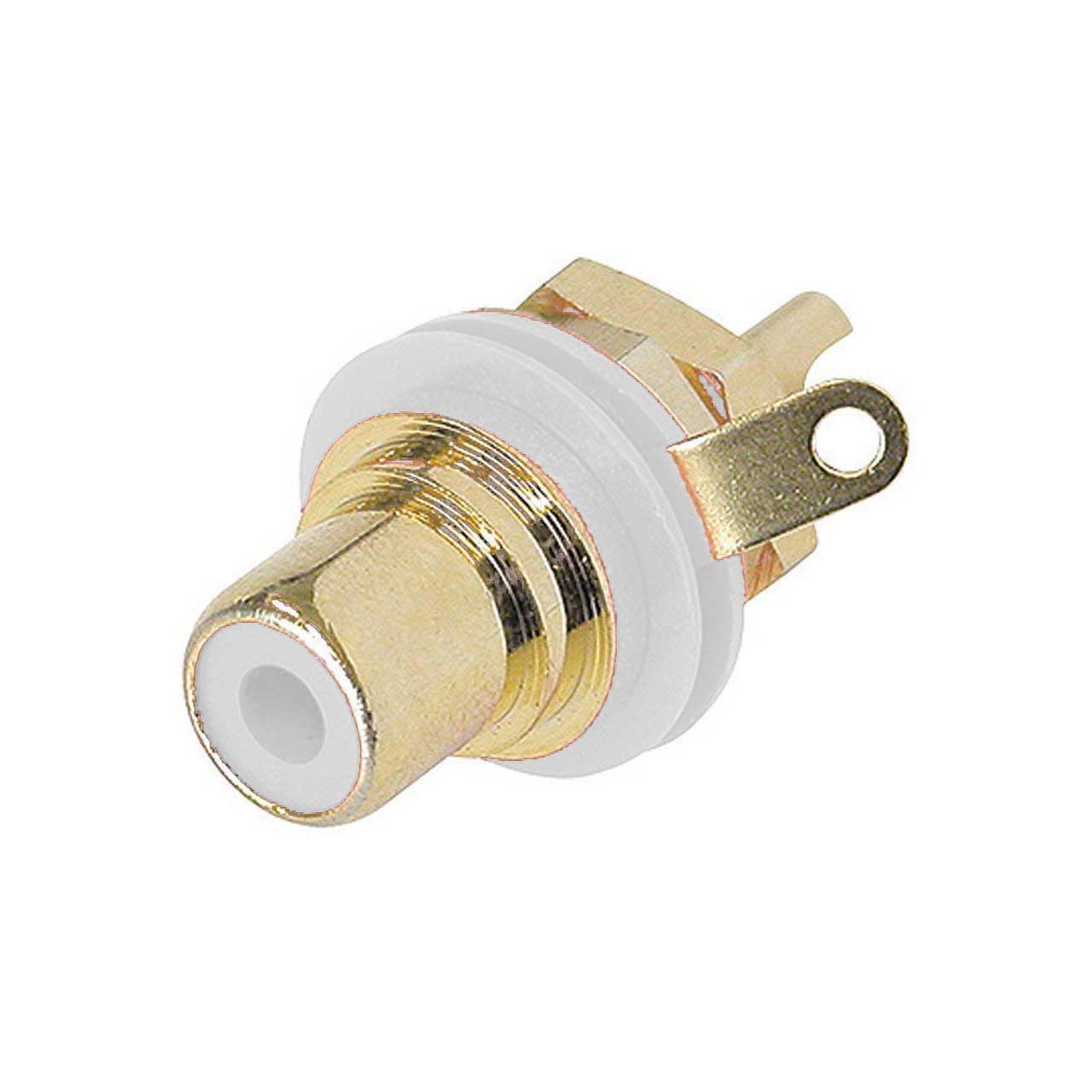

Rean NYS367 is a gold plated RCA/Phone chassis mount socket in White.

  • Features:

    • Heavy duty phono plugs
    • All metal
    • Cable O.D. up to 6 mm (0.25")


  • Specifications:

    • Product
    • Title: NYS367
    • Connection Type: Phono ("RCA/Cinch")

      Electrical
    • Contact Resistance: ≤10 mΩ
    • Insulation Resistance: >2000 MΩ(Initial)
    • Rated Voltage: 0.5 VAC

      Mechanical
    • Insertion and Withdrawal Force: 5-20N
    • Lifetime: >5000 Mating Cycles

      Material
    • Housing: Brass
    • Nut: Brass
    • Washer: PA+30%GF
    • Lug: Brass
    • Washer: PA+30%GF
    • Pin: Brass
    • Housing: Gold
    • Nut: Gold
    • Lug: Gold
    • Pin: Gold
