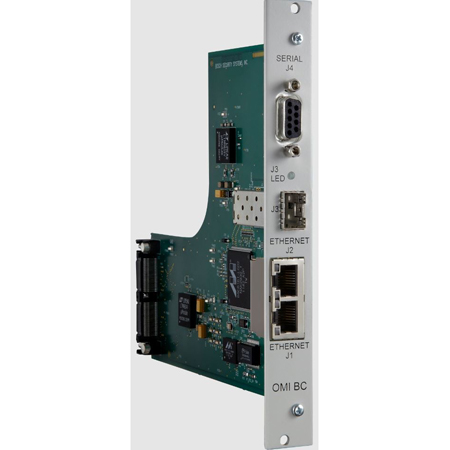

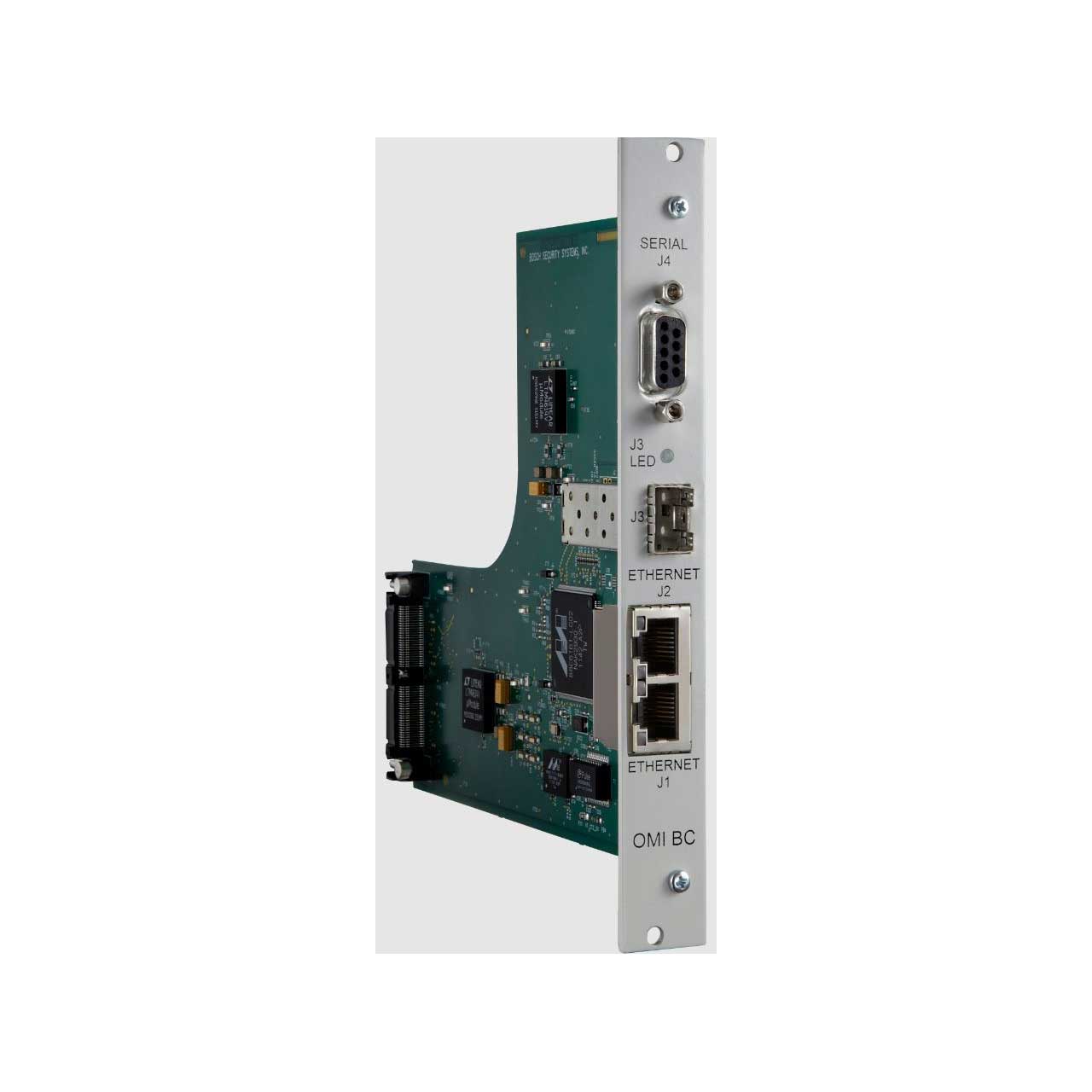

RTS OMI-32-FC-BC-KIT ADAM OMI Interface Card - 32 Channels

F.01U.283.787 - Overview

• Features:

  • The OMI card is available in configurations up to 64 bidirectional ports in increments of 16 ports on a single card.
  • The OMI card can be expanded from the base configuration of 16 ports through software upgrades.
  • In addition to the standard RJ45 Ethernet connection, fiber connectivity is also supported with the addition of optimal single mode or multimode modules.

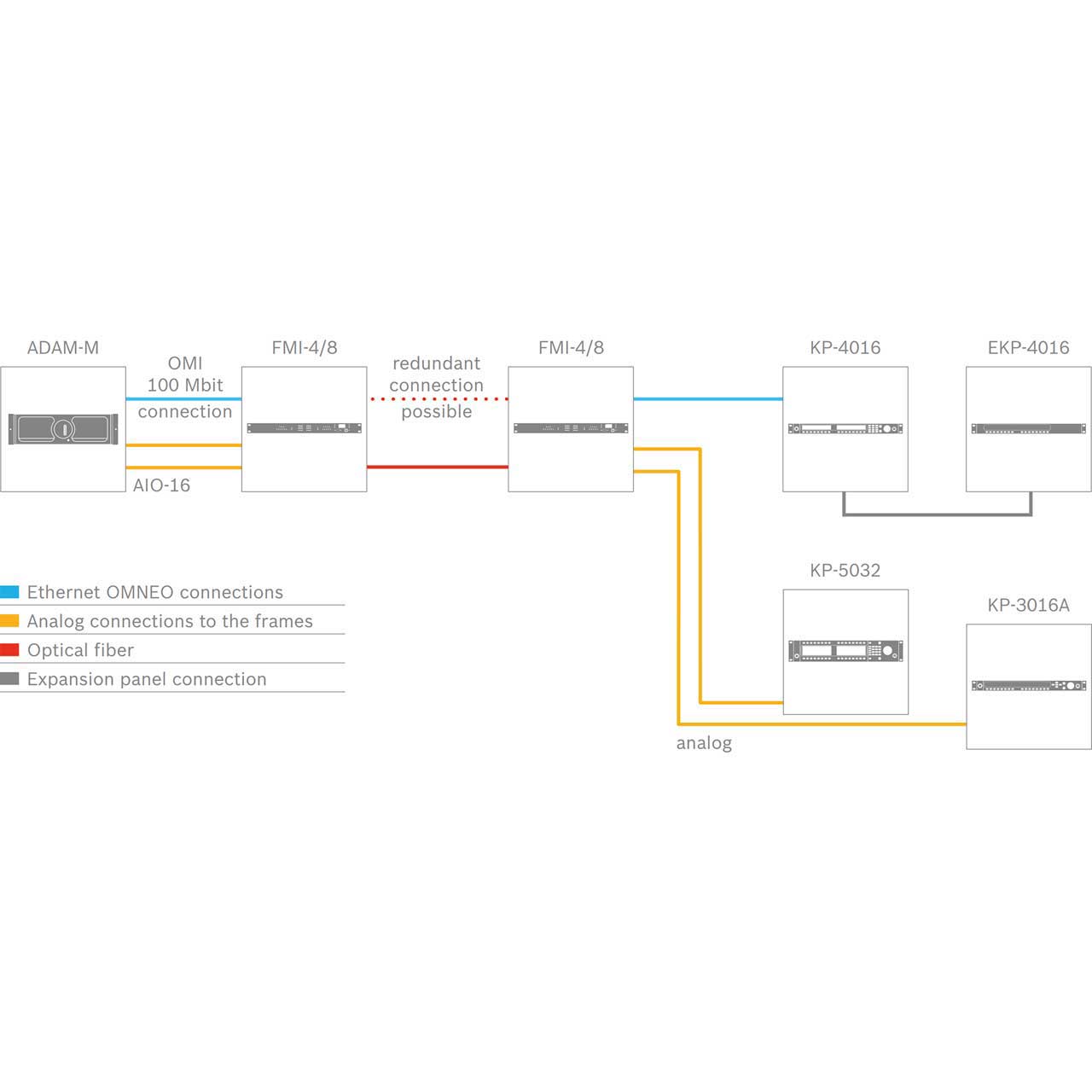

  • A fully configured single compact ADAM-M frame can support up to 256 OMNEO ports, providing a highly compact single frame solution for many system installs.
  • The ADAM frame supports an astounding 512 OMNEO ports, making it ideal for larger systems without the need for frame-to-frame linking.


• Specifications:

  • Channels: 32 CH
  • Connections: Fiber Optic SFP Module with LC Connector, RS232/485 using a DB-9 connector, 2- RJ45 Connectors
  • Frequency Response: within ±1dB from 20Hz - 20kHz
  • Operating Temperature: 32 to 122°F
  • Power Consumption: 14.9W @5V(Front and Back combined)
  • Storage Temperature: -40 to 158°F
  • Total Harmonic Distortion+Noise: < @8dB, better than 0.01 %
  • Weight: 10.23 oz (290 g)
