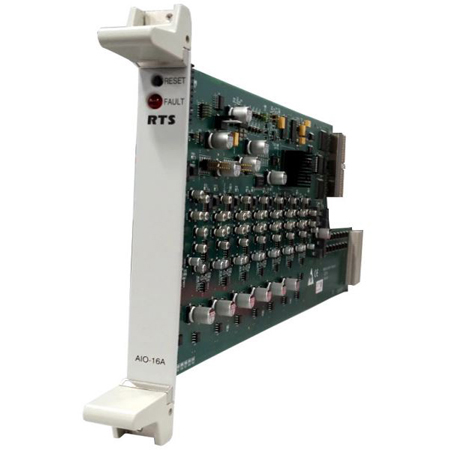

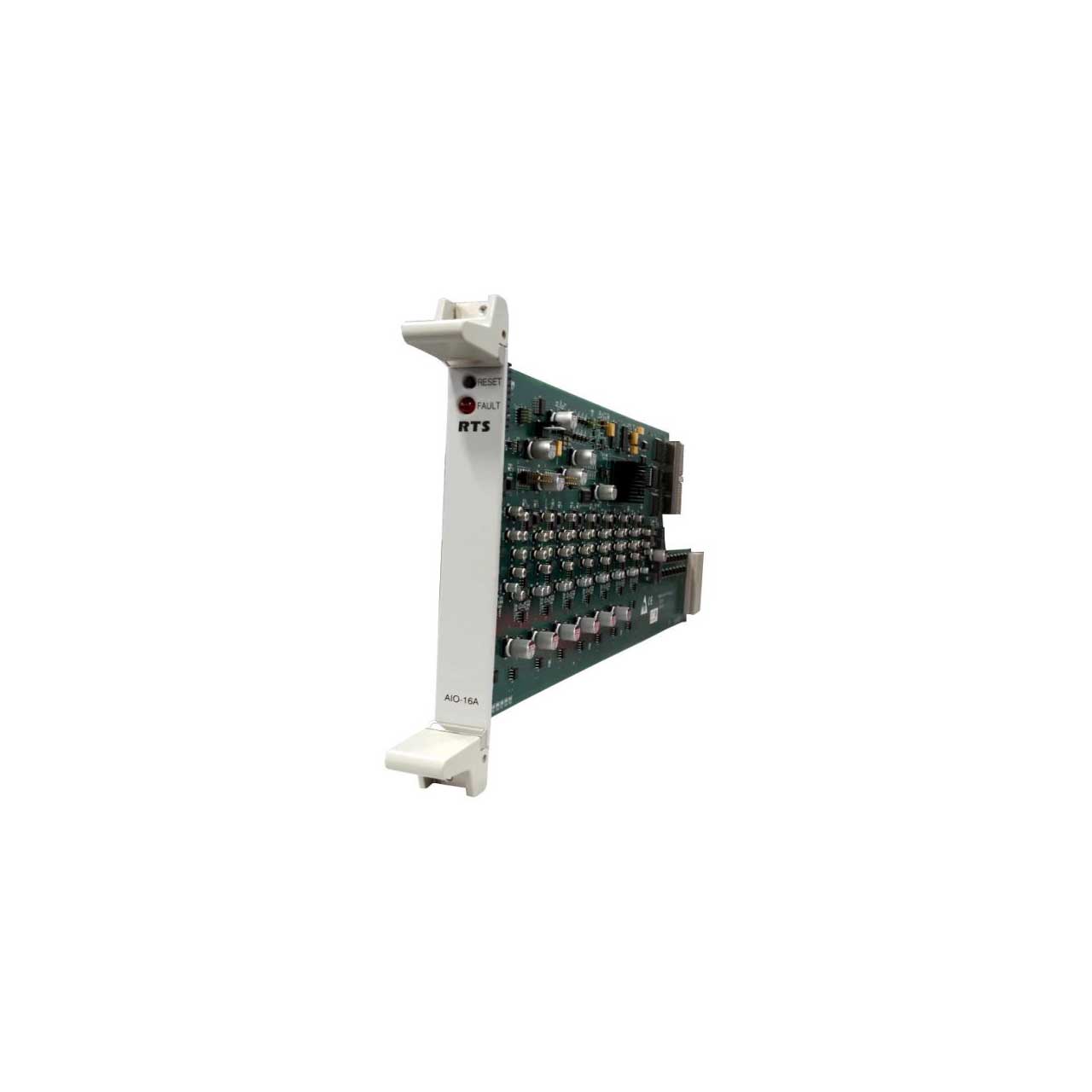

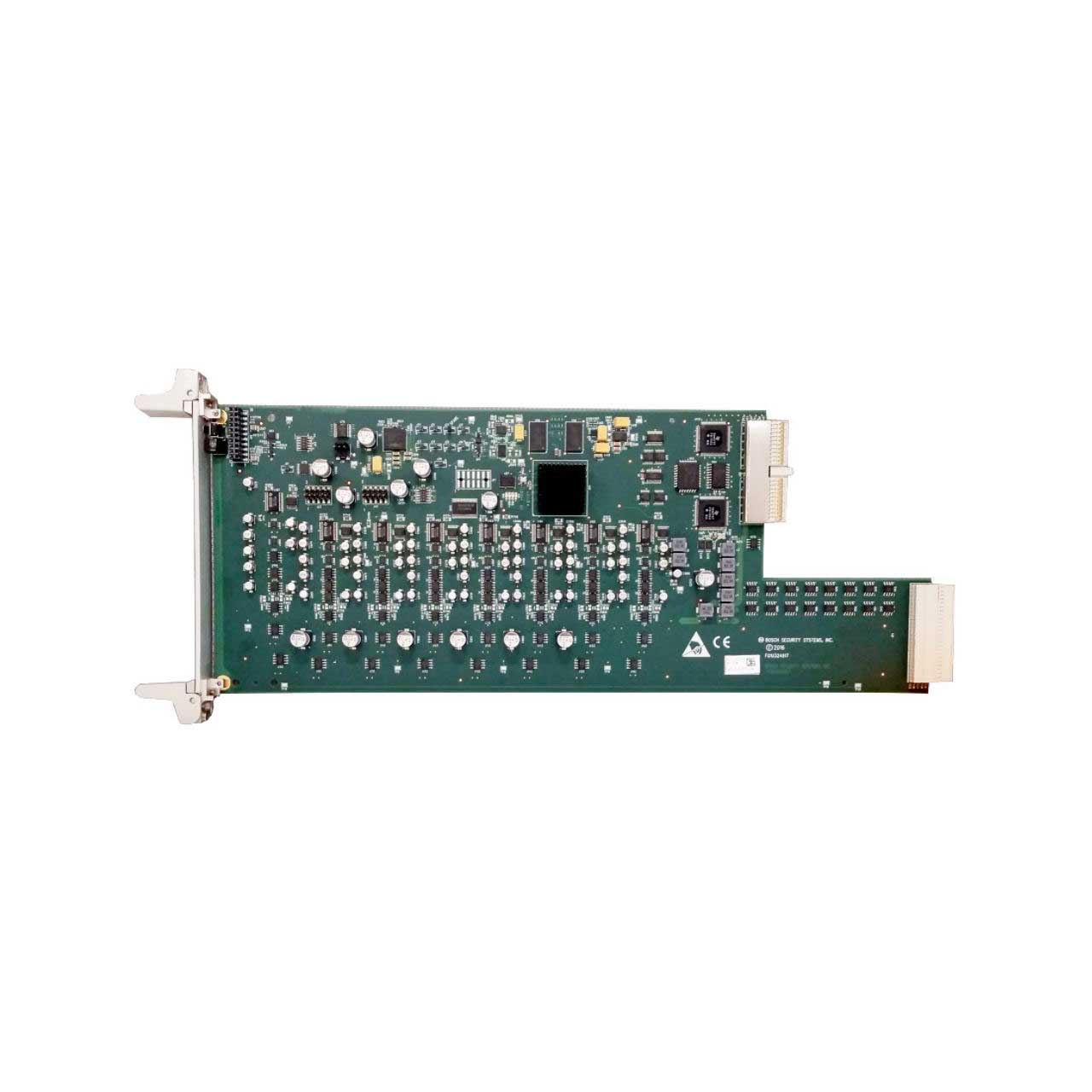

The RTS AIO-16A is a 16-Channel OMI Standard Input/Output Frontcard for ADAM or ADAM-M Matrix Intercom Frames that co-exists with legacy I/O cards allowing current systems the capability to upgrade! It is fully compatible with the legacy AIO-16 using the same back card and cabling. This means the AIO-16A can replace the AIO-16 card without replacing the back cards, cables or breakout panels. Installed directly into the ADAM or ADAM-M Matrix Intercom frame, the AIO-16A card gives 16 ports of audio IN and OUT for each card installed (up to 17 cards) in the frame. (frames and cards sold separately)
The AIO-16A is hot-swappable, allowing the user to insert the card and begin using it immediately. Once inserted into the system, it uses its "smart card" capability to see the backcard configuration and switches its keypanel communication protocol accordingly. The AIO-16A is fully compatible with MADI, OMI, RVON, and TBX cards. It can run side-by-side with these cards, seamlessly integrating into the port allocation scheme already in place.
The RTS family of Digital Intercom Matrices is the most extensive, widely used, scalable and backwards compatible line of intercoms in the world today. The high-end ADAM 2 Matrix supports 8 to 880 users per system; 512 ports possible in just a seven RU (Rack Units) frame.
