Camplex opticalCON DUO to Two (2) ST Breakout Adapter - Multimode

Name: Camplex opticalCON DUO to Two (2) ST Breakout Adapter - Multimode
Brand: Camplex
SKU: OPADAP-5
Price: 201.49 USD
Availability: InStock

ITEM #: OPADAP-5 MFG #: OPADAP-5

Camplex

List Price:

$212.49

Our Price:

$201.49

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

OPADAP-5 - Overview

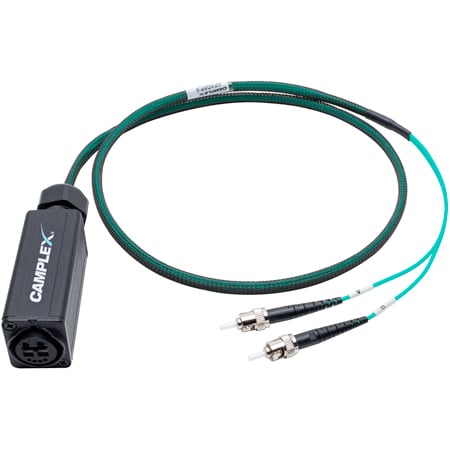

Connect your Neutrik opticalCON DUO multimode cables to standard ST fiber optic connectors with these handy in-line adapters by Camplex. Rugged yet lightweight design is perfect to strap to cameras and other gear.

Each channel is clearly numbered and 1 meter in length with Techflex protective tubing for years of professional use. Supplied with opticalCON rubber dust cap for maximum protection.

opticalCON DUO adapters feed out to duplex (2) individual fiber cable channels.

Features:
- OM3 Multimode Cable
- Lightweight Design
- Numbered Channels
- (2) ST Connectors
- Rubber Dustcap for Connector Protection
Specifications:
- Neutrik NO2-4FDW-A:
- Contact Resistance: < 7 mΩ
- Dielectric Strength: 1,5 kVdc
- Insulation Resistance: > 2 GΩ (initial)
- Rated Current Per Contact: 6 A
- Rated Voltage: < 50 V (1)
- Insertion Force < 45 N
- Withdrawal Force: < 45 N
- Lifetime: > 5000 mating cycles
- Chassis Shape: D
- Contacts: Bronze (CuSn6)
- Insert: Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell Plating: Black Chromium

  Camplex Fiber Optic Patch Cable Multimode Duplex ST to LC - 10-Gig:
- Insertion Loss: ≤0.20dB max (PC)
- Tensile Strength: Long Term: 160N / Short Term: 300N
- Pressive Strength: Long Term: 300N / Short Term: 1000N
- Bend Radius (mm): Dynamic: 80mm / Static: 40mm
- Attenuation: @850nm: ≤3.5dB/km / @1300nm: ≤3.5dB/km
- Temperature: -20°C ~ 80°C
- BW: @850nm: ≥1500MHz Km / @1300nm: ≥500MHz km
