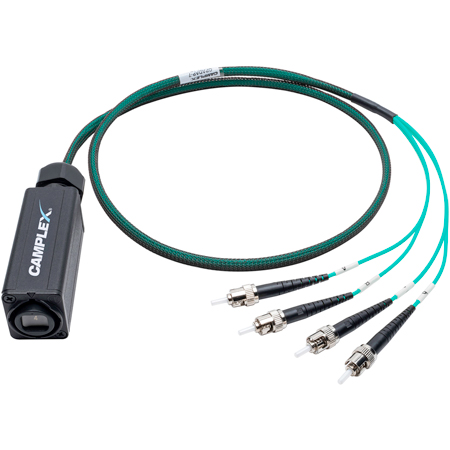

Camplex opticalCON QUAD to Four (4) ST Breakout Adapter - Multimode

ITEM #: OPADAP-7 MFG #: OPADAP-7

Primary Image
Camplex
Free Shipping with $49 Minimum Order

List Price:

$212.49

Our Price:

$201.49

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

OPADAP-7 - Overview

Connect your Neutrik opticalCON QUAD multimode cables to standard ST fiber optic connectors with these handy in-line adapters by Camplex. Rugged yet lightweight design is perfect to strap to cameras and other gear.

Each channel is clearly numbered and 1 meter in length with Techflex protective tubing for years of professional use. Supplied with opticalCON rubber dust cap for maximum protection.

opticalCON QUAD adapters feed out to four (4) individual fiber cable channels.

  • Features:

    • OM3 Multimode Cable
    • Lightweight Design
    • Numbered Channels
    • (4) ST Connectors
    • Rubber Dustcap for Connector Protection


  • Specifications:

    • Neutrik NO4FDW-A:
    • Insertion Force: < 45 N
    • Withdrawal Force: < 45 N
    • Lifetime: > 5000 Mating Cycles
    • Locking Device: Push-Pull
    • Mounting Direction: Front Mounting
    • Chassis Shape: D
    • Insertion Loss: < 0.5 dB / Connection

      Camplex Fiber Optic Patch Cable Multimode Duplex ST to LC - 10-Gig:
    • Tensile Strength: Long Term: 160N / Short Term: 300N
    • Pressive Strength: Long Term: 300N / Short Term: 1000N
    • Bend Radius (mm): Dynamic: 80mm / Static: 40mm
    • Attenuation: @1310nm: ≤0.3dB/km / @1550nm: ≤0.3dB/km
    • BW: @850nm: ≥1500MHz Km / @1300nm: ≥500MHz km
