Neutrik OSC8M neutriCON Male Cable Connector

ITEM #: OSC8M MFG #: OSC8M

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$16.85

Our Price:

$14.44

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


OSC8M - Overview

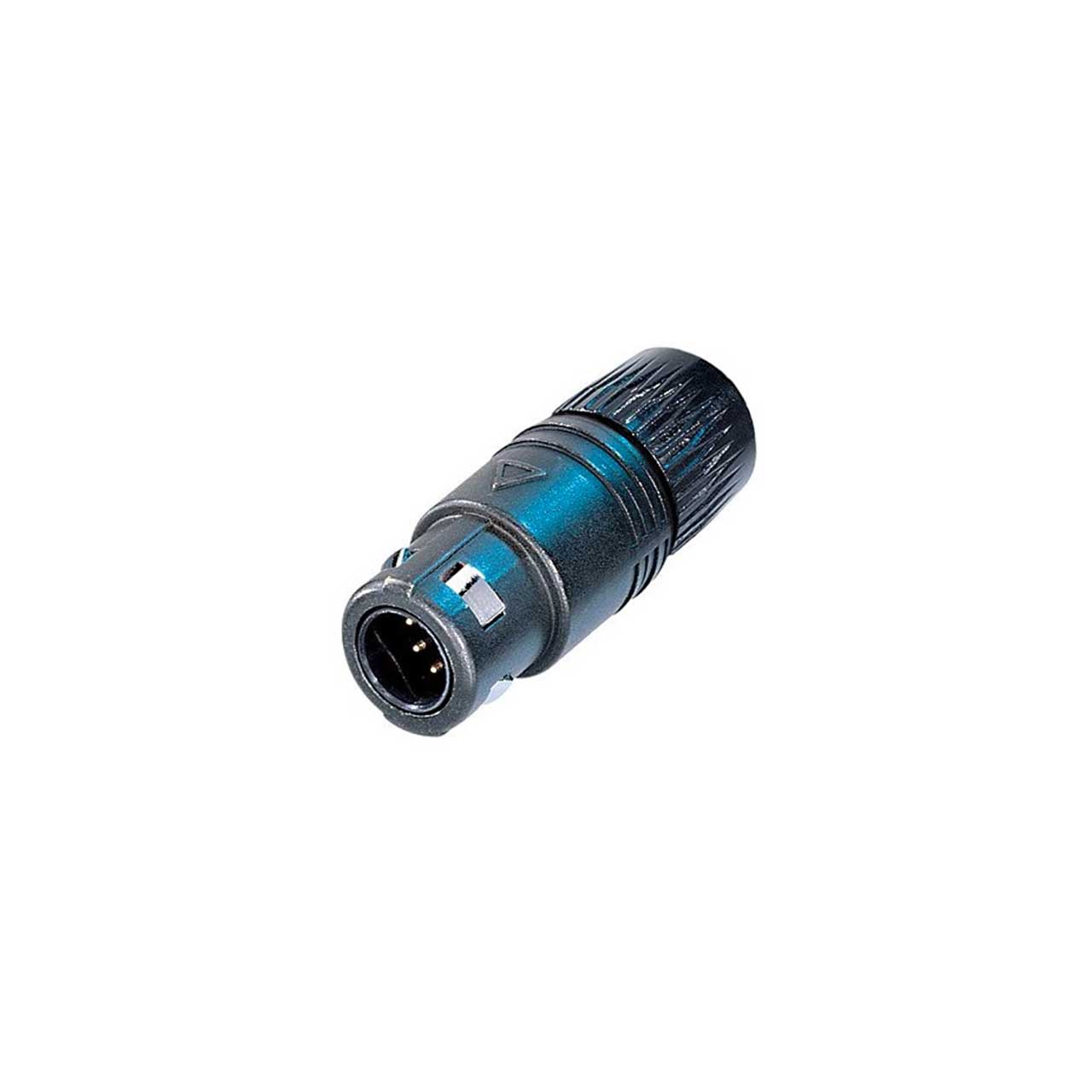

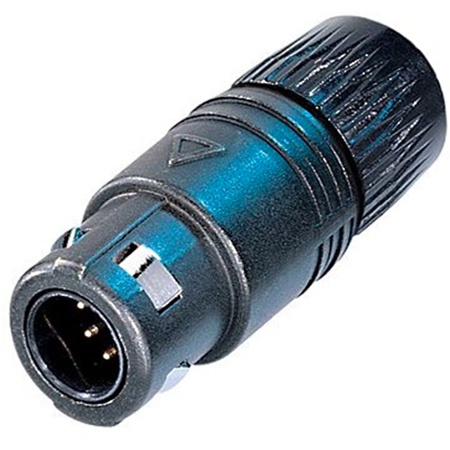

The Neutrik OSC8M is an 8 pole male cable neutriCON connector with chuck type strain relief, solder contacts, 180° coding, and black housing.

The neutriCON connectors are designed for multipin/industrial applications in harsh and demanding environment. The very robust all metal circular connector offers easy and screwless assembly, flexible part combination and a push-pull locking mechanism.

  • Features:

    • Contact configuration can be selected from 1 to 8 contacts
    • Precise and robust all metal housing
    • Easy assembly: Contact soldering in disassembled condition avoids awkward wiring of high density contacts
    • Push-pull self-locking system

  • Specifications:

    • Electrical
    • Contact Resistance: ≤ 5mΩ
    • Dielectric Strength: 1,5 kVdc
    • Insulation Resistance: > 0.5GΩ (after damp heat test IEC 68-2-30)
    • Rated Current per Contact: 7,5 A
    • Rated Voltage: <50 V

      Mechanical
    • Cable O.D.: 3mm - 7mm
    • Cable Retention: >50 N
    • Insertion Force: <25 N
    • Lifetime: >1000 mating cycles
    • Wiresize: 1mm²
    • Wiresize: 18 AWG
    • Wiring: Solder contacts
    • Locking Device: Push-Pull

      Material
    • Contact Plating: 0.3µm Au hard alloy over 2µm Ni
    • Contacts: Brass (CuZn35Pb2)
    • Insert: PBTP 15% GR
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell Plating: Black chromium
    • Strain Relief: Polyacetal (POM)

      Environmental
    • Flammability: UL 94 HB
    • Protection Class: IP 5X
    • Solderability: Complies with IEC 68-2-20
    • Temperature Range: 86°F - 176°F (-30°C - 80°C)

  • GTIN:

    7613187004490
