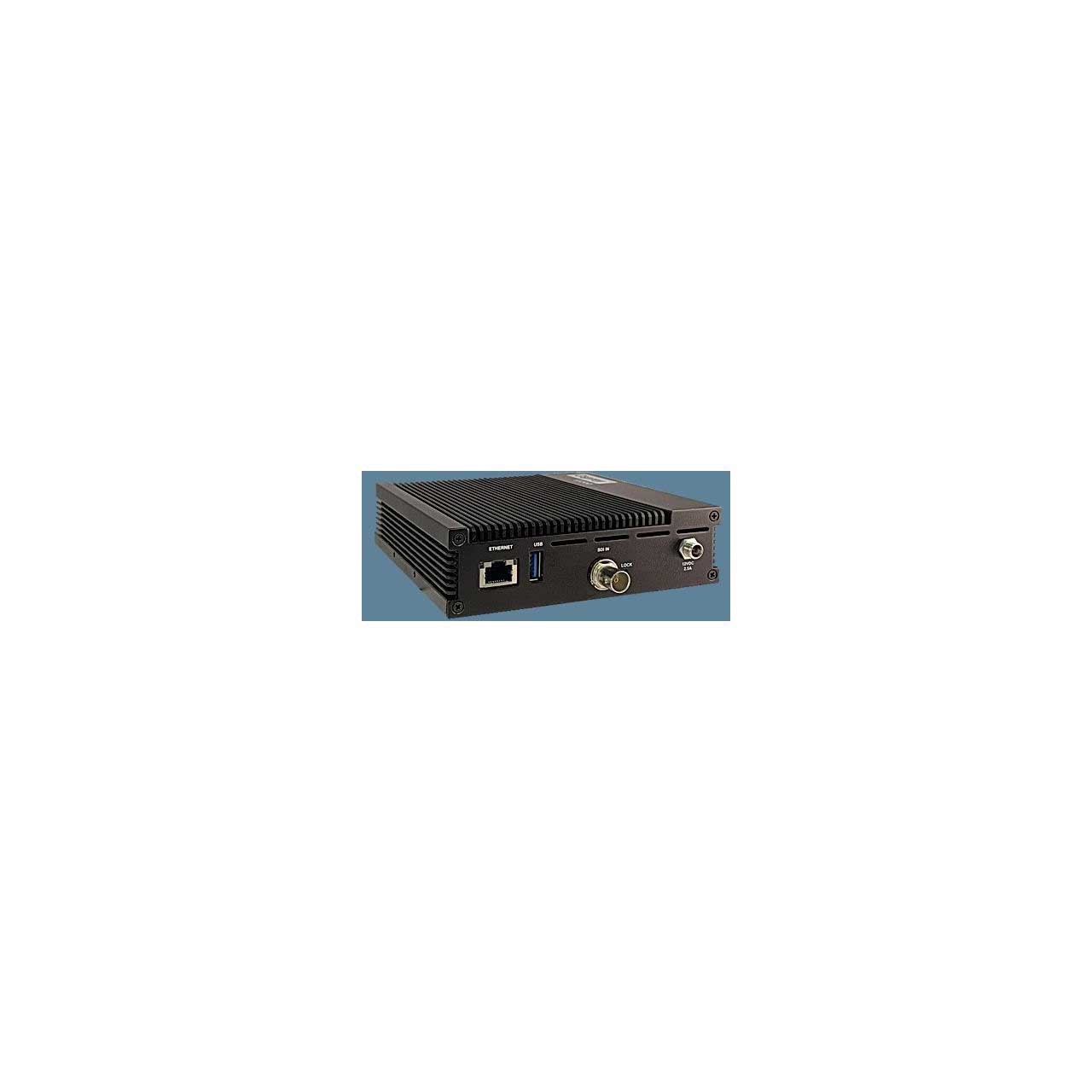

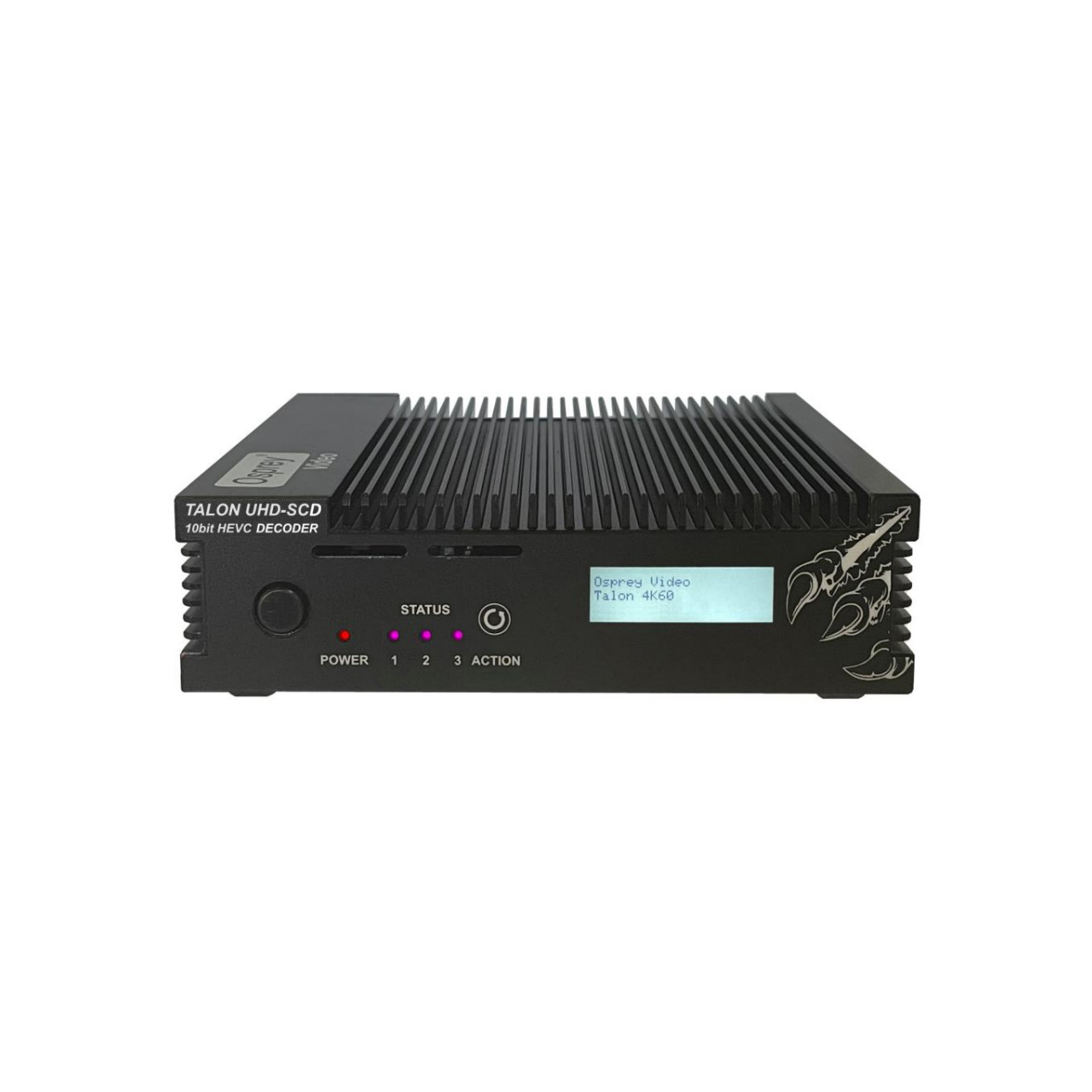

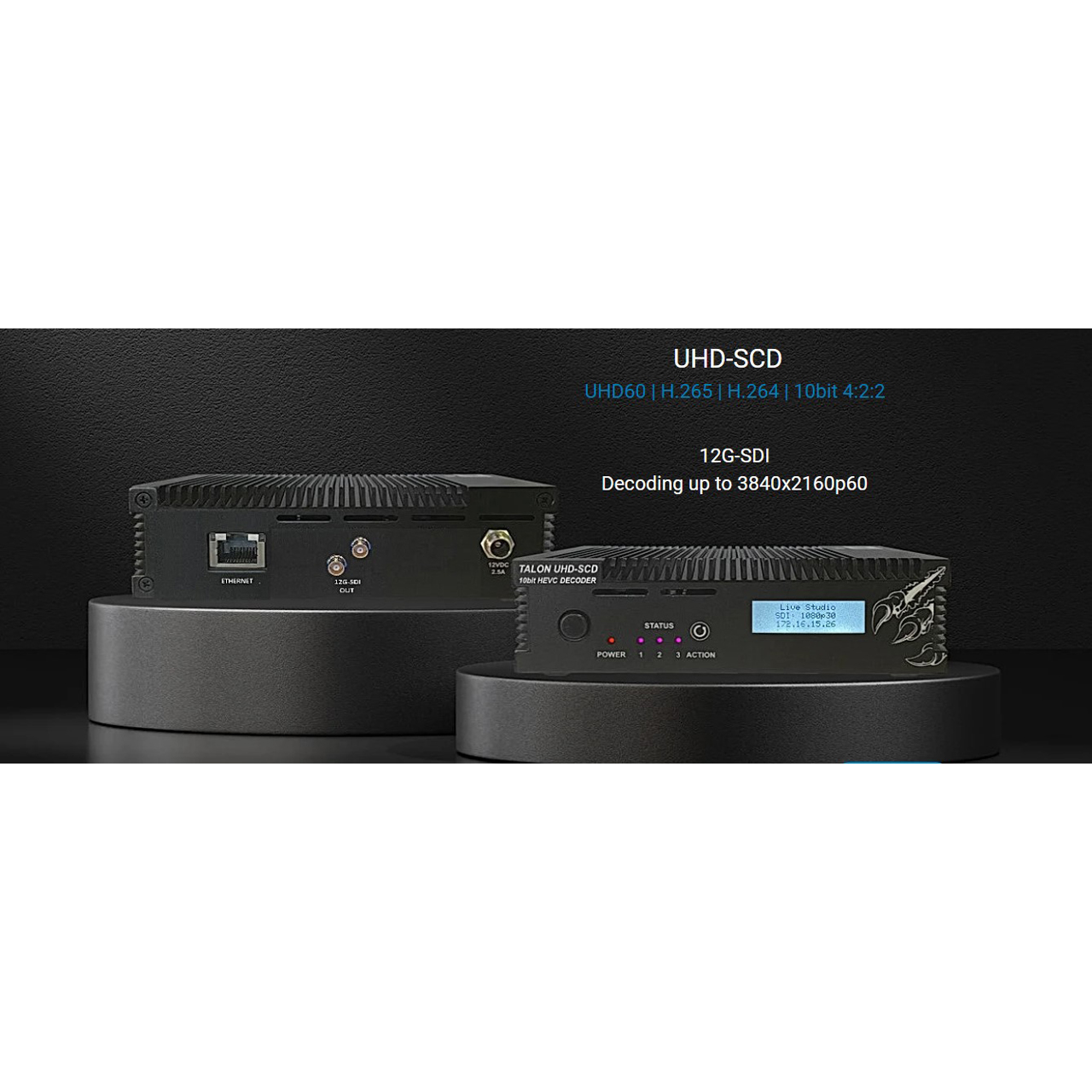

Osprey TALON UHD-SCD 12G-SDI H.265 HEVC/H.264 AVC Video Decoder with 8 Channels of Embedded Audio - TAA Compliant

ITEM #: OSP-96-02028 MFG #: 96-02028

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,990.00

Our Price:

$1,873.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


96-02028 - Overview

3840x 2160p 10bit 4:2:2

Osprey Talon UHD-SCD is a 12G-SDI 3840x2160p 10bit 4:2:2 H.264 UHD60 decoder with 8 Audio Channels. This professional 4K 10bit 4:2:2 HEVC / AVC Streaming decoder features resolutions up to UHDP60. Specifically designed for 24/7 operation the Talon UHD-SCD provides simultaneous streaming and archiving in different resolutions and frame rates in a LAN HTTP configuration. A fanless design makes Talon UHD-SCD the perfect candidate for mission critical applications. Streaming transports, UDP, RTP, Zixi, SRT with a bitrate up to 100Mbps. It also has enhanced security, Closed Caption Support, SMPTE-2038, video archiving, USB3.0 and network storage.

  • Features:

    • 12G-SDI
    • Fanless Operation
    • Locking Power Jack
    • Status LED's
    • GigE Ethernet connection
    • Enhanced Security Features
    • Remote Firmware Upgrade from Web
    • Network Time Protocol
    • JSON REST API for software integration
    • Password Protected
    • Embedded Closed Caption support
    • SMPTE 2038 Support

  • Specifications:

    • Video Outputs
    • 2x 12G-SDI (parallel HD-BNC)

      Audio Outputs
    • Embedded SDI 8Ch of audio (4 stereo pairs)

      Video Output Resolution
    • Up to 3840 x 2160 (UHD) 60fps will automatically match input resolution

      Color Depth
    • Up to 10-bit 4:2:2

      Input Streams
    • RTMP(S), UDP, RTP, Zixi™, SRT™
    • Number of Input Channels - 1

      Supported Video Input Compression
    • H.264 (AVC), H.265 (HEVC)

      Supported Audio Input Compression
    • AAC-LC
    • OPUS audio for UDP, RTP, SRT, and Zixi

      Supported Input Audio Sample Rate
    • 44.1kHz, 48kHz
    • Audio Bitrate 64Kbps to 512Kbps

      Software Features
    • Enhanced Security Features
    • Remote Firmware Upgrade from Web
    • Network Time Protocol
    • JSON REST API for software integration
    • Password Protected
    • Embedded Closed Caption support
    • SMPTE 2038 Support

      Hardware Features
    • Fanless Operation
    • Locking Power Jack
    • Status LED's
    • GigE Ethernet connection

      Optional Enterprise Features
    • Customizable notice and consent banner
    • Secure HTTPS (SSL) web based management
    • Open VPN Client
    • Whitelist/Firewall for Management IP Access
    • KLV support for in-band SDI Output

      Add-on Option
    • 1RU Rackmount kit with active cooling for up to 3 decoders

      Mechanical
    • 5.5 x 6.2x 1.5"
    • Operating Temperature 0 to 40C
    • Power 12V / 24W max

  • Item Includes:

    • 1x Decoder
    • 1x 12V/36W Power Supply
    • 1x Mounting Brackets

  • Warranty:

    • 2 Year Limited Warranty

  • GTIN:

    0850010356136
