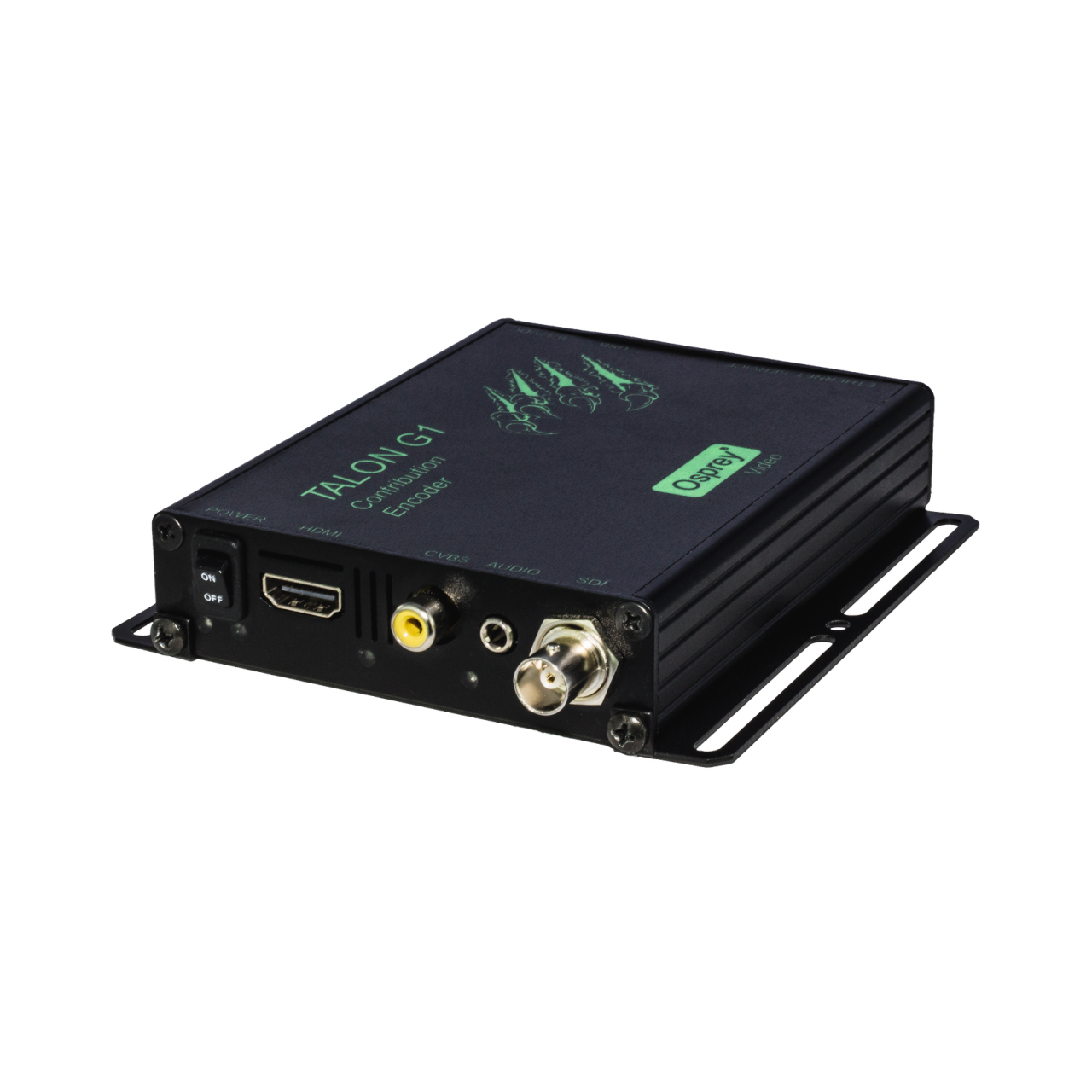

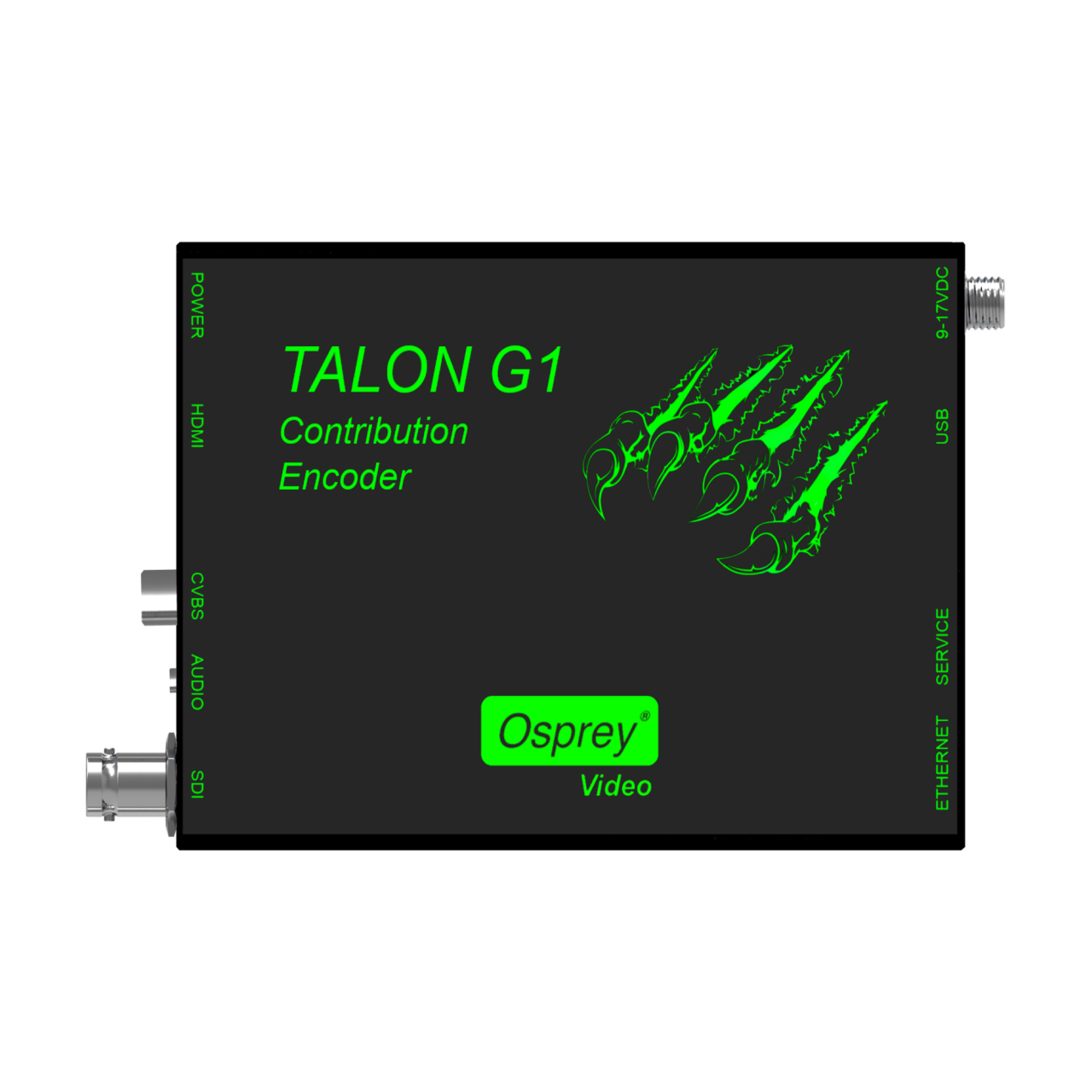

Osprey TALON G1 2 Channel H.264 Video Streaming Contribution Encoder - TAA Compliant

TALON G1 ENCODER - Overview

• Features:

  • H.264 Encoder
  • Two Configuration Modes
  • Closed Caption Support

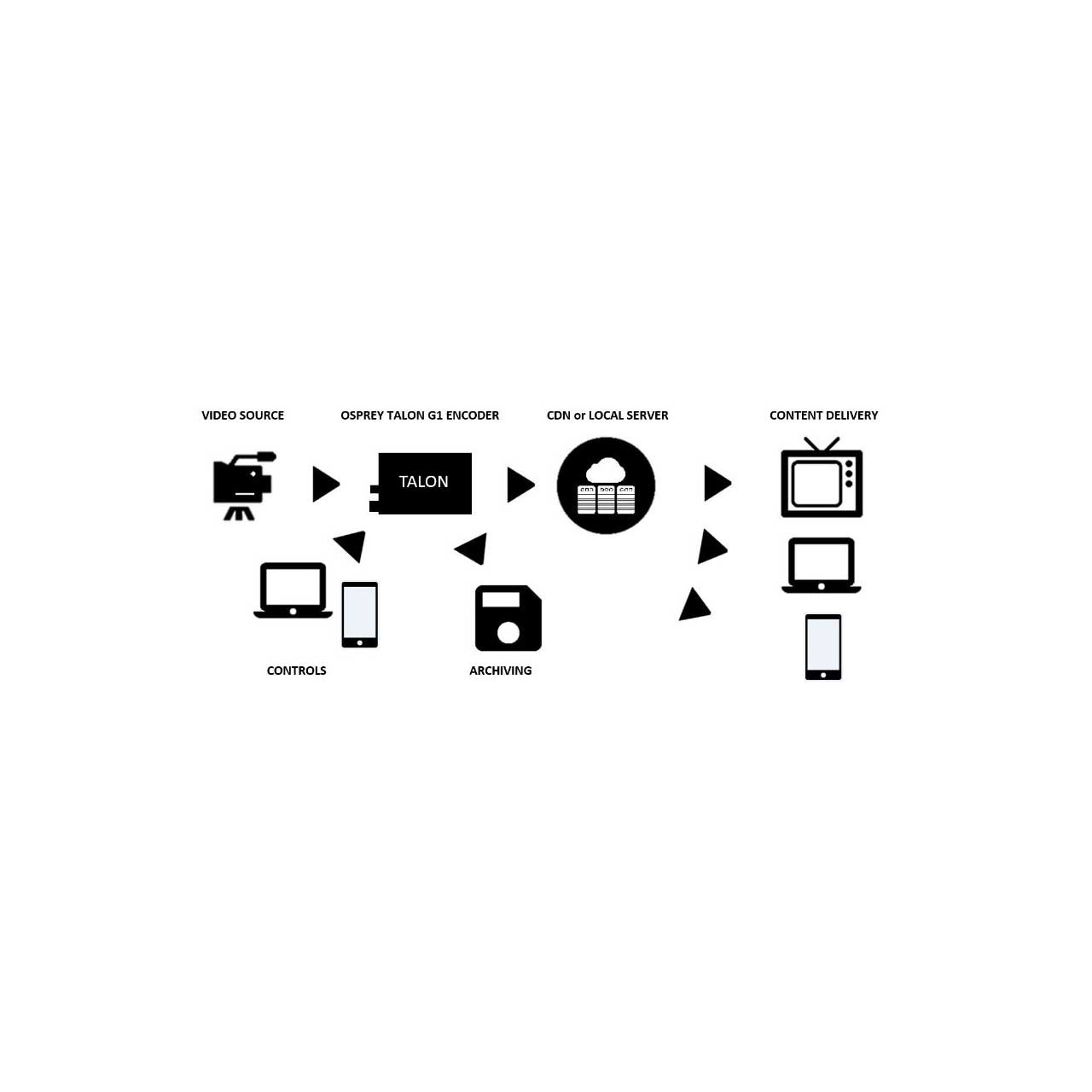

  • Simultaneous Streaming and Archiving
  • Inputs: HDMI 1.4, 3G SDI, Composite/CVBS


  • Closed Caption:
  • Closed Captioning (EIA-608 & EIA-708) Type 1 ATSC Picture User Data is automatically embedded in the H.264 SEI per SCTE 128-1 standard (available in RTMP & UDP Streams)


  • HTTP Based Configuration:
  • Easily control encode settings with the mobile-friendly HTTP based interface. Quickly modify resolutions, frame-rates, and destination settings.


  • Audio Input Options:
  • Embedded HDMI/SDI, Additional Unbalanced Stereo Pair available from front panel.


  • Video Input Options:
  • 3G SDI, HDMI 1.4, Composite/CVBS


  • Configuration Modes:
  • MBR Mode - Allows the user to select 1 source and stream up to 3 destinations in Multiple Resolutions and Bitrates. Supports Frame Alignment for seamless RTMP MBR streaming. Output formats include RTMP, RTP, UDP and save to .TS file in resolutions up to 1080P/60
  • LC Mode - Ideal for Lecture capture, LC mode allows 2 sources to be streamed to 2 destinations. SDI becomes the primary input, and the user can select either HDMI or Composite as the second input. Excellent solution for Simultaneous Streaming of Camera Content and Presentations for Classroom and Boardroom.


• Specifications:

  • Description: 2 channel Hardware Based Encoder
  • Software Control: HTTP-Based GUI: Configuration and Software Update
  • Ethernet Connector: 1 GigE x 1


  • Video Input:
  • 3G SMPTE 424M
  • HD SMPTE 292M
  • SD SMPTE 259M
  • HDMI 1080P/60
  • Composite (CVBS)


  • Video Connector:
  • Composite (RCA x 1)
  • SDI (BNC x 1) HDMI (HDMI Type A x 1)


  • Audio Input:
  • Unbalanced stereo
  • Embedded SDI (1 stereo pair)
  • Embedded HDMI (1 stereo pair)


  • Audio Connector: Unbalanced stereo (3.5mm x 1)
  • USB Connector: USB Type A 2.0


  • Video Modes:
  • 1080p 23.98, 24, 25, 29.97, 30, 50, 59.95, 60
  • 1080i 50, 59.94, 60
  • 720p 23.98, 24, 25, 29.97, 50, 59.94, 60
  • 720 x 480 29.97, 30/i (NTSC)
  • 720 x 576 25/i (PAL)
  • 720 x 576 25, 50/p


  • Encoding:
  • Video Encoding: H.264 RTMP, RTP, MPEG-2 TS UDP, .TS File
  • Audio Encoding: AAC-LC & AAC-HE (32 to 320 kbps)


  • Closed Caption:
  • Closed Captioning (EIA-608 & EIA-708) Type 1 ATSC Picture
  • User Data is automatically embedded in the H.264 SEI per SCTE 128-1 standard*


  • LED Indicators:
  • Power
  • Unit Ready
  • Unit Encoding
  • Signal Lock for SDI, HDMI, Composite


  • Dimensions: 93.1mm X 120.2mm X 24.75mm (Chassis only. Does not include mounting brackets or connectors)
  • Weight: 260g
  • Power Consumption: 6W
  • Warranty: 1 year limited hardware warranty
  • *Server and player must support closed caption data in order for the closed caption overlay to be available for display


• Warranty:

  • 1 year limited hardware warranty


• GTIN:

  0850189006504
