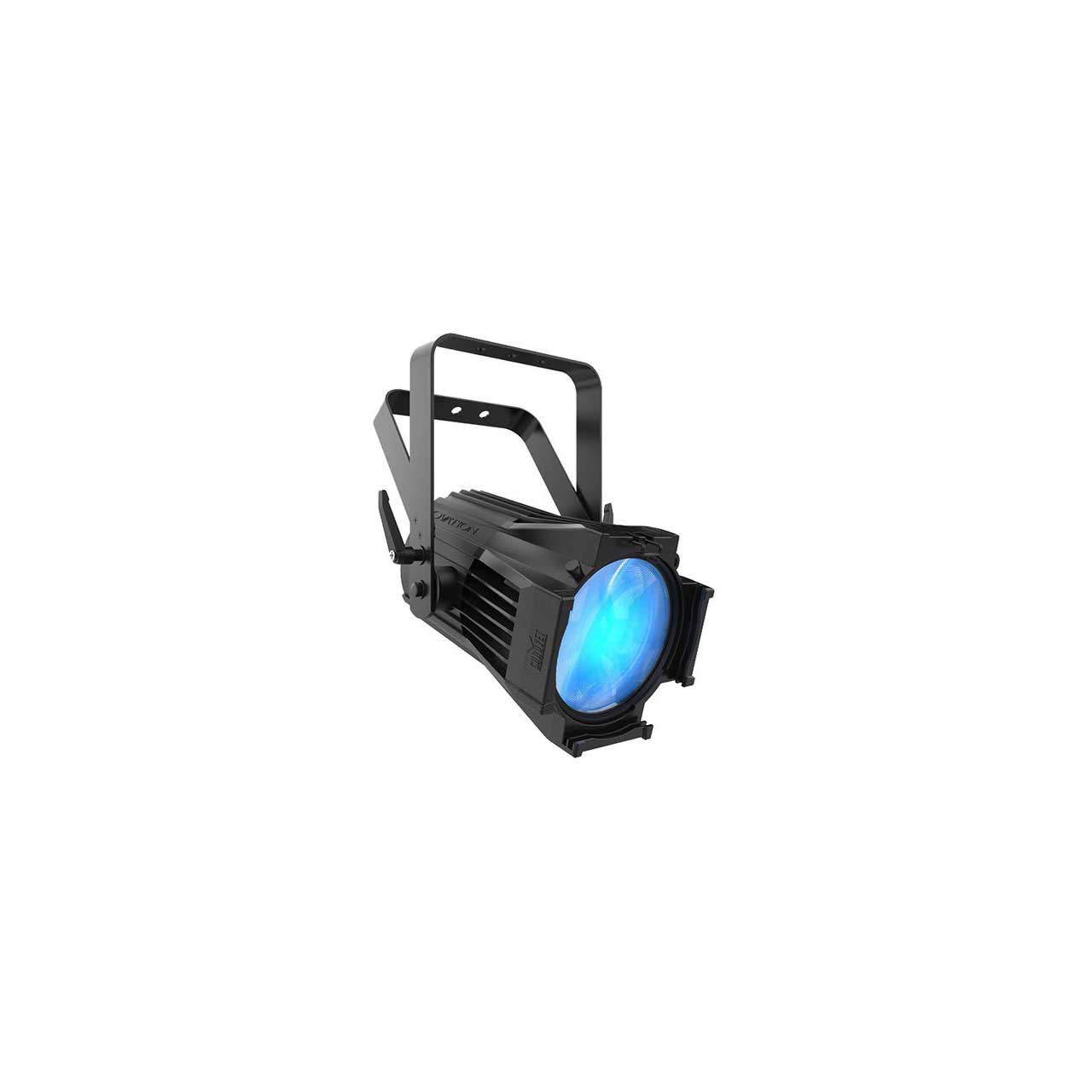

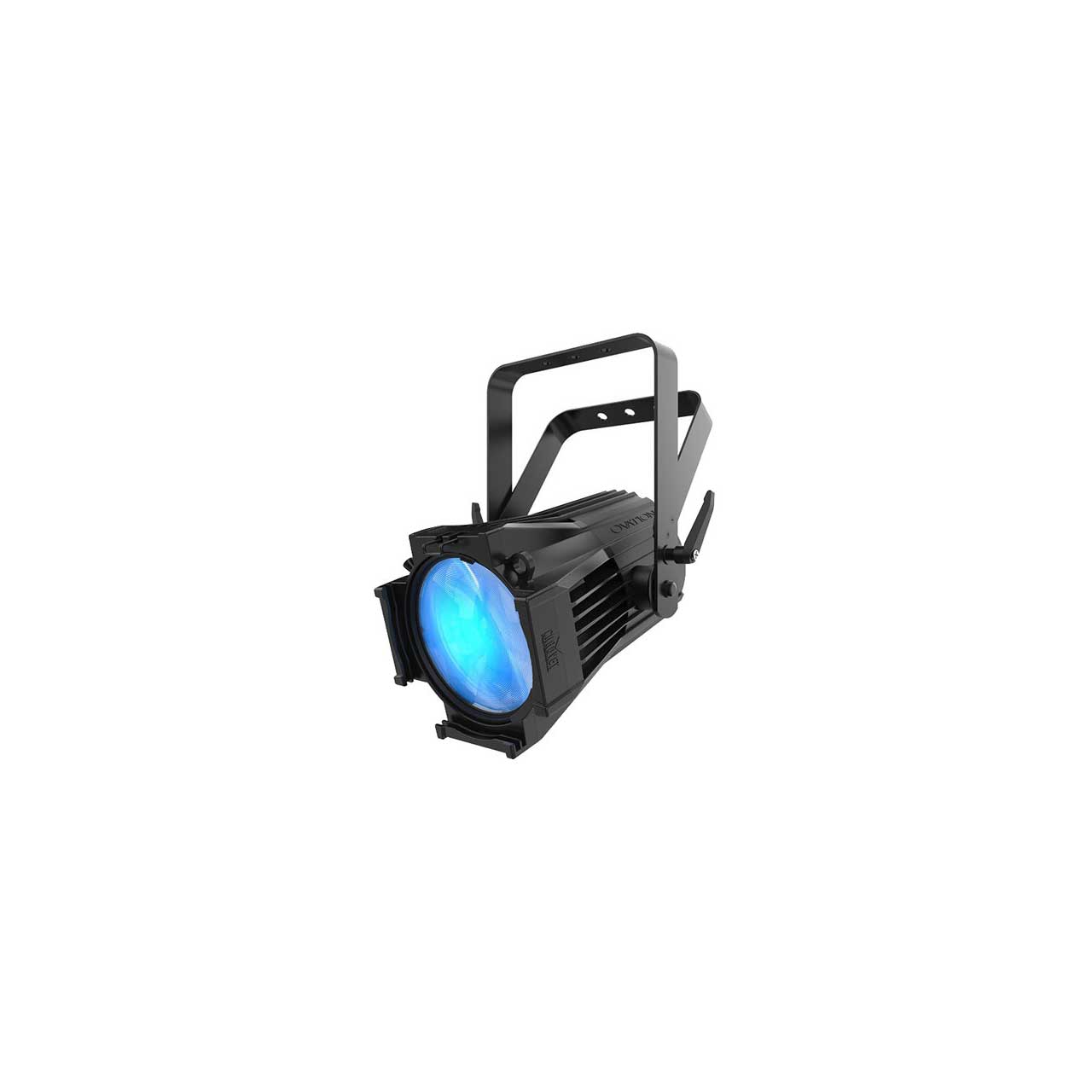

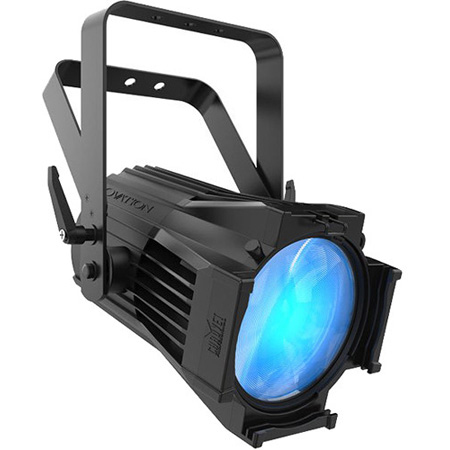

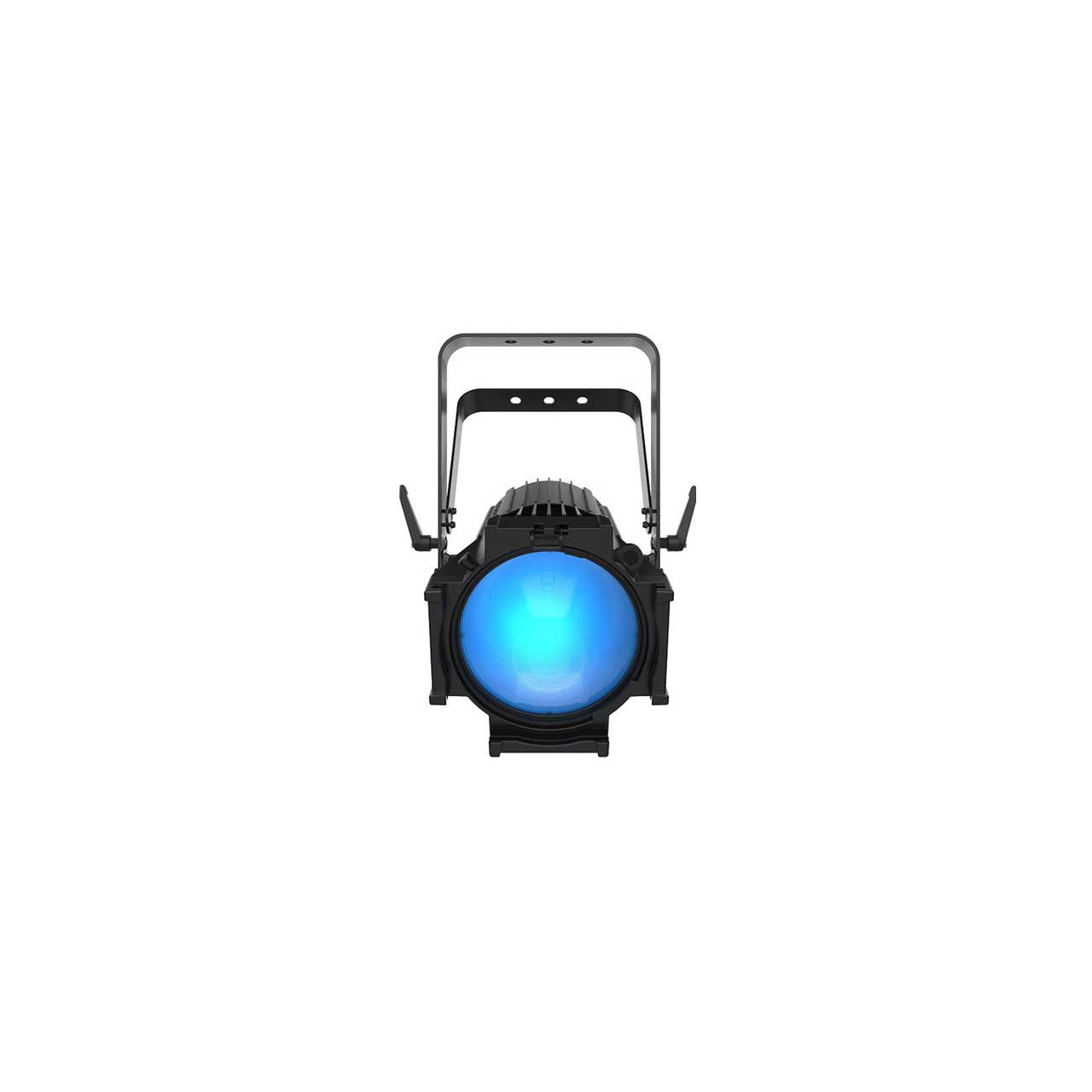

Chauvet Ovation P-56FC Full Color PAR Style Fixture with Homogenized Single Source of Light

OVATIONP56FC - Overview

• Features:

  • Full color PAR style fixture with homogenized single source of light
  • Interchangeable lens plates included for medium and wide beam angles
  • Flat, even field of light
  • Quiet operation for use in any situation with fan speed control
  • RDM and variable Pulse Width Modulation for setup ease
  • Accepts standard 7.5" beam shaping accessories
  • 16-bit dimming resolution for smooth fades


• Specifications:

  • Optical
  • Light Source: 48 LEDs (10 red, 10 green, 8 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 6500 K
  • Color Temperature (at full): 4889 K
  • CRI (3200): 90
  • Beam Angle (Medium Lens): 21°
  • Beam Angle (Wide Lens): 52°
  • Field Angle (Medium Lens): 35°
  • Field Angle (Wide Lens): 82°
  • Lumens (Medium Lens): 5,436
  • Lumens (Wide Lens): 5,216
  • Illuminance (Medium Lens): 1350 lux @ 5 m
  • Illuminance (Wide Lens): 254 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

    Dynamic Effect
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

    Construction / Physical
  • Dimensions: Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
  • Weight: 12.2 lb (5.6 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

    Connections
  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

    Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 3, 5, 7, 10, 12, 13, 15 or HSV
  • Modes/Personalities: 9 personalities (1, 3, 5, 7, 10, 12, 13, 15, HSV)

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 9 units @ 120 V; 16 units @ 208 V; 17 units @ 230 V
  • Power and Current: 176 W, 1.448 A @ 120 V, 60 Hz
  • Power and Current: 175 W, 0.844 A @ 208 V, 60 Hz
  • Power and Current: 180 W, 0.777 A @ 230 V, 50 Hz

    Certifications / Qualifications
  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)


• Item Includes:

  • Ovation P-56FC
  • Neutrik powerCON power cord
  • Gel frame holder (7.5 in/191 mm accessories)
  • Medium and Wide Lens


• GTIN:

  0781462218485
