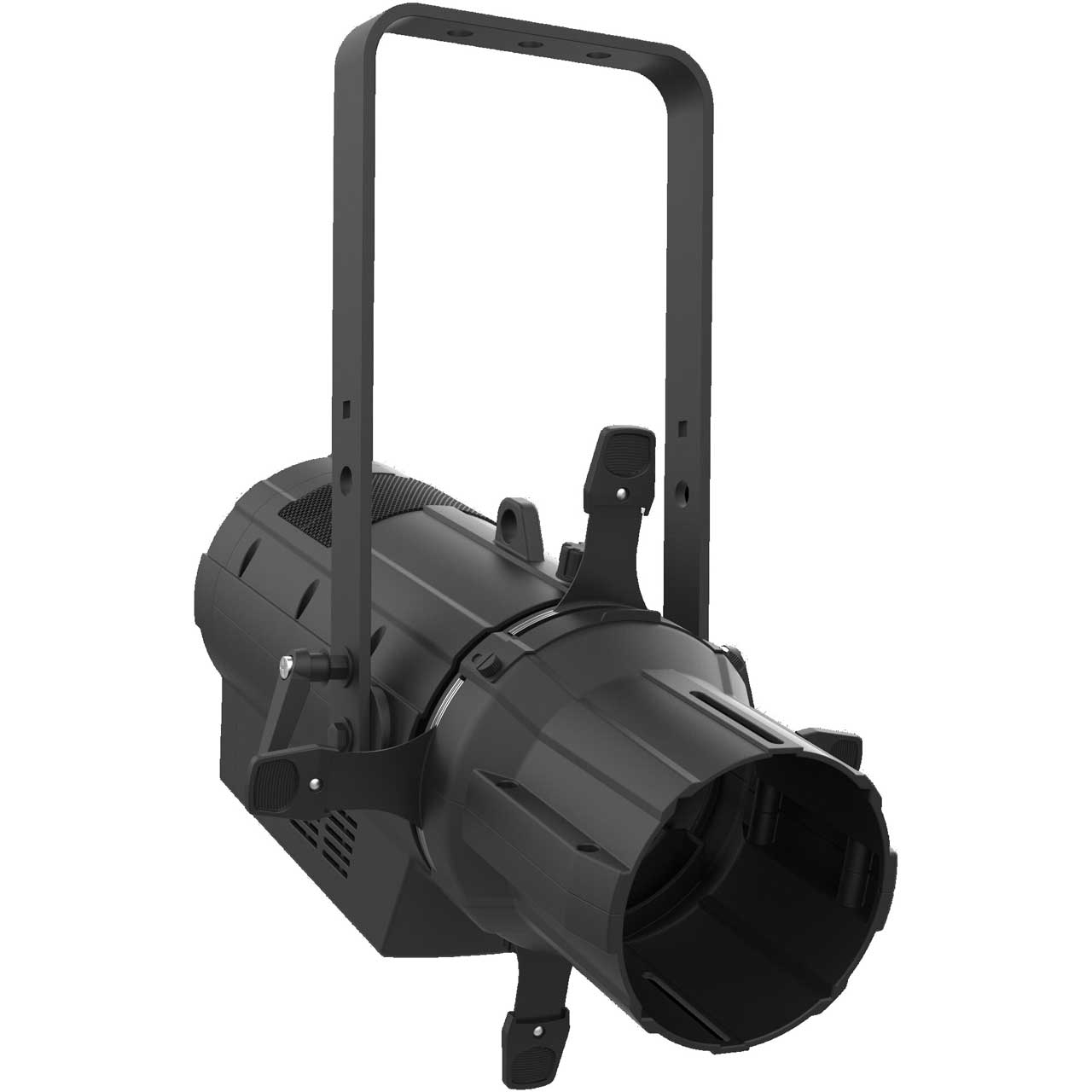

Chauvet Ovation E-910 FC Light Fixture No Lens Tube

OVATIONE910FC - Overview

• Features:

  • Full Color LED (RGBAL) ERS-style lighting fixture for theatre, film and production
  • Ultra smooth 16-bit dimming of master dimmer and individual colors
  • Flat, even field of light with superior color mixing
  • Virtual Color wheel with color matched to popular gel colors
  • Color Temperature Presets from 2800 K to 6500 K with high CRI & CQS
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio and theatre applications
  • Works perfectly with industry standard lens tubes and accessories


• Specifications:

  • Optical
  • Light Source: 91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3 W, (722 mA), 6031 K, 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 6500 K
  • Color Temperature (at full): 6031 K
  • CRI (3200 K): 82
  • Beam Angle (w/14° lens): 11°
  • Beam Angle (w/19° lens): 19°
  • Beam Angle (w/26° lens): 24°
  • Beam Angle (w/36° lens): 28°
  • Beam Angle (w/50° lens): 41°
  • Beam Angle (w/15°-30° lens)(Narrow): 13°
  • Beam Angle (w/15°-30° lens)(Wide): 24°
  • Beam Angle (w/25°-50° lens)(Narrow): 23°
  • Beam Angle (w/25°-50° lens)(Wide): 36°
  • Field Angle (w/14° lens): 14°
  • Field Angle (w/19° lens):19°
  • Field Angle (w/26° lens): 26°
  • Field Angle (w/36° lens): 34°
  • Field Angle (w/50° lens): 51°
  • Field Angle (w/15°-30° lens)(Narrow): 15°
  • Field Angle (w/15°-30° lens)(Wide): 29°
  • Field Angle (w/25°-50° lens)(Narrow): 26°
  • Field Angle (w/25°-50° lens)(Wide): 50°
  • Lumens (w/19° lens): 3,236
  • Lumens (w/26° lens): 4,316
  • Lumens (w/36° lens): 3,918
  • Lumens (w/50° lens): 3,813
  • Illuminance (w/14° lens): 4,420 lux @ 5 m
  • Illuminance (w/19° lens): 2,530 lux @ 5 m
  • Illuminance (w/26° lens): 1,720 lux @ 5 m
  • Illuminance (w/36° lens): 1,020 lux @ 5 m
  • Illuminance (w/50° lens): 457 lux @ 5 m
  • Illuminance (w/15°-30° lens)(Narrow): 4,260 lux @ 5 m
  • Illuminance (w/15°-30° lens)(Wide): 1,620 lux @ 5 m
  • Illuminance (w/25°-50° lens)(Narrow): 1,790 lux @ 5 m
  • Illuminance (w/25°-50° lens)(Wide): 825 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

    Dynamic Effects
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Focus: Manual
  • Strobe Rate: 0 to 28 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

    Physical
  • Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
  • Dimensions (w/14° lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
  • Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
  • Dimensions (w/15°-30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
  • Dimensions (w/25°-50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
  • Weight (fixture only): 15.4 lb (7.1 kg)
  • Weight (w/14° lens): 20.8 lb (9.43 kg)
  • Weight (w/26° lens): 19.8 lb (9 kg)
  • Weight (w/15°-30° lens): 29.4 lb (13.3 kg)
  • Weight (w/25°-50° lens): 27 lb (12.2 kg)
  • Exterior Color: Black
  • Gobo Size (Optional): "A": 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
  • Gobo Size (Optional): "B": 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
  • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
  • Accessory Holder/Gel Frame Size (15°-30° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (25°-50° lens): 7.5 in (191 mm)
  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
  • Control Protocol(s): DMX, RDM
  • DMX Channels: 3, 5, 7, 10, 12, 13, 15 or HSV
  • Modes/Personalities: 7 personalities (3, 5, 7, 10, 12, 13, 15 or HSV)
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 6 units @ 120 V; 11units @ 208 V; 12 units @ 230 V
  • Power and Current: 240 W, 2.006 A @ 120 V, 60 Hz
  • Power and Current: 234 W, 1.2 A @ 208 V, 60 Hz
  • Power and Current: 234 W, 1.1 A @ 230 V, 50 Hz


• Item Includes:

  • OVATION E-910FC
  • Neutrik powerCON power cord


• GTIN:

  0781462214647
