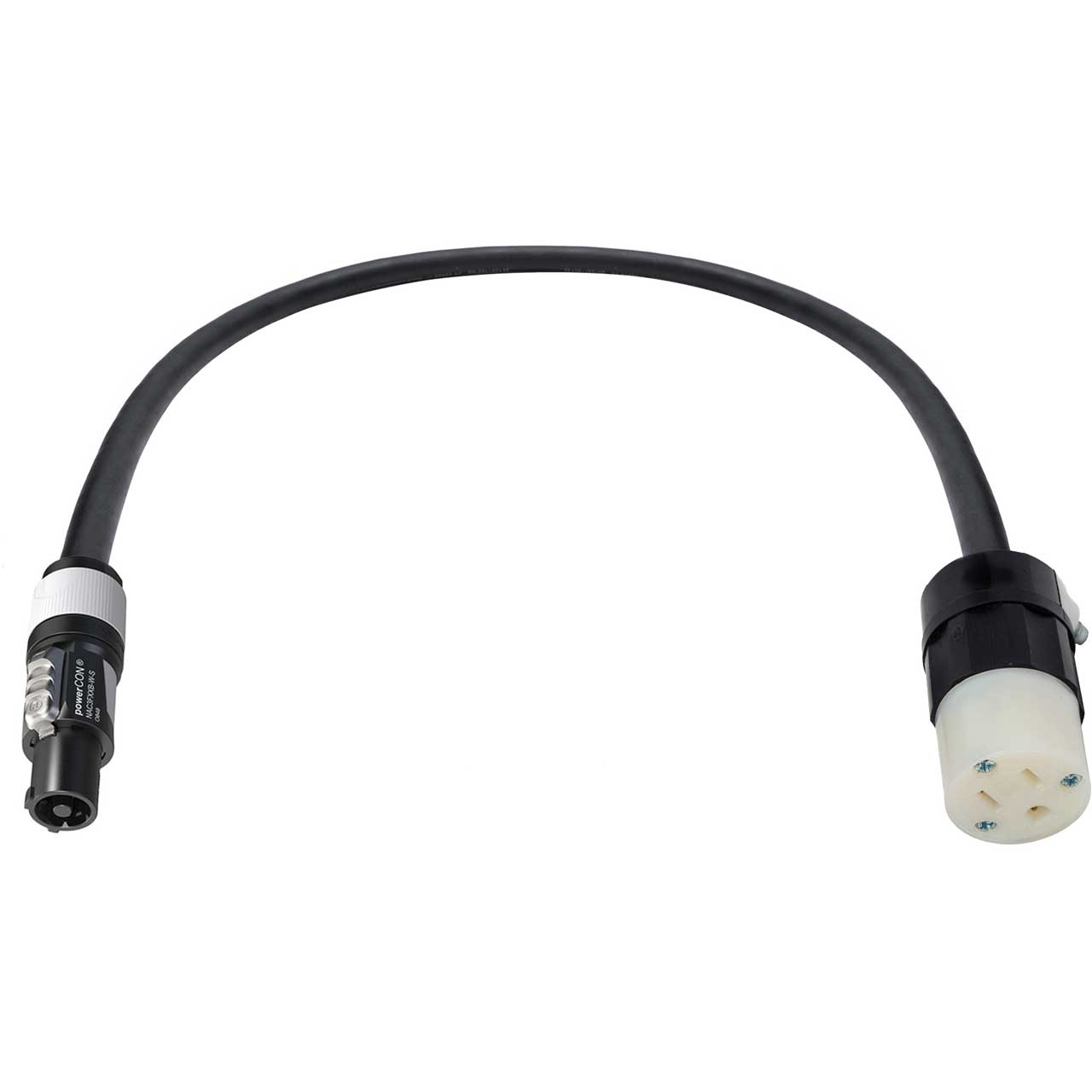

Laird Neutrik powerCON 3-Pole 15-Amp Type B to Edison AC Female Receptacle Power Cable - 10 Foot

PWRCN-ACOUT-10 - Overview

• Features:

  • Neutrik powerCON XX Series
  • NEMA 5-15P AC Jack
  • PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable
  • Flexibility in Low Temperatures
  • IP20 Rated
  • Water and Oil Resistant
  • Fully Annealed Stranded Bare Copper Conductors for Strength and Abrasion Resistance


• Specifications:

  • PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable:
  • UL Listed 3 Conductor Jacketed Heavy Duty Power Cord
  • TPrene Jacket - Black
  • 3 conductor colors: Black, White and Green

    Leviton LV-5269C AC Jack Cable End:
  • 15 Amp
  • 125V
  • NEMA 5-15P

    Neutrik powerCON® XX Series:
  • Contact Resistance: ≤ 2 mΩ
  • Dielectric Strength: > 3 kVac (after mating cycle)
  • Insulation Resistance: > 10 GΩ (initially)
  • Number of Electrical Contacts: 2 + PE
  • Lifetime: typically 5000 mating cycles
  • Flammability: UL 94 V-0
  • Protection Class: IP20
  • Temperature Range: -33°F to 80°F
  • Rating Europe: EN 60320-1: 16A 250V AC, CBC
  • Rating USA/Canada: cUL 60320-1: 20 A 127 V AC, CBC


• Warranty:

  • 1 Year
