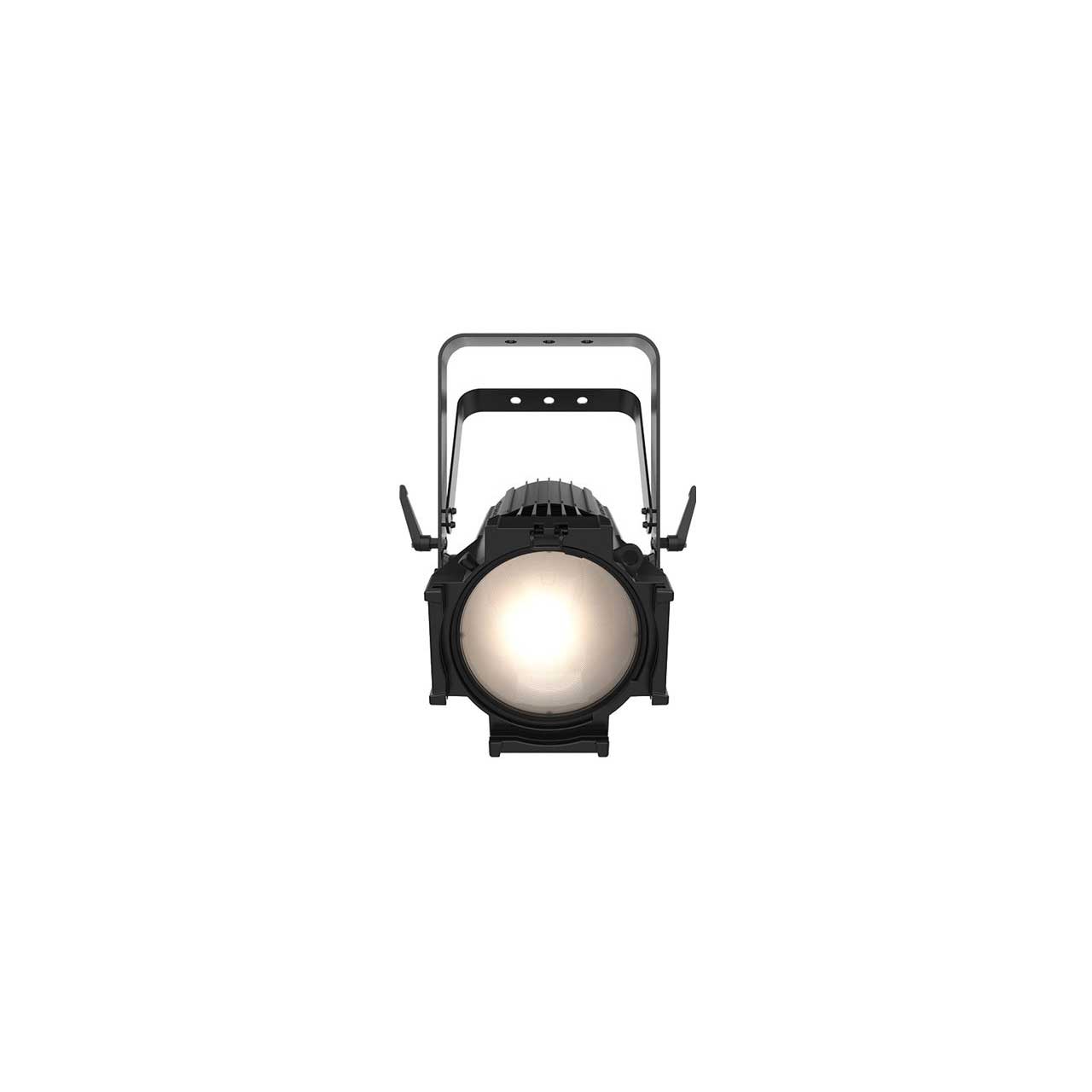

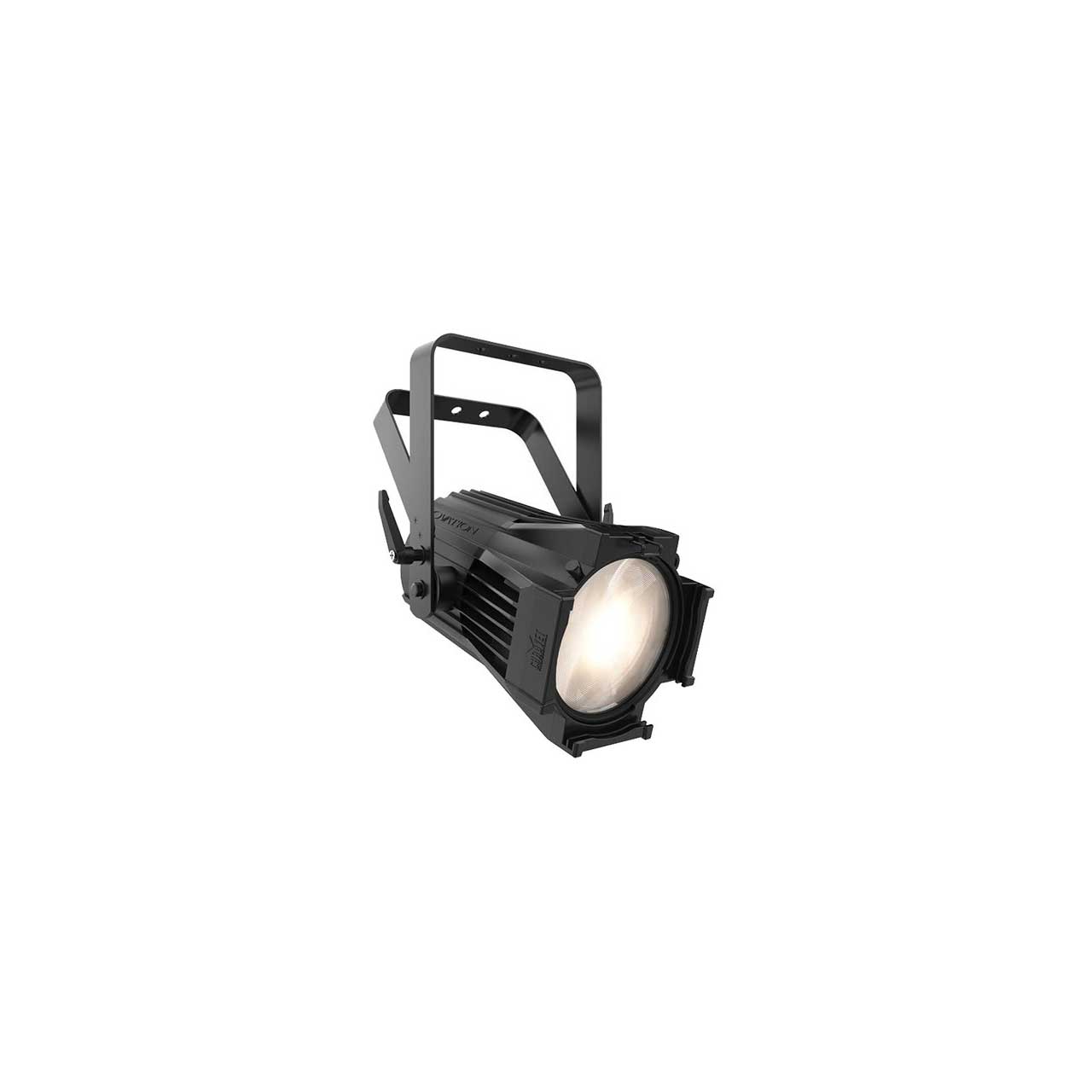

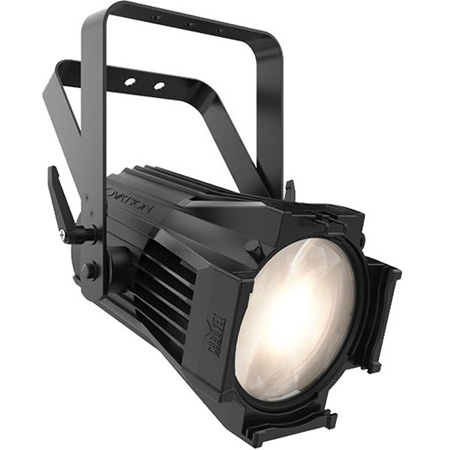

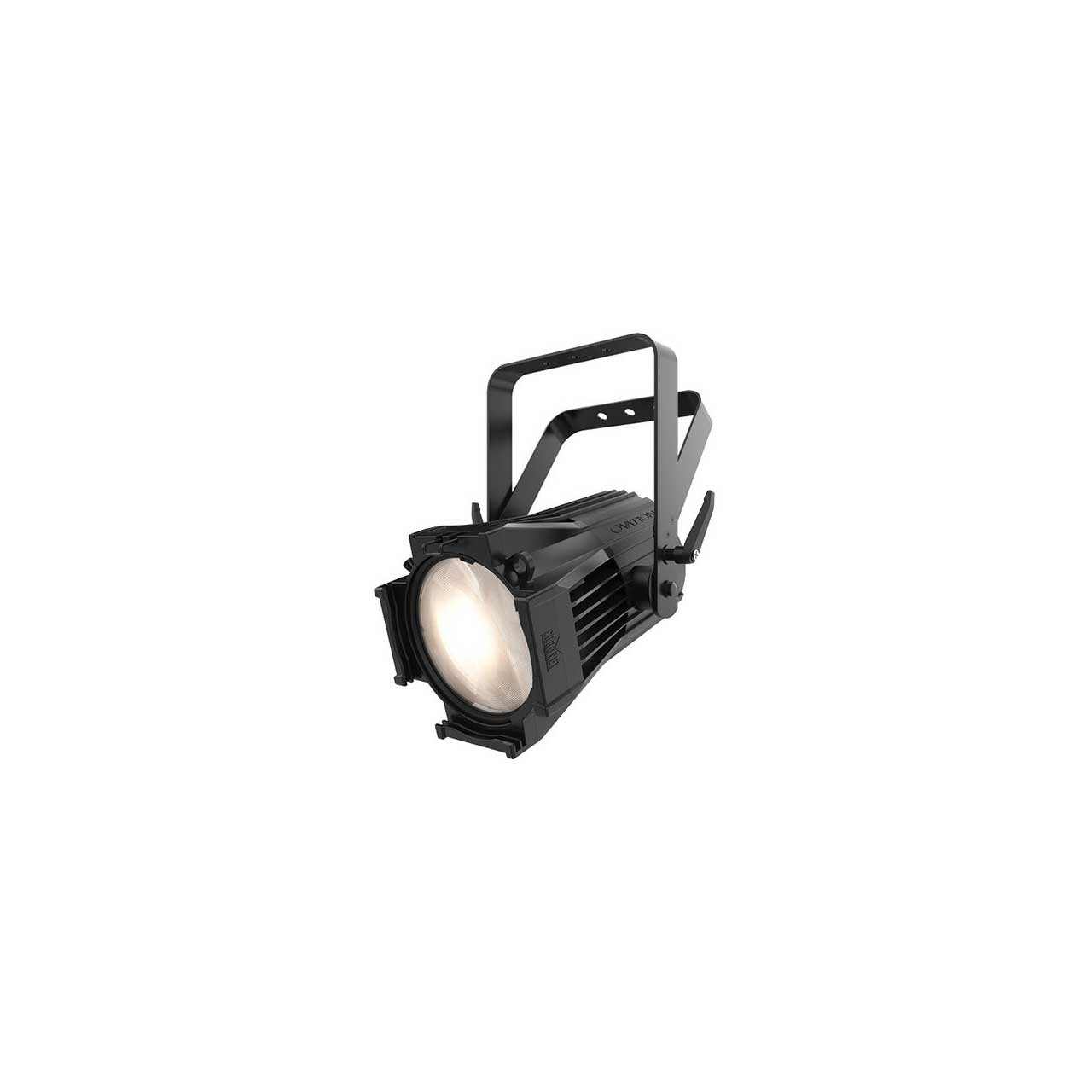

Chauvet Ovation P-56VW Variable White PAR-Style Fixture with Homogenized Single Source of Light

OVATIONP56VW - Overview

• Features:

  • Variable white PAR-style fixture with homogenized single source of light
  • Interchangeable lens plates included for medium and wide beam angles
  • Soft, even field of light
  • Quiet operation for use in any situation with fan speed control
  • +/- Green adjustment via DMX or on-board control
  • Independent color control over the 6-color engine when a splash of color is needed
  • RDM and variable Pulse Width Modulation for setup ease
  • Accepts standard 7.5" beam shaping accessories
  • 16-bit dimming resolution for smooth fades


• Specifications:

  • Optical
  • Light Source: 48 LEDs (6 red, 6 green, 10 blue, 4 R. blue, 6 orange, 16 lime) 3 to 4 W, (1 A), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 8000 K
  • CRI: 92-93
  • Beam Angle (Medium lens): 21°
  • Beam Angle (Wide lens): 54°
  • Beam Angle (Wide lens w/ egg crate): 40°
  • Field Angle (Medium lens): 35°
  • Field Angle (Wide lens): 84°
  • Field Angle (Wide lens w/ egg crate): 66°
  • Lumens (Medium Lens): 3,967
  • Lumens (Wide Lens): 4,476
  • Illuminance (Medium Lens): 1220 lux @ 5 m
  • Illuminance (Wide Lens): 220 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz

    Dynamic Effects
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 29 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

    Construction / Physical
  • Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
  • Weight: 12 lb (5.5 kg)
  • Exterior Color: Black
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

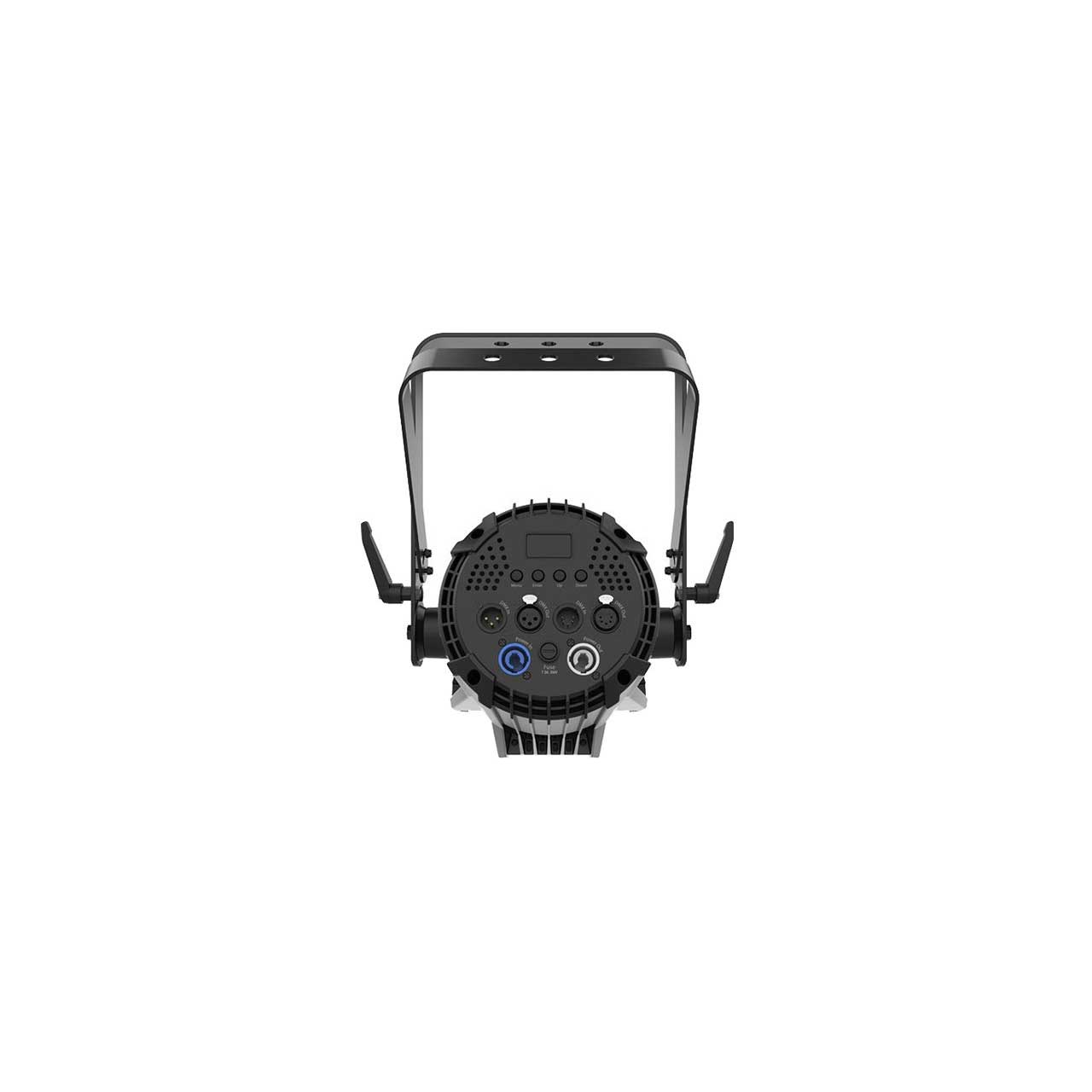

    Connections
  • Power Connection: Edison (Local) plug to Neutrik powerCON
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

    Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 3, 5, 6, 8, 11, 15 or 17
  • Modes/Personalities: 7 personalities (3, 5, 6, 8, 11, 15, 17)

    Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 11 units @ 120 V; 18 units @ 208 V; 20 units @ 230 V
  • Power and Current: 150 W, 1.22 A @ 120 V, 60 Hz
  • Power and Current: 155 W, 0.70 A @ 208 V, 60 Hz
  • Power and Current: 158 W, 0.66 A @ 230 V, 50 Hz

    Certifications / Qualifications
  • CE, MET
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)


• Item Includes:

  • Ovation P-56VW
  • Neutrik powerCON power cord
  • Gel frame holder (7.5 in/191 mm accessories)
  • Wide and Medium Lenses


• GTIN:

  0781462218492
