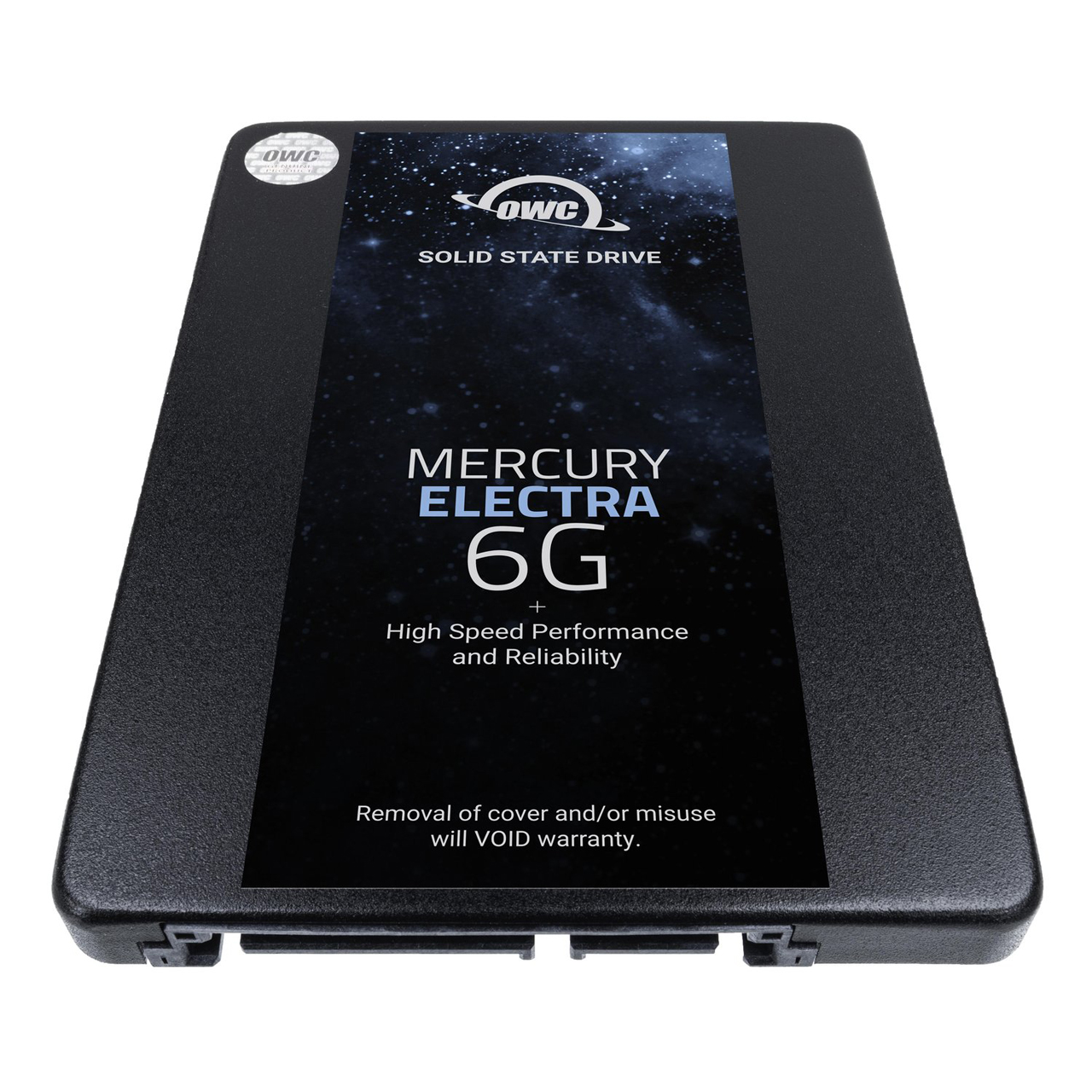

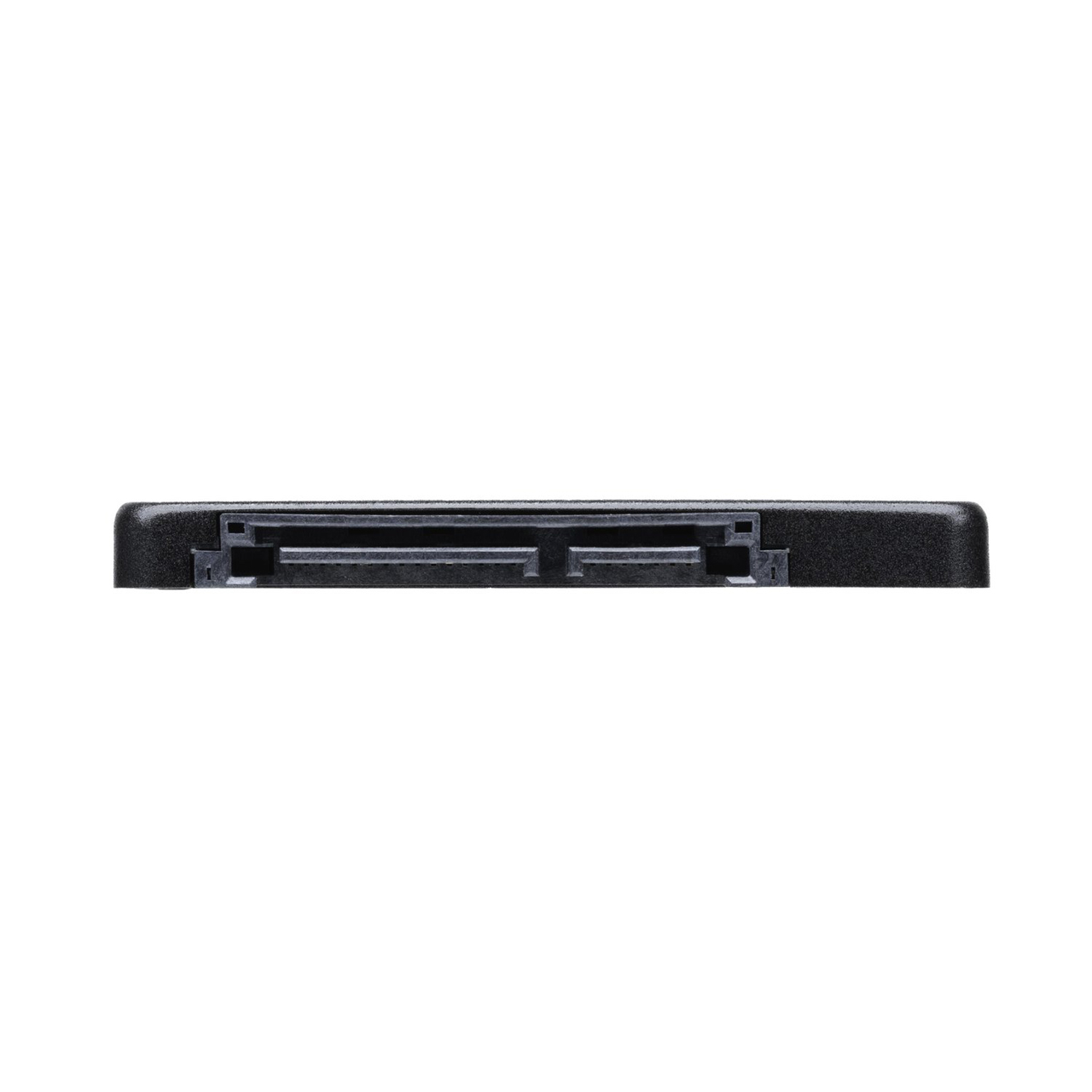

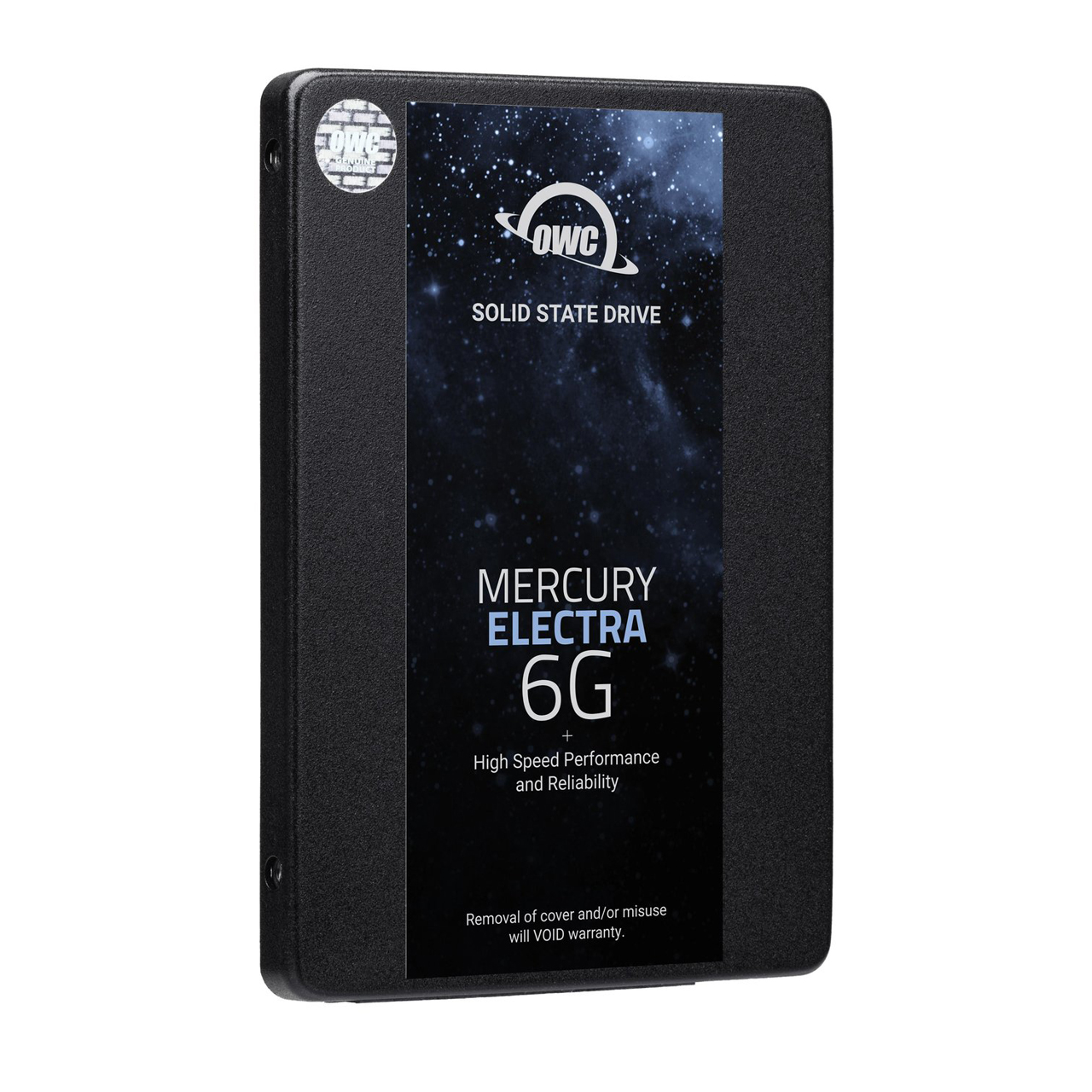

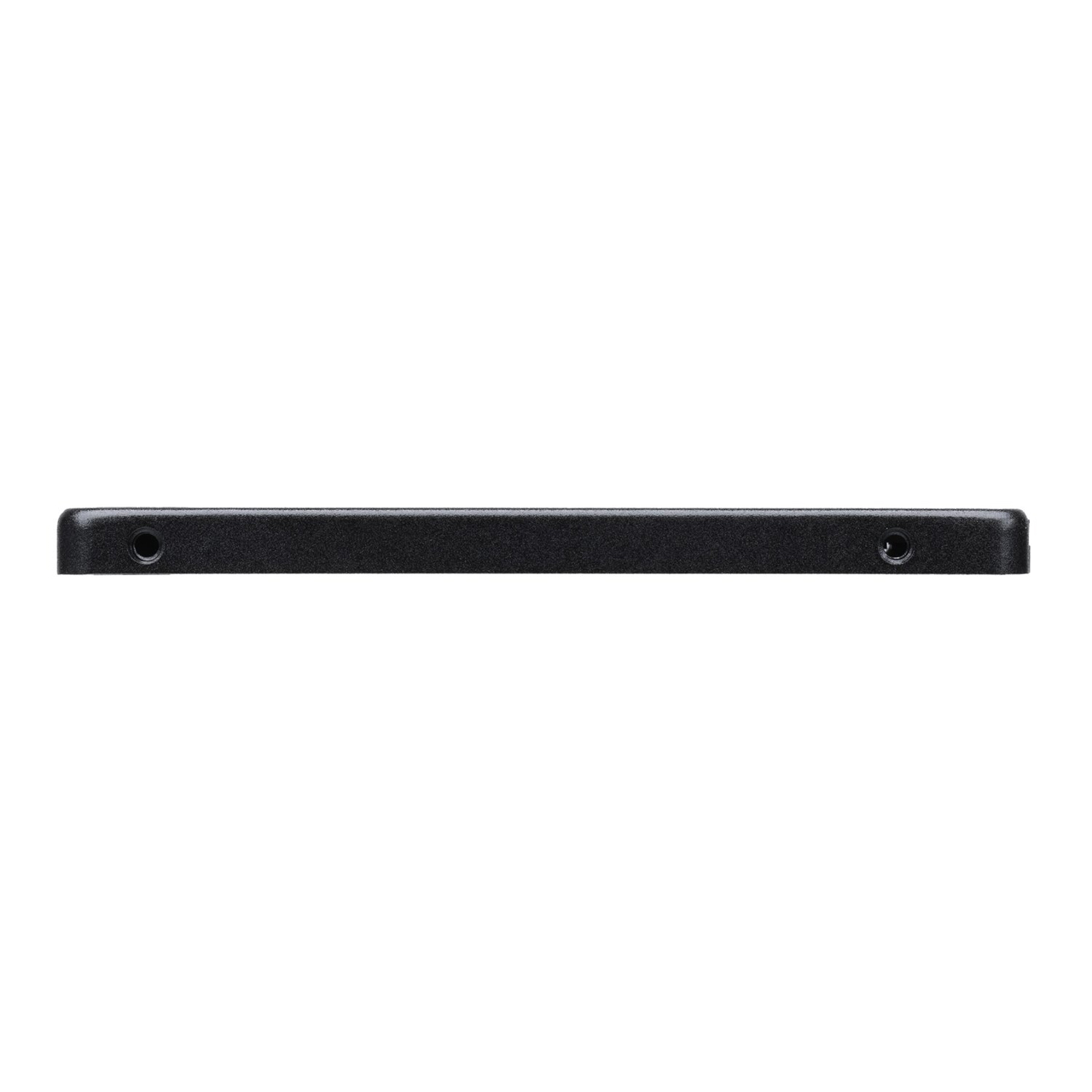

OWC S3D7E6GD05 Mercury Electra 6G 2.5 Inch 7mm SATA 6.0Gb/s SSD Solid State Drive - 500GB

ITEM #: OWCS3D7E6GD05 MFG #: OWCS3D7E6GD05

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Other World Computing
Free Shipping with $49 Minimum Order

List Price:

$74.99

Our Price:

$73.17

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

OWCS3D7E6GD05 - Overview

Other World Computing's Mercury Electra SSDs deliver the latest in flash NAND and controller technology, utilizing 3D NAND + SLC caching for long-lasting, power-efficient performance. They offer a powerful combination of performance and reliability for demanding everyday computer users.

High Performance Internal Storage
This 6G SATA SSD delivers fast, reliable performance. It works as a hard drive upgrade internally and in bus-powered or self-powered external enclosures (any Mac, PC, or enclosure that supports 2.5" SATA drives, must support 7mm drive height).

OWC SSDs have no moving parts, resulting in a quiet, cool, highly rugged storage solution that also offers near instantaneous system response. With real world speeds over to 500MB/s, the OWC Mercury Electra 6G SSD line delivers unbeatable performance.

  • Features:

    • The perfect solution for everyday computing
    • Latest flash NAND and controller technology
    • Global wear leveling data distribution
    • Static data refresh technology for freespace management
    • Hardware ECC (error correction)
    • S.M.A.R.T and TRIM command support
    • Standby power benefits to extend battery life for laptop road warriors


  • Specifications:

    • Usable Capacity: 500GB
    • Total Flash Memory Components: 512GB (12GB Allocated to real-time data redundancy and error correction)
    • Formatted Capacity: 466GiB
    • Drive Format: Unformatted
    • S.M.A.R.T. Attributes: Standard Attributes Supported
    • Native Command Queuing (NCQ): Up to 32 simultaneous commands
    • RAID Support: Yes
    • Form Factor: 2.5-inch 7mm
    • Drive Interface: SATA 6.0 Gb/s
    • Random 4K Read: Up to 100,000 IOPS
    • Random 4K Write: Up to 90,000 IOPS
    • Sequential Read (Max): Up to 540 MB/s
    • Sequential Write (Max): Up to 500 MB/s
    • Nonrecoverable Read Errors: 1 per 1015 bits read
    • MTBF (Mean Time Between Failures): 1,500,000 hours
    • Wear Leveling: Supported
    • TRIM Support: OS Dependent
    • Security:
      - TCG Opal
      - Secure Erase (SE)
      - Chip Based Data Encryption: 256-bit AES-compliant
    • Endurance: 340TB total bytes written (TBW), equal to 187 GB per day for 5 years
    • Mac OS Compatibility: Yes
    • PC OS Compatibility: Yes
    • Other Requirements: Host or device with a built-in SATA connection
    • Write Mode (Max): Up to 2.055 Watts
    • Seek Mode (Max): Up to 1.48 Watts
    • Idle Mode (Max): Up to 0.07 Watts
    • Height: 0.3" (0.7cm)
    • Length: 3.9" (10cm)
    • Width: 2.8" (7cm)
    • Weight: 0.12 lbs (55g)
    • RoHS Compliant: Yes
    • Reach Certification: Yes
    • Operating Temperature: 32°F to 158°F (0°C to 70°C)
    • Non-Operating Temperature: -40°F to 185°F (-40°C to 85°C)
    • Operating Altitude: -1,000 ft to 10,000 ft (-304.8 m to 3,048.0 m)
    • Non-Operating Altitude: -1,000 ft to 40,000 ft ( -304.8 m to 12,192.0 m)
    • Operating Humidity: 5% to 95% non-condensing
    • Operating Shock: 1500 G max at 0.5ms
    • Non-Operating Shock: 1500 G max at 0.5ms
    • Idle (Typical): 0.0 bels
    • Seek (Typical): 0.0 bels


  • Warranty:

    • 3 Year Limited Warranty


  • GTIN:

    0810586037365
