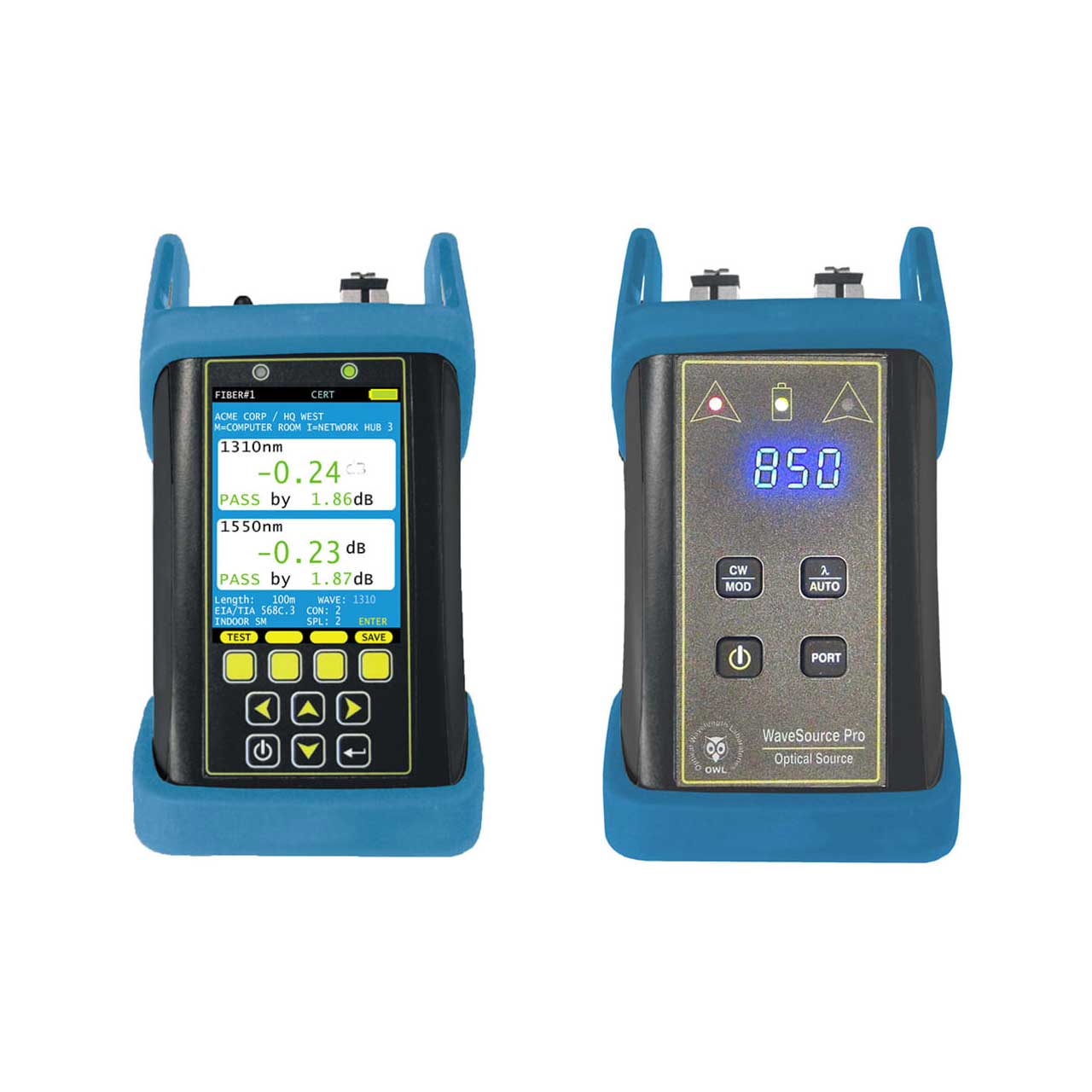

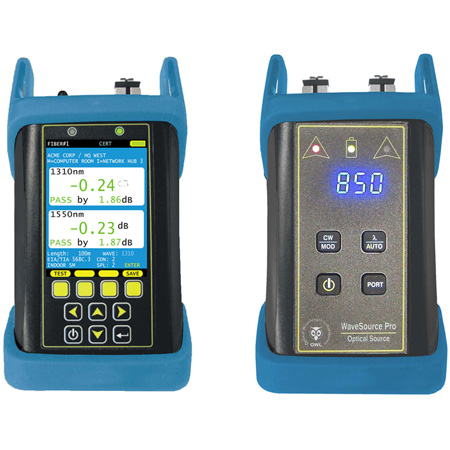

Optical Wavelength Labs KF7XMS Fiber OWL 7 Extended Certification Test Kit

ITEM #: OWL-KF7XMS MFG #: KF7XMS

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$2,740.00

Our Price:

$2,690.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


KF7XMS - Overview

Optical Wavelength KF7XMS Fiber OWL 7 series fiber optic link certifiers are high-accuracy, high-resolution, microprocessor-controlled optical power meters capable of performing a wide variety of testing applications, from basic optical loss measurement up to dual-wavelength fiber link certification. With a wide measurement range and NIST-traceable wavelengths, Fiber OWL 7 series certifiers are ideal for both singlemode and multimode fiber link certification. Enclosed in an attractive hand-held case made from high impact plastic and protected by a protective rubber boot, test readings and graphical help screens can be viewed on the color LCD, and an intuitive 10-key keypad allows for easy data entry. Each Fiber OWL 7 fiber link certification power meter is powered by a re-chargeable lithium polymer battery, which typically allows up to 50 hours of continuous use. Abuilt-in auto-shutdown feature further conserves battery life. The battery is re-charged through the USB port via a supplied battery charger.

  • Features:

    • Fiber OWL 7 / WaveSource Pro Quad
    • MultiMode : 850/1300 and SingleMode: 1310/1550
    • Compact size
    • Color LCD display
    • Breakthrough pricing
    • Encircled Flux compliant
    • Multiple versatile test modes
    • Comprehensive OWLView Tri-report

  • Specifications:

    • General Specifications
    • Display Type: 2.8" Color LCD
    • Battery Type: Re-chargeable Lithium Polymer
    • Battery Life: up to 50 hours
    • Auto-shutdown: Yes
    • Operating Temperature: -10 to 55° C
    • Storage Temperature: -30 to 70° C
    • Dimensions: 2.87" x 4.42" x 1.25"
    • Weight: 10 ounces (284 g)

      Optical Power Meter - Detector Port
    • Detector Type: InGaAs
    • Wavelengths: 850, 980, 1300, 1310, 1490, 1550, 1625 nm
    • Measurement Range: +5 to -70 dBm
    • Accuracy (Uncertainty): ±0.15 dB
    • Display Resolution: 0.01 dB
    • Power Units: dBm, dB
    • Connector Type: Universal (2.5 mm and 1.25 mm)
    • Data Storage Points: <10,000
    • Download Port Connection: USB
    • Software: OWLView
    • Modes of Operation: CERT, LOSS, OPM

      Optical Power MEter - Length Test Port
    • Type: FP Laser
    • Center Wavelength: 1310 ± 30 nm
    • Spectral Width (FWHM): 1310 nm: 2 nm
    • Output Power: -10 dBm
    • Length Accuracy: ±2.5 meters (7 feet)
    • Length Limit: up to 25 km (singlemode)
    • Connector Type: SC (LC if optional VFL is installed)

      Fiber Optice Light Source
    • Type (MM / SM): LED / FP Laser
    • Center Wavelength: 850 +30/-10 nm 1300 ±50 nm 1310 ± 30 nm 1550 ± 30 nm
    • Spectral Width (FWHM): 850 nm: 50 nm 1300 nm: 180 nm 1310 nm: 2 nm 1550 nm: 2 nm
    • Output Power (MM/SM): -20 dBm / -10 dBm
    • Initial Accuracy (Uncertainty): ±0.1 dB
    • Output Modes: CW, Modulated

      Optional VFL Port (Meter & Source)
    • Type: Red Laser
    • Fiber Type: Multimode/Singlemode
    • Center Wavelength: ~650nm
    • Output Power: 0 dBm (1mW)
    • Visible Distance: up to 5 km
    • Connector Type: LC
