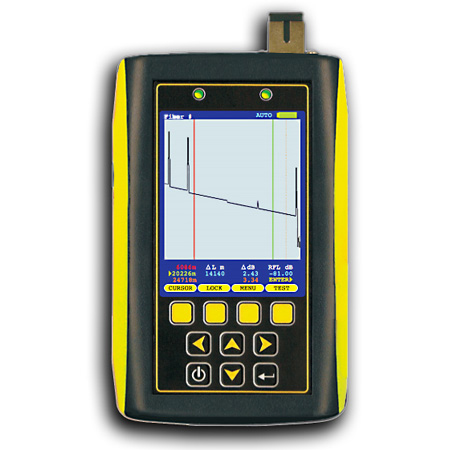

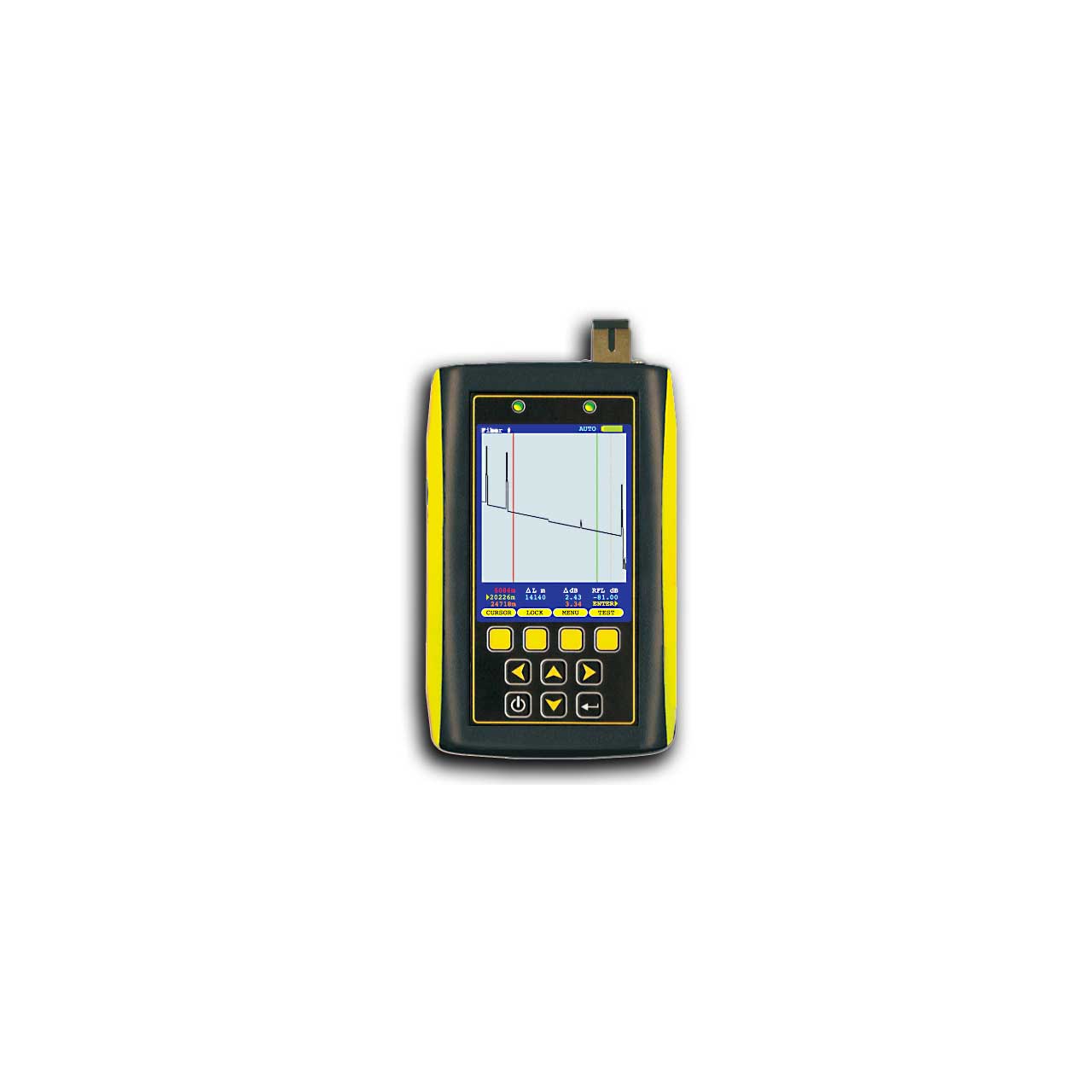

Optical Wavelength Labs OWLTrek II 1310/1550nm LC Singlemode OTDR with Integrated OPM - Li-ion Battery Included

ITEM #: OWL-WT02-S35M MFG #: WT02-S35M

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$3,185.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


WT02-S35M - Overview

With an unbeatable combination of a small pocket-sized form factor, a large high-resolution 2.8" color LCD display, and some of the lowest pricing in the industry, the OWLTrek II OTDR from OWL is the WISE choice for cost-conscious buyers who only need to perform basic troubleshooting or restoration tasks on single-mode optical fiber networks. All this from an OTDR that really is pocket-sized and fair priced, yet having comparable features and specifications to other OTDRs in its class.


What is OTDR? An "Optical Time Domain Reflectometer"(OTDR) is an optoelectronic instrument used to characterize an optical fiber. A fancy way of saying it checks fiber cabling in a very thorough fashion and reports back highly detailed information concening the speed, distance bandwidth, and any issues like a break in the cable, etc, etc...

PLEASE NOTE: This product contains Lithium Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Specifications:

    • General
    • Display Type: High-resolution Color LCD
    • Display Size: 2.8" diagonal
    • Battery Type: Lithium Polymer
    • Battery Life: up to 20 hours normal usage
    • Dimensions: 2.87" x 4.42" x 1.25"
    • Weight: 10 ounces (284 g)

      Visual Fault Locator Specifications
    • Output Wavelength: 650nm
    • Output Power: 1 mW
    • Operating Mode: CW / Flash

      Optical Power Meter Specifications
    • Photodetector: InGaAs
    • Connector: LC
    • Fiber Type: Singlemode
    • Wavelengths: 850, 980, 1300, 1310, 1490, 1550, 1625
    • Accuracy: ±0.15 dB
    • Resolution: 0.01 dB
    • Measurement Units: dBm / dB
    • Measurement Range: +5 to -50 dBm (typical)


WT02-S35M - Required Accessories
