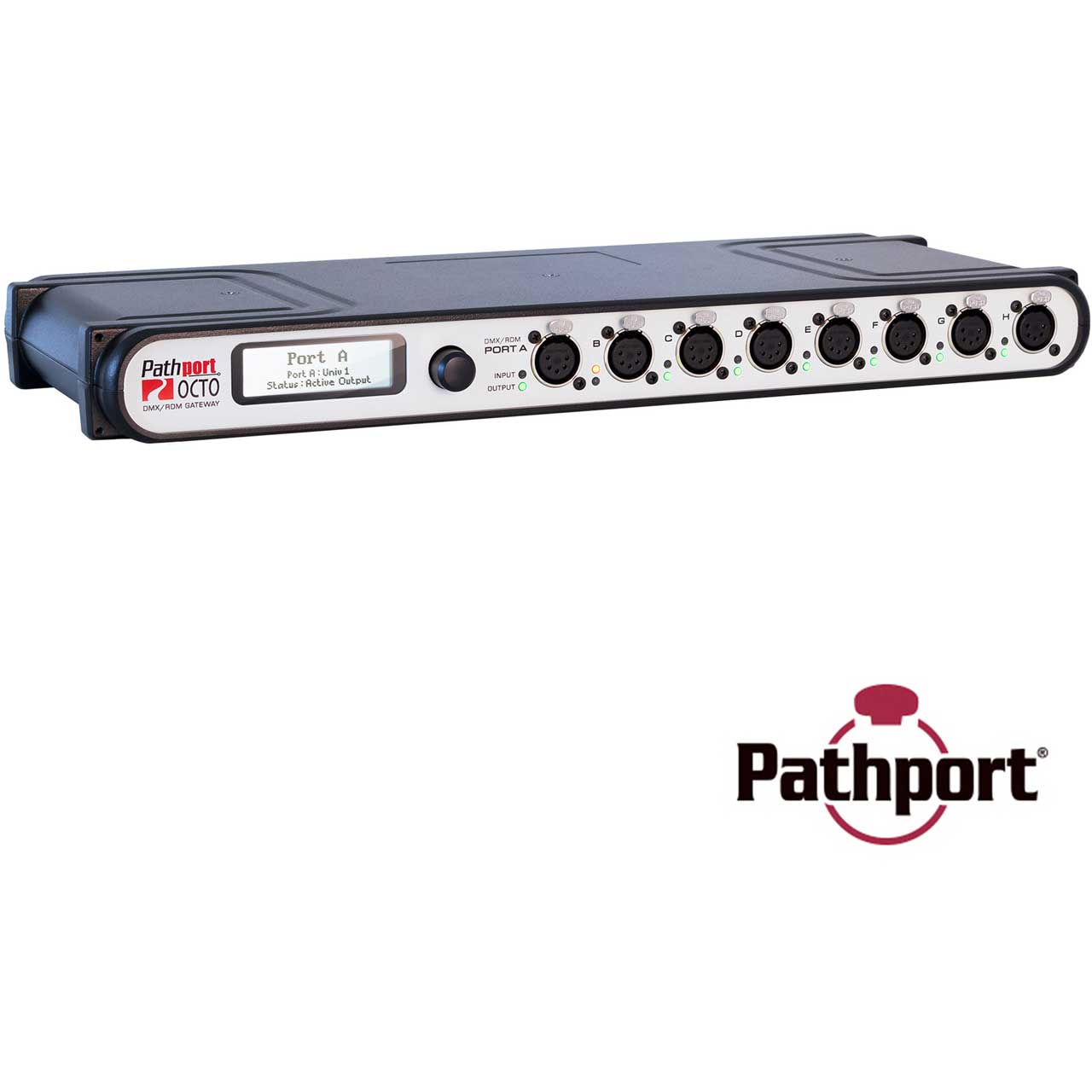

Pathway Connectivity Pathport OCTO Rack-mount 8-Port DMX/RDM Gateway with POE - 5-Pin XLR Female Rear Panel Connectors

ITEM #: P6421-POE MFG #: PWPP RM P8 XLR5F REAR DCPOE

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,195.00

Our Price:

$2,150.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PWPP RM P8 XLR5F REAR DCPOE - Overview

The Pathway Connectivity P6421-POE Pathport OCTO provides all the features and flexibility that Pathports are renowned for, at the lowest cost-per-port ever. The Pathport OCTO's status LEDs provide instant confirmation of port direction and activity. The LCD display and encoder knob allow for front panel configuration and reporting of the most commonly used features, such as IP address and subnet mask, port direction and protocol selection. Different Ethernet protocols may even be merged together or prioritized. Advanced features include crossfade between DMX sources, DMX output speed and signal loss behavior. Multiple connector options available, including adaptor kits to convert terminal strips to IDC connections.

  • Features:

    • Eight DMX512 ports, individually configurable
    • 10/100Mb Ethernet port
    • Front panel UI supports configuration of IP settings, port direction, basic patching and more
    • Route DMX on either a universe or channel-by-channel basis
    • Map up to eight sources to each output channel, with merge and/or priority options user-set for each source
    • Acts as E1.20 RDM proxy controller, when used with freely downloadable Pathscape software
    • DMX output speed and signal loss behavior user-selectable
    • Silent, fanless operation
    • Rackmount ears included
    • Wide-range power input
    • Supports the following Ethernet protocols E1.31 streaming ACN (sACN), Art-Net, Pathport Protocol, Shownet

  • Specifications:

    • General
    • 100-240VAC, 50/60Hz wide-range power input
    • 0.08A maximum power consumption
    • Operating Conditions: 14°F to 122°F (-10°C to +50°C), 5-95% relative humidity, non-condensing

  • Item Includes:

    • 1x Pathway P6421 Pathport Octo 8-port Gateway with Rear XLR5F
    • 1x Rackmount ears

  • Warranty:

    • 1x Pathway P6421 Pathport Octo 8-port Gateway with Rear XLR5F
    • 1x Rackmount ears


PWPP RM P8 XLR5F REAR DCPOE - Required Accessories
