PAG PAGlink PL150T 14.8V Time Battery Rechargeable V-Mount Li-Ion

ITEM #: PAG-9309 MFG #: 9309

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$895.00

Our Price:

$806.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Item restricted to Contiguous United States ground shipment only.


9309 - Overview

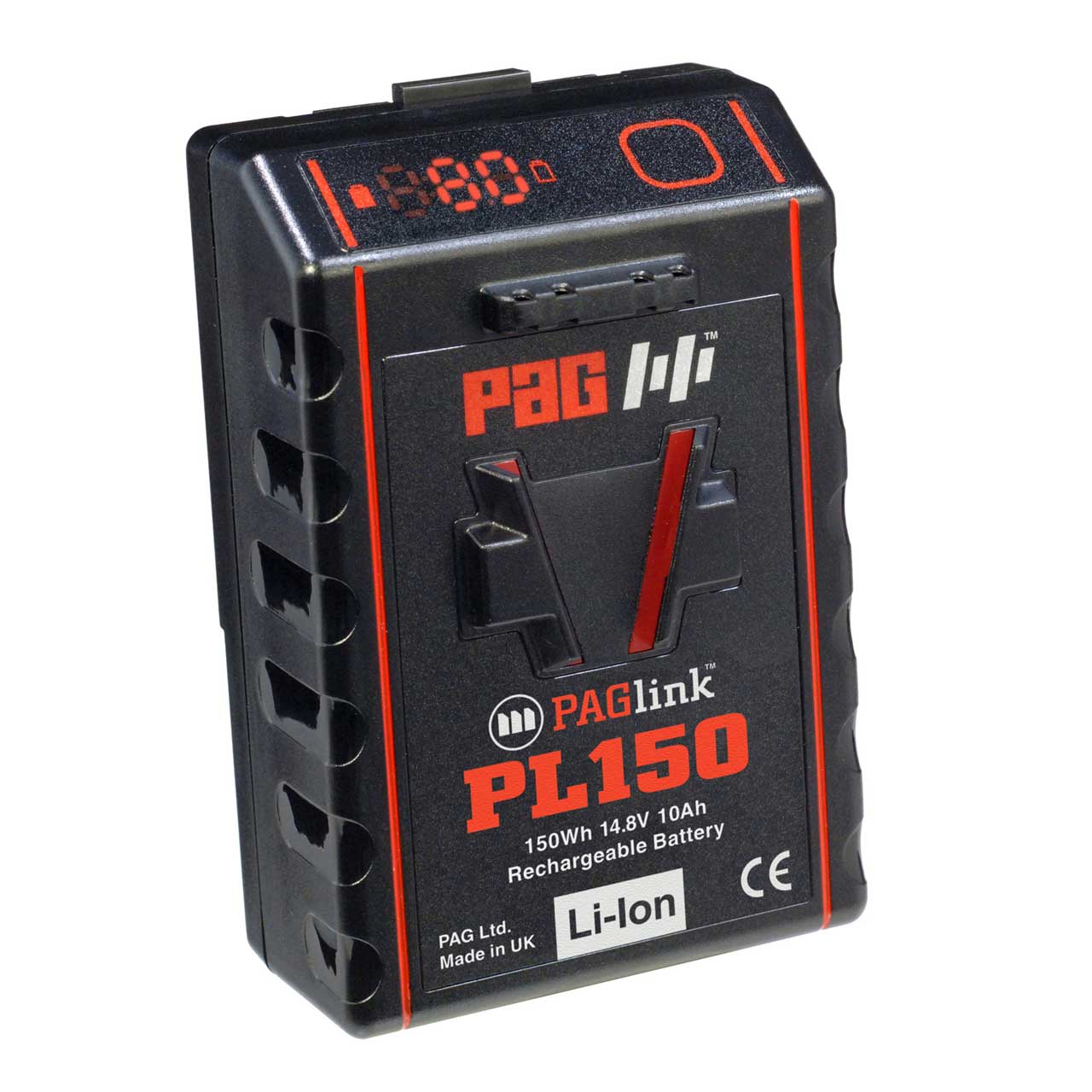

The PAG PAGlink PL150T Intelligent Linking Battery features all the benefits of the original 96Wh PAGlink batteries, but with a greatly increased capacity of 150Wh - and no increase in size!

The intelligent linking technology of PAGlink batteries makes them ideal for powering any broadcast or digital cinema camera, and multiple accessories, for extended periods. Up to 12A can be drawn when batteries are linked. Capacity is doubled to a massive 300Wh by linking just 2 batteries. Run-time is greatly increased for applications where changing the battery is not an option. Alternatively, batteries can be hot-swapped for continuous power. PAGlink means no more timewasting camera reboots.

PL150 batteries are available in V-Mount and Gold Mount formats. They can be linked with PL96 batteries (V-Mount) or PL94 batteries (Gold Mount) for charge or discharge, offering added convenience. They can be charged using reputable Li-Ion chargers, without affecting the 2 year guarantee, because intelligent PAGlink batteries manage their own charge and discharge safely.

In accordance with air transport safety regulations, all PAG Li-Ion batteries are tested to UN standards by an independent authority. The PAG PL150 has a capacity between 100Wh and 160Wh. IATA regulations allow 2 units per person in carry-on luggage, in addition to other Li-Ion batteries that have capacities of 100Wh or below.

PLEASE NOTE: This product contains Lithium Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

  • Features:

    • 150 Watt-hours, 14.8V 10Ah
    • Rechargeable V-Mount Li-Ion battery
    • Batteries in any state of charge can be linked to combine capacities for longer run-times (2 = 300Wh, 3 = 450Wh)
    • Continuous current draw of 12A when linked (8A individually)
    • Designed for high power-consumption applications such as digital cinema cameras with accessories
    • Hot-swap for continuous power
    • Numeric Run-Time & Capacity Display
    • The smallest 150Wh V-Mount Li-Ion battery brought to market, with the highest energy density
    • Intelligent batteries that communicate and manage their own charge and discharge safely
    • Charge batteries individually or linked using PAGlink or other reputable V-Mount Li-Ion chargers
    • Auto-compatible with multiple camera data system and in-viewfinder capacity displays
    • Battery firmware can be updated externally
    • UN tested by independent authority for air transport.

  • Specifications:

    • Cells: Premium-grade rechargeable Lithium-Ion
    • Capacity: 150 Watt-hours (10 Ampere-hours)
    • Voltage: 14.8V nominal
    • Output Current: Rated maximum continuous 8 Amperes (12 Amperes for two or more linked batteries)

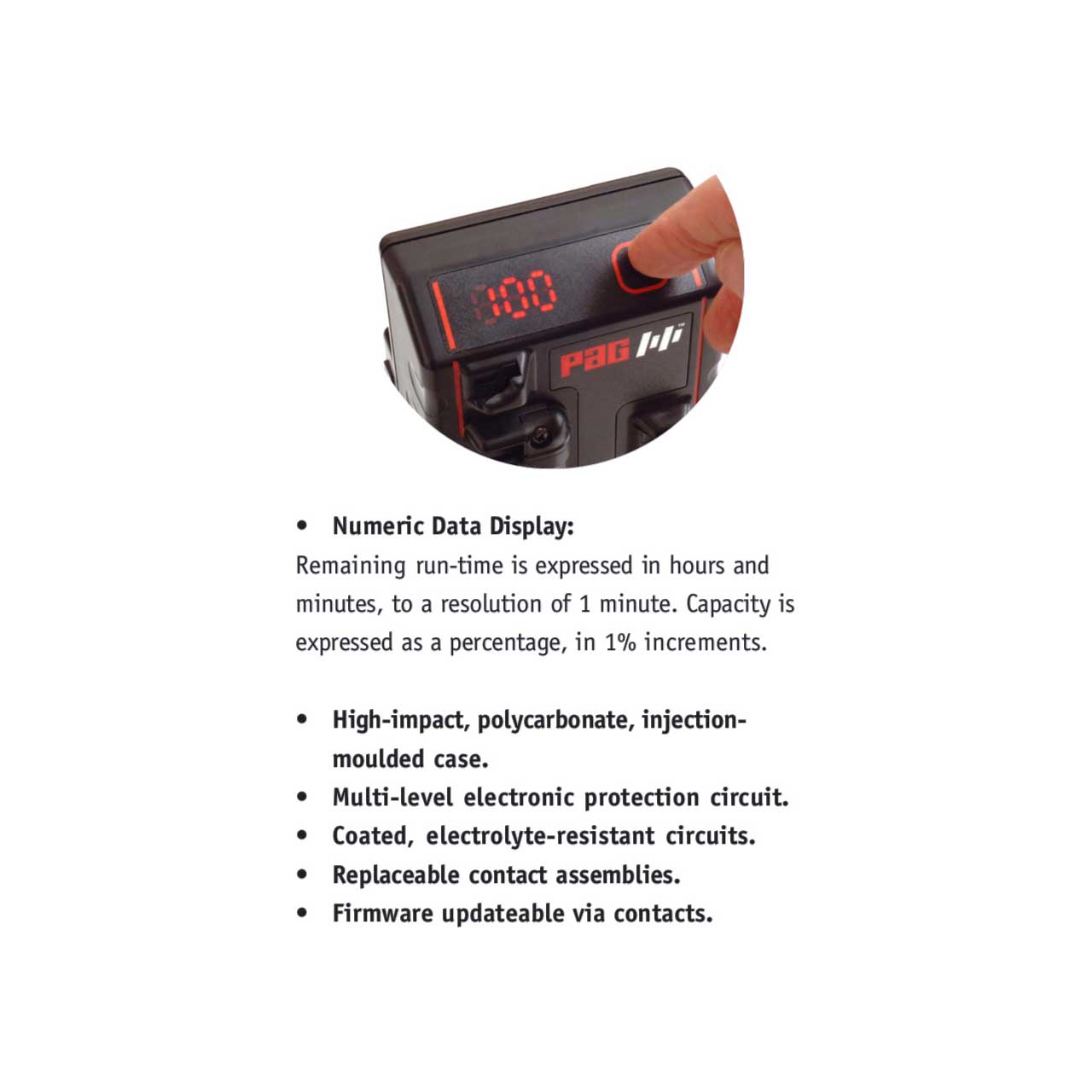

    • Run-Time & Capacity Display: Numeric display that shows a run-time prediction on-load, expressed in hours and minutes, to a resolution of 1 minute
    • Capacity/state of charge is displayed as a percentage, in 1% increments
    • Protection: multi-layered electronic protection system that guards against over-current, over-voltage, under-voltage, over-temperature and under-temperature
    • The circuit is conformally-coated to ensure operation of the safety systems in the event of severe damage to the battery
    • Temperature Range: Charging: +32°F to +113°F (Optimum +50°F to +104°F)
    • Discharging: -4°F to +122°F (Optimum +50°F to +104°F)
    • Storage: +14°F to +104°F (Optimum +32°F to +68°F).

  • Warranty:

    • 2 years with no restrictive conditions

  • GTIN:

    0854166007058
