Panasonic AK-HVF100GJ 9 Inch HD-SDI LCD Color Viewfinder with Tilt

Name: Panasonic AK-HVF100GJ 9 Inch HD-SDI LCD Color Viewfinder with Tilt
Brand: Panasonic
SKU: PAN-AK-HVF100GJ

ITEM #: PAN-AK-HVF100GJ MFG #: AK-HVF100GJ

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PAN-AK-HVF100GJ

Zacuto Z-FIND-FS5 Sony FS5 Z-FinderOur Price: $565.25
Zacuto Z-FIND-C2 Z FINDER Compatible with the Canon C200 CameraOur Price: $565.25
Zacuto Z-C2RM Rosette Mount to Use with C200 Z-Finder and Axis EVG MountOur Price: $71.25
Zacuto Z-Frame for the Z-FinderOur Price: $5.70

Required Accessories

Recommended Accessories

AK-HVF100GJ - Overview

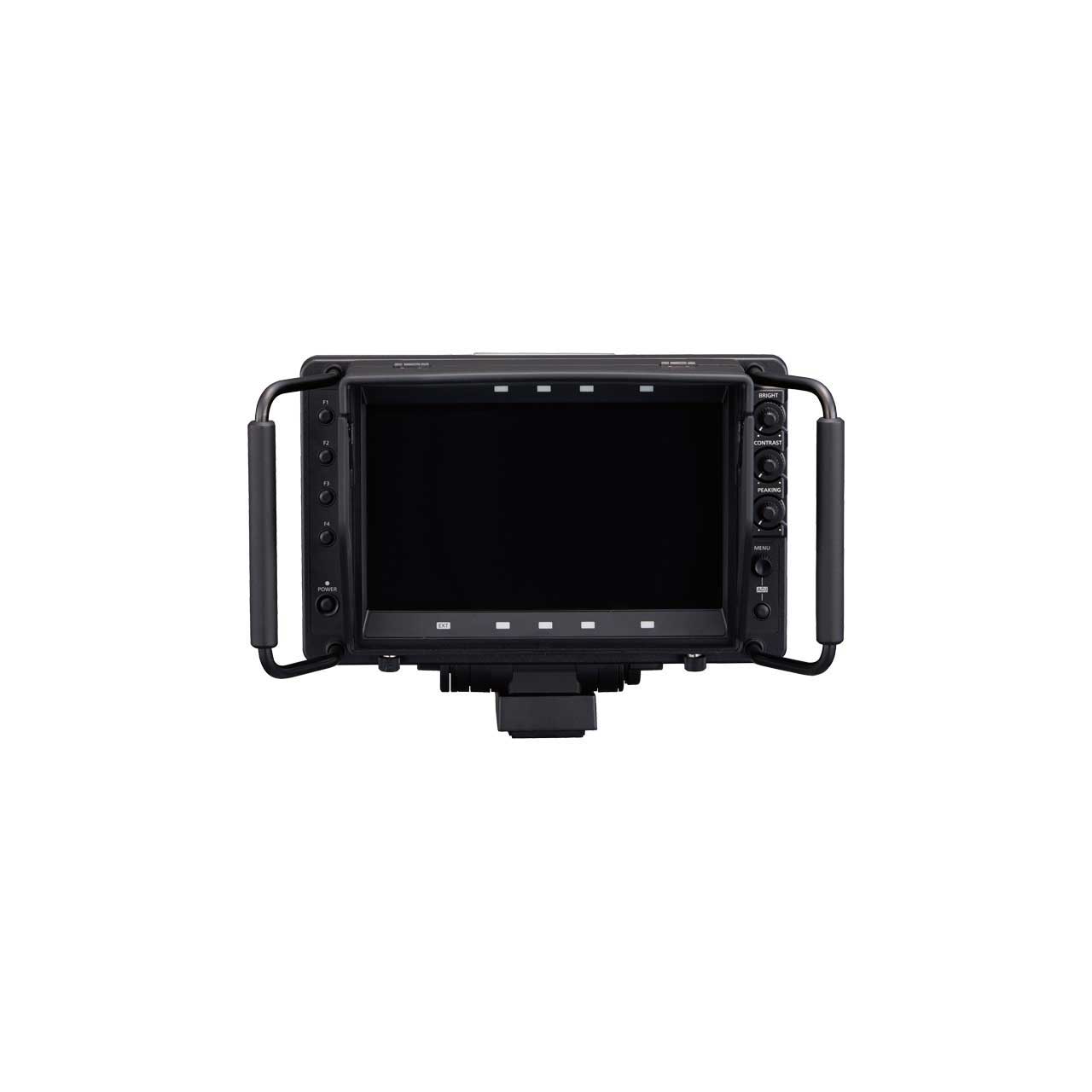

The Panasonic AK-HVF100GJ is an LCD viewfinder equipped with a 9.0-inch LCD panel. It can be used as a viewfinder for the Studio Handy Camera (AK-UC3000G/AK-UC3000GS, AK-HC5000G/AK-HC5000GS, AK-HC3800G/AK-HC3800GS, AK-HC3500AP/AK-HC3500AE/AK-HC3500AES). Input of the external DC power supply is required when this unit is mounted to AK-HC3800G/AK-HC3800GS or AK-HC3500AP/AK-HC3500AE/AK-HC3500AES. The signal for video format is automatically distinguished and displays the video of the camera. Setting for various markers, focus assist function, waveform display function, etc., can be set regardless of setting the viewfinder setting on this unit. These functions can be assigned to the F1/F2/F3/F4 buttons, and can be displayed directly by pressing the button.

Features:
- High-resolution 22.9 cm (9 inch) color LCD panel displays full HD 1920 x 1080 pixels
- Focus assist functions (Focus-in-Red, Focus Bar)
- Detail depends on zoom ratio
- External HD-SDI (3G SDI) input
- External DC input (+12 V DC)
- Four assignable function switches
- Contrast, brightness, and peaking are adjustable

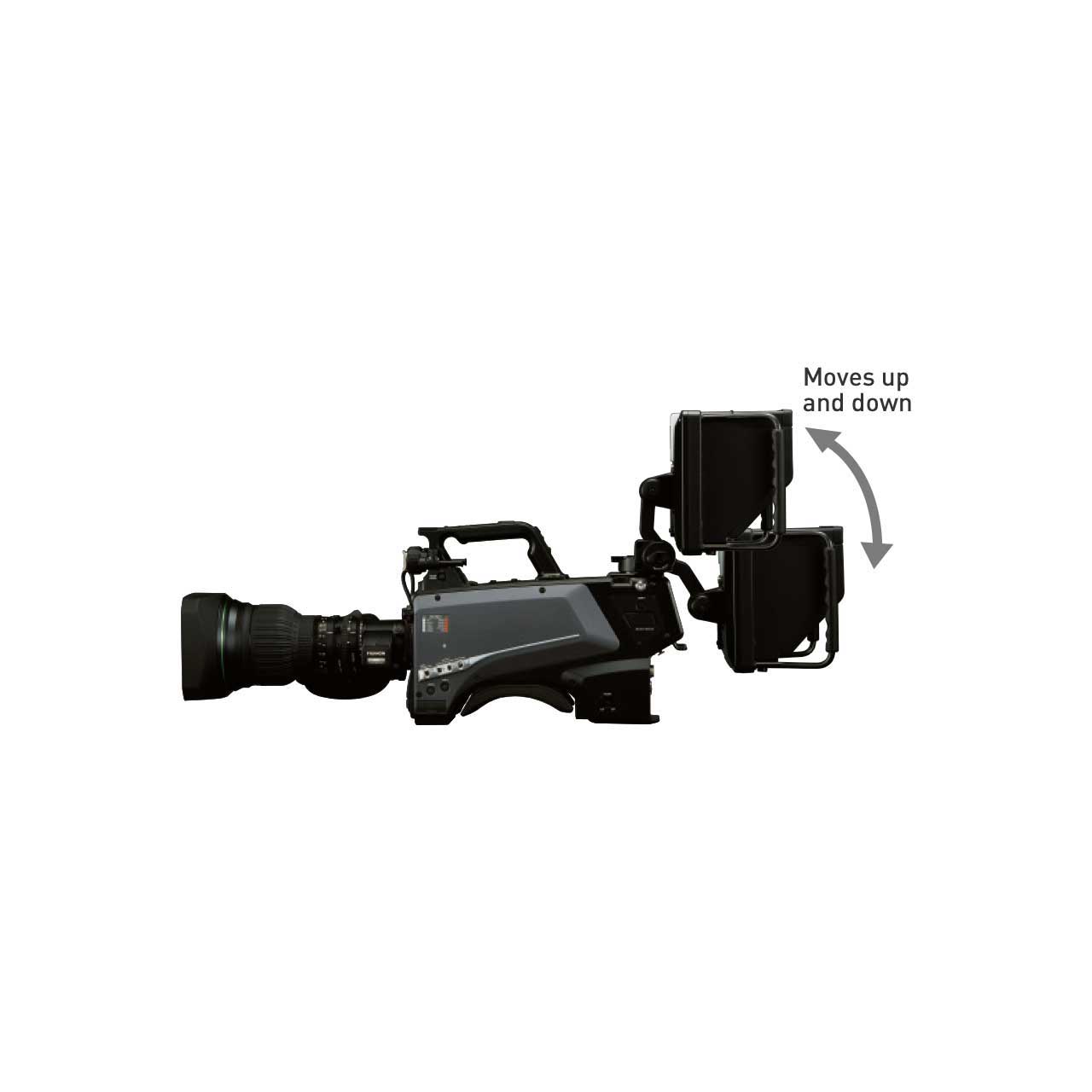

- Pan, tilt, and lift structure used
Specifications:
- Power Supply: DC 12 V (supplied from camera or XLR)
- Power Consumption: 18 W
- Operating Temperature: 32 °F to 113 °F
- Operating Humidity: 10% - 85% (no condensation)
- Storage Temperature: -4 °F to 140 °F
- Weight: Approx. 5.73 lbs. (not including hood) / Approx. 6.61 lbs. (including hood)
- Dimensions (W x H x D): 13-13/32 x 9-7/32 x 7-5/8 inches (not including hood) 13-13/32 x 9-7/32 x 9-1/8 inches (including hood)
- Display Panel: 22.9cm (9.0 inches)
- Number of Pixels: 1920 x 1080 (FHD)
- Display Color: Approx. 16.77 million colors

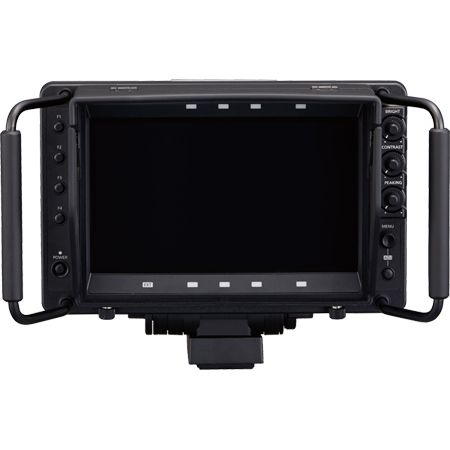

- Operation: [POWER] switch, [MENU] button, [SELECT] dial button, [F1]/[F2]/[F3]/[F4] buttons, [BRIGHT] knob, [CONTRAST] knob, [PEAKING] knob, [INPUT] switch

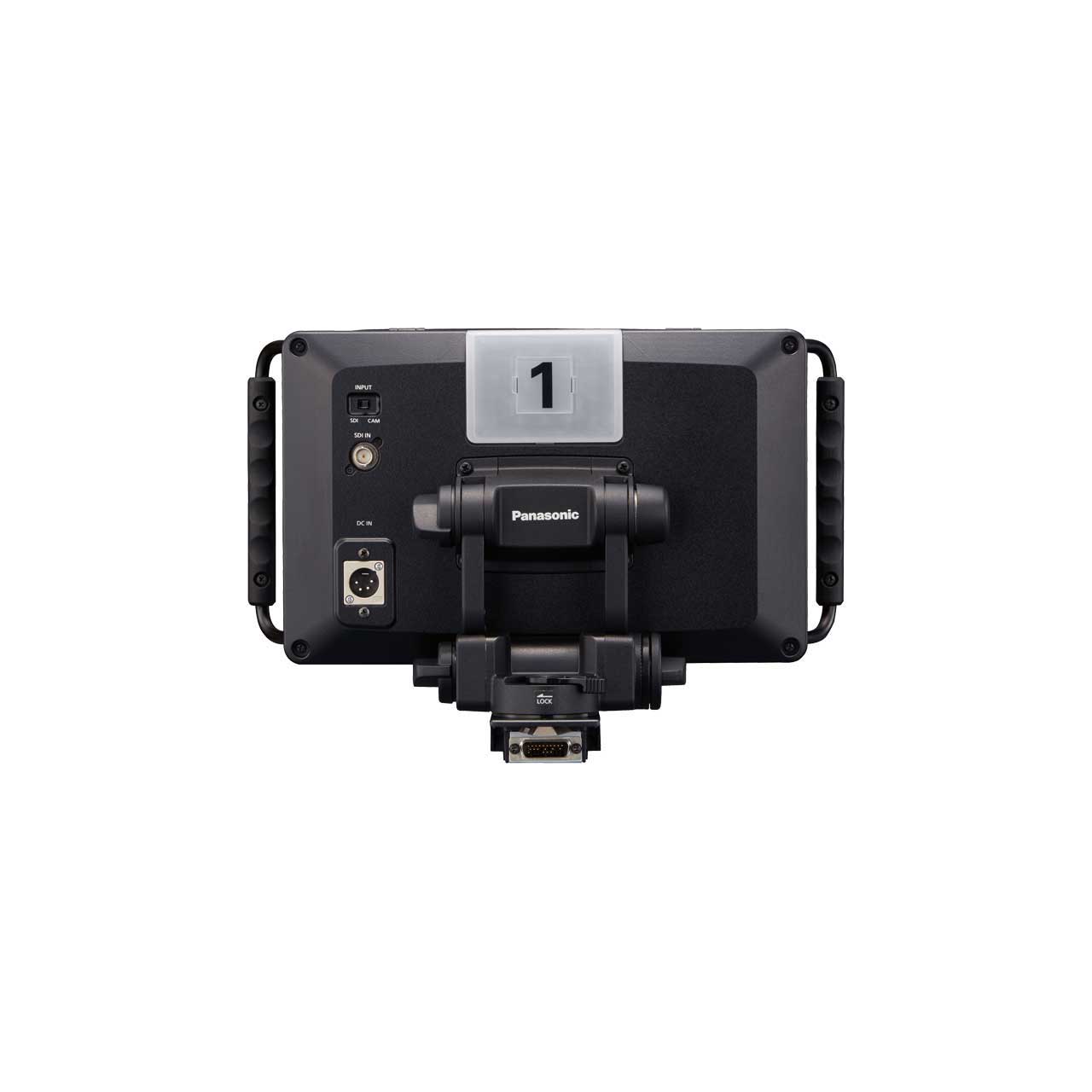

- Connector: Camera I/F connector (D-sub 29 pins x 1) SDI IN connector (BNC x 1) DC IN connector (XLR 4 pins x 1)
- Supported Signal Format:
  - CAM: 1080/59.94i, 1080/50i
  - SDI: 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
