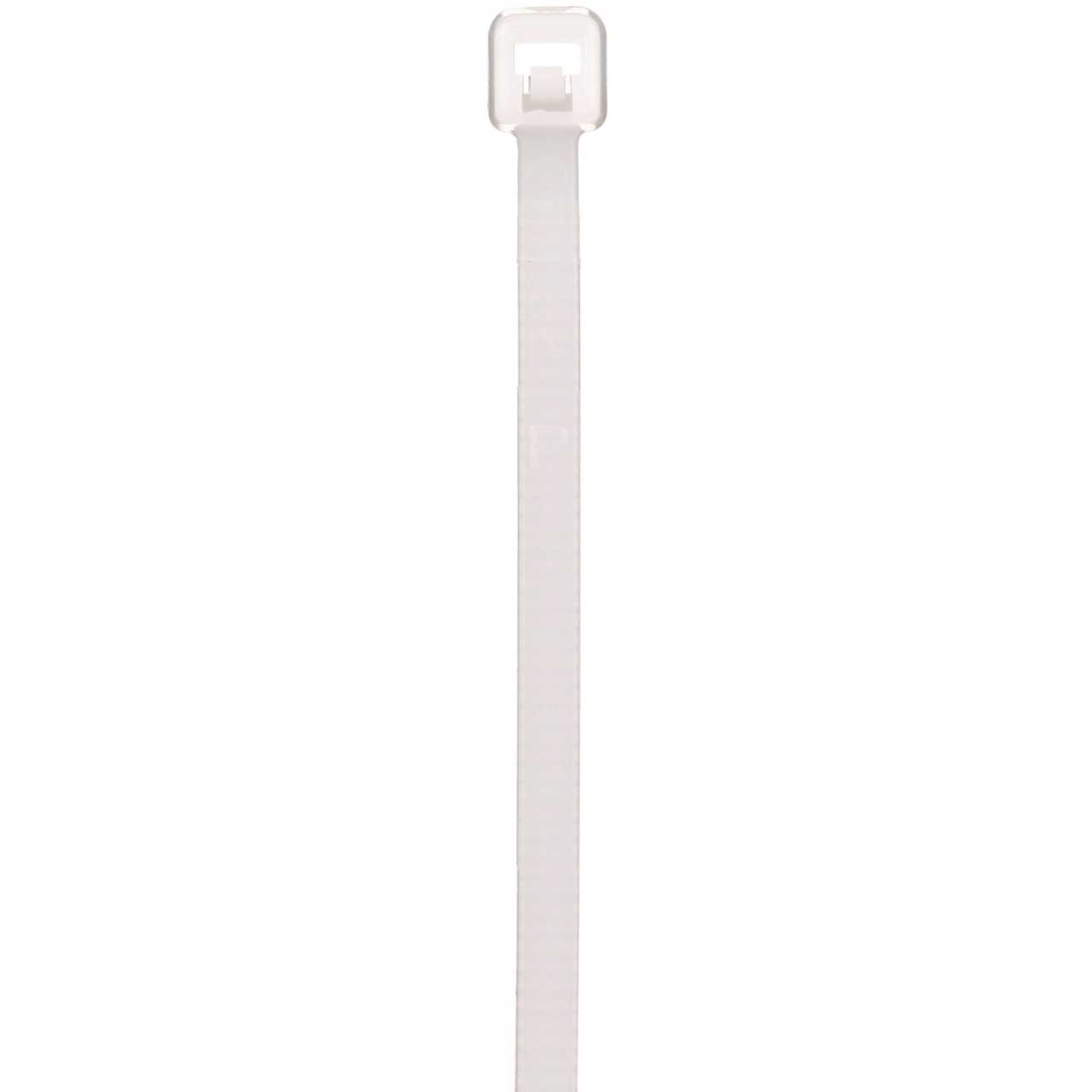

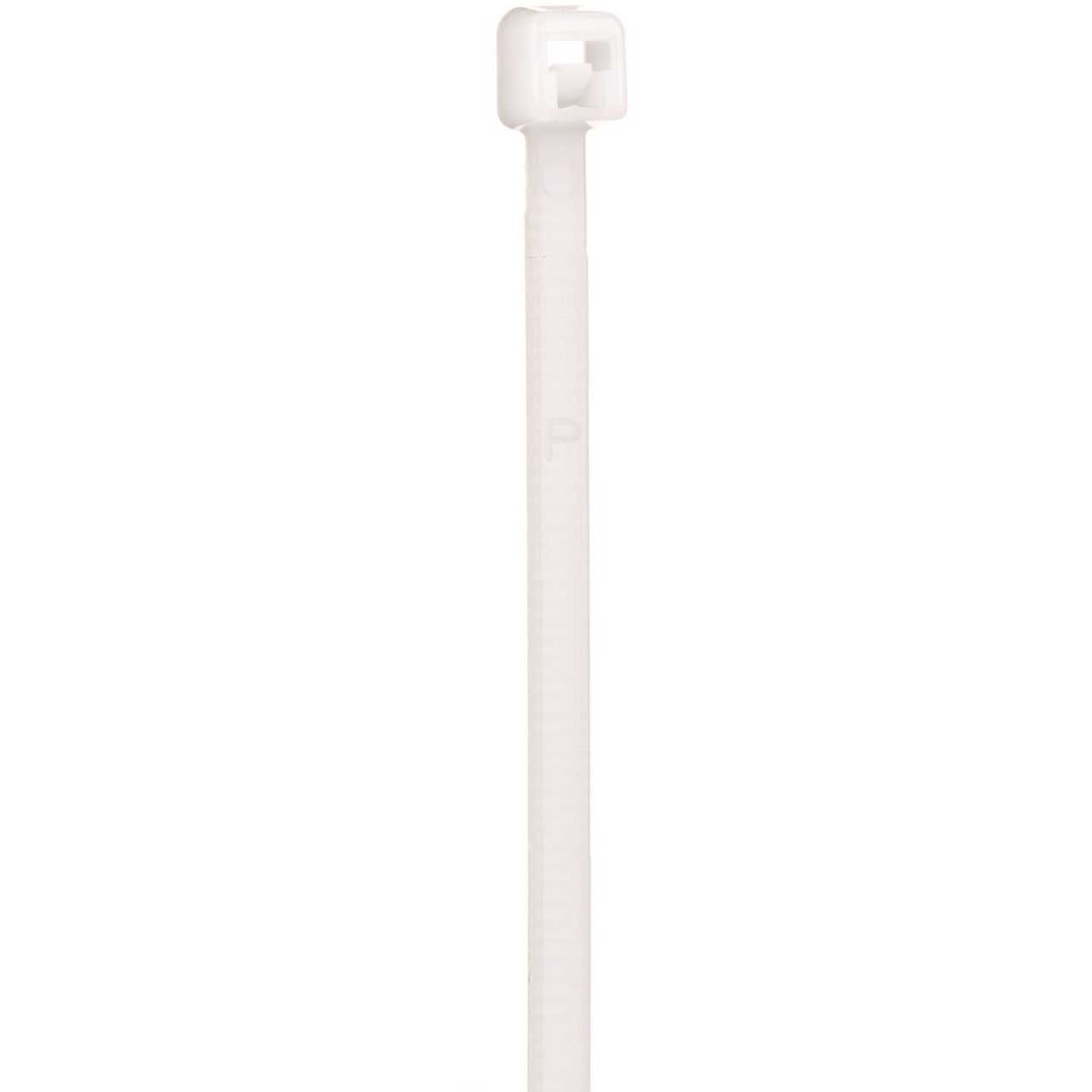

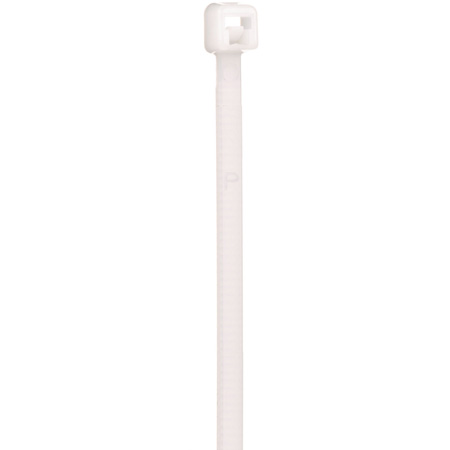

Panduit PLT1M-M 4inch Small Cable Ties - Natural - 1000/Pack

PLT1M-M - Overview

• Features:

  • One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.


• Specifications:

  • Color: Natural
  • Environment: Indoor
  • Sub Brand: Pan-Ty
  • For Use With: GTS-E, GS2B-E, PTS, PPTS, STS2
  • Material: Nylon 6.6
  • Resistance Properties: NA
  • Maximum Bundle Diameter (In.): 0.87
  • Maximum Bundle Diameter (mm): 22
  • Maximum Installation Temperature (°F): 32
  • Maximum Operating Temperature (°C): 85
  • Maximum Operating Temperature (°F): 185
  • Minimum Bundle Diameter (In.): 0.06
  • Minimum Bundle Diameter (mm): 1.5
  • Minimum Installation Temperature (°C): -20
  • Minimum Installation Temperature (°F): -4
  • Minimum Loop Tensile Strength (N): 80
  • Minimum Loop Tensile Strength (lb): 18
  • Minimum Operating Temperature (°C): -60
  • Minimum Operating Temperature (°F): -76
  • Overall Length (In.): 3.9
  • Overall Length (mm): 99
  • Body Width (In.): 0.098
  • Body Width (mm): 2.5
  • Body Thickness (In.): 0.043
  • Body Thickness (mm): 1.1
  • Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Complaint
  • Military Cross Reference Number: MS3367-4-9


• Item Includes:

  • 1x Panduit PLT1M-M 4inch Small Cable Ties - Natural - 1000/Pack
