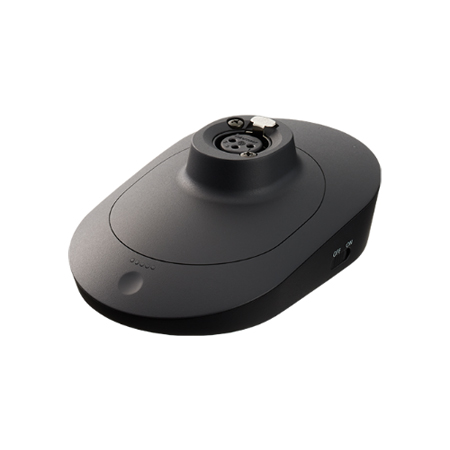

Panasonic WX-ST600 Wireless Transmitter Base for Gooseneck Microphone

ITEM #: PAN-WX-ST600 MFG #: WX-ST600

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$655.00

Our Price:

$434.76

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


WX-ST600 - Overview

Perfect for conference rooms, board rooms, or even larger applications, Panasonic's WX-ST600 DECT wireless gooseneck base features an XLR-F input connector for a compatible gooseneck microphone (sold separately) and transmits the signal wireless over the DECT 1.9GHz frequency spectrum to a Panasonic 1.9 GHZ Digital Wireless Microphone Receiver (WX-SR202 / 202DN, WX-SR204 / 204DN, WX-SE200 / 200DN, sold separately.

The WX-ST600 also features two modes of operation - Always On or Push-to-Talk (PTT), easily selectable via dip switches in the battery compartment. This wireless boundary mic transmits over 1.9GHZ to any A recessed capacitive touch control is located on the top of the wireless boundary mic which functions as a mute button (when the mic is set to Always On mode) or a Talk button (when the mic is set to PTT mode). Additional controls include a hard on/off switch on the side of the boundary mic. LED indicators for power, status, talk, mic input level and charging provide easy status information without distraction during the meeting. The WX-ST600 also features a 3.5mm audio input connector (for transmitting audio from a PC or smartphone instead of the microphone).

The WX-ST600 takes 2 x AA Alkaline batteries or 2 x AA NiMH batteries (which can be charged via the USB-C connection on the unit or Panasonic's WX-SZ600 4-port networked charger).

Leveraging Panasonic's 20-year experience in DECT wireless audio communications, the WX-SR200P 1.9 GHz digital wireless microphone system is the best-in-class solution for classroom or corporate presentations providing low latency for hybrid in-room/virtual presentations. Panasonic's digital wireless microphone system is easy to set up, easy to integrate with third-party control systems (such as Crestron, Extron, and Q-SYS) and easy to use.

Setup is a breeze - the wireless microphones pair wirelessly with Panasonic's digital wireless mic receiver and assigns channels automatically, eliminating the need for manual channel assignment.

The system can be expandable to suit a variety of spaces, from small classrooms, medium sized classrooms / conference rooms, to large auditoriums. Up to 8 separate antennas (per receiver) can be mounted to the wall or the ceiling in the room and connected via CAT5 back to the receiver locked away in a cabinet or closet and multiple digital wireless microphone receivers can be installed to add wireless microphone channels to the room

Note: 2x AA NiMH rechargeable batteries required, sold separately

  • Features:

    • Easy setup, with automatic channel assignment via DECT 1.9 GHz wireless technology
    • XLR (Female) Mic Input Connector for compatible gooseneck microphones (sold separately)
    • Two modes of operation: Always On or Push-to-Talk (PTT)
    • Easy & Convenient to Use
    • Up to 13 hours battery life (2 x AA NiMH rechargeable batteries required, sold separately)

  • Specifications:

    • Weight: 0.62 lbs (280 g)
    • Dimensions (W x H x D): 3-15/32 in x 1-13.16 in x 5-5/16 in
    • Frequency Response: 100 Hz to 15 kHz
    • Battery Life: NiMH: approx. 13 hours, Alkaline: approx. 11 hours
    • Operating Ambient Humidity: 10% to 90% (no condensation)
    • Operating Ambient Temperature: 41 deg. F to 95 deg. F
    • Wireless Frequency: 1920 MHz to 1930 MHz
    • LED Indicators: Power, Status, Mute, Charge, Mic Input Level Meter
    • Battery Type Required: 2 x AA Alkaline or NiMH Rechargeable, sold separately
    • Audio Input: -14 dB line input, 3.5mm stereo mini jack (monoaural mix)
    • Microphone Input Connector: XLR3 (Female), Output DC12V
    • Connector(s) for Charging: USB-C or Wireless (WX-SZ600 required)

  • Item Includes:

    • 1x USB-C to USB-A cable

  • Warranty:

    • 3 Years

  • GTIN:

    0885170402591
