PWINF DIN CC - Overview

DMX Controlled Contact Closure DIN-mount Interface!

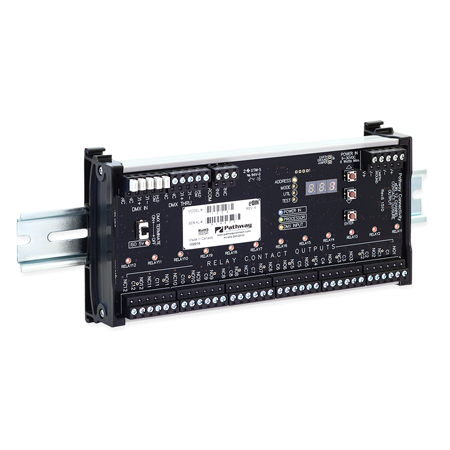

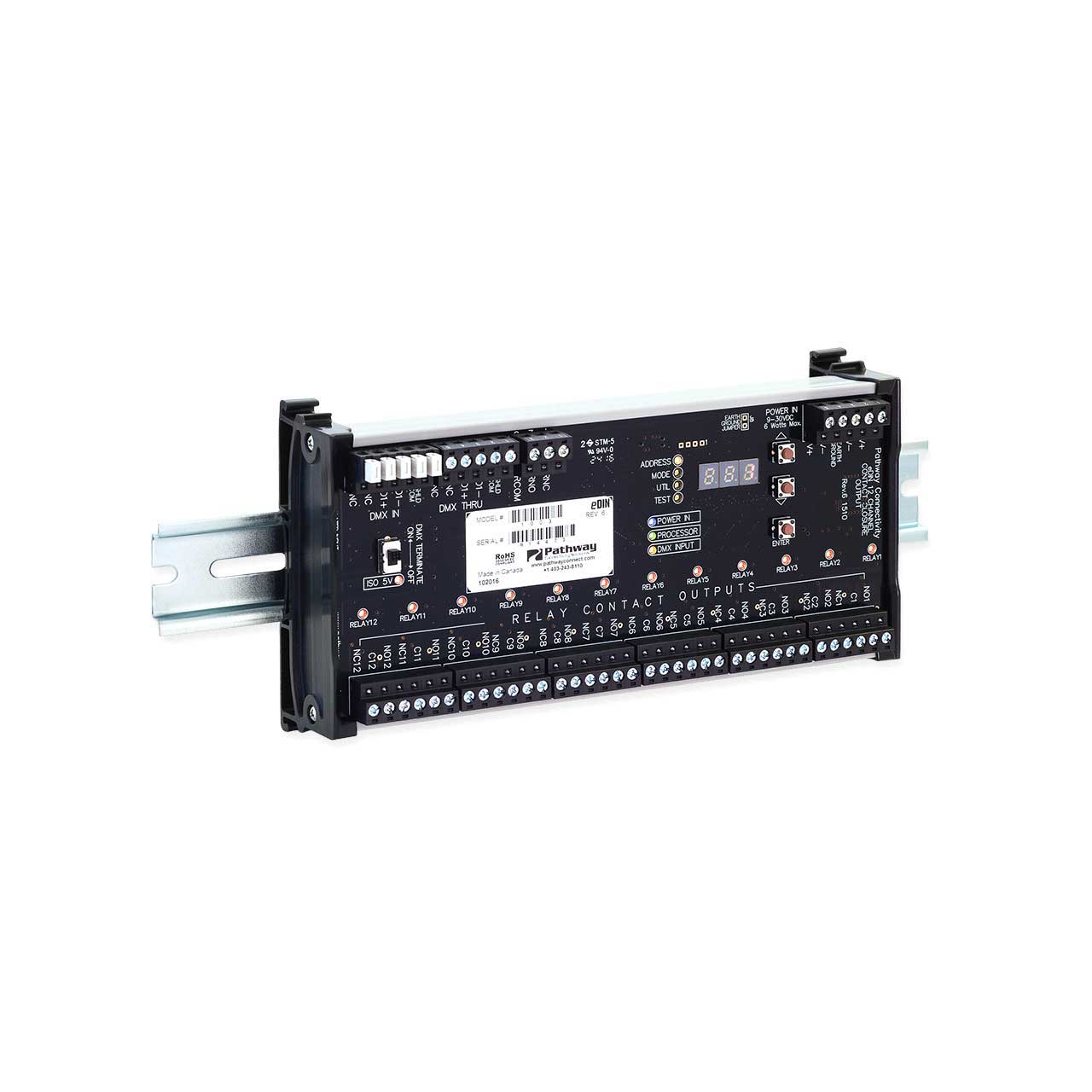

The Pathway PWINF-DIN-CC is an 8-inch, DIN-mount DMX Interface with 12 Contact Closure Relay. This interface provides twelve DMX-controlled dry contact closures for both power and signal level switching. It provides DMX512 control over twelve form-C relays, for signal level switching, in a DIN-rail mountable format. Each relay may be independently wired for normally-open (NO) or normally closed (NC) operation. Field configurable through front panel or by RDM, the eDIN Contact Closure has nine operating modes for maximum flexibility of use.

The PWINF DIN CC is fully compliant with ANSI E1.20 Remote Device Management as a responder device. An RDM Controller can discover and set the card's DMX start address, firmware version and operating mode. Starting with firmware 1.5.5, and RDM utility (Pathscape) can upgrade the firmware in the field.

Features:
- DMX512 start address and operating mode may be set from front panel interface or remotely using E1.20 RDM
- DMX512-present relay (normally open or normally closed)
- Indicator LEDs for power, processor, DMX input, and relay status
- Pluggable terminal block connections accept solid or stranded wire between #26 and #16 AWG
- Normally open or normally closed wiring option for each relay
- User-adjustable trigger threshold (default to 50%)

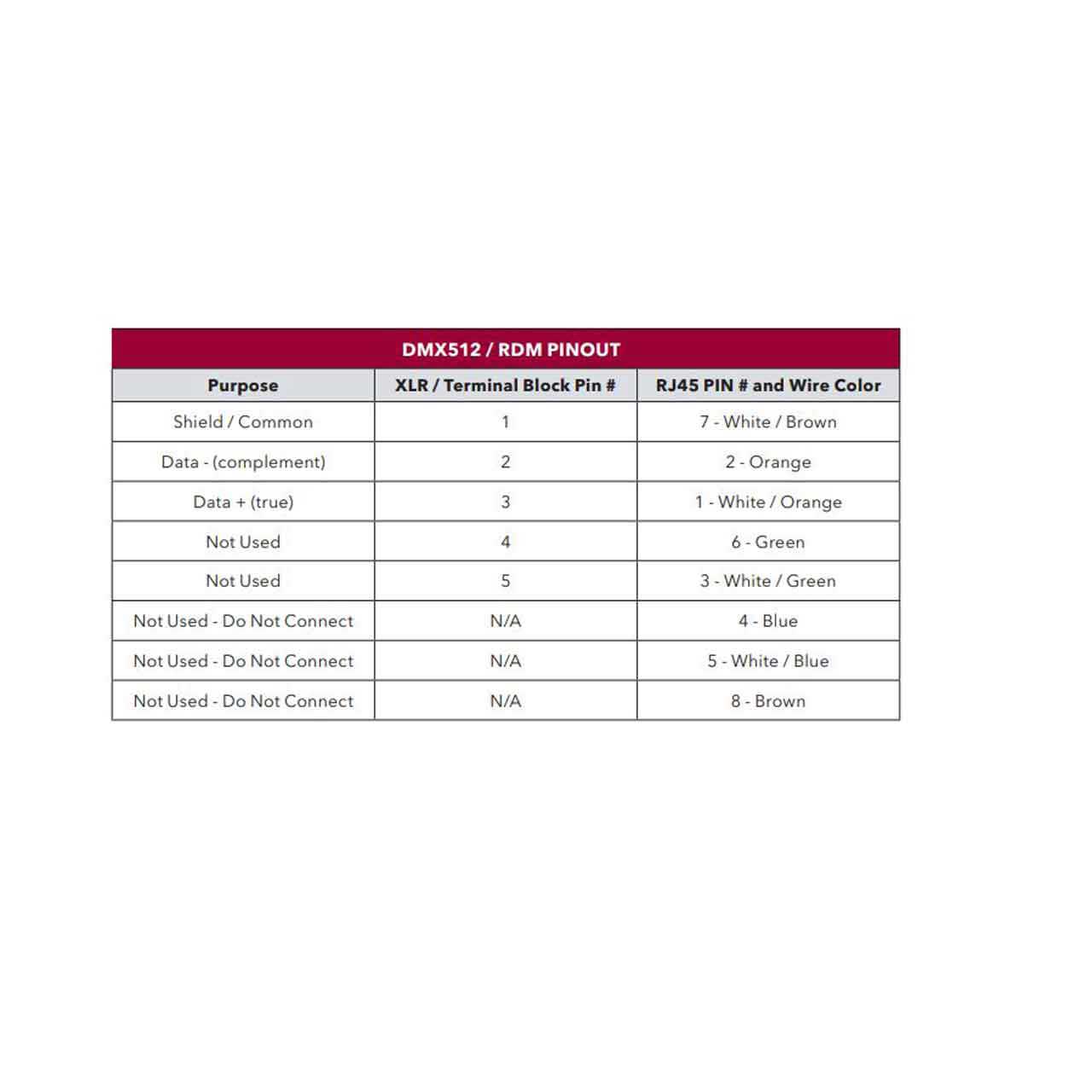

- One DMX512-A/RDM data input connection
- One passive DMX512-A data through connection
- Suitable as pilot relay for high voltage contactors, with adequate arc protection (by others)
- Data and power easily daisy-chained between modules
- Termination switch
- User-initiated diagnostics and test modes
- Firmware field-upgradable using RDM (requires Pathway Pathport gateway and RDM utility program)
Specifications:
- Electrical
- Input Ratings: 9-30VDC power input - 6W maximum power consumption
- Isolation & Fault Protection: 1500V isolation between DMX input and module electronics - 250V fault protection on DMX port
- Regulatory Compliance: CE
- Relay Actuations: Rated for minimum 100,000 at 2A @ 30VDC

  Mechanical

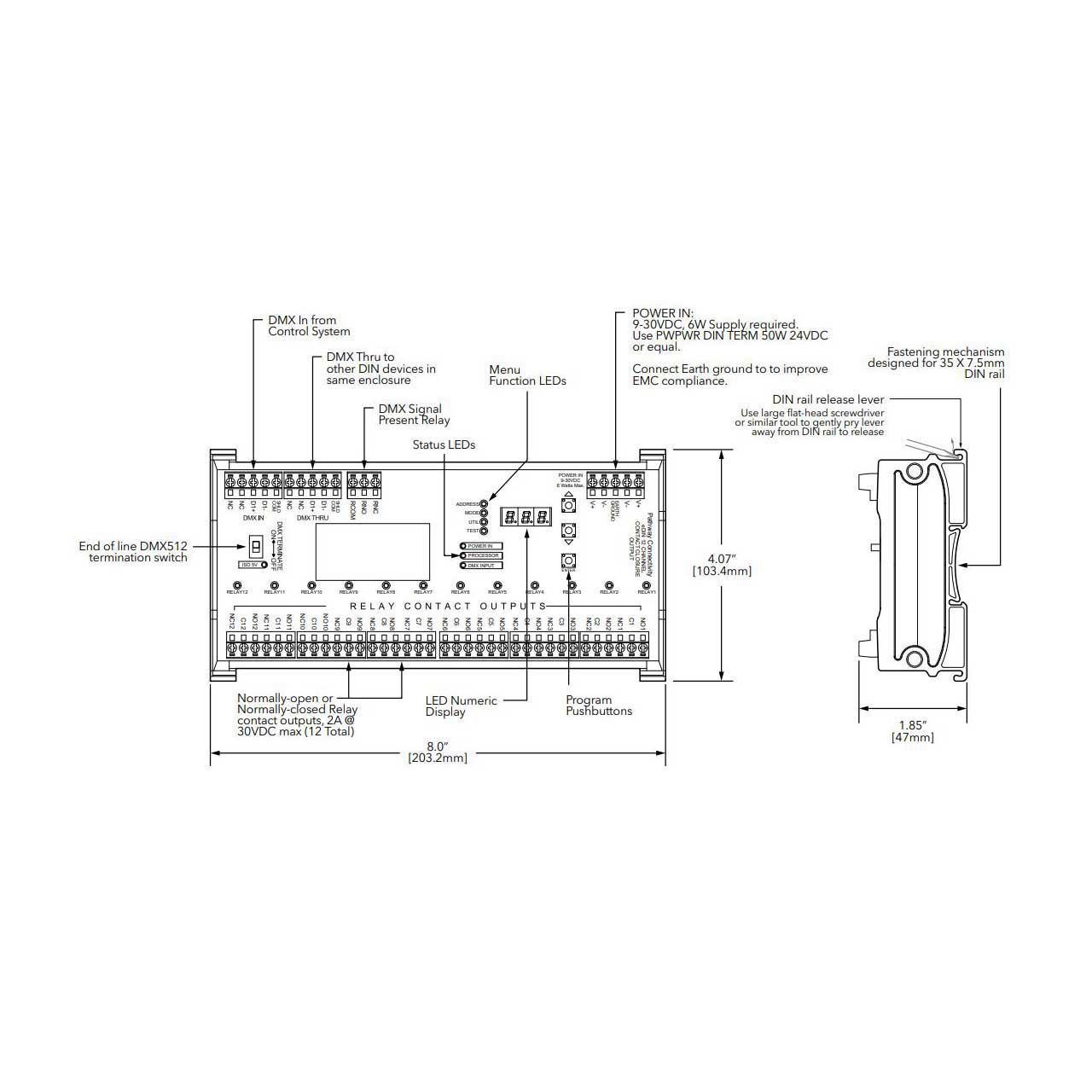

- Dimensions: 8.0" W x 4" H x 1.85" D (203mm W x 103mm H x 47mm D)
- Weight: 0.7 lbs (0.32 kg)
- Mounting Interface: 35mm x 7.5mm DIN rail

  Environmental
- Operating Temperature: 14°F to 113°F (-10°C to 45°C)
- Relative Humidity: 5-95%, non-condensing
- Standard Compliance: RoHS 2011/65/EU + A1 2015/863
- General Compliance: ANSI E1.11 DMX512-A R2013 - ANSI E1.20 - RDM - Remote Device Management - Class 2 Low Voltage
Item Includes:
- 1x PWINF DIN CC DMX Interface, DIN-mount, 12 Contact Closure Relay (8")
Warranty:
- 3-Year Limited
