Platinum Tools T130K1 VDV MapMaster 3.0 - Cable Tester Kit

T130K1 - Overview

• Features:

  • Tests to T568A/B wiremap configuration: shorts, opens, miswires, reverses and split pairs
  • Single-ended Testing for Shorts & Split Pairs
  • Measures Length in Feet/Meters

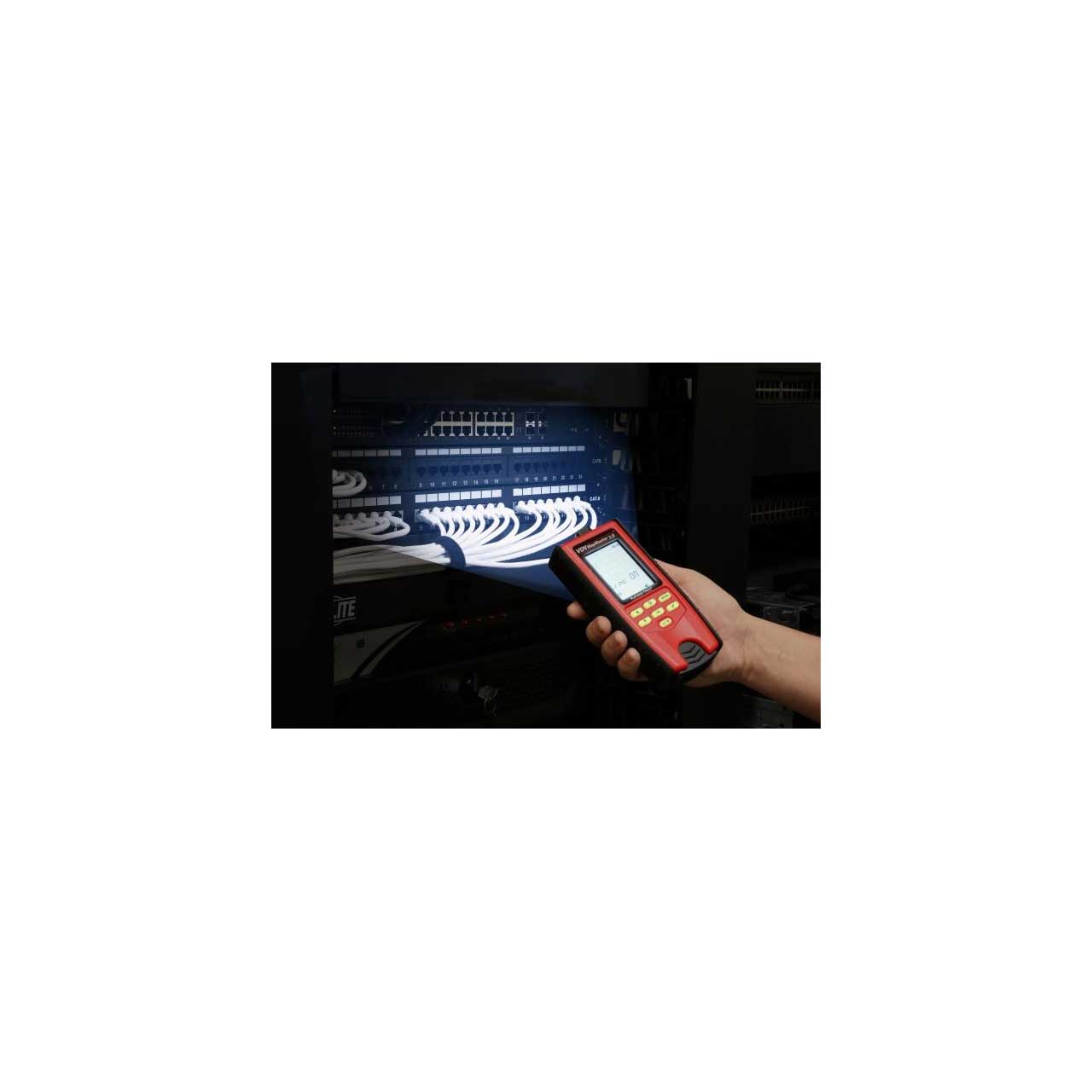

  • Identifies cable location on active ports using flashing Port Link Light

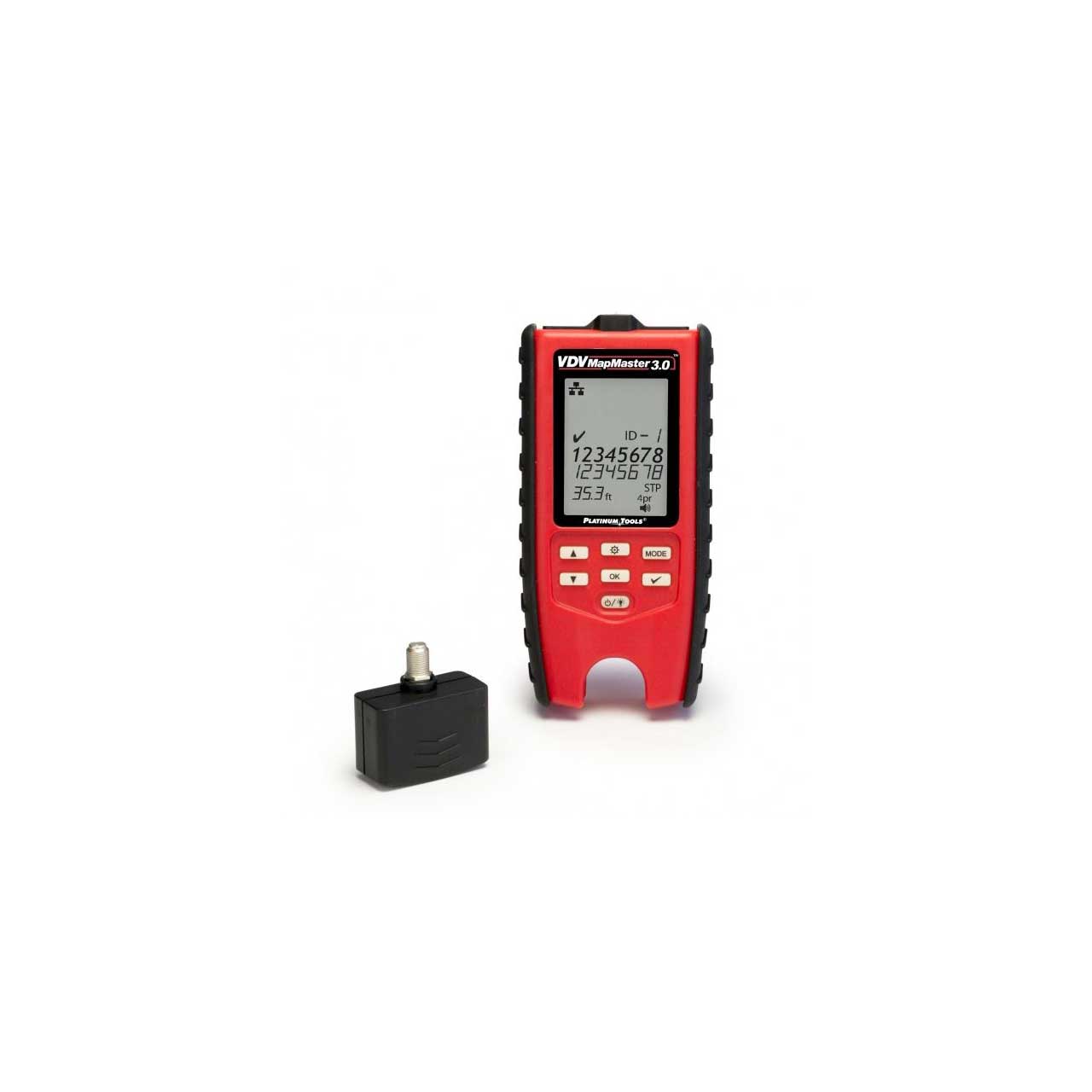

  • Easy to read, backlit LCD screen with large icons, glow-in-the-dark keypad and built-in LED flashlight for use in dark areas
  • Identify up to 20 network or coax cable runs at a time
  • Audible Tone Generator, 4 selectable cadences


• Specifications:

  • Display: Large 2.75" Backlit Monochrome LCD
  • Dimensions: 6.8" x 3.2" x 1.4"
  • Weight: 10.8 oz. with battery and remote
  • Operating Temperature: 32° F to 122° F
  • Storage Temperature: -4° F to 140° F
  • Humidity: 10% to 90%, non-condensing
  • Maximum Voltage between any two connector pins without damage: RJ12/RJ45/F: 50V DC or AC
  • Battery Life 9V alkaline battery typical: Standby: 4 years; Active: 425 hours
  • Cable Types: Shielded or Unshielded; CAT7, CAT6A, CAT5e, CAT5, CAT4, CAT3, Coax
  • Maximum RJ Cable Length Testing: 0 to 1,000 feet (305 meters)
  • Minimum Cable Length for Split Pair Detection: 1.5 feet (0.5 meters)
  • Maximum Coax Cable Length: Varies depending on cable resistance varies
  • Low Battery: Icon flashes when battery voltage falls below 6V
  • Measurement Technology: Capacitance testing
  • Length Accuracy Without Length Constant: ± 3% plus + 1 foot
  • Default Length Constant (Restored with power on reset): Voice (Twisted pair): 17.4 pF/ft; Video (Coax): 16.5 pF/ft; Data (Twisted pair): 15 pF/ft
  • Warranty: Limited 1 yr

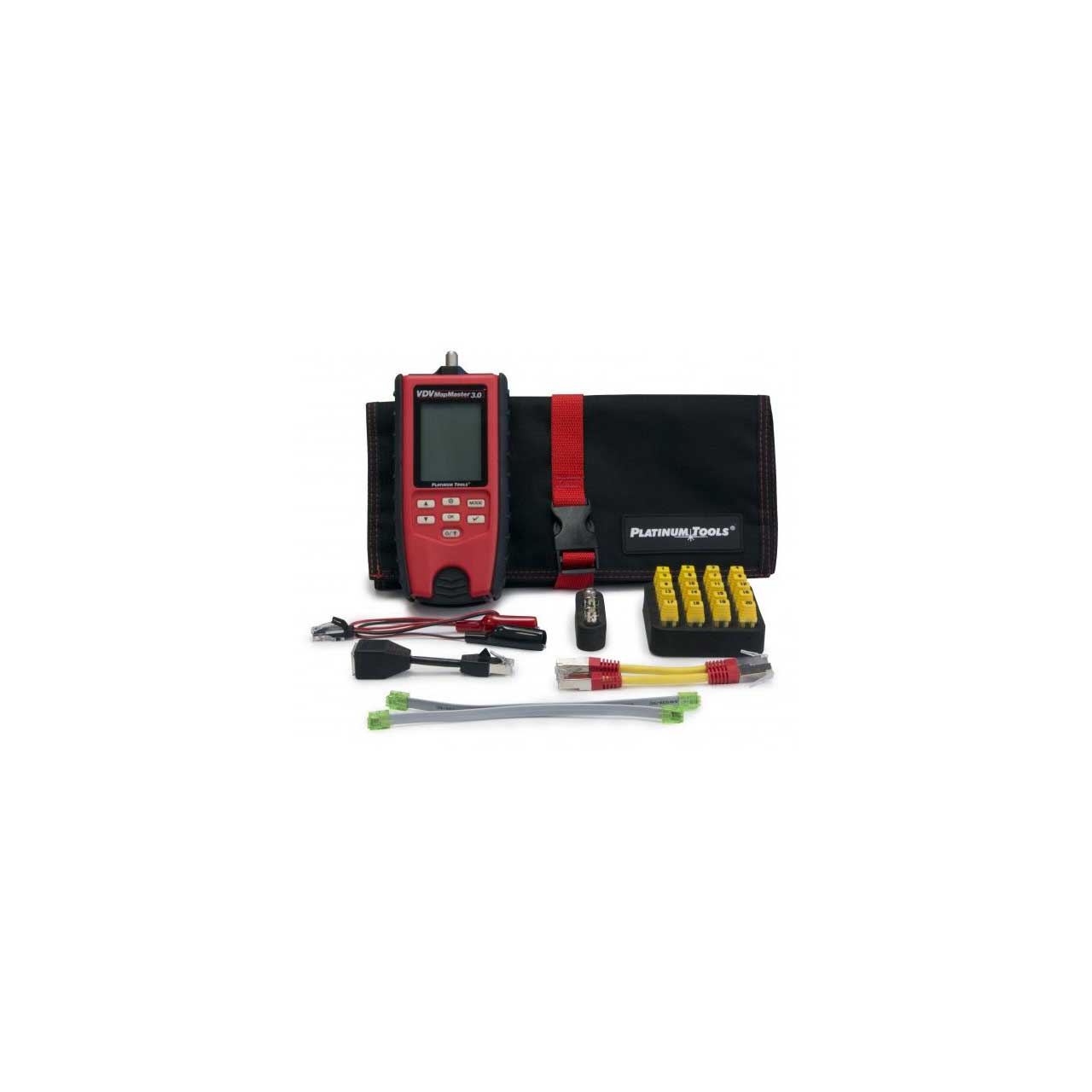

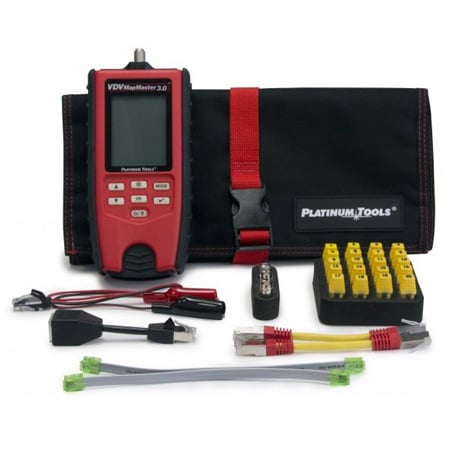

• Item Includes:

  • T130 Tester
  • 20 Network ID-only remotes
  • adapters
  • cables
  • hanging pouch


• Warranty:

  • 1 Year


• GTIN:

  0849160008576
