CB2-900 - Overview

The Pliant Technologies CrewCom CB2 provides an excellent out-of-the box experience for users with its simplicity and ease-of-use. It is well-suited for smaller applications/installations and can be easily set up by less experienced users. The CrewCom CB2 boasts many of the exceptional CrewCom product features such as sound quality and range yet provides exceptional wireless intercom at a lower price point.

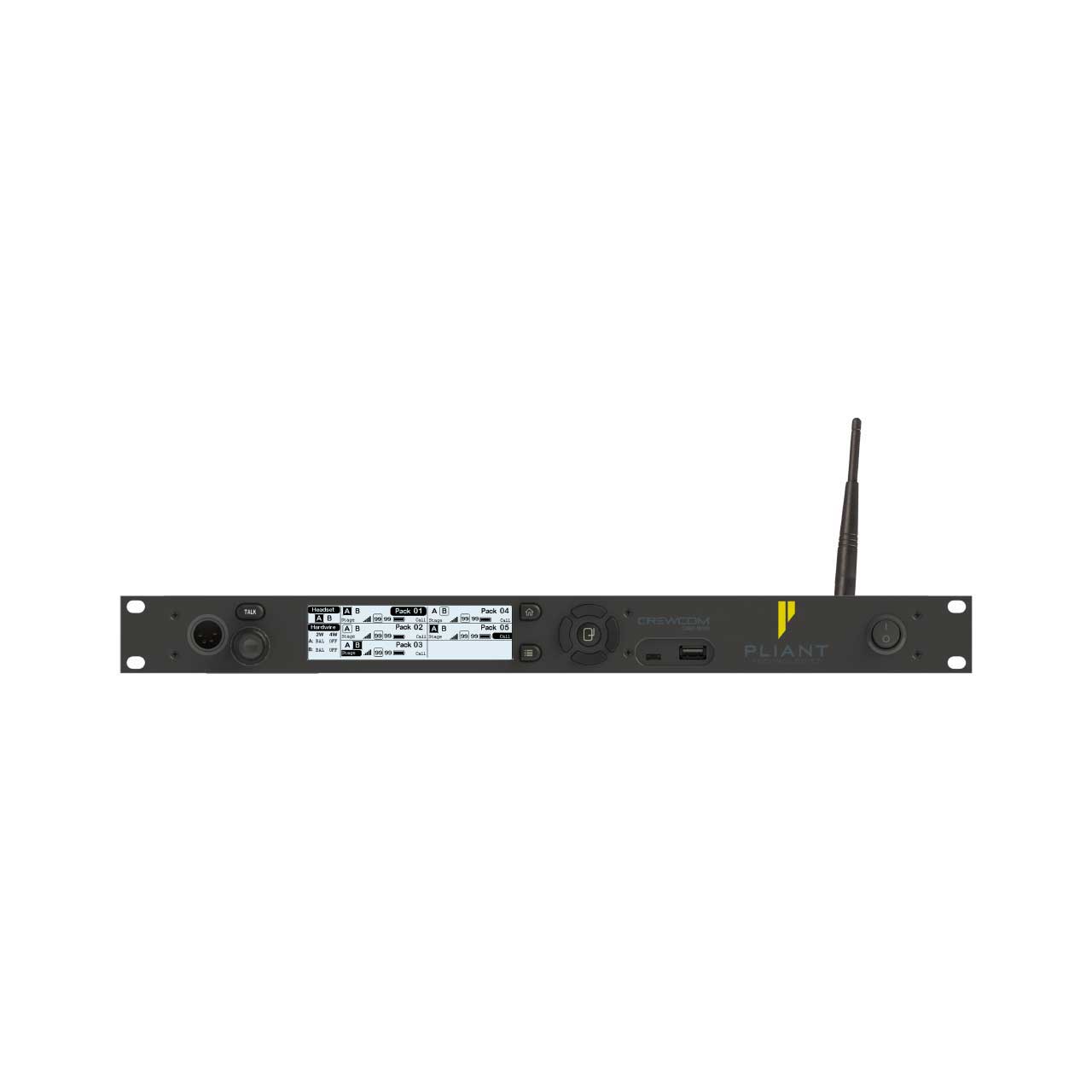

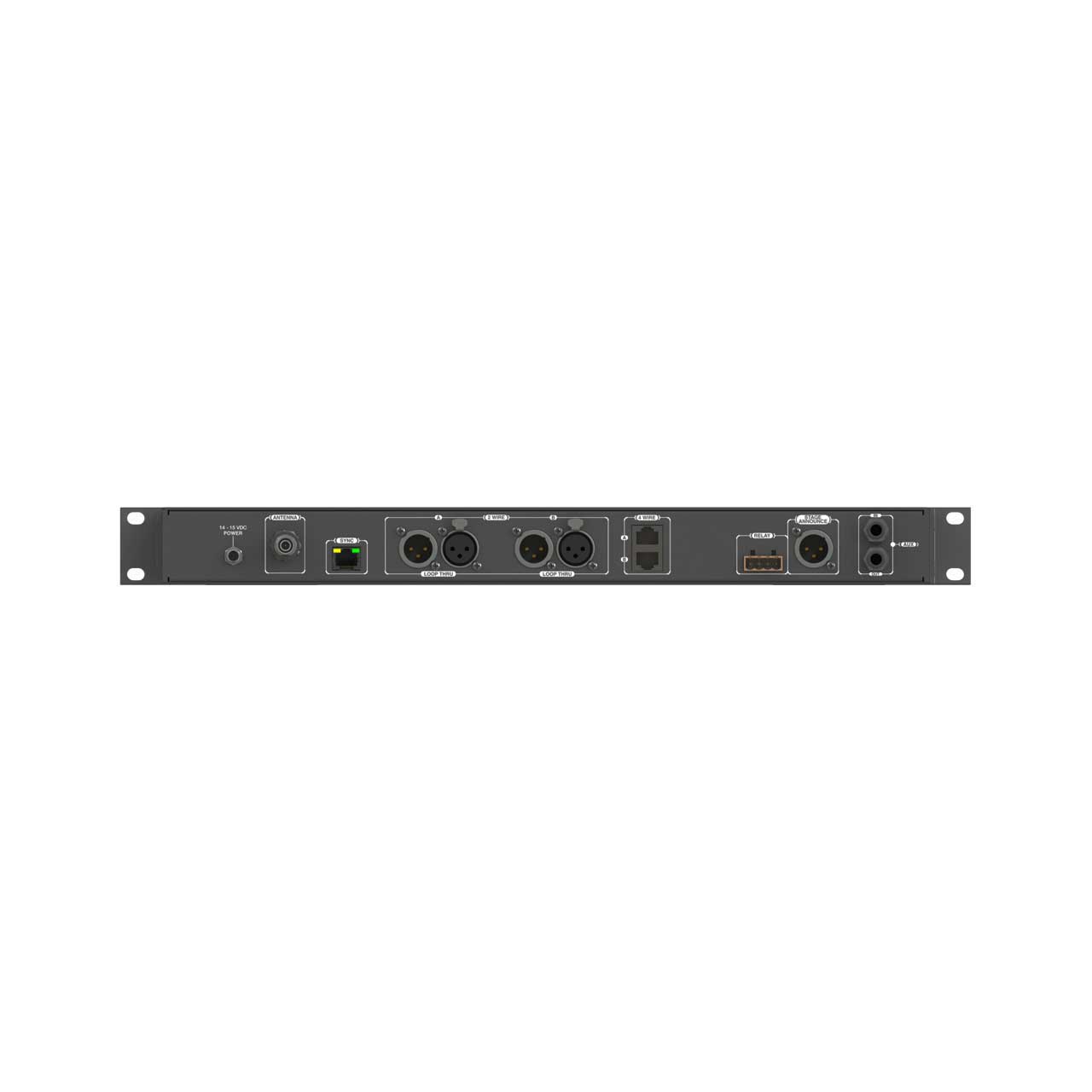

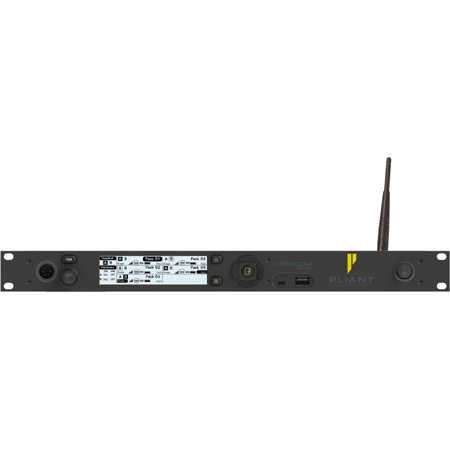

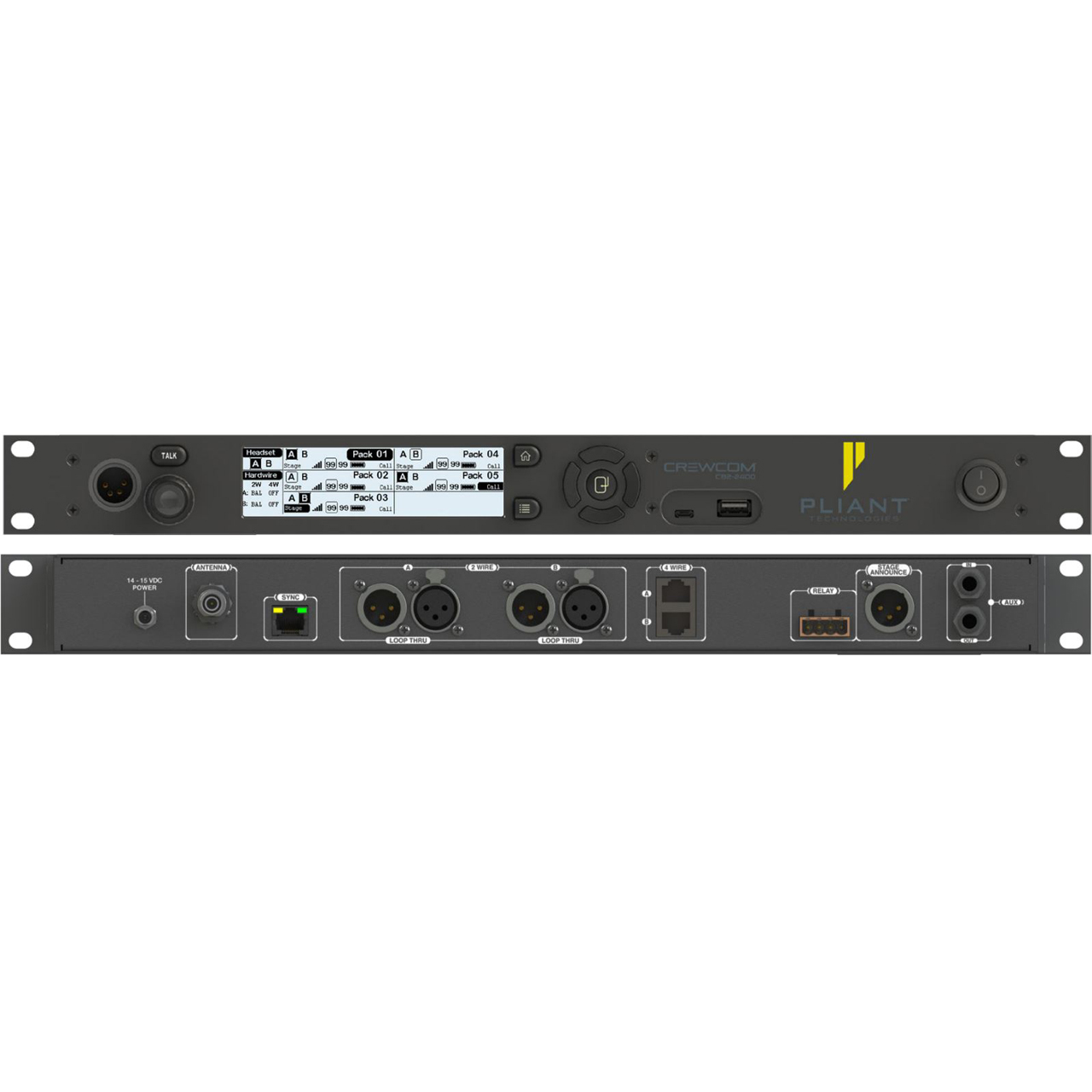

The Pliant Technologies CB2-900 CrewCom CB2 1 RU BaseStation features 2-channels, a 900MHz internal radio,, and supports up to six CRP-12-900 Radio Packs. The system also provides external connectivity via two 2-Wire or two 4-Wire ports. A maximum of two CB2 BaseStations can be linked together. This fully-featured, 2-channel affordable wireless intercom system provides ease-of-use and unparalleled performance without the cost and complexity of many high-end intercom systems. The CB2 boasts the same proven RF technology, exceptional range, impressive 7kHz audio quality and more! The CB2 is ideal for small venues where existing wired intercom systems need complimentary wireless intercom to extend coverage and functionality.

The CB2 allows connectivity to all common wired intercom systems and offers both 900MHz and 2.4GHz models to help combat the RF challenges facing production and entertainment professionals. Like CrewCom, CB2's RP-12 features Pliant's award-winning radio pack design and provides users with a simple-to-use interface in a compact, yet rugged pack. Smart system design and exceptional performance make CB2 a professional wireless system solution that delivers while not breaking the bank.

Note: The CB2 BaseStation is ONLY compatible with the CRP-12-900 Radio Pack, is NOT compatible with any CrewCom CRP-22 or CRP-44 Radio Packs, and is ONLY available in North America.)

  • Features:

    • 1RU 900MHz BaseStation

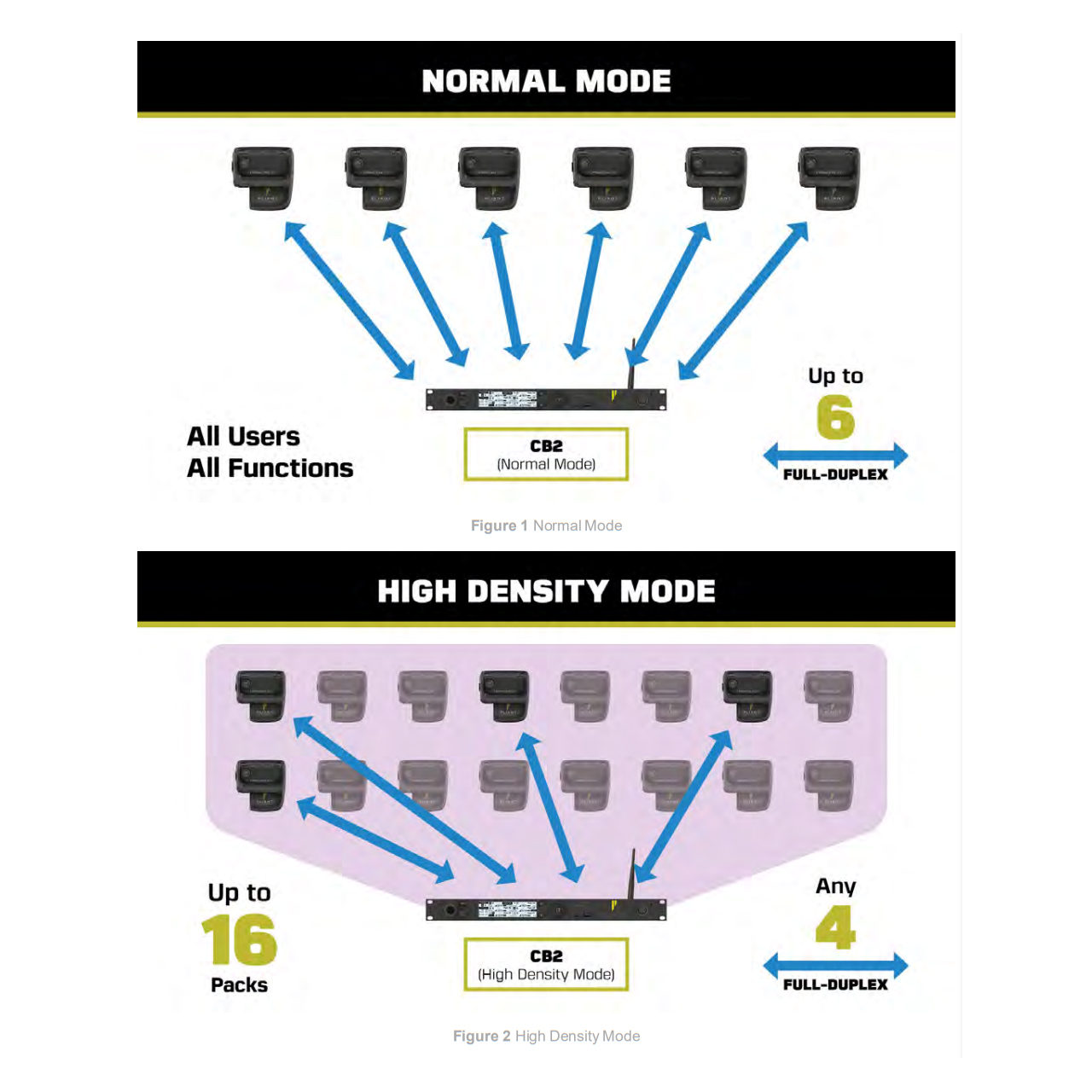

    • Each CB2-900 supports up to six CRP-12-900's in Normal mode
    • Easy-to-use interface with large informative backlit display and clearly laid out quick access controls
    • Supports external 2-Wire and 4-Wire intercom connections.
    • Front panel USB ports for Radio Pack pairing and CrewCom device firmware updates via computer
    • Front panel headset monitor station
    • Stage announce audio output
    • GPO Contact closure relays (x 3)
    • Sync input to receive sync from another CB2 or CrewCom system
    • Available only in North America

  • Specifications:

    • RF Frequency: 902-928 MHz (915-928 MHz)
    • RF Scheme: FHSS with TDMA
    • Effective Radiated Power: 400 mW (+26 dBm)
    • Radio Certification FCCID: HSW-CCT24 and IC: 4492A-CCT24
    • Transmission Range: 200 m (approx. 650 ft.) under typical conditions; 600 m (approx. 1950 ft.) line of sight
      Note: Functional range depends on many variables, including RF signal absorption, reflection, and external interference.
    • Hardwired Intercom Audio Channels: 2
    • No. of Active Radio Packs Supported: 6
    • No. of Paired Radio Packs Supported (per CB2): 6
    • USB Ports: (1) USB Type A; (1) Micro USB
    • Front Panel LCD Display: 512 x 128 resolution
    • Stage Announce and Relay: 1 Relay via Phoenix Conn
    • Sync Port (supports one connection): (1) RJ-45 for copper
    • 2-Wire Intercom Connection: 2 Channels via XLR 3F with XLR 3M loop (2 ports)
    • 2-Wire Compatibility: Clear-Com, RTS, and AudioCom (Balanced)
    • 4-Wire Intercom Connection: 2 Channels via RJ-45
    • Stage Announce Output: XLR 3M, balanced, transformer isolated
    • Aux In: 6.35 mm (1/4 in.) 3 conductor jack, 17.5 dBu max in (nominal line level +5 dBu), balanced, transformer isolated
    • Aux Out:6.35 mm (1/4 in.) 3 conductor jack, 17.2 dBu into 600 ohms (nominal line level +5 dBu), balanced, transformer isolated
    • Power Input/Connector: 2.5 x 5.5 x 8 mm, 14 VDC, 1.2 A
    • Dimensions (L x W x H): 1 RU, 48.26 x 4.39 x 29.67 cm (19.00 x 1.73 x 11.68 in.) metal enclosure
    • Weight: 2.7 kg (5.9 lb)
    • Operating Environment: -20° to 50° C (-4° to 122° F); 10% to 90% Humidity
    • Maximum Sync Line Length: CAT 5e (or greater) 100 m (330 ft.)
    • Maximum Altitude: 2,000 m (6,562 ft.)
    • RoHS Compliant: Yes
    • Compliance Model Number: B22545
    • Number of Antenna Connections per CB2: 1
    • Antenna Connector Type: RP-TNC
    • Supplied Antenna: +2 dBi Omni-directional (whip)

  • Item Includes:

    • 1x CB2 BaseStation
    • 1x 14 VDC External Power Supply (part number PPS-14V)
    • 1x Omni-Directional Antenna
    • 1x USB A to Micro B Cable
    • 1x Quick Start Guide
    • 1x USB Flash Drive that includes product documentation and Firmware Updater Application
    • 1x Warranty Extension Registration Card
