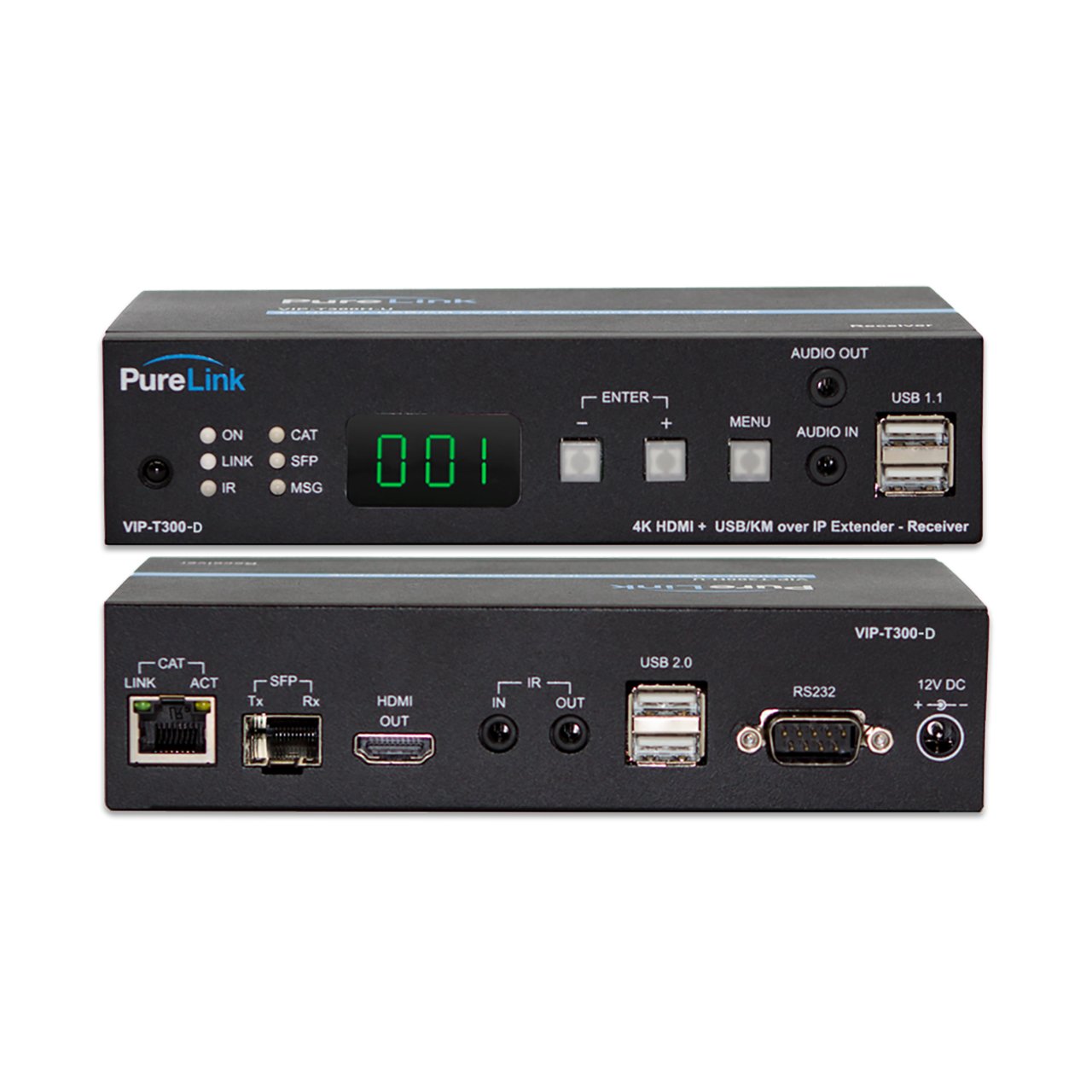

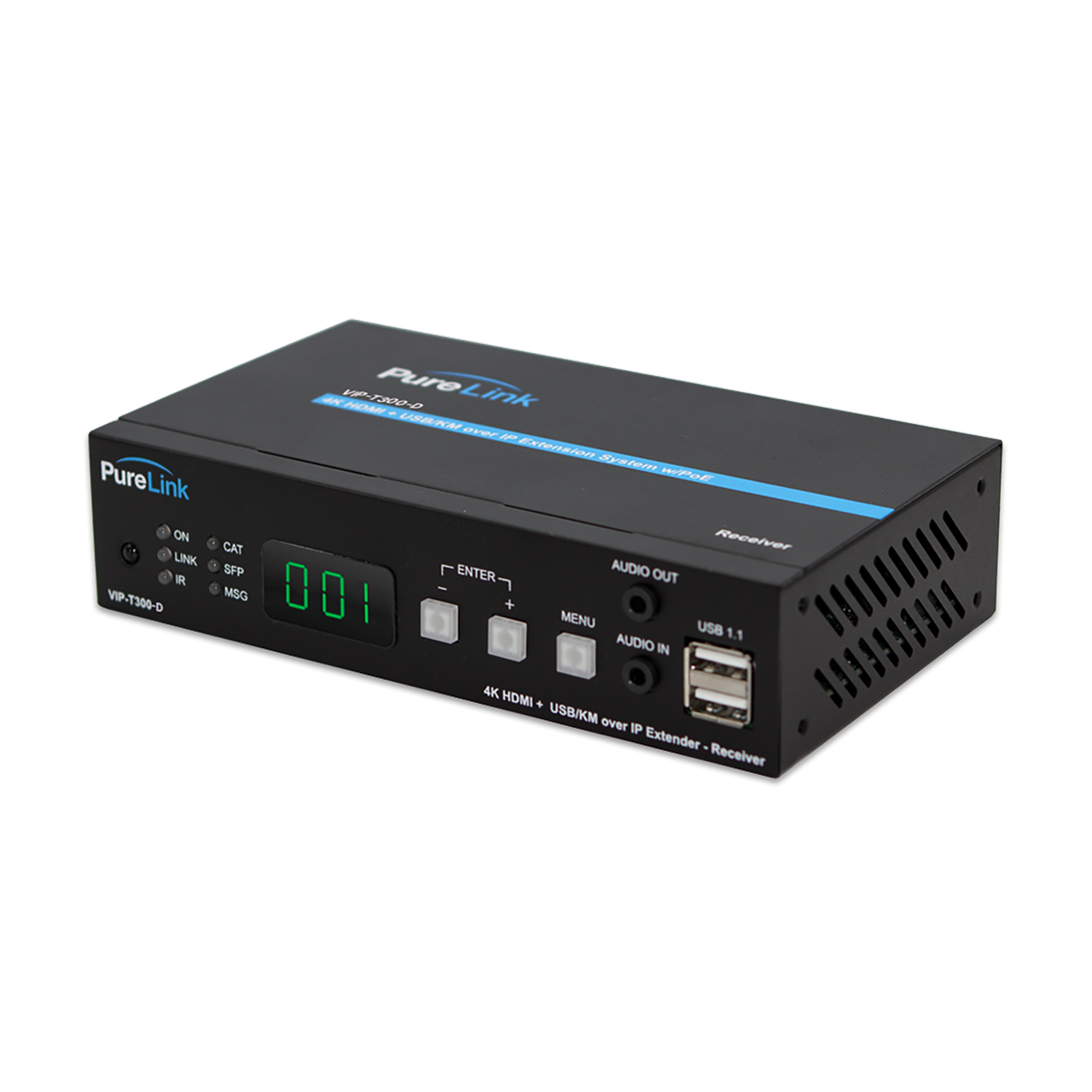

PureLink VIP-T300-D Ultra-low Latency 4K HDMI & USB/KM over IP Decoder - TAA

VIP-T300-D - Overview

• Features:

  • Ultra-low latency (<17mS)
  • Max data rate 250Mbps;
  • Fiber or CAT transport - 1G port
  • Extend signals up to 300 m. using a network switch
  • HDCP 2.2 compliant
  • Comprehensive diagnostics via the front panel and API - device discovery, signal data, and EDID
  • Supports instant switching
  • Multiple control interfaces - built-in web interface, front panel buttons, IR remote control, VPX Management Software, and 3rd party control development via API
  • Built-in video wall processing (up to 8x8)
  • Built-in scaler on the receiver (decoder)
  • Image rotation 0, 90, 180 degrees
  • IR and RS232 extension
  • TCP/IP to RS232 conversion
  • USB 2.0 for keyboard/mouse, camera, or hard drive
  • HDMI loop-out on TX (encoder)
  • PoE 802.3af (under 5W)
  • Supports Dolby, DTS, and LPCM audio
  • Matrix switching systems up to 999 sources and 65K displays
  • TAA compliant
  • Rack-mount option available


• Specifications:

  Hardware
  • Input Signal Type(s):
    - 1x 3.5mm Mono Phone Jack
    - 2x USB 1.1 Type A
    - 2x USB 2.0 Type A
    - RS-232 (DB9 Male)
    - Ethernet (RJ45)
    - Fiber SFP (1G)

    Performance
  • Supported Distance: 150M (up to 300M using Network Switch)
  • Supported Resolutions: up to 4K@30Hz (4:4:4)
  • Compliance: HDCP 2.2
  • Supported Audio Formats:
    - Up to 7.1 LPCM 192Khz
    - Dolby True HD
    - DTS-HD Master Audio
    - ATMOS
    - DTS:X
  • Power Consumption: 500mA (Typical, No USB Device)
  • Power Supply: DC 12V 1500mA
  • PoE (Power Over Ethernet): 802.3af

    Enclosure
  • Product Dimensions: 6.5" x 4.0" x 1.5"
  • Product weight: 1.1 lbs.


• Item Includes:

  • 1x 12 VDC Power Adapter
  • 1x set of mounting brackets
  • 1x IR receiver
  • 1x USB cable


• Warranty:

  • 3-Years


• GTIN:

  0817705025500
