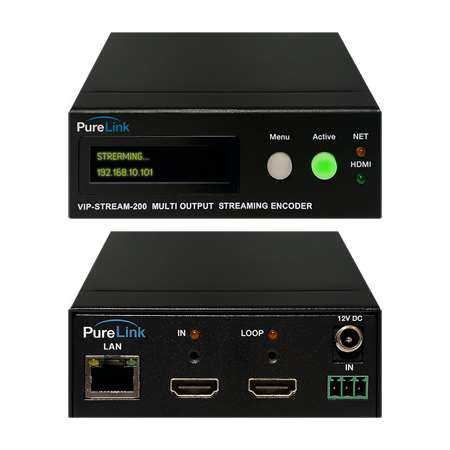

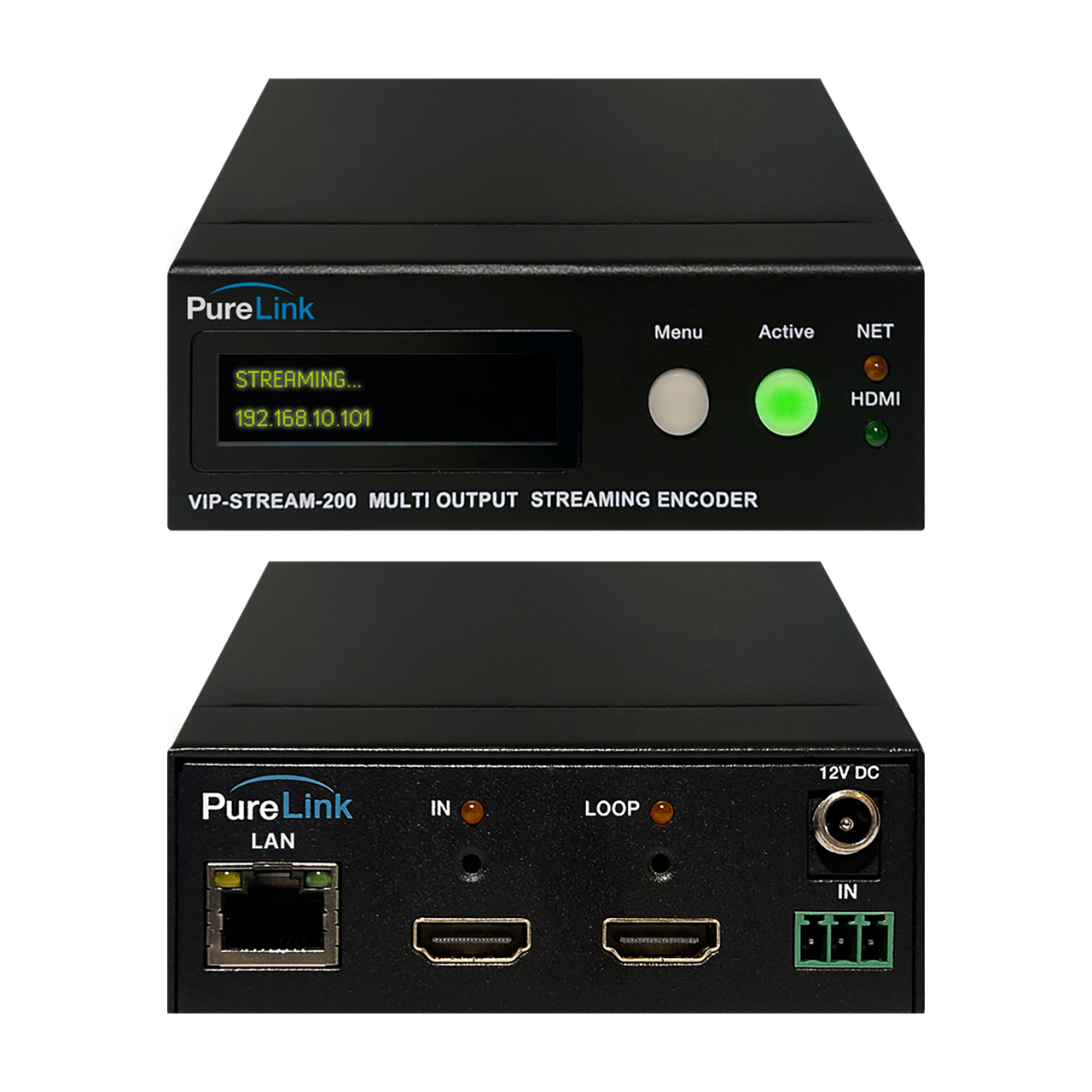

PureLink VIP-STREAM-200 PureStream 1080p H.264 Encoder with Front Panel Controls

VIP-STREAM-200 - Overview

• Features:

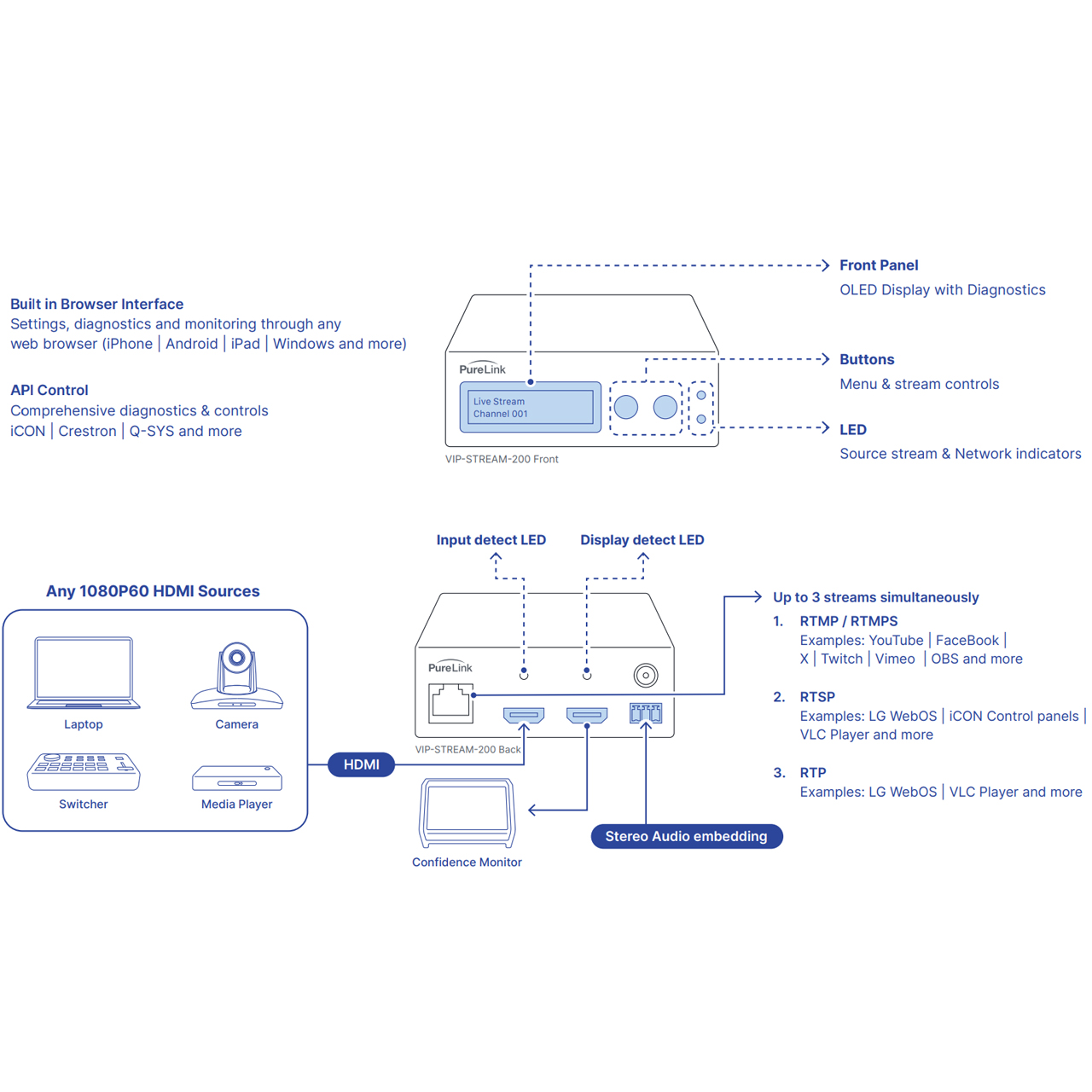

  • Stream anywhere in the world, to three platforms simultaneously:
  • Live Streaming to FaceBook, YouTube, Twitter, Vimeo, OBS, and many more
  • Compatible with LG displays with streaming input
  • RTMP, RTMPS, Multicast:
  • Provides image preview/capture output up to 5 frames/sec
  • IH.264 codec provides low-bandwidth AV over IP
  • Decode using H.264 compliant software such as VLC
  • Built-in web-page for easy one time configuration/setup

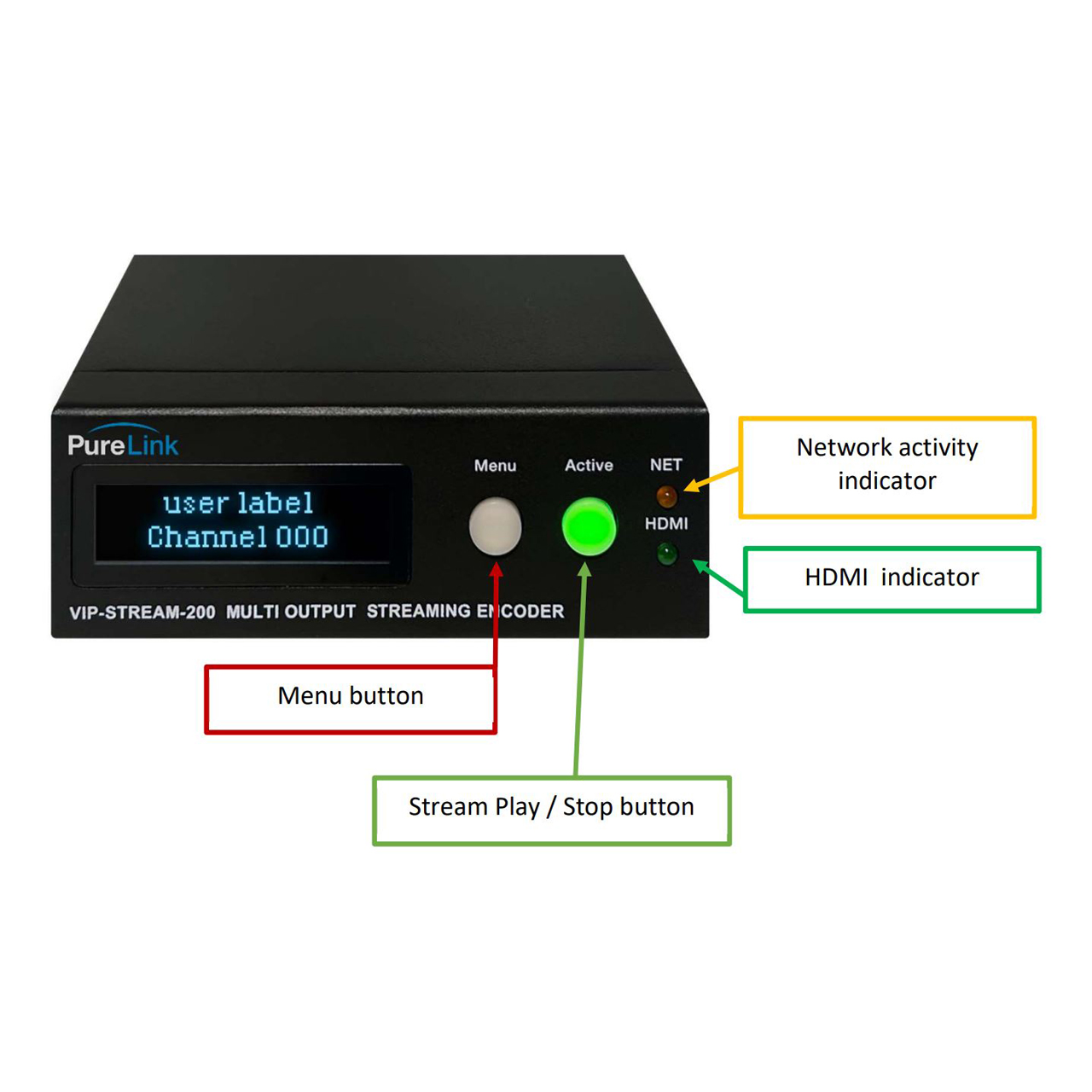

  • View complete diagnostics on front panel LED display
  • Loop Out for confidence monitoring
  • Audio insert


• Specifications:

  Performance
  • Supported Distance: 330 ft. (100m)
  • Supported Resolutions: 480i to 1080p@60Hz

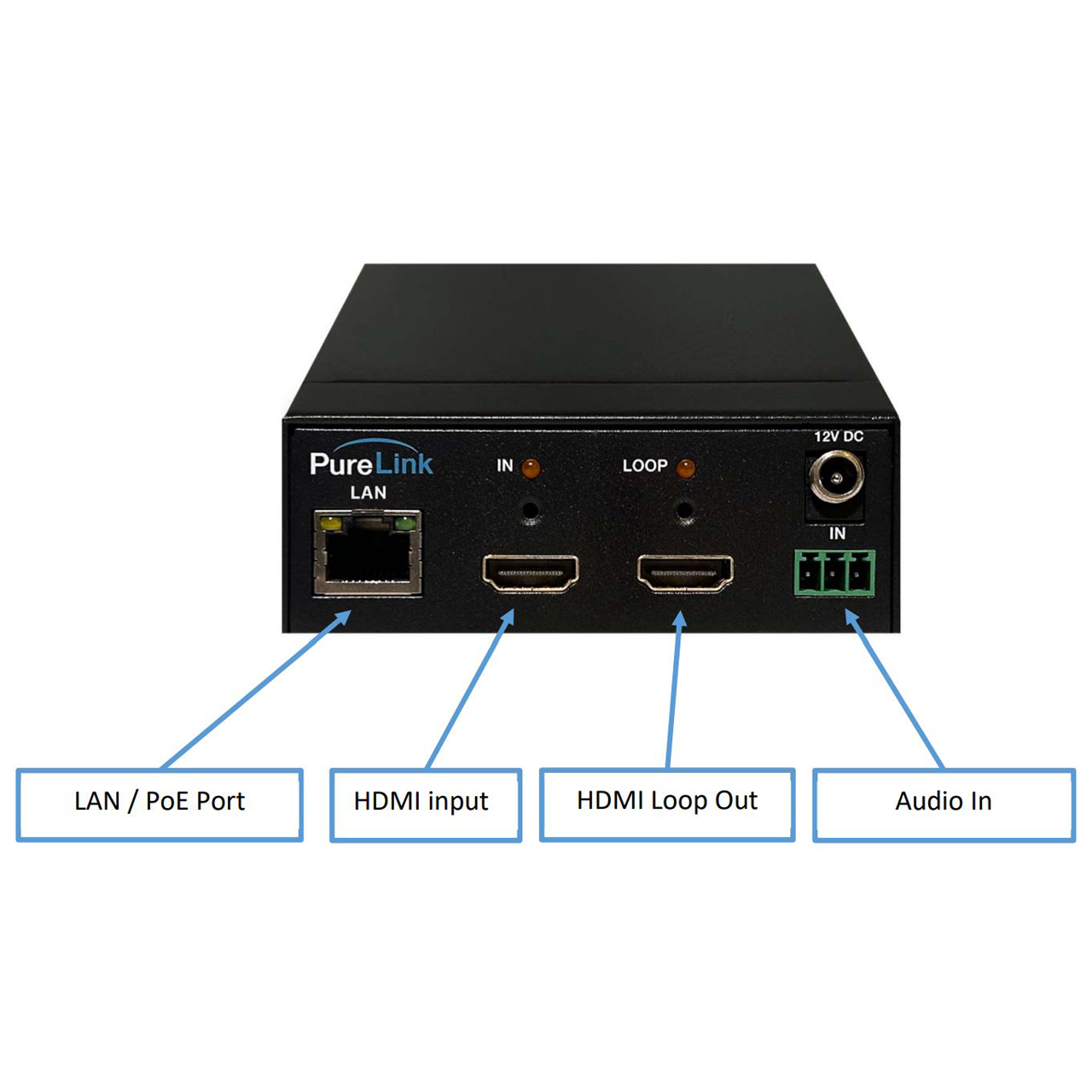

    Connections
  • Inputs: 1x HDMI with 1x HDMI Loop Out
  • Outputs: 1x CATx

    Power
  • Power Supply: 12V DC

    Environmental
  • Operating Temperature: 32°F - 131°F (0°C - 55°C)
  • Storage Temperature: -4°F - 185°F (-20°C - 85°C)
  • Relative Humidity: Max 95% NCH

    Enclosure
  • Product Dimensions: 3.0in x 4.0in x 1.1in (76.2mm × 101.6mm × 27.94mm)
  • Product weight: 0.34lbs (0.15kg)


• Item Includes:

  • 1x VIP-STREAM 200 encoder
  • 1x AC to DC power adapter


• GTIN:

  0817705026408
