Palmer Audio PAL-PAOCLTRSM EtherCON to Four 1/4-Inch TRS Jack Male Adapter Cable - Aluminum/Steel Casing

ITEM #: PLM-PALPAOCLTRSM MFG #: PAL-PAOCLTRSM

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$149.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PAL-PAOCLTRSM - Overview

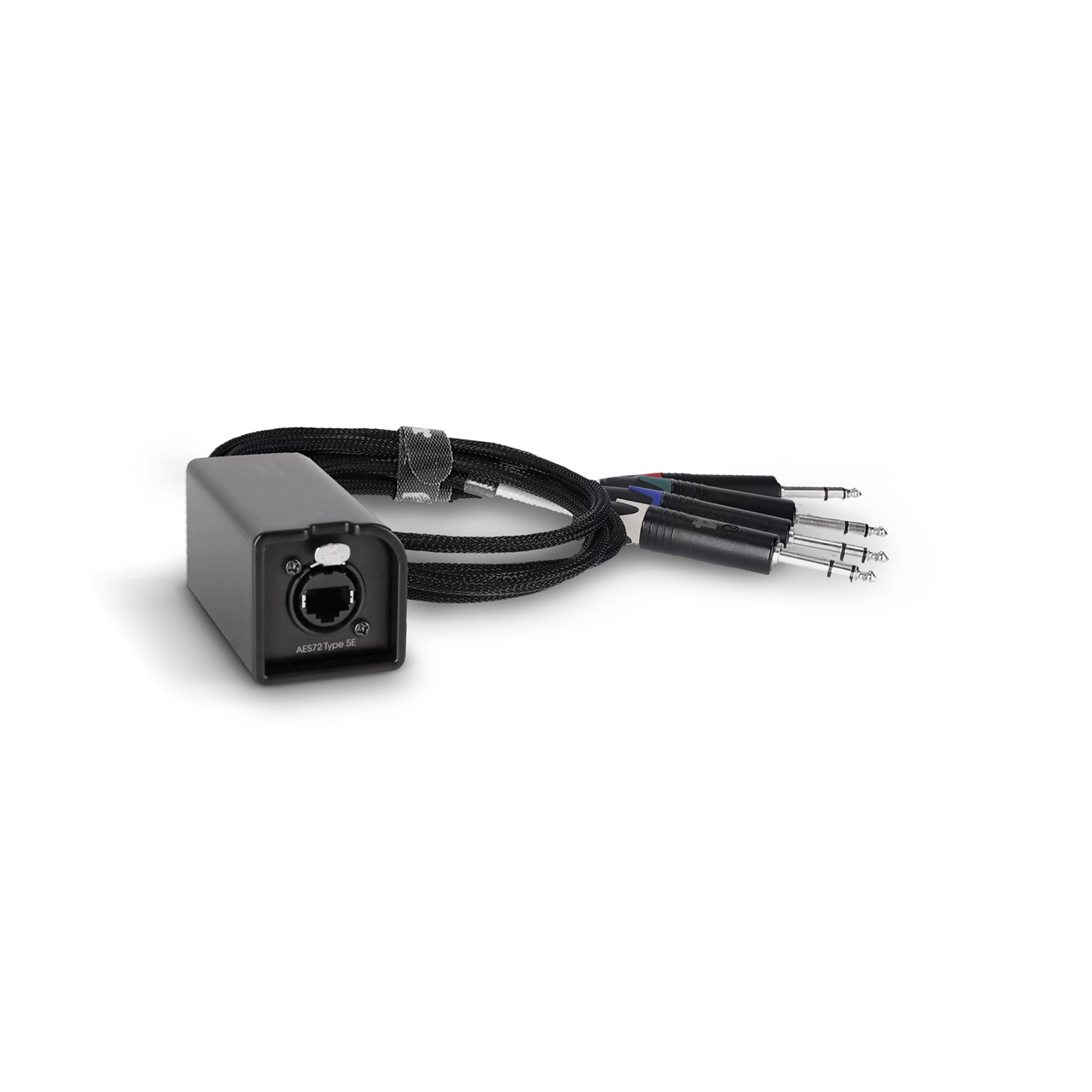

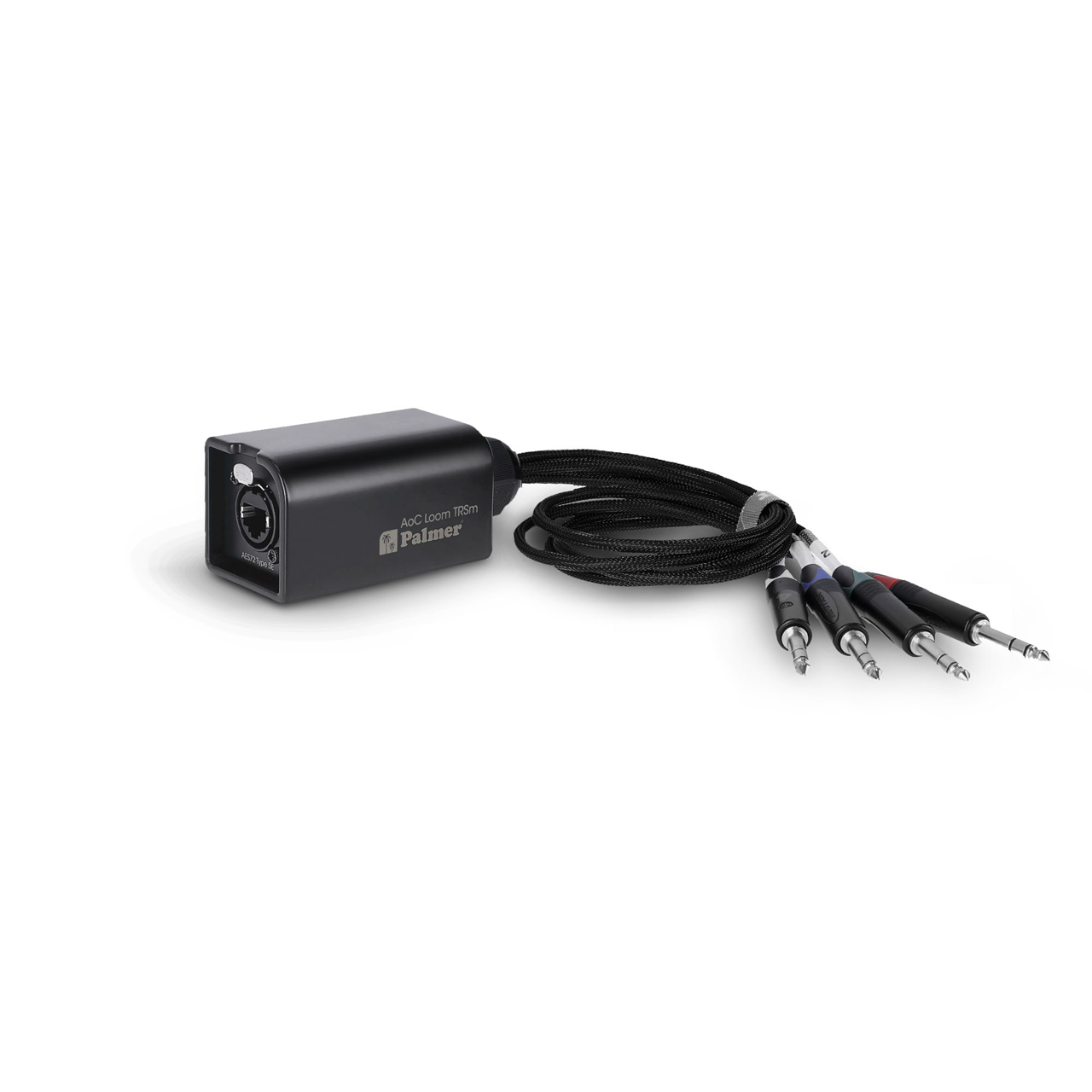

The Palmer Audio P AOC L TRS M is a multicore adapter cable that facilitates the stable transmission of 4 separate analog and balanced audio signals through a network cable (not included). The 6.3 mm TRS jacks are numbered and color-coded for easy identification. The Ethercon connection is safeguarded against unlocking to prevent accidental cable disconnection.

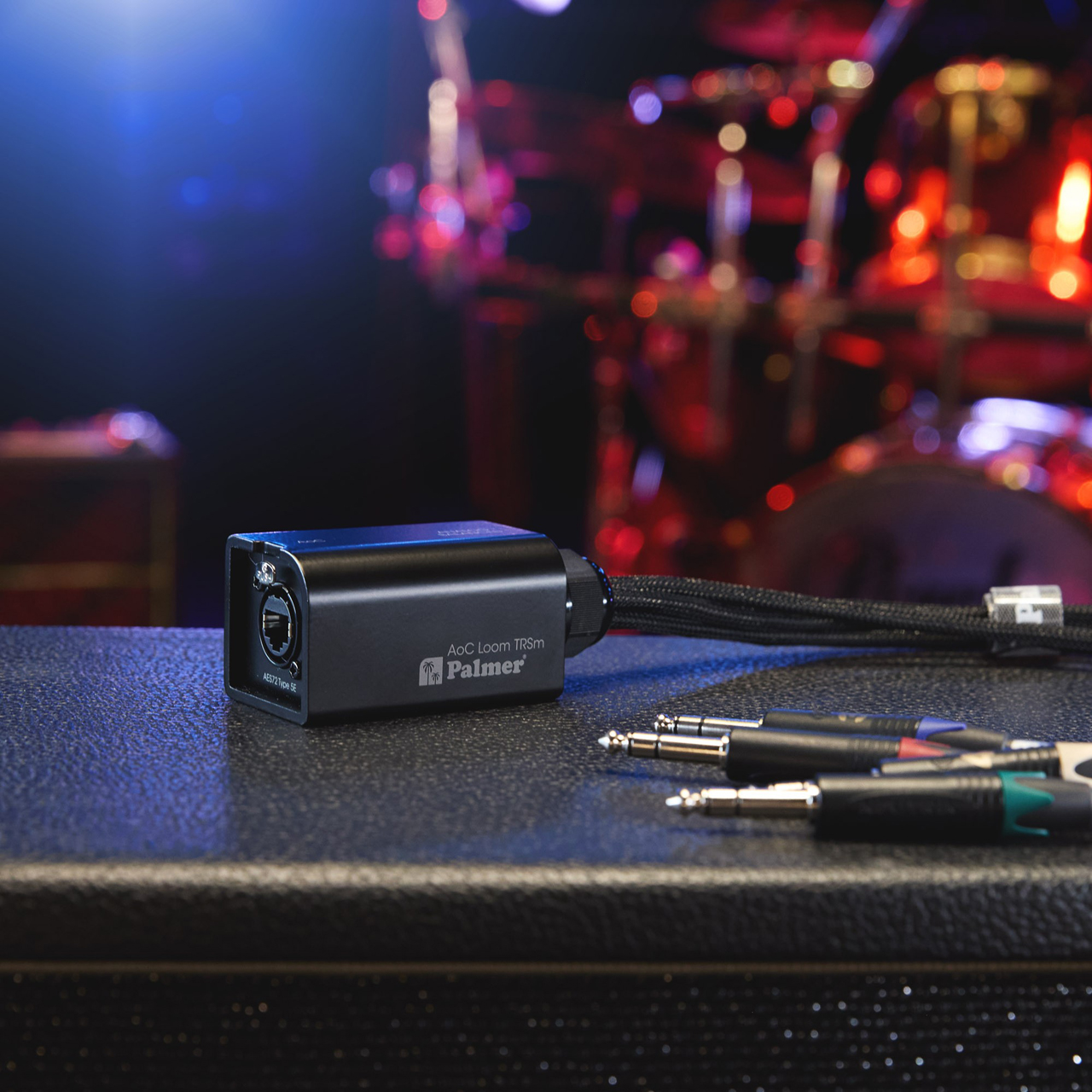

Audio is transmitted via a single, standard Ethernet cable, allowing the P AOC L TRS M to be used flexibly across various applications, be it for live concerts, studio sessions, press conferences, or other productions.

Featuring high-quality Neutrik components, a solid aluminum-steel housing, and robust mesh cables with a 50 cm splice, the P AOC L TRS M guarantees reliable signal transmission and durability in professional environments. Its simple, high-quality design also enhances the visual appeal of any setup.

All these factors make the P AOC L TRS M a reliable and durable tool that provides an affordable and flexible alternative to conventional 4-channel multicores without compromising audio quality - as you have always come to expect from Palmer.

  • Features:

    • Four balanced analogue audio channels over Cat5e or higher (Ethernet cable not included)

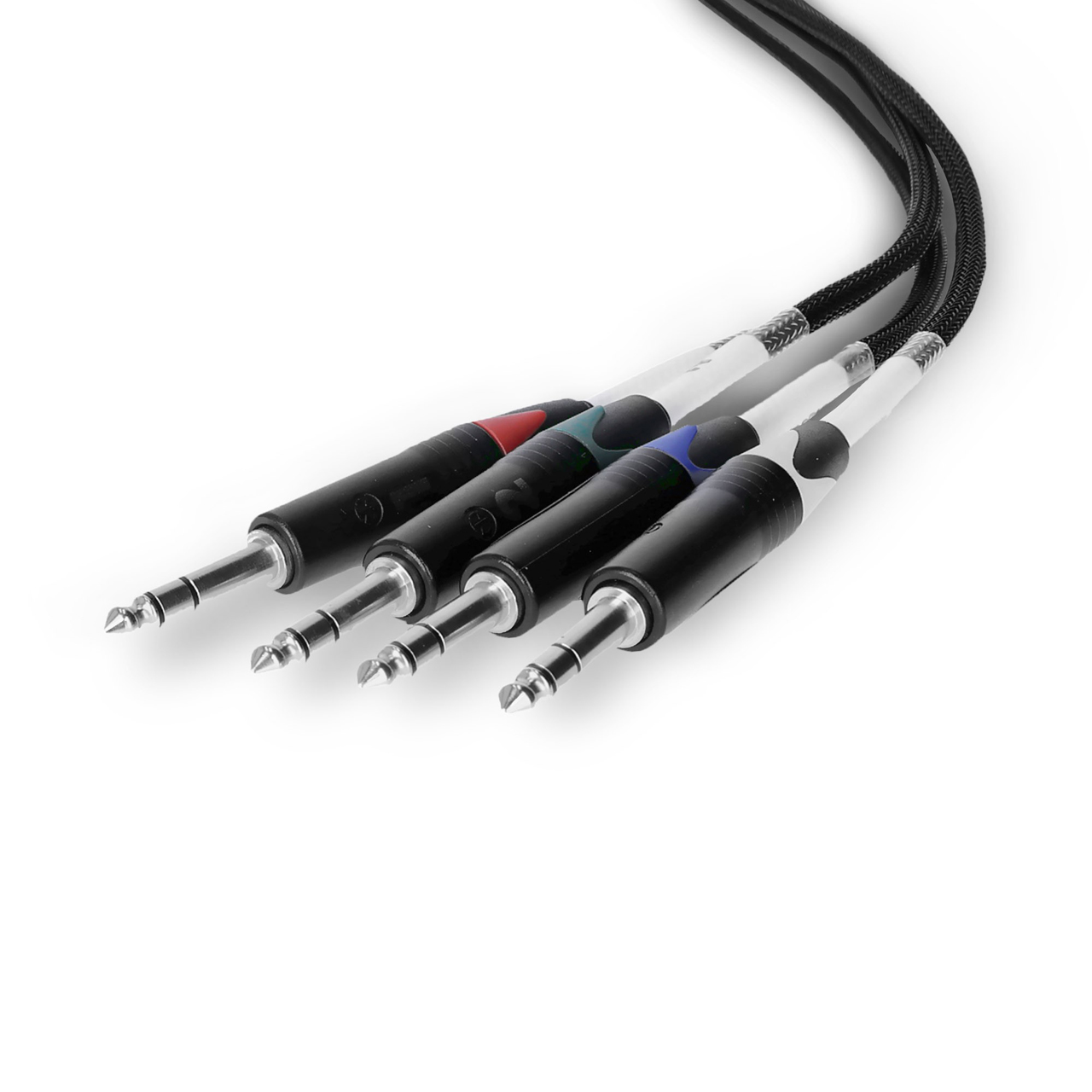

    • etherCON to four 6.3mm TRS jack
    • AES72 Type 5E
    • Premium Neutrik components
    • Robust mesh cable, 0.5m
    • Solid casing made of aluminum and steel
    • Engineered in Germany

  • Specifications:

    • General
    • Number of Inputs: 4
    • Input Type: Balanced
    • Source Select: RJ45
    • Number of Outputs: 4
    • Output Type: Balanced
    • Output Connector: 4x 1/4" TRS Stereo Jack
    • Material: Aluminum, Steel
    • Cable Length: 0.5m
    • Width: 5.04" (128mm)
    • Depth: 5.51" (140mm)
    • Height: 1.97" (50mm)
    • Weight: 0.77lbs (0.3kg)
    • Operating Temperature: -4°F - 158°F (-20°C - 70°C)
    • Air Humidity: > 80% (non-condensing)

      Audio
    • Max. Input Level (< 1% THD, 1kHz): + 32dBu
    • Frequency range: 0Hz - 20kHz
    • THD (1kHz, +4dBu, unity, unweighted): < 0.0005%

      RJ45 Pin Layout (AES72 Type 5E, balanced wired, even = +)
    • Pin 1: Channel 3 -
    • Pin 2: Channel 3 +
    • Pin 3: Channel 4 -
    • Pin 4: Channel 1 +
    • Pin 5: Channel 1 -
    • Pin 6: Channel 4 +
    • Pin 7: Channel 2 -
    • Pin 8: Channel 2 +

      Channel Color Code
    • Channel 1: Red
    • Channel 2: Green
    • Channel 3: Blue
    • Channel 4: White

  • Warranty:

    • 5 Year Warranty

  • GTIN:

    4049521908460
