Palmer Audio TRAVE Passive Re-Amplification DI Box for Signal Routing from DAW or Mixer

ITEM #: PLM-PTRAVE MFG #: PAL-PTRAVE

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$79.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


PAL-PTRAVE - Overview

Reamping is a valuable recording technique used by many sound engineers.
It lets you experiment at leisure by running guitar, bass, keyboard, drum and even vocal tracks through amplifiers and effects pedals. As with many other techniques, you need the right tools.

The Palmer trave is a passive reamping box that requires no external power supply. Inside is a specially developed transformer that converts the balanced line signal into an unbalanced Hi-Z signal with perfectly matched impedance for your guitar amplifier or effect pedal. At the same time, the trave prevents ground loops, which are otherwise almost unavoidable when you combine an audio interface or mixer output with a guitar amp or effects pedal. The input of this reamping box allows you to switch between consumer (-10 dBV) and professional (+4 dBu) levels, and the output level is continuously adjustable, so you can drive your amp or pedals just the way you like it.

With the Palmer trave passive re-amplification box, you can add new creative sounds and timbres to your music and ultimately be true to your sound.

  • Features:

    • For routing your signal from the DAW or mixer to your guitar- or bass amplifier

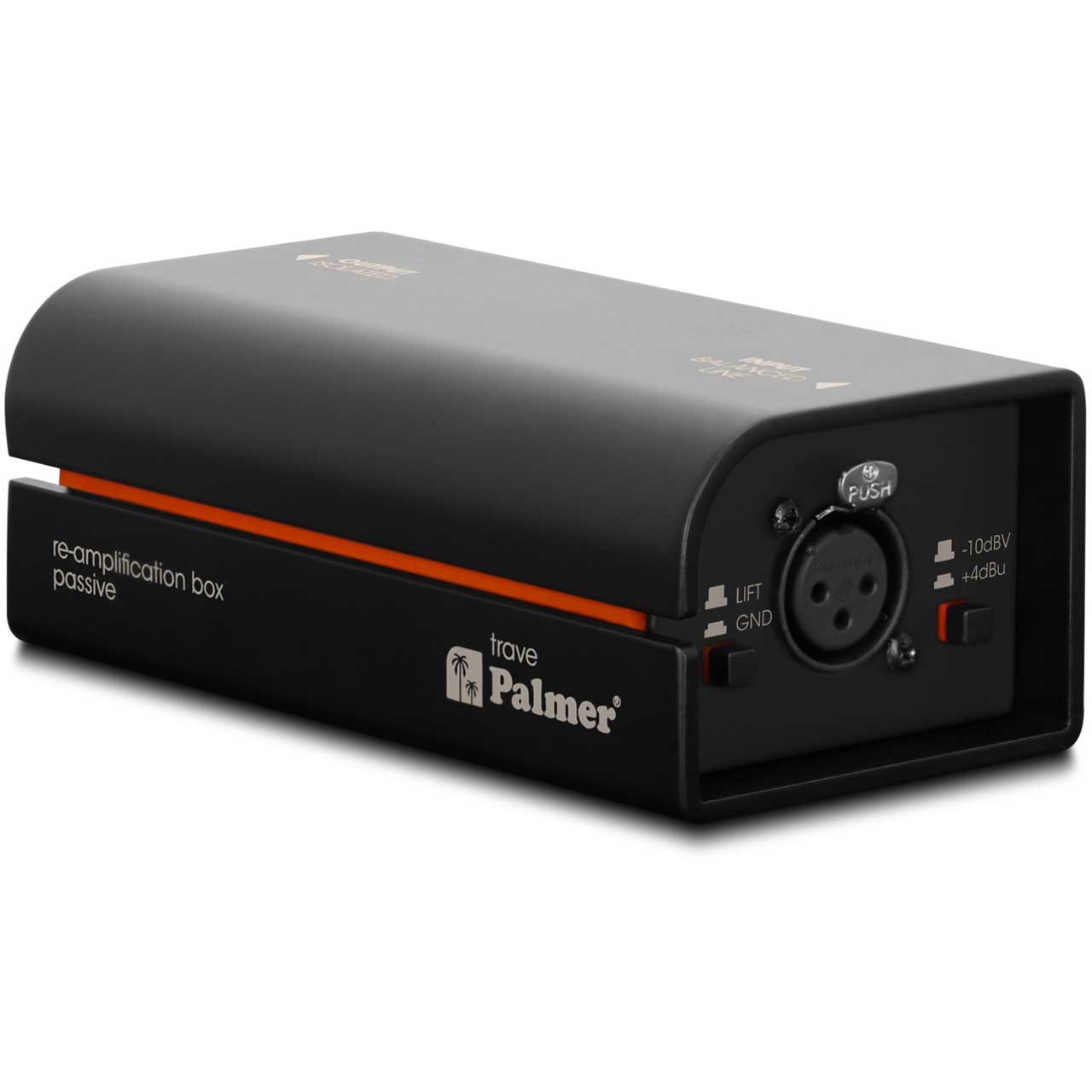

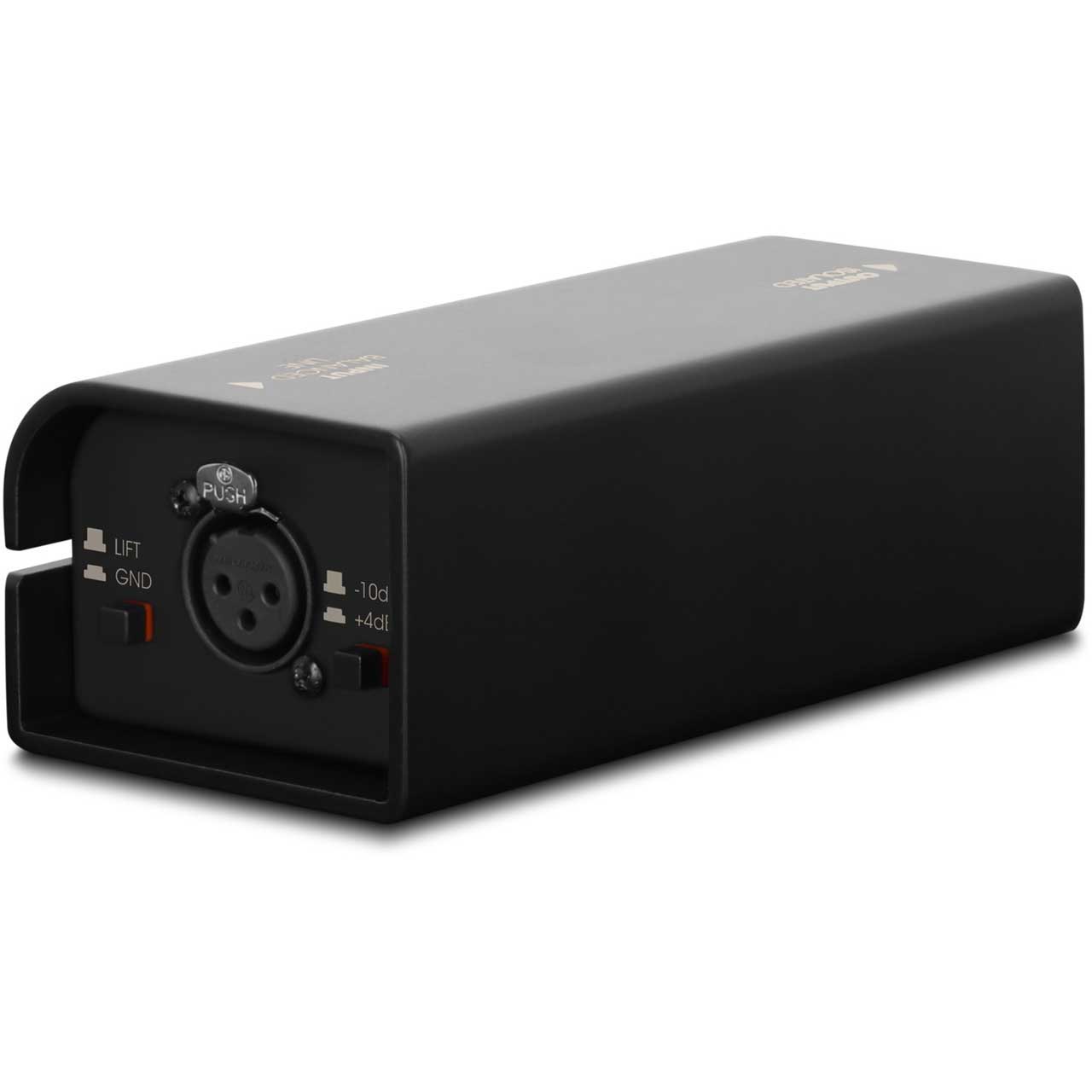

    • Prevents ground loop hum, ground lift switch
    • Converts balanced line signal to unbalanced instrument signal
    • Optimal impedance matching
    • Retains your sound clean and pure

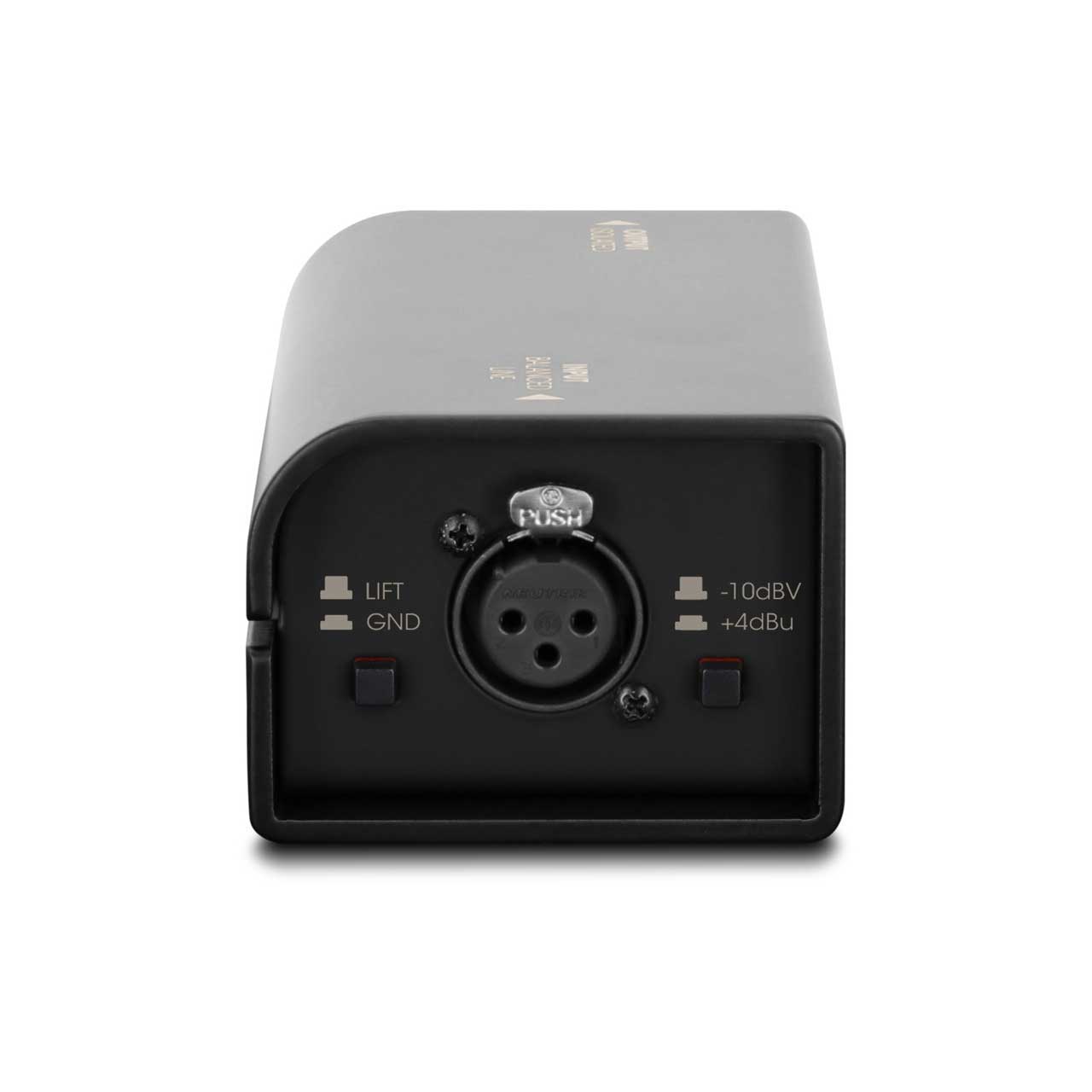

    • Switchable input level - 10dBV/+4 dBu

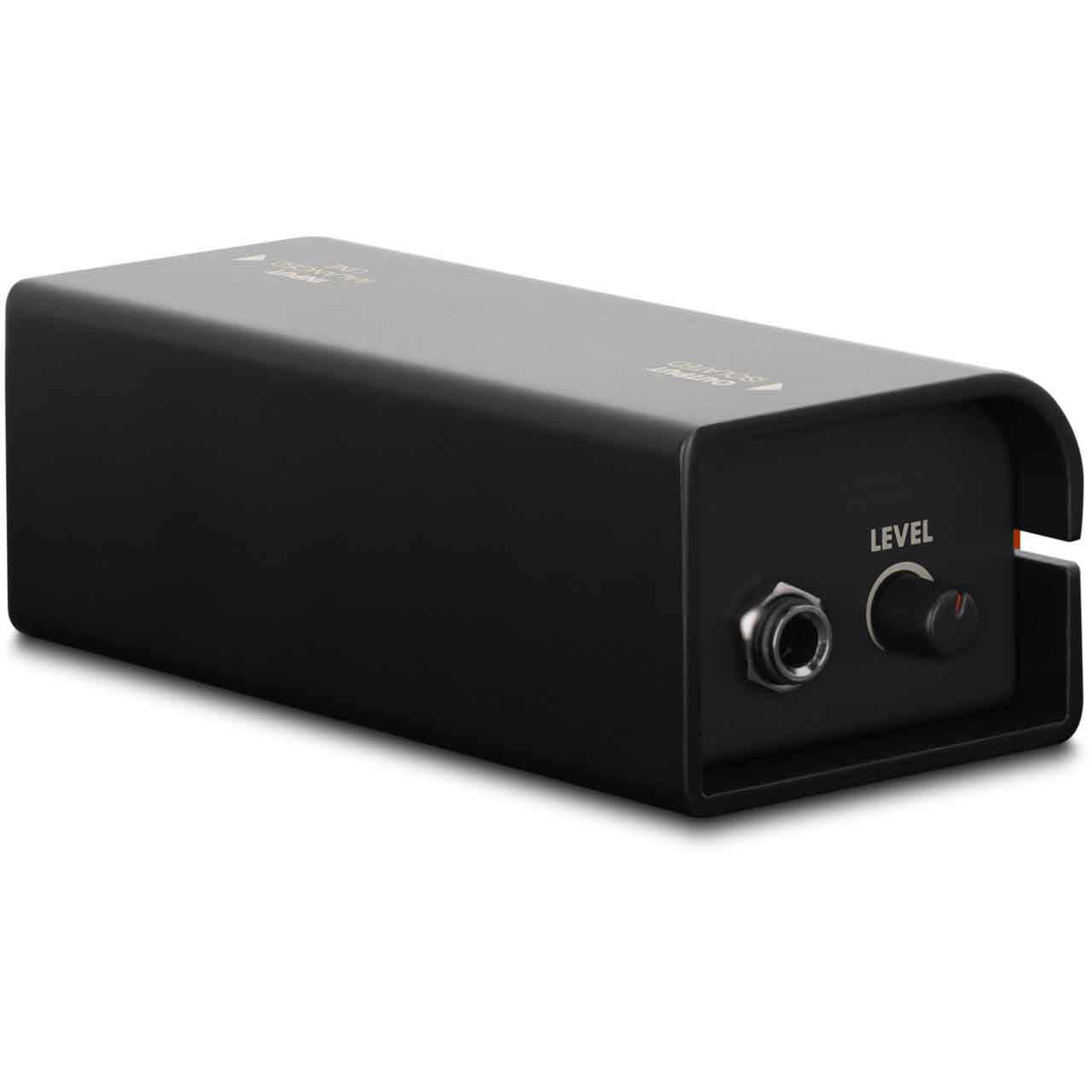

    • Output level continuously adjustable
    • Passive operation, no power supply required

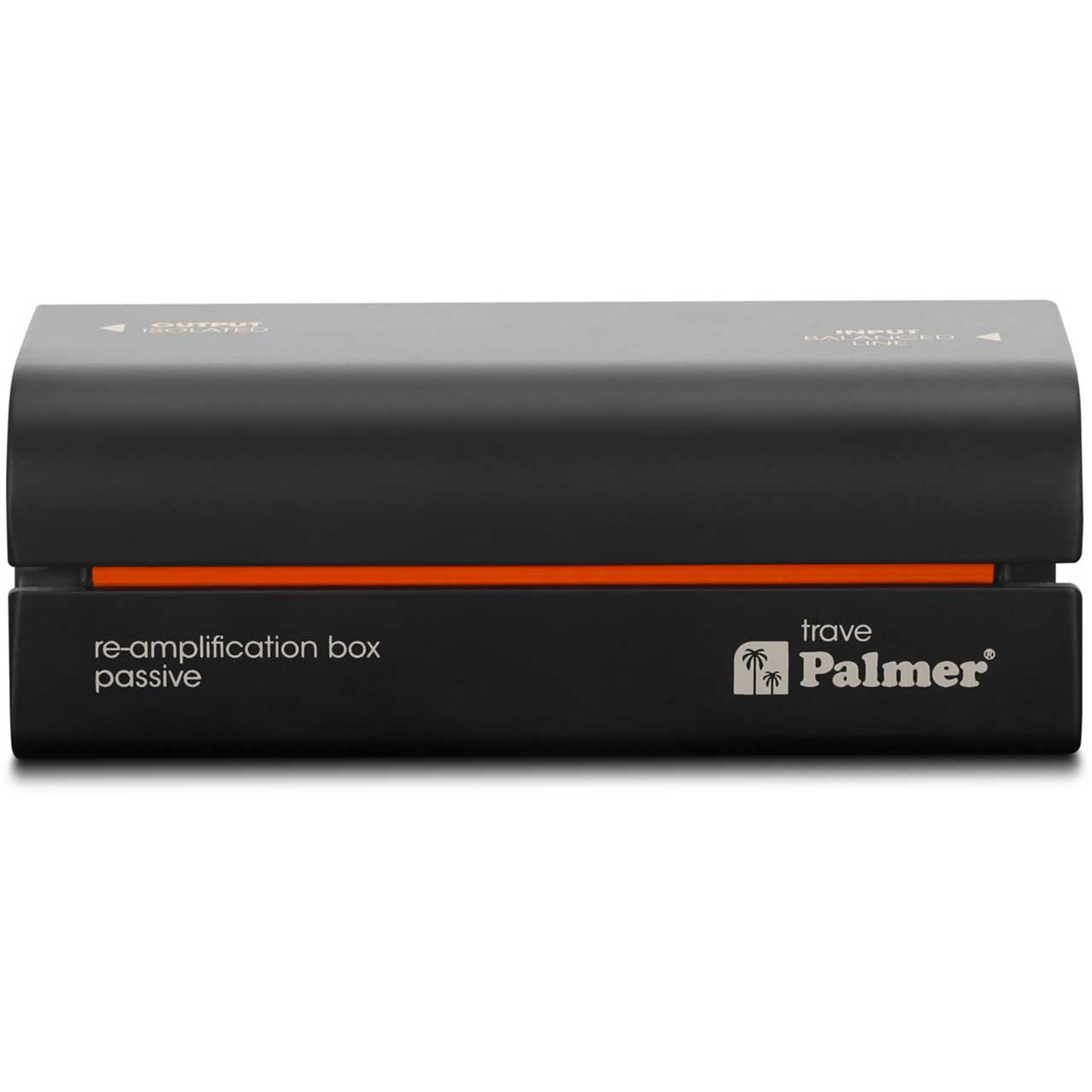

    • Solid casing made of aluminium and steel
    • Incl. rewritable tour label for attachment onto the back of the trave
    • Engineered in Germany

  • Specifications:

    • Product type: DI box
    • Type: passive
    • Channels: 1
    • Transformer isolated: Yes
    • Inputs: 1
    • Input type: balanced
    • Input connectors: XLR
    • Outputs: 1
    • Output type: unbalanced
    • Output connectors: 6.3 mm jack
    • Ground lift switch: yes
    • Max. input level (< 1% THD, 20 Hz): +19 dBu
    • Max. input level (< 1% THD, 1 kHz): +32 dBu
    • Frequency response (±1 dB, relative 1 kHz): 10 Hz - 20 kHz
    • Input impedance (1 kHz, max. Level, -10dBV): 5 Ohm
    • Output impedance (1 kHz, max. Level, -10dBV): 4.2
    • THD (30 Hz, +4 dBu, unity, unweighted): <0,08%
    • THD (1 kHz, +4 dBu, unity, unweighted): <0,003%
    • IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu): <0,004%
    • Transformer ratio: 1:3
    • More features: Input Level Switch, Output Level Potentiometer
    • Housing material: Aluminium continuous casting
    • Height: 140 mm
    • Width: 50 mm
    • Depth: 68 mm
    • Ambient temperature (in operation): -20 - 70 °C
    • Relative Humidity: < 80% (non-condensing)
    • Accessories (included): Inscription label (tour label), rubber feet
    • Weight: 0,395 kg

  • Warranty:

    • 5 Years

  • GTIN:

    4049521659430
