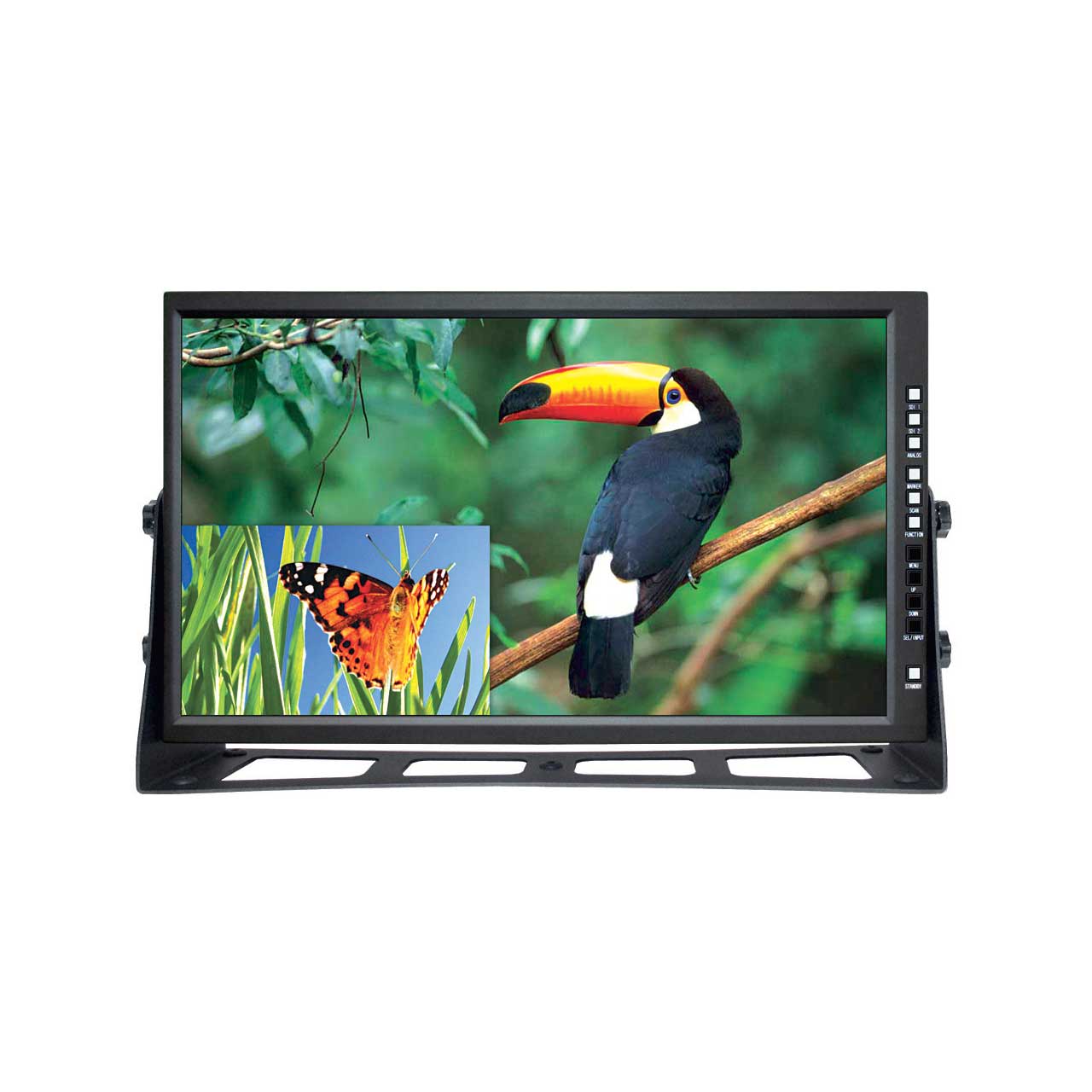

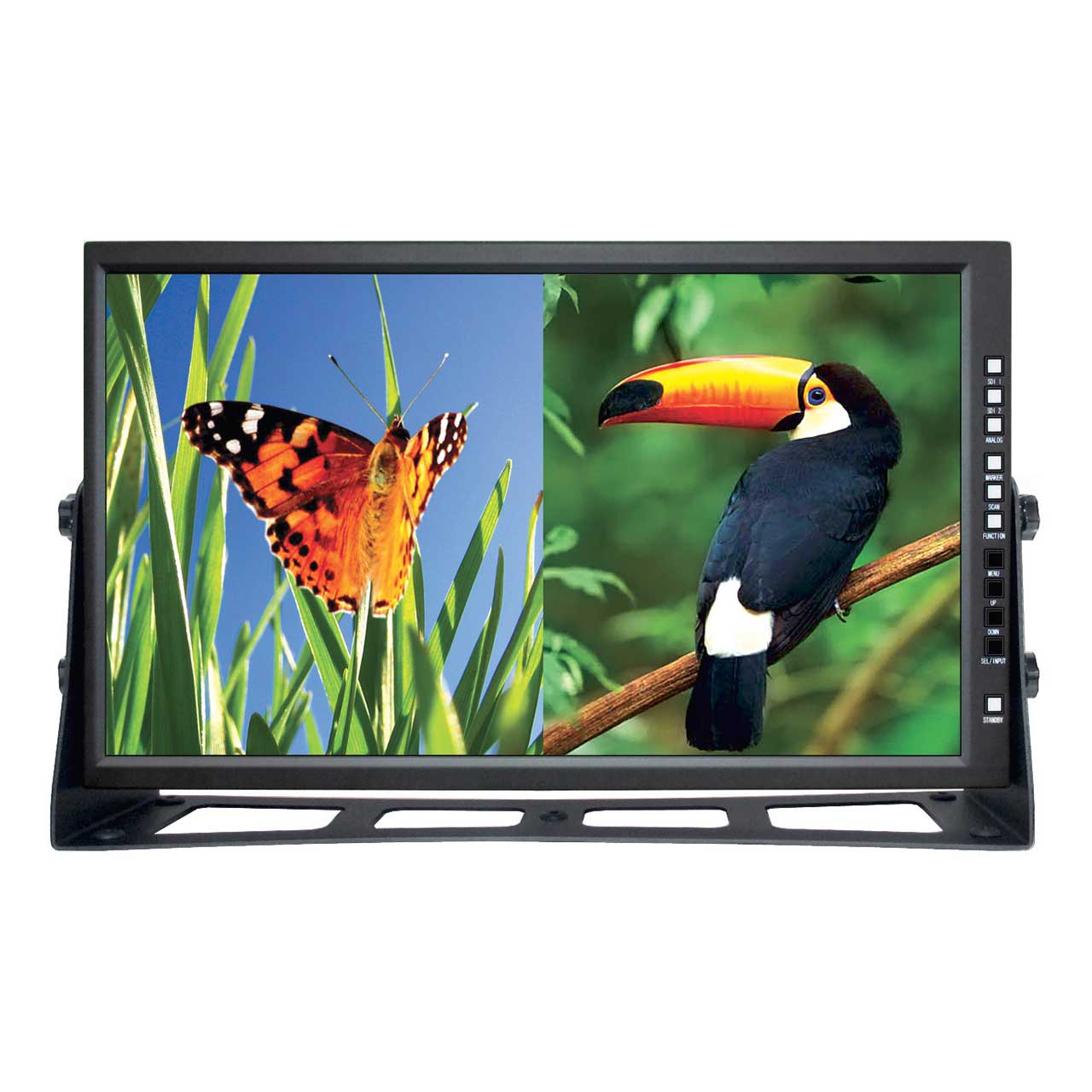

Plura LCM-123-3G 23in Multi-Format 3G HD-SDI Monitor - Dual Display Capability

ITEM #: PLUR-LCM-123-3G MFG #: LCM-123-3G

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Plura Broadcast, Inc.
Free Shipping with $49 Minimum Order

List Price:

$2,310.00

Our Price:

$2,079.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

LCM-123-3G - Overview

LCM Series consists of high quality HD LCD monitors, specifically designed for use in Broadcast environment ensuring accurate color reproduction in accordance with SMPTE, EBU, REC 709 Broadcast Standards.

The standard calibration feature enables gamma, color temperature and white luminance level adjustments to meet all Broadcast and medical standards. The LCM series calibration tool provides 10 bit look up table (LUT) (1024 steps of grayscale)

  • Features:

    • 3Gb/s ready - 1080/60P
    • 2 x Auto-detect with active loops (3Gb/s 1.485Gb/s 270Mb/s)
    • RGB, YUV, Y/C, Composite, UXGA, DVI & HDMI (HDCP)
    • Complies with EBU-2330 TECH, SMPTE-C and ITU-R BT.709 standards
    • (ICAC) - Plura Intelligent Connection for Alignment & Calibration
    • Cutting edge De-interlacing and Scaling Technology
    • Fast Response Time for high Motion Video
    • 12 Bit Color Processing
    • 178 Viewing Angle Display
    • Color Temperature - User adjustable (11000K TO 3200K)
    • Various and User defined Markers Display, Safe Area in HD & SD
    • Picture and Picture (PaP), Picture in Picture (PiP) Display / Blend
    • Third-party Tally systems support
    • Underscan / Overscan / Normal / Zoom
    • Internal Test pattern Mode
    • Ethernet & Serial Wall Remote Control
    • Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)
    • OPTIONS: Rack mount for (LCM-119-3G)~6 RU & (LCM-123-3G)~7RU


  • Specifications:

    • Inputs:
    • 1 x HDMI HDMI In (With HDCP), 19 Pin Female
    • 1 x DVI DVI In, 24 Pin Female
    • 2 x HD-SD 3G HD/SD-SDI Two Inputs, Dual Link
    • 1 x D-Sub RGBHV (VGA) In, 15 Pin Female
    • 2 x 9 P D -Sub RS-232 In./Out, 9 Pin Male
    • 3 x BNC Component In (Y, Pb, Pr)
    • 2 x BNC S-Video In (Y,C)
    • 1 x BNC Composite In (CVBS)
    • Output:
    • 2 HD/SD-SDI 3 G HD/SD-SDI Two Outputs Input Signal
    • Input Signal:
    • DVI 640 x 480 up to 1920 x 1080
    • HDMI 640 x 480 up to 1920 x 1080
    • PC-RGB 640 x 480 up to 1920 x 1080, SOG sync support
    • HD-SDI 3G Signal (LEVEL A/B)
    • Analog Input:
    • Composite 1.0Vp-p (With Sync)
    • S-Video Y : 1.0Vp-p, C : 0.7Vp-p
    • Component Y: 1.0Vp-p, Pb : 0.7Vp-p, Pr : 0.7Vp-p
    • D-Sub 1.0Vpp (With Sync)
