Plura LCM-132-3G Plura 32in 3G HD-SDI Monitor w/ Dual Display Capability

LCM-132-3G - Overview

• Features:

  • 3Gb/s ready - 1080/60P
  • 2 x Auto-detect with active loops (3Gb/s ~ 1.485Gb/s ~ 270Mb/s)
  • RGB, YUV, Y/C, Composite, UXGA, DVI & HDMI (HDCP)
  • Complies with EBU-2330 TECH, SMPTE-C and ITU-R BT.709 standards
  • (ICAC) - Plura Intelligent Connection for Alignment & Calibration
  • Cutting edge De-interlacing and Scaling Technology
  • Fast Response Time for high Motion Video
  • 12 Bit Color Processing
  • 178 Viewing Angle Display
  • Color Temperature - User adjustable (11000K TO 3200K)
  • Various and User defined Markers Display, Safe Area in HD & SD

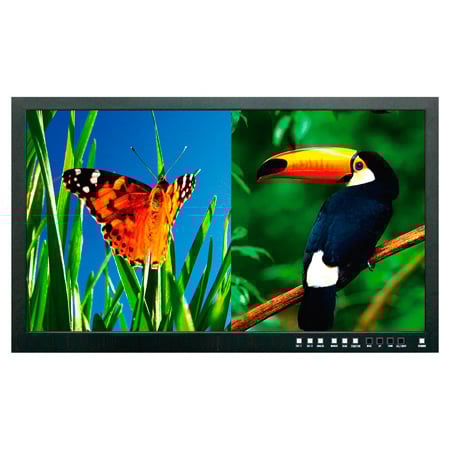

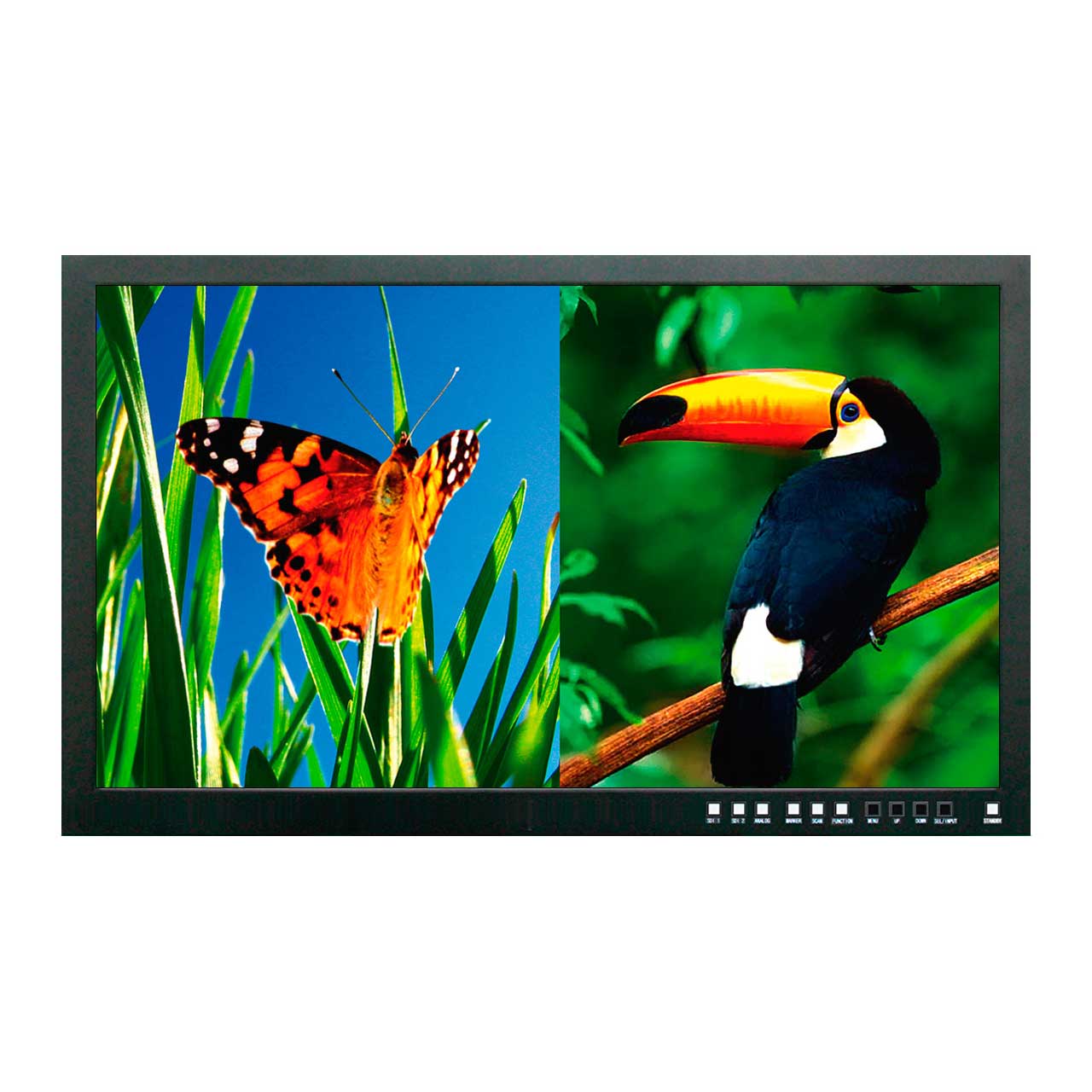

  • Picture and Picture (PaP), Picture in Picture (PiP) Display / Blend
  • Third-party Tally systems support
  • Underscan / Overscan / Normal / Zoom
  • Internal Test pattern Mode
  • Ethernet & Serial Wall Remote Control
  • Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)
  • OPTIONS: Rack mount for (LCM-119-3G)~6 RU & (LCM-123-3G)~7RU


• Specifications:

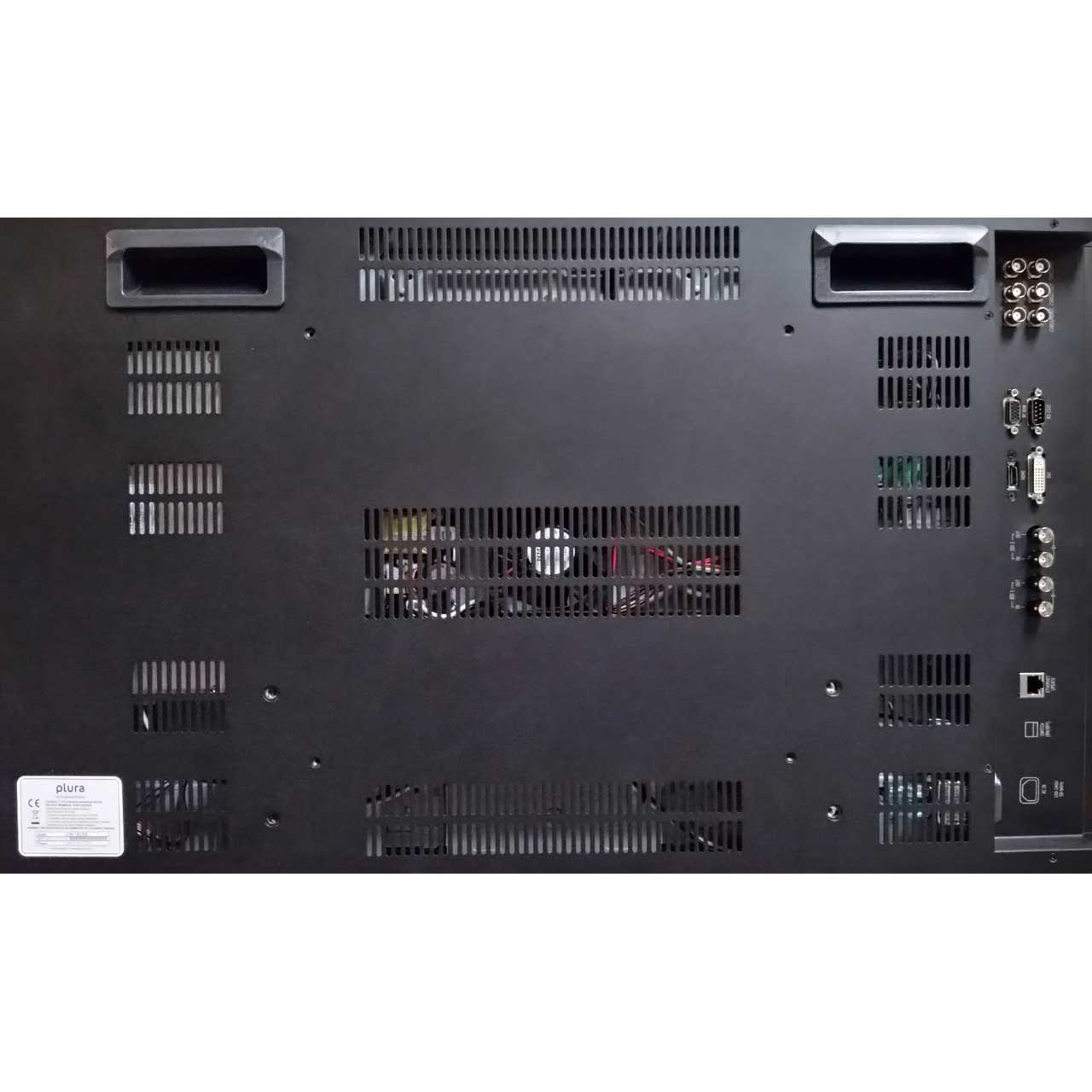

  • Inputs:
  • 1 x HDMI HDMI In (With HDCP), 19 Pin Female
  • 1 x DVI DVI In, 24 Pin Female
  • 2 x HD-SD 3G HD/SD-SDI Two Inputs, Dual Link
  • 1 x D-Sub RGBHV (VGA) In, 15 Pin Female
  • 2 x 9 P D -Sub RS-232 In./Out, 9 Pin Male
  • 3 x BNC Component In (Y, Pb, Pr)
  • 2 x BNC S-Video In (Y,C)
  • 1 x BNC Composite In (CVBS)
  • Output:
  • 2 HD/SD-SDI 3 G HD/SD-SDI Two Outputs Input Signal
  • Input Signal:
  • DVI 640 x 480 up to 1920 x 1080
  • HDMI 640 x 480 up to 1920 x 1080
  • PC-RGB 640 x 480 up to 1920 x 1080, SOG sync support
  • HD-SDI 3G Signal (LEVEL A/B)
  • Analog Input:
  • Composite 1.0Vp-p (With Sync)
  • S-Video Y : 1.0Vp-p, C : 0.7Vp-p
  • Component Y: 1.0Vp-p, Pb : 0.7Vp-p, Pr : 0.7Vp-p
  • D-Sub 1.0Vpp (With Sync)
